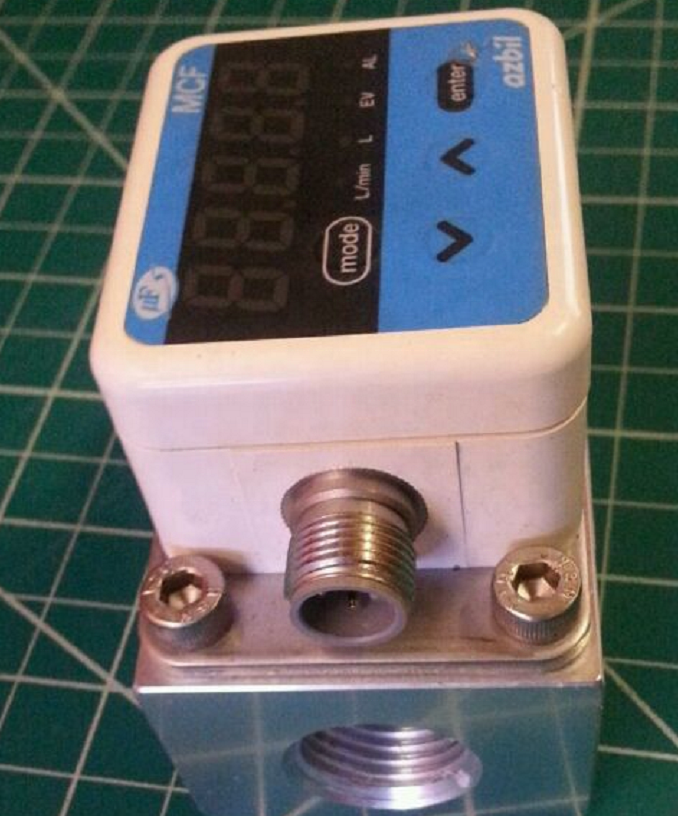

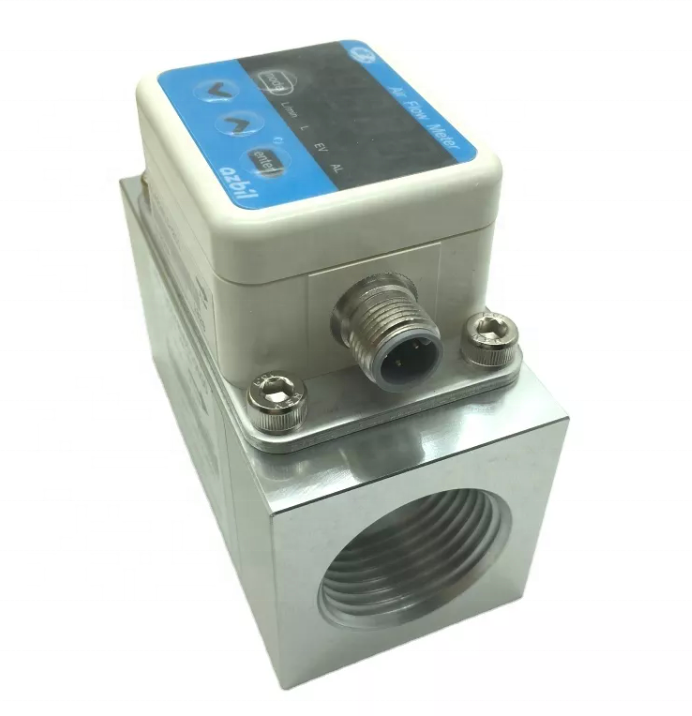

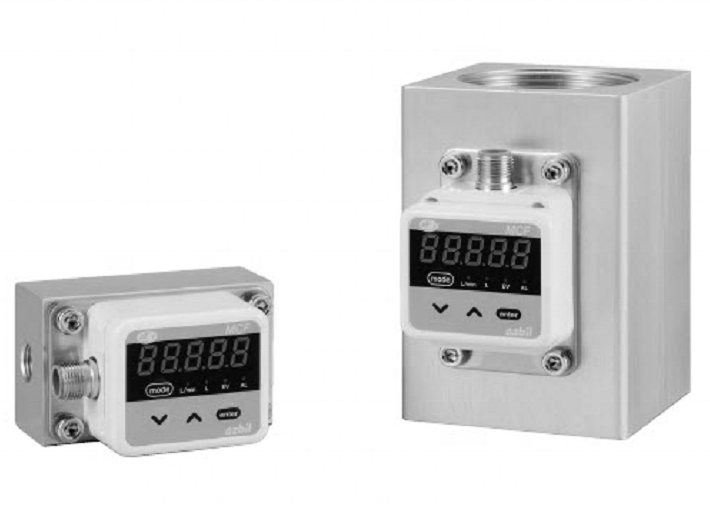

Yamatake AZBIL MCF series MCF0250ARND010000 MCF150Arnd010000 flowmeter sensor bargaining quality air flow sensor
- 390.00 piece
Registered Supplier
Direct Contact
Inquiry via Message
Product Details
| type: | Flow Sensors | O-ring material: | HNBR |
| Package preview: | temperature: | -10 to +60°C | |
| Working pressure range: | -0.07 to +1.0 MPa | humidity: | 0 to 90% relative humidity |
| Origin: | Japan | The sampling period: | Up to 1 second/30 seconds |
| Warranty: | 1 year | usage: | automated industry |
| Packaging Details: | original carton | Customization support: | OEM、ODM |
| Supply capacity: | 100 pieces per month | payment terms: | L/C, Western Union, D/P, T/T, MCB |
| port: | Xi'an Shanghai Shenzhen | Case material: | Denatured PPO |
| model: | MCF0080 MCF0150 MCF0151 MCF0250 | measurement accuracy: | ±3% full scale |
| brand: | Azbil | Pressure resistance: | 1.5 MPa |
| weight: | 500 g |
Specification
thing | value |
Warranty | 1 year |
type | Flow Sensors |
Custom support | OEM, OEM |
birthplace | Japan |
brand | Azbil |
model | MCF0080 MCF0150 MCF0151 MCF0250 MCF0400 MCF0500 |
usage | automated industry |
measurement accuracy | ±3% full scale |
temperature | -10 to +60 'C (without freezing) |
humidity | 0 to 90 % RH (non-condensing) |
O-ring material | HNBR |
case material | Denatured PPO |
weight | 500 g |
working pressure range | -0.07 to +1.0 MPa |
Sampling cycle/response time | Up to 1 second/30 seconds |
Pressure resistance | 1.5 MPa |
Product Description
