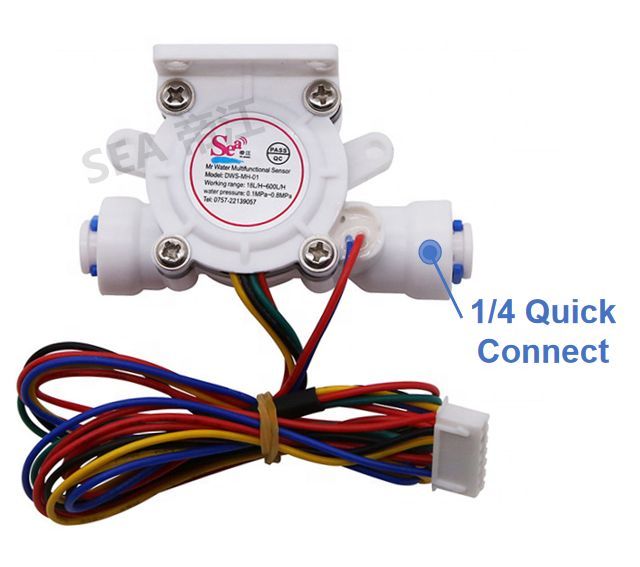

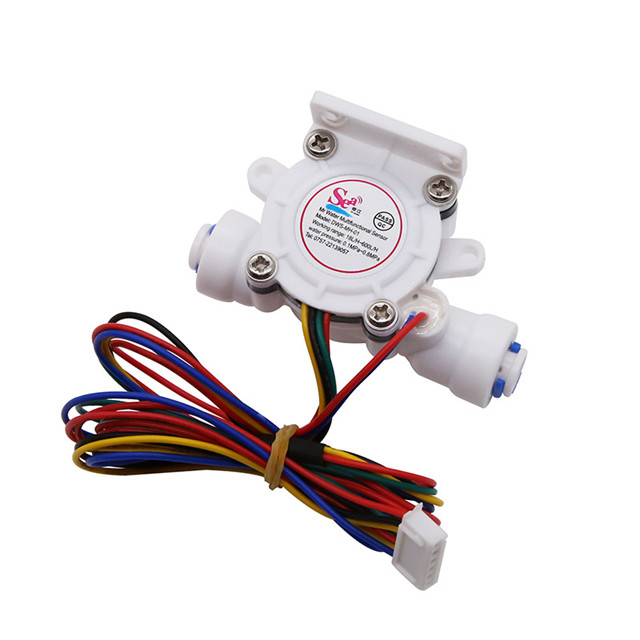

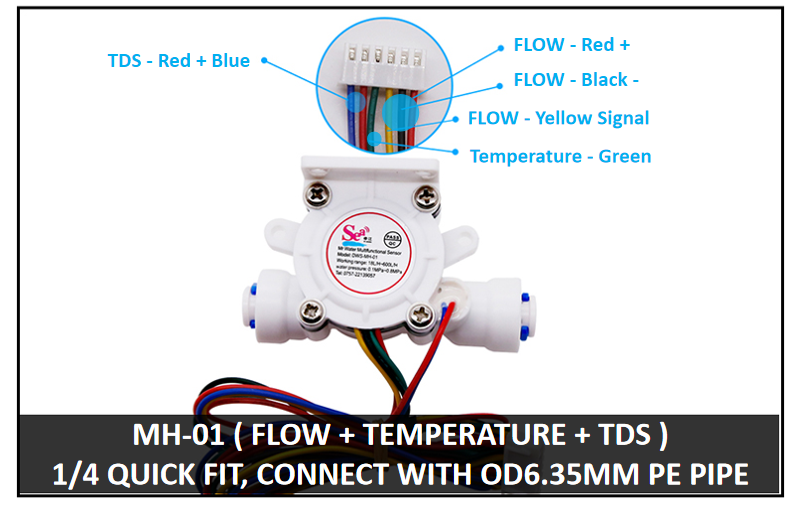

MH-01 Coffee Beet Tea Flow Sensor Hall Effect Pulse Signal 1/4 Quick Connect POM Sensor 3 in 1 Flow/Temperature/TDS XH-6P 45cm

Supplier: Foshan Shunde Zhongjiang Energy Saving Electronics Co., Ltd.
Region: Guangdong, China
Contact: Ms Candy GUO
Price: $3.50 / 300 - 999 pieces
$2.99 / 1000 - 4999 pieces
$2.79 / >=5000 pieces
Min. Order: 300 pieces

Click here to contact

Product details

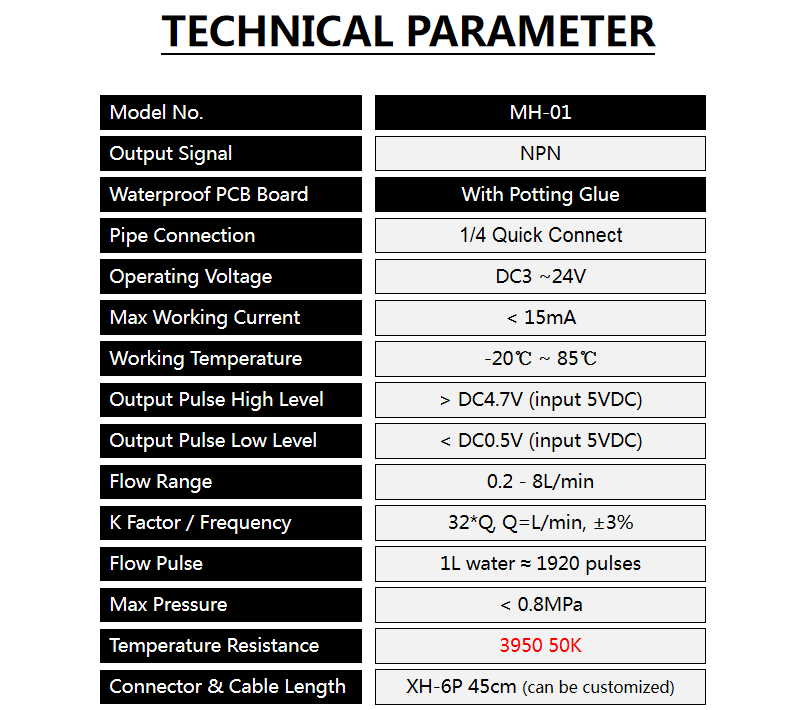

K-Factor/Frequency:	32*Q, Q=L/min	Origin:	Guangdong, China
brand:	ocean	Material:	POM
Temperature resistance:	3950 50K	Gross weight per piece:	0.150 kg
Flow pulse:	1L water = 1920 pulses	type:	Flow Sensors
model. :	MH-01	model:	MH-01
Water pressure:	<0.8MPa	Warranty:	no warranty
Customization support:	OEM、ODM	product name:	Three-in-one multifunctional flow sensor
Package preview:		Flow range:	0.2 - 8 l/min
Sales unit:	single product	Single pack size:	11X11X9 cm
Operating Voltage:	DC 3-24V	Pipe connection:	1/4 quick connect

contact us

Certificate

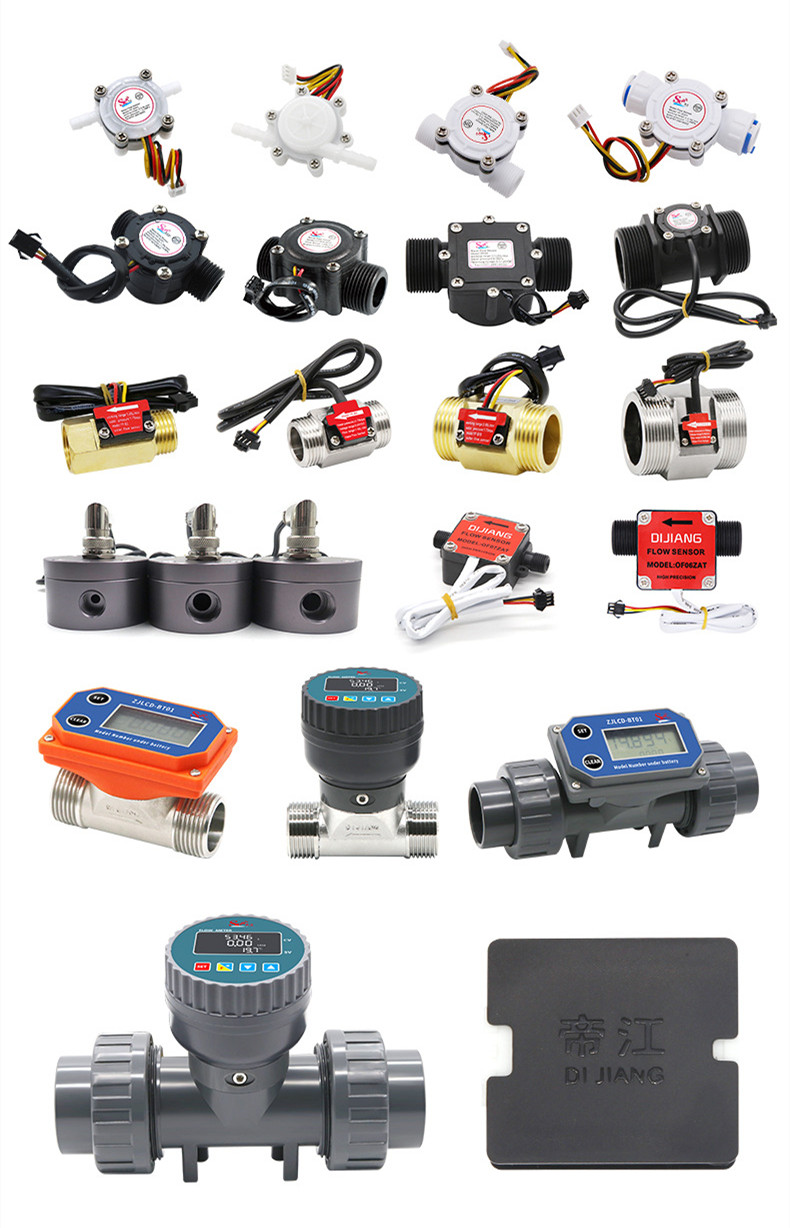

branded product

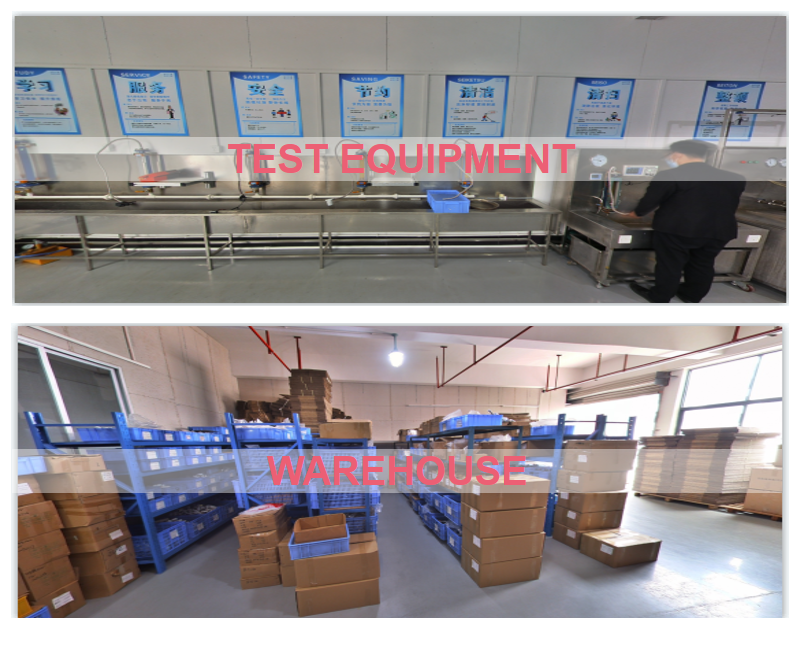

Southeast Asia factory

Model: MH-01

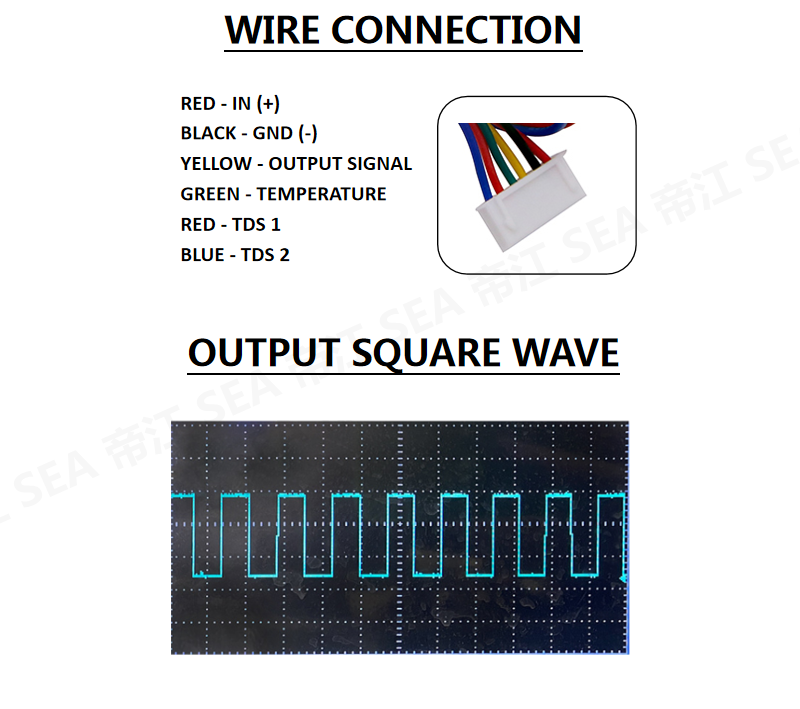

sensor	Hall Effect; Pulse Signal	water pressure	< 0.8MPA
1/4 pipe connection	3/8 Sports	Output pulse high level	>DC 4.7V
