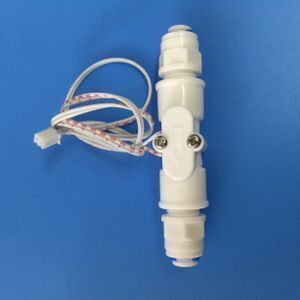

SEA G1/4'' PE pipe water flow switch, water dispenser flow switch, DN8 quick connection

Supplier: Foshan Shunde Zhongjiang Energy Saving Electronics Co., Ltd.
Region: Guangdong, China
Contact: Ms Candy GUO
Price: $2.00 / >=1000 pieces
Min. Order: 1000 pieces

Click here to contact

Product details

Start the hydraulic:	≤0.1 Mpa;	Applicable Environment temperature:	1-120 degree;
Working flow range:	1-26L/MIN;	Media Type:	Liquid;
Port:	FOB Shunde;	Brand Name:	SEA;
Product name:	SEA G1/4'' PE pipe water flow switch;	Payment Terms:	T/T,Western Union,Paypal / DHL / FEDEX / UPS;
Max Working Current:	2.0A;	Max Switching Voltage:	220VDC;
Supply Ability:	3000000 Piece/Pieces per Month SEA G1/4'' PE pipe water flow switch;	Model Number:	G1/4'' PLASTIC FLOW SWITCH;
Place of Origin:	Guangdong China;	Operating Temperature:	1~120Degree;
Flow Rate:	1-26/min;	Maximum water pressure:	2.0Mpa;

SEA G1/4'' PE pipe water flow switch, water dispenser flow switch, DN8 quick connection

Product Specification:

1.Usage:

According to the different control modes of switch, it can be used for outlet water power supply or power off. It can be used for the control of water supply and power supply of the fast electric water heater and the control of water supply and power failure of the stored-water electric water heater.

2. Working principle:

When the water flow switch with water flow, water flow acuity 1.0 L/min, flow switch in the core displacement by water drive, magnetic core displacement driven magnetic source produce magnetic control effect makes the water flow switch output signal "pass". The signal is input into the control system of the device and is controlled by the control system. When the water flow is less than the starting flow, the water flow switch outputs the "off" signal. The control system produces the opposite control effect

No.	Project	Data	Unit	Remark
1	Max. Switching Current	0.5	A
2	Maximum load current	1.0	A
3	Maximum contact resistance	100	mΩ
4	Maximum load power	10	W
5	Max Switching Voltage	120	VDC
6	Minimum breakdown voltage	220	VDC
7	Starting water flow	≤1	L/min
8	Working flow range	1—30	L/min
9	Start the hydraulic	≤0.1	Mpa
10	Minimum water pressure	≤1.75	Mpa
11	Maximum water pressure	2.0	Mpa
12	Working Temperature	1—120	℃
13	Applicable ambient temperature	-40—150	℃
14	Service life	10⁸	Times (switching cycle)	5VDC 10mA
15	Response time	0.2	Seconds
16	Release time	0.2	Seconds

Product Information:

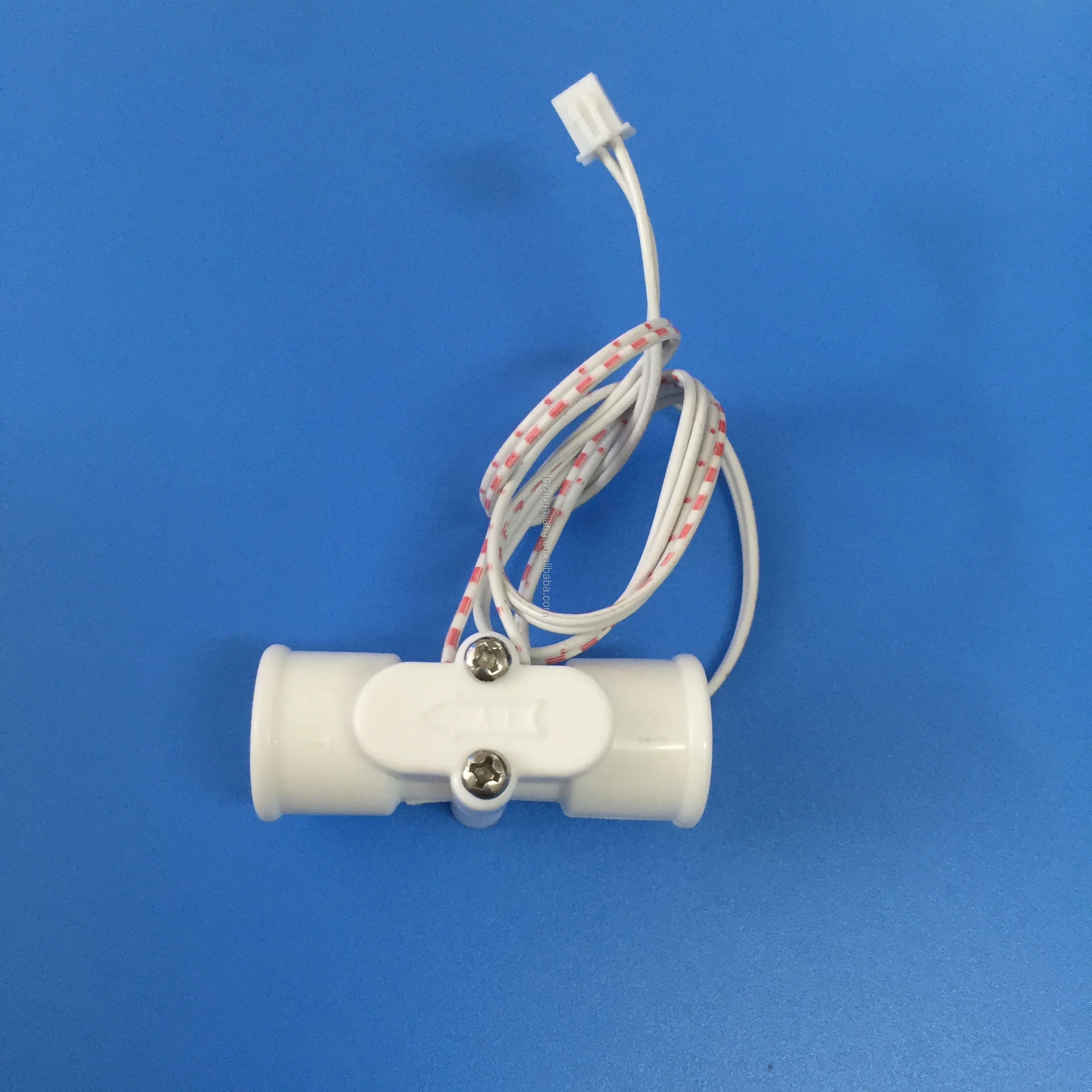

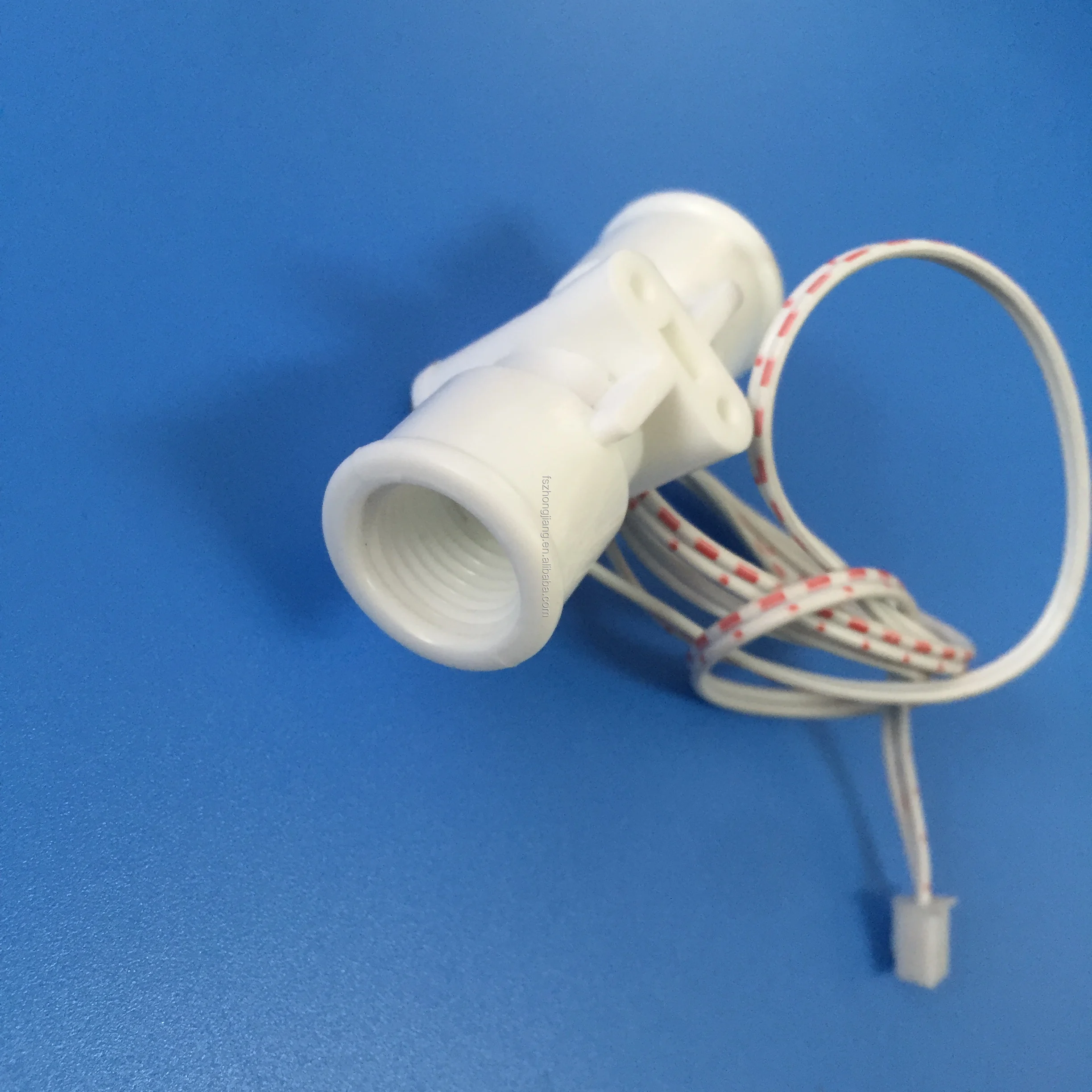

FLOW SWITCH
1. Description: the liquid state flowing or static in the pipeline is output in the form of electrical switch signal.
2.Pipe Size:G1/4'' NPT
3.Maximum load current of switch contact :100mA
4. Maximum load bearing voltage of switch contact :DC100V
5.Tips for filter core replacement of self - suction water purifier and water purifier in waterless area
