Sunwoald G1" DN25 300V Water Heater Magnetic Stainless Steel Flow Switch
- 10.00 10 - 99 pieces
- 9.00 100 - 999 pieces
- 8.00 >=1000 pieces
| Startup volume: | 4~5 liters/minute | Installation location: | vertical or horizontal |
| Gross weight of single piece: | 0.870kg | Operating temperature: | 0℃～+95℃ |
| Under pressure: | 100M ohm | model: | FS-3695 stainless steel |
| type: | water flow switch, water flow switch | Packaging details: | Flow sensor switch 1 piece/bubble, 100 pieces/box |
| Maximum exposure level: | 70W | brand: | Thornward |
| Maximum switching voltage: | 300V | Customization support: | OEM, ODM |
| Warranty: | 3 years | Contact list: | Normally open |
| Sales unit: | Single product | Place of origin: | Guangdong, China |
| Operation volume: | 150 liters/minute | Minimum insulation resistance: | 100M ohm |
| Single piece packaging size: | 12X9X9cm |

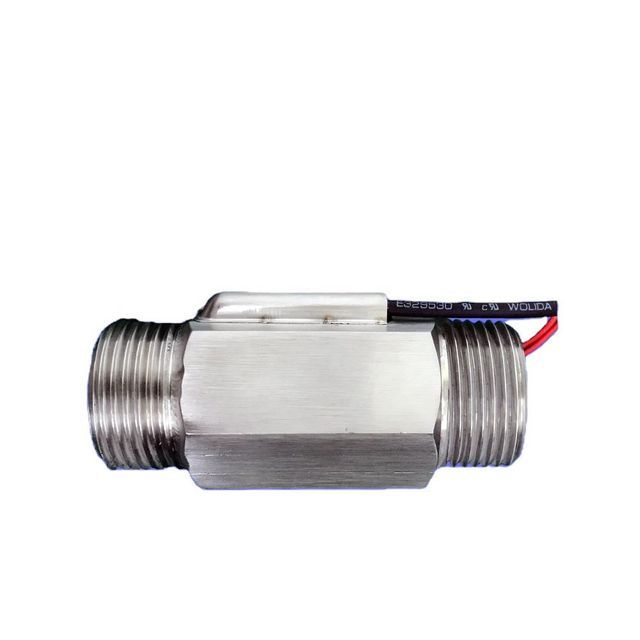

G1" Magnetic Stainless Steel Flow Switch
|
Product Description |
working principle:
thisMagnetic water flow switchis a device used to sense water flow and turn on/off the flow in a pipe. There is a magnetic element in the flow switch. When the liquid flow reaches a specified value, the magnetic element will be pushed to the sensor inside the switch, connecting the circuit and transmitting the signal.

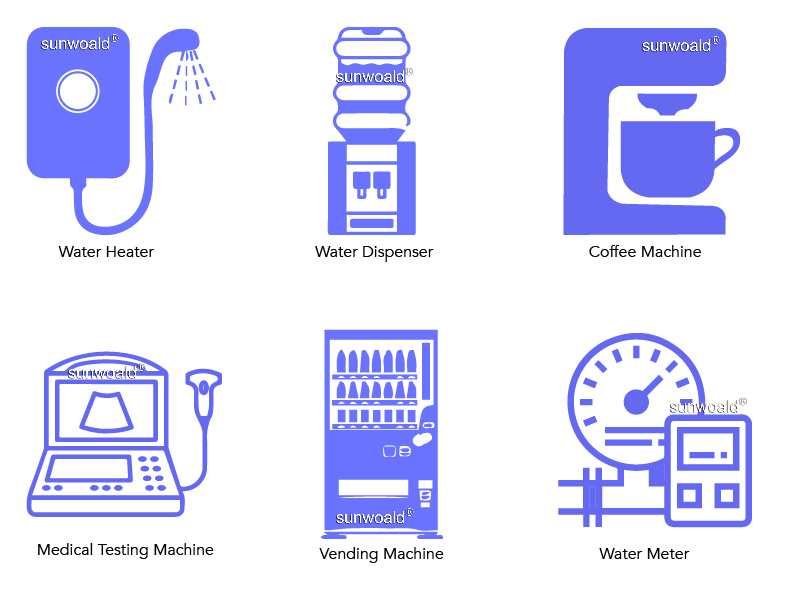

Applications
thisMagnetic water flow switchIt can be used for liquid flow monitoring in water dispensers, water heaters, coffee machines, vending machines, water meters, medical testing machines, etc. In the future, it will be widely used in industrial equipment, agricultural equipment, household appliances and other fields.
product specifications
|
Electrical characteristics |
Technical features |
||
|
Contact list |
No |
Installation location |
vertical or horizontal |
|
maximum contact rating |
70W |
Under pressure |
1.5 MPa |
|
Maximum switching voltage |
300V |
Starting amount (min) |
4~5 liters/minute |
|
Maximum switching current |
0.5A |
Operation volume (maximum) |
150 liters/minute |
|
Maximum contact resistance |
200m ohm |
Operating temperature |
-0℃～+95℃ |
|
Minimum insulation resistance |
100m ohm |
Standard working pressure | 0.01-0.4MPa |
|
Electrical life |
1×107(5Vdc,10mA) |
||

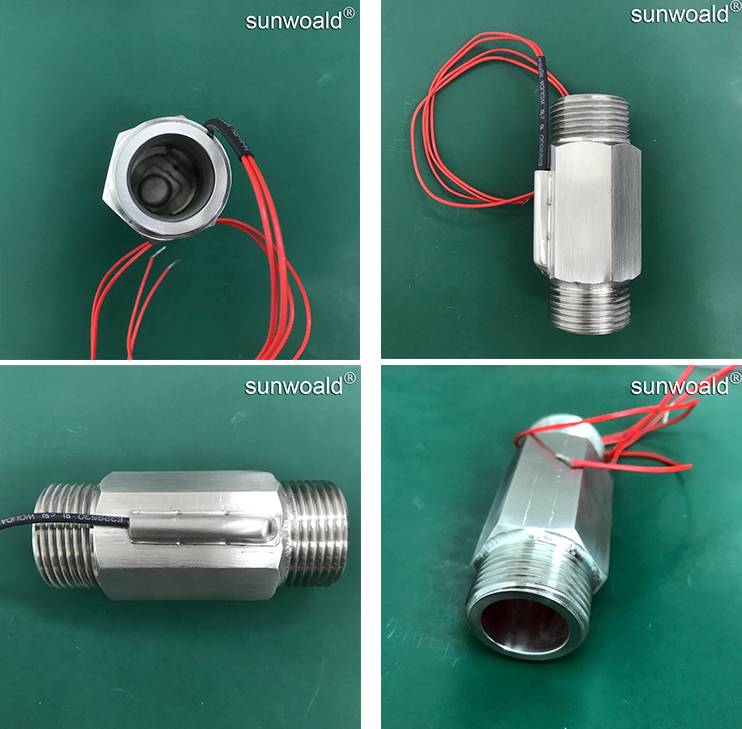

Product Image
|
