high c cutting accuracy QC12Y 4x2500 sheet metal shearing machine steel plate hydraulic shearing machine

Supplier: Maanshan Dama Machinery Manufacturing Co., Ltd.
Region: Anhui, China
Contact: Mr mark Zou
Price: $1869.00 /set
Min. Order: 1 set

Click here to contact

Product details

Brand Name:	hydraulic shearing machine;	Max. Cutting Thickness (mm):	0.1-35;
Supply Ability:	50 Set/Sets per Month hydraulic shearing machine;	Warranty:	one year all life supporting;
Packaging Detail:	hydraulic shearing machine in standard packing, optional wooden case ,also our hydraulic shearing machine can according to your special demands;	Cutting Angle:	1°;
Stroke Times:	11times/min;	Place of Origin:	Anhui China;
Cutting material:	Metal Stainless Steel Carbon Steel Aluminum;	Cutting Length:	3200mm;
Port:	hydraulic shearing machine FOB Shanghai port, China. or hydraulic shearing machine CIF port in your country.;	Dimension(LWH):	3860x1700x1700mm;
After-sales Service Provided:	Free spare parts,Field installation, commissioning and training,Field maintenance and repair service,Online support,Video technical support;	Certification:	CE;ISO;
Application:	Industrial Metal hydraulic shearing;	hydraulic shearing machine Type:	Swing Beam;
Rated Power:	7.5 Kw;	Year:	2018;
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram,hydraulic shearing machine;	Stopper adjust range:	20-500mm;
Voltage:	380V;	Product name:	hydraulic shearing machine;
Material strength:	450KN/CM;	Max. Cutting Width (mm):	0.1-6000;
Weight:	15T;	Condition:	New;

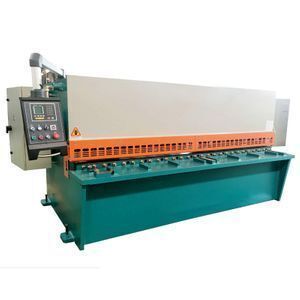

high cutting accuracy QC12Y 4x2500 sheet metal shearing machine steel plate hydraulic shearing machine

Product Description

Futures

Compared with the ordinary shearing machine, the swinging hydraulic shearing machines are mostly used in slanting cutting. It is widely used because of its simple structure, low failure rate, high shearing efficiency and no bow, warp and distortion after shearing.

During the shearing process, with the turning of the tool carrier, the shear angle and shear gap will change.

The hydraulic shearing machine is all steel welding mechanism, hydraulic transmission, vibration to eliminate stress,high strength and good rigidity.

The swinging hydraulic shearing machine adopts the main oil cylinder (fixed on the wall board) for downward shearing movement and nitrogen cylinder return, thus simplifying the hydraulic system and running more stable.

The upper tool holder of the pendulum scissors wobble around a fixed axis during the shearing process. Through the function of the lever, the support point is small, and the life of the cutting edge and the hydraulic shearing machine life can be improved. The whole hydraulic shearing machine structure is compact.The shearing machine can also adjust the travel amount of the upper tool rest by infinitely, thus greatly improving the work efficiency.

1. The hydraulic shearing machine should be able to ensure the straightness and smoothness of the shear surface of the sheared sheet, and minimize the distortion of the sheet to obtain high-quality workpieces.
2. The upper blade of the hydraulic shearing machine is fixed on the tool carrier, and the lower blade is fixed on the worktable. A supporting ball is installed on the worktable to avoid scratching when the sheet material is slipping on it.
3. The rear stopper is used for the location of the plate, and the position is adjusted by the motor.
The press cylinder is used to compress the sheet material to prevent the sheet from moving during shearing.
4. Guardrail is a safety device to prevent accidents. The return generally depends on nitrogen, fast speed, and small impact.

photos of our hydraulic shearing machine:

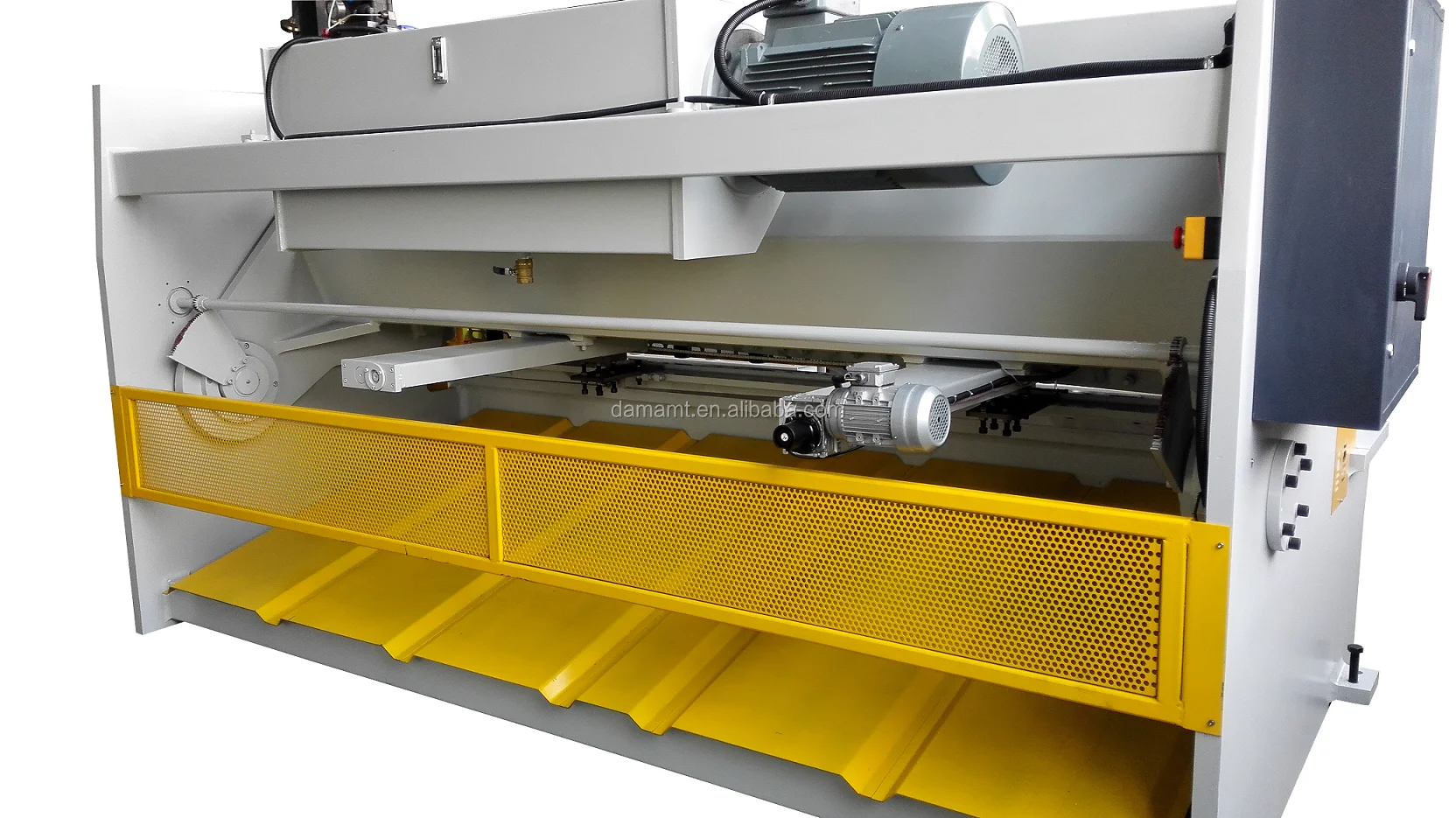

back side of hydraulic shearing machine:

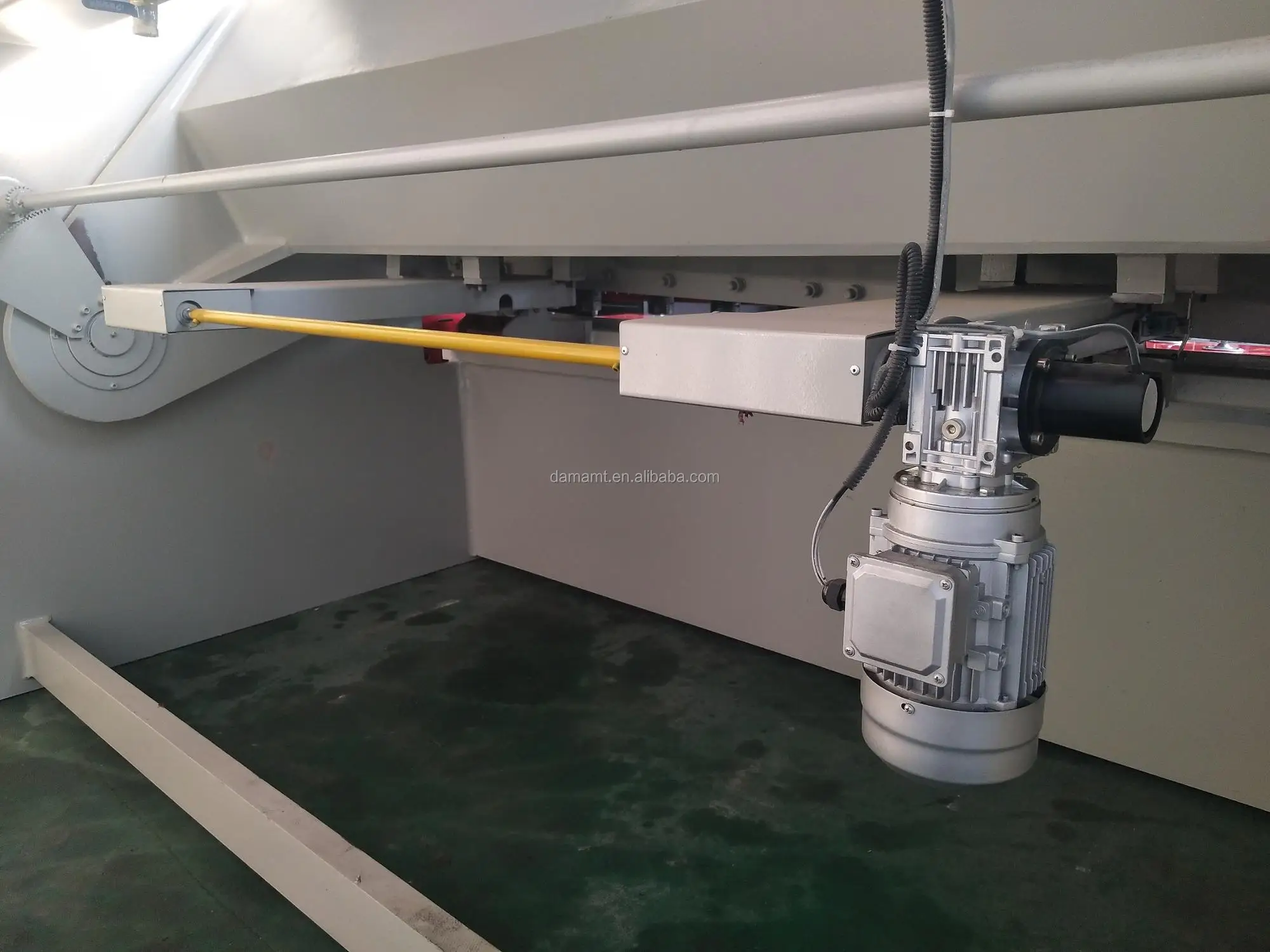

backgauge and motor of hydraulic shearing machine:

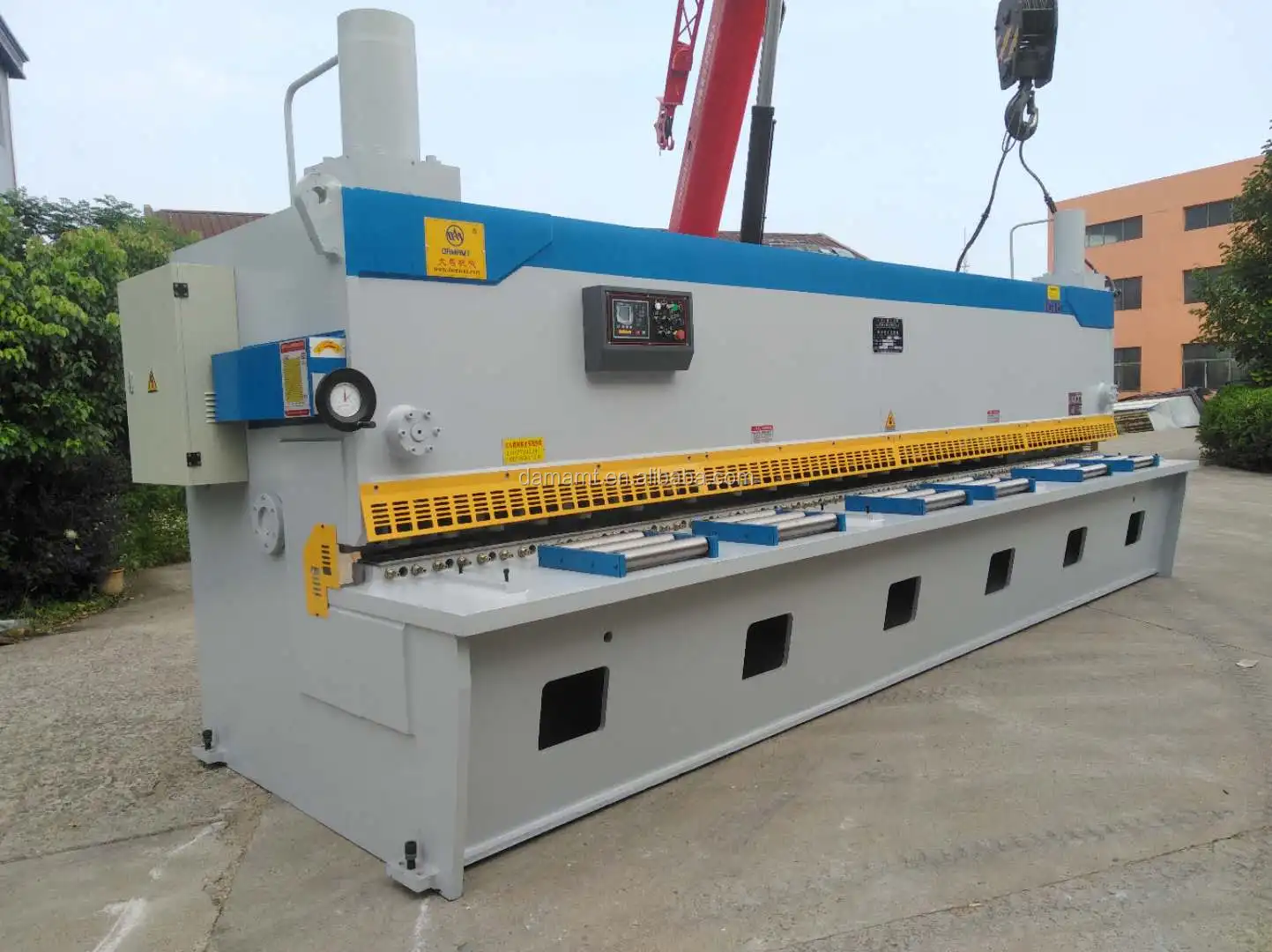

6000mm length hydraulic shearing machine:

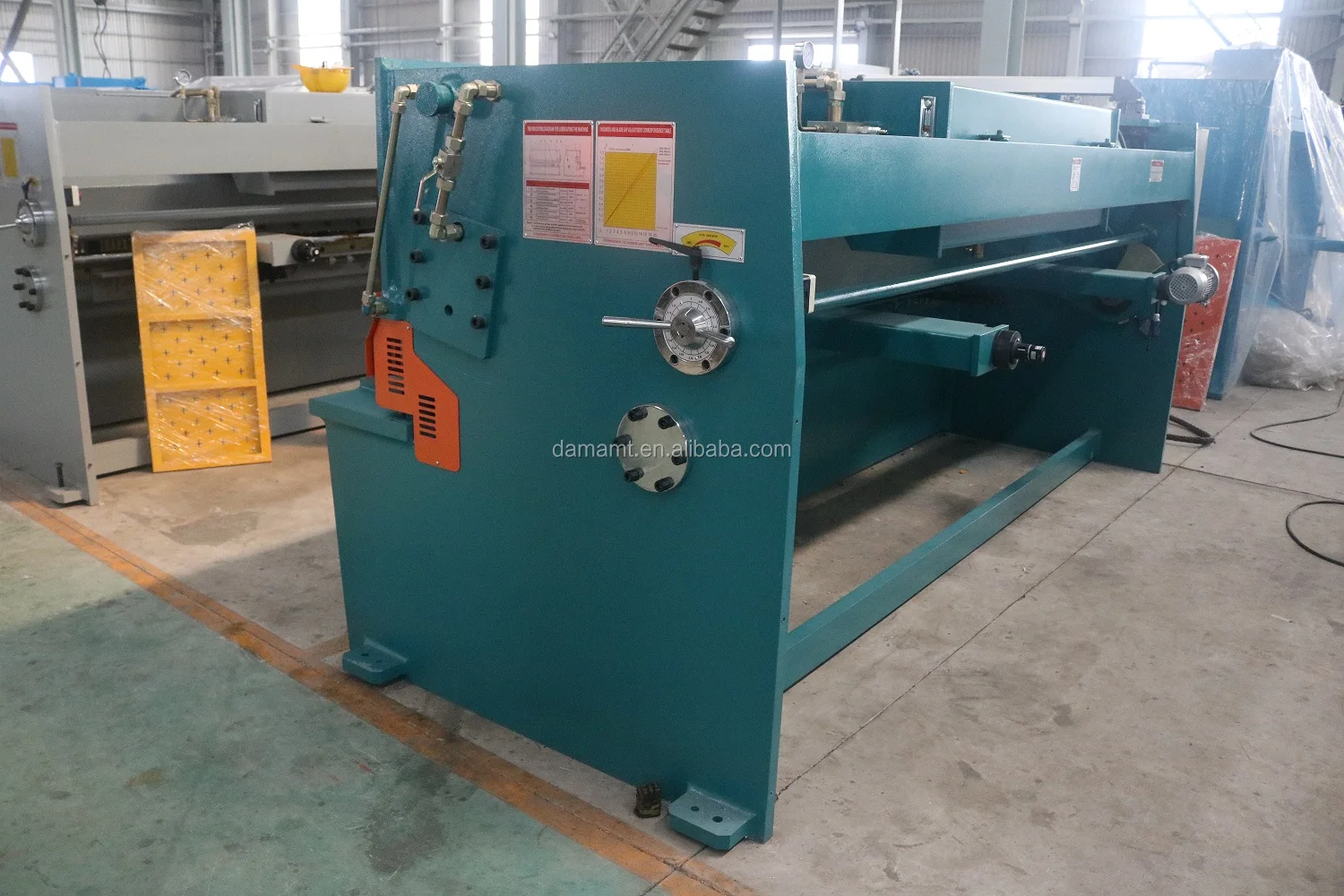

back side of hydraulic shearing machine:

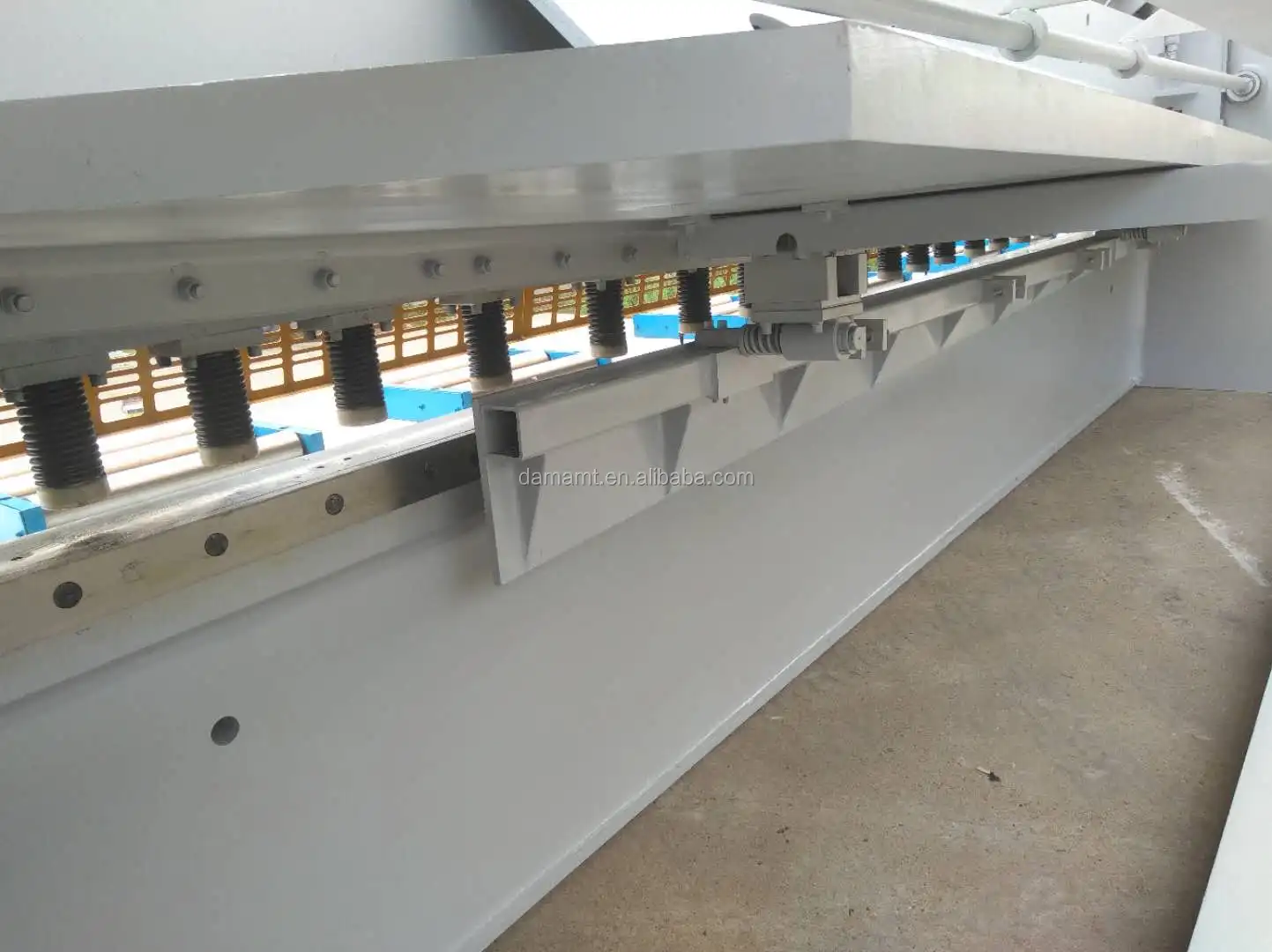

Details of hydraulic shearing machine:

Technical parameters of hydraulic shearing machine:

Model	Max cutting thickness mm	Max cutting length mm	cutting angle .	Ram strokes n/min	Back stop range mm	Motor kw	Machine size mm
4x2500	4	2500	1.30	16	20-500	4	3100x1400x1700
4x3200	4	3200	1.30	13	20-500	5.5	3800x1560x1700
4x4000	4	4000	1.30	10	20-600	5.5	4800x1650x1750
4x6000	4	6000	1.30	5	20-800	7.5	6500x1800x2180
6x2500	6	2500	1.30	15	20-500	7.5	3100x1600x1750
6x3200	6	3200	1.30	12	20-500	7.5	3800x1600x1750
6x4000	6	4000	1.30	9	20-600	7.5	4800x1650x1750
6x5000	6	5000	1.30	8	20-600	7.5	5650x1830x2250
6x6000	6	6000	1.30	5	20-800	11	6650x1890x2380
8x2500	8	2500	1.30	11	20-500	7.5	3100x1650x1780
8x3200	8	3200	1.30	8	20-500	7.5	3800x1650x1800
8x4000	8	4000	1.30	8	20-600	7.5	4800x1650x1800
8x5000	8	5000	1.30	8	20-600	7.5	5800x2000x2500
8x6000	8	6000	1.30	8	20-800	11	6800x2100x2700
10x2500	10	2500	1.30	10	20-500	11	3200x1750x1750
10x3200	10	3200	1.30	10	20-500	11	3900x1750x1800
10x4000	10	4000	1.30	10	20-600	11	4900x1800x1850
10x6000	10	6000	1.30	10	20-800	15	6900x2210x2800
12x2500	12	2500	2.0	12	20-600	18.5	3200x1800x1800
12x3200	12	3200	2.0	10	20-600	18.5	3900x1800x1800
12x4000	12	4000	2.0	10	20-600	18.5	4900x1850x1900
12x5000	12	5000	2.0	6	20-600	18.5	5150x2150x2800
12x6000	12	6000	2.0	5	20-1000	18.5	6900x2300x3100
16x2500	16	2500	2.30	10	20-600	18.5	3200x1850x2300
16x3200	16	3200	2.30	10	20-600	18.5	3900x1850x2400
16x4000	16	4000	2.30	10	20-800	18.5	4800x1950x2590
16x5000	16	5000	2.0	6	20-1000	18.5	6000x2250x2900
16x6000	16	6000	2.0	5	20-1000	22	7000x2300x3000
20x2500	20	2500	3.0	8	20-800	22	3200x1880x2450
20x3200	20	3200	3.0	8	20-800	22	4100x1880x2700
20x4000	20	4000	3.0	5	20-1000	22	4900x2150x2850
20x6000	20	6000	3.0	4	20-1000	22	7000x2350x3000
25x2500	25	2500	3.0	8	20-1000	37	3400x2000x2700
25x3200	25	3200	3.0	5	20-1000	37	4100x2150x2900
30x2500	30	2500	3.0	4	20-1000	37	3300x2900x3000
30x3200	30	3200	3.30	4	20-1000	40	4200x2500x2600
40x2500	40	2500	4.0	3	20-1000	75	3200x3300x3200
40x3200	40	3200	4.0	3	20-1000	90	4300x3300x3000

Description of hydraulic shearing machine:

1.The mainframe is fitted with numeric-control system special for hydraulic shearing machines.
2.The position of rear stopper is displayed in a real-time manner
3.Multi-step programming function is available and the rear stopper is able for automatic operation and continuous positioning, to achieve an automatic adjustment for position of rear stopper.
4.It is provided with counting function for hydraulic shearing machine, to display the shearing numbers in a real-time manner, able for power-failure memory of position of rear stopper, producedures, and parameters.
5.Imported ball bearing lead screw and linear guide rail are used , to ensure the positioning precision, so that the processing precision of hydraulic shearing machine is higher.

| hydraulic shearing machine | hydraulic shearing machine | hydraulic shearing machine | hydraulic shearing machine | hydraulic shearing machine | hydraulic shearing machine | hydraulic shearing machine | hydraulic shearing machine |
Main Equipments of hydraulic shearing machine:
Hydraulic system: Omega
Pump: Gear pump;
Electrics: Germany SIEMENS;
O-rings: Japanese NOK;
Conectors: Germay EMB;
Ball screw: TAIWAN HIWIN
Line guide rail: TAIWAN HIWIN
| hydraulic shearing machine | hydraulic shearing machine | hydraulic shearing machine | hydraulic shearing machine | hydraulic shearing machine | hydraulic shearing machine | hydraulic shearing machine | hydraulic shearing machine |
Other standard equipments for hydraulic shearing machine:
Segmented upper blade 1set (two sides can be use)
Lower blade 1set (four sides can be use)
Front supporting arms 3
Emergency stop button;
Back, and front safty fence
Shadow line lighting
Safety foot switch
Foundation bolts 1set
Toolings 1set (screw driver and spanner)
Manuals and diagram 1book
