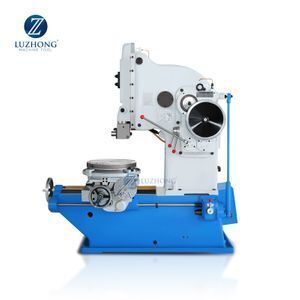

High Quality vertical slotting machine B5020 B5032 slotting machine for metal

Supplier: Shandong Luzhong Machine Tool Co., Ltd.
Region: Shandong, China
Contact: Ms Wenjing Pan
Price: $9700.00 /set
Min. Order: 1 set

Click here to contact

Product details

Dimension(LWH):	3640x1550/1850;	Port:	Any port of China High Quality vertical slotting machine B5020 B5032 slotting machine for metal;
Keywords3:	slot machines taiwan;	Max. stroke of RAM:	340;
Voltage:	Customer Requireme;	Keywords:	price of slotting machine;
Warranty:	12 Months;	Slotting legth:	320;
Certification:	ISO CE;	Applicable Industries:	Manufacturing Plant,Machinery Repair Shops,High Quality vertical slotting machine B5020 B503;
Brand Name:	LUZHONG Machine;	Ram motion frequency:	20.32.50.80;
Key Selling Points:	Competitive Price;	Power(W):	1.5KW;
After-sales Service Provided:	Online support,Video technical support;	Keywords2:	vertical slotting machine;
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram,High Quality vertical slotting machine B5020 B5032 slotting machine for metal;	Condition:	New;
Supply Ability:	200 Set/Sets per Month High Quality vertical slotting machine B5020 B5032 slotting mac;	After-sales Service Provided:	Engineers available to service machinery overseas;
Model:	B5020 /B5032;	Packaging Detail:	Machine Model:High Quality vertical slotting machine B5020 B5032 slotting machine for metal Type of package: Plywood case Packaging size: 226114952245CM(one set in one case) N.W./G.W.: 3000 KGS;
Ram tilt angle:	0-8;	Place of Origin:	China;
Product Name:	High Quality Slotiting Cutting Machine For Metal FromTaiwan;	Weight:	4100;

Product Description

High Quality vertical slotting machine B5020 B5032 slotting machine for metal

The main performance characteristics:

1.The working table of the machine tool is provided with three different directions of feed (longitudinal, horizontal and rotary), therefore work object go through once clamping, Several surfaces in the machine tool machining

2.Hydraulic transmission mechanism with sliding pillow reciprocating motion and hydraulic feed device for working table.

3.The sliding pillow has the same speed in every stroke, and the movement speed of the ram and the working table can be adjusted continuously.

4.Hydraulic control table have ram commutation oil for oil reversing mechanism, In addition to hydraulic and manual feed outer, Even there single motor drive vertical, horizontal and rotary fast moving.

5.Use hydraulic feed the slotting machine, Is when the work is over turning back instantaneous feed, Therefore be better than mechanical slotting machine used drum wheel feed.

Application:

1. This machine be used for interpolation plane, forming surface and Keyway Etc. And can insert the inclination in the 10° Mold and other within the scope of etc. work matter,,

2. Enterprise suitable for single or small batch production.

Product main technical parameters:

Specification	Unit	B5032	B5020
Max. stroke of RAM	mm	340	220
Ram maximum slotting length	mm	320	200
Ram motion frequency	times/min	20.32.50.80	32.50.80.125
Ram tilt angle	°	0-8	0-8
Ram vertical adjustment distance	mm	315	230
Cutter head bearing surface to the distance between the forearm bed	mm	600	485
Table Diameter	mm	630	500
The distance between the lower end of the sliding frame to work table	mm	490	320
Max. longitudinal moving distance of working table	mm	630	500
Max. transverse moving distance of working table	mm	560	500
Table maximum rotation angle	°	360	360
Vertical and horizontal table power feed range	mm	0.08-1.21	0.08-1.21
Table rotary feed range	mm	0.052-0.783	0.052-0.783
Motor power	kw	4	3
Motor speed	r/min	960	1430
Machine weight	kg	3000	2200
Outline dimension	mm	226114952245	191613051995
