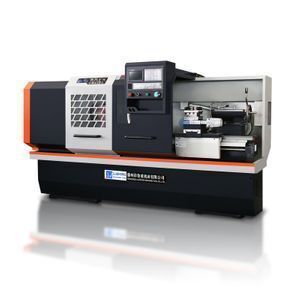

Cheap CNC Lathe Machine CK6150 Low Cost Horizontal Flat Bed CNC Lathe

Supplier: Shandong Luzhong Machine Tool Co., Ltd.
Region: Shandong, China
Contact: Ms Wenjing Pan
Price: $8500.00 /set
Min. Order: 1 set

Click here to contact

Product details

Keywords:	cnc lathe,cheap cnc lathe;	Z-axis stroke:	750.1000.1500.2000mm;
Type:	Horizontal;	Key Selling Points:	Competitive Price;
CNC or Not:	CNC;	X axis stroke:	330mm;
Maximum length of workpiece:	750.1000.1500.2000;	Supply Ability:	100 Set/Sets per Month Cheap CNC Lathe Machine CK6150 Low Cost Horizontal Flat Bed CNC;
Packaging Detail:	Plywood case Cheap CNC Lathe Machine CK6150 Low Cost Horizontal Flat Bed CNC Lathe;	Max. Spindle Speed (r.p.m):	1800;
Port:	Any port in China;	Warranty:	1 Year;
Name:	Cheap CNC Lathe Machine CK6150 Low Cost Horizontal Flat Bed CNC Lathe;	Applicable Industries:	Manufacturing Plant;
Power (kW):	5.5;	Voltage:	220V/380V;
Model Number:	CK6150;	After-sales Service Provided:	Online support,Video technical support;
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram,Trade Assurance;	Condition:	New;
Max. Swing Diameter (mm):	500;	Spindle tap:	MT6;
Brand Name:	Luzhong Machine;	Spindle nose:	ISO-C6(C8);
Max.swing over cross slide:	280mm;	Place of Origin:	Shandong China;
Max. Length of Workpiece (mm):	1000;	Certification:	CE ISO;
Weight (KG):	1900;	Spindle speeds(Number):	90-1800rpm;
Spindle bore:	52/82mm;	Automatic Grade:	Automatic;
Dimension(LWH):	245015001600MM;

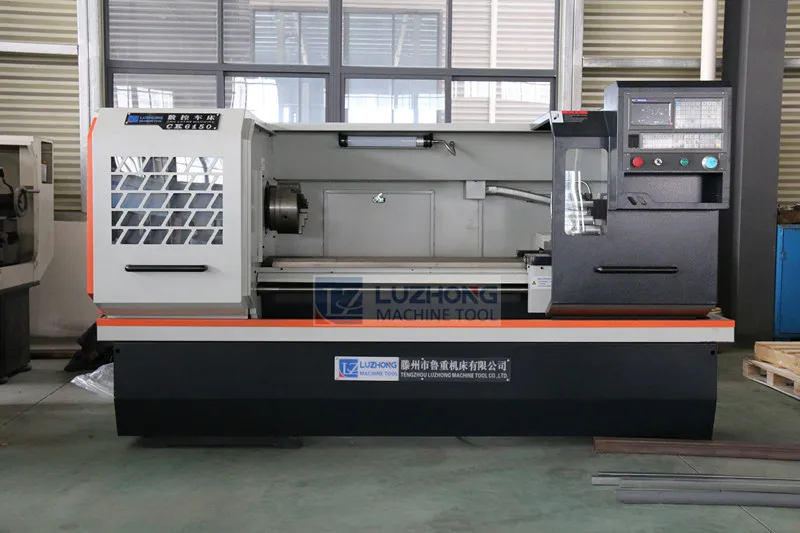

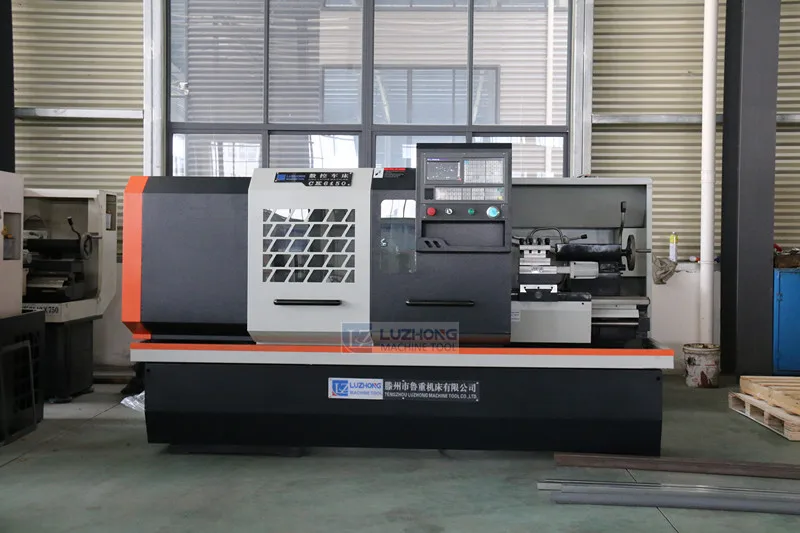

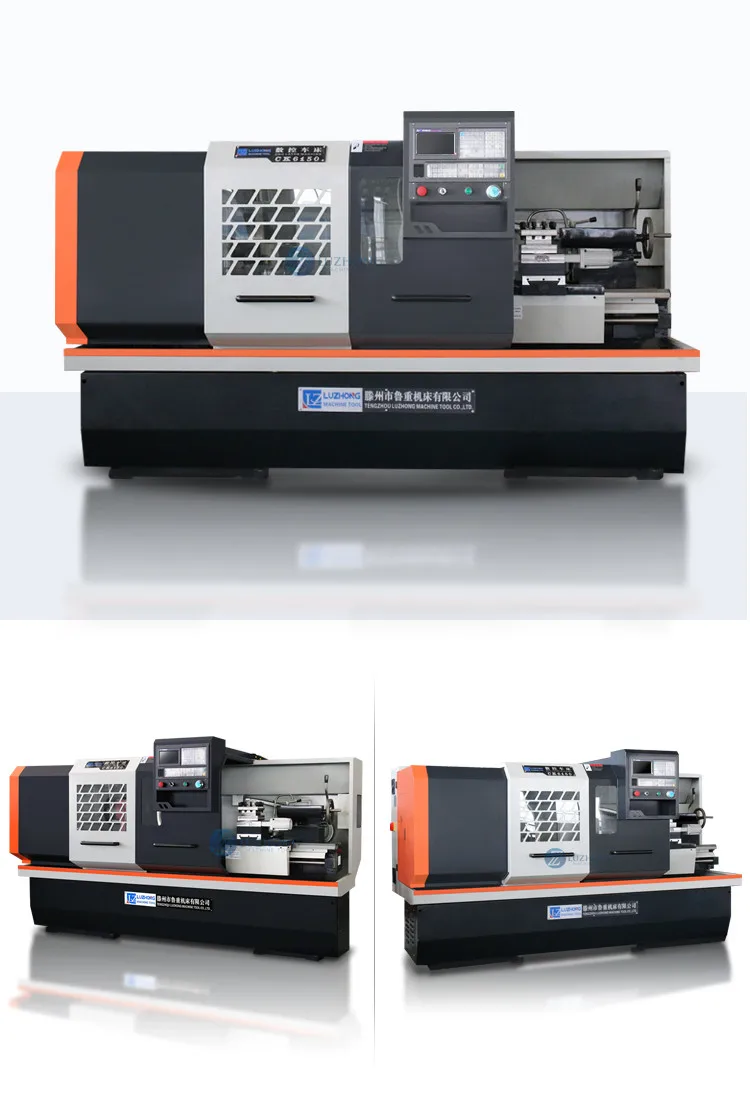

Cheap CNC Lathe Machine CK6150 Low Cost Horizontal Flat Bed CNC Lathe

Product Description

Product description:

1.Spindle adopts high precision rolling bearings, high precision rotary plate aspect to adopt high precision ball screw transmission, good dynamic performance, precision positioning.

2.The machine tool guide with wear-resistant cast iron and after the audio quenching, the hardness of the HRC45 above, can ensure the long-term stability of processing accuracy.

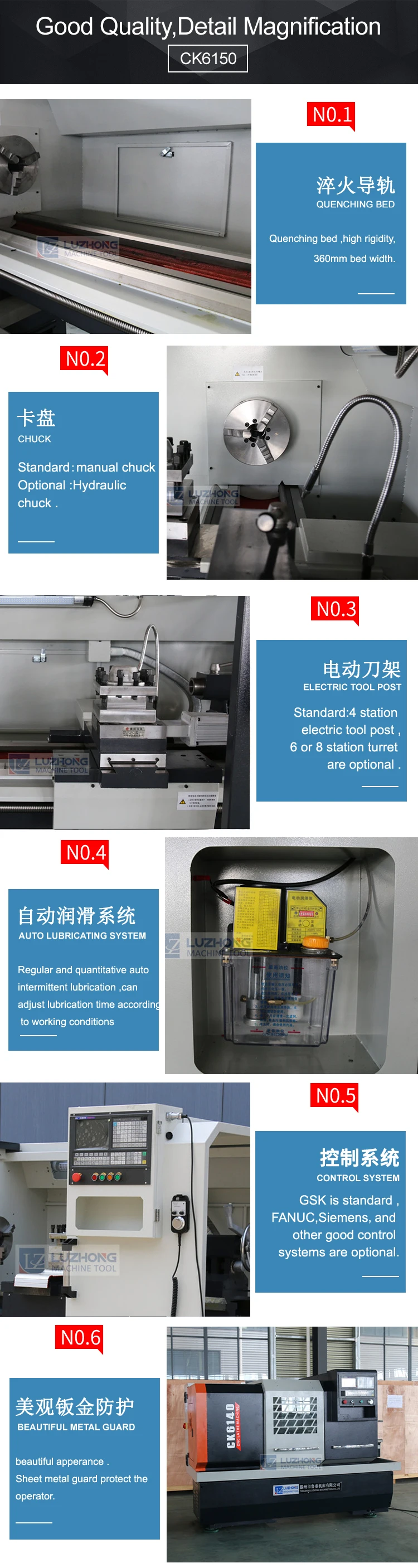

Standard configuration

Optional Configuration

GSK980 control system

Manual chuck

Manual tailstock

4 station electric tool post

Siemens or Fanuc control system ,

Hollow hydraulic chuck

Hydraulic tailstock

Independent spindle

6 or 8 station electric turret

80mm spindle hole ,

Automatic chip conveyor and etc.

Product main technical Specifications:

Item	Specifications	Uints	CK6150
Machining range	Max.swing over bed	mm	Φ500
	Max.swing over cross slide	mm	Φ280
	Max.length of workpiece	mm	750.1000.1500.2000
Spindle	Spindle hole dia.	mm	52mm(80mm)
	Spindle nose		ISO-C6(C8)
	Spindle tap		MT6
	Spindle speeds	rpm	Low:100-500 High:500-180 Optional:90-1800
Feeding	Z travel	mm	750.1000.1500.2000
	X travel	mm	330
	Rapid traverse X/Z	m/min	3/6
	Min input X/Z	mm	0.001
Tailstock	Tailstock sleeve diameter	mm	75
	Tailstock sleeve taper		MT5
	Tailstock travel	Mm	140
Turret	Cutting tool quantity		4(6)
	Tool size	mm	25*25
	Tool change time	s	2
Position accuracy	Repeating positing accuracy	mm	0.01
Motor	Main motor power	K.W	5.5/7.5
Size (LWH)	Overall diamensions for 750mm	Mm	220015001600
	Overall diamensions for 1000mm	Mm	245015001600
	Overall diamensions for 1500mm	Mm	295015001600
	Overall diamensions for 2000mm	Mm	345015001600
Weight	Weight for 750mm	kg	1900
	Weight for 1000mm	Kg	2000
	Weight for 1500mm	Kg	2200
	Weight for 2000mm	kg	2400
