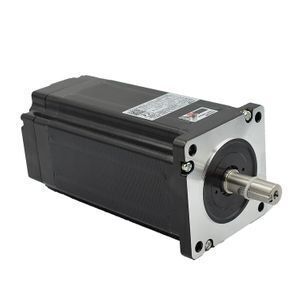

149mm high torque 8.5N.m hybrid servo step motor with controller
-
Supplier: Shenzhen Guanhong Automation Co., Ltd. -
Region: Guangdong, China -
Contact: Ms Susie Xu -
Price: $30.00 /piece -
Min. Order: 1 piece
Product details
| Brand Name: | SZGH; | Motor Length: | 118mm; |
| Driver Peak Current: | 7A; | Certification: | CE,ISO; |
| NEMA: | 34; | Payment Terms: | L/C,D/A,D/P,T/T,Western Union,MoneyGram,Paypal; |
| Frame Size: | 73mm; | Packaging Detail: | with carton, as the standard packing of Shenzhen GuanHong company; |
| Place of Origin: | Guangdong China; | Driver Voltage AC: | 50-80V; |
| Port: | Shenzhen CHINA; | Driver Voltage DC: | 24-110V; |
| Phase: | 2; | Supply Ability: | 300 Piece/Pieces per Month; |
| Step Angle(degrees): | 1.8; | Quality: | Warranty; |
| Holding Torque: | 8.5NM; | Type: | Hybrid; |
| Axle Diameter: | 14mm; | Current / Phase: | 4.2A; |
| Configuration: | RS232; | Matching Driver: | SZGH-2HSS86H; |
| Model Number: | 86BYGH4118EC-1000; |
two-phase hybrid closed loop step motor and Step motor Driver
| Model | Stepper Angle | Frame Size | Axle Diameter (mm) | Length (mm) | Holding Torque (N*m) | Current (A/Phase) | Matching Driver |
| 86BYGH4118EC-1000 | 1.8 | 73 | 14 | 118 | 8.5 | 4.2 | 2HSS86H |
Feature:

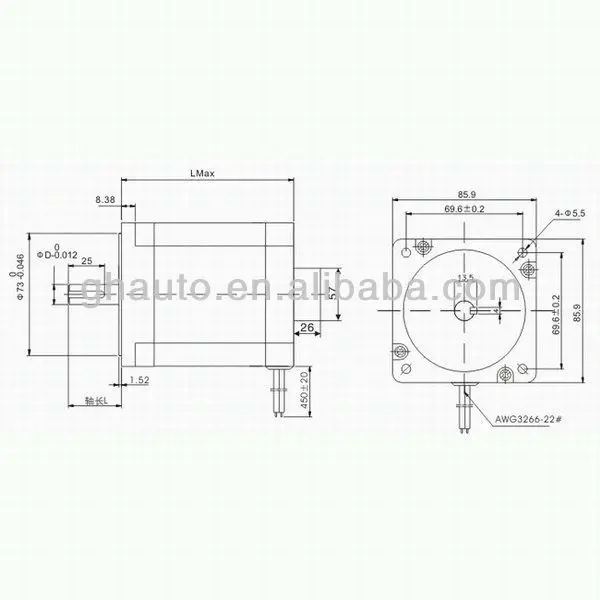

Mechanical Dimensions (mm)
Related Product
Packaging & Shipping
1.Industrial packing: plastic bag +foam boxes+ carton +wooden pallets
2.Commercial packing: plastic bag+ foam boxes + carton
3.As the clients’ requirement
Delivery Detail: Normally ready goods and stock within 2-5days
