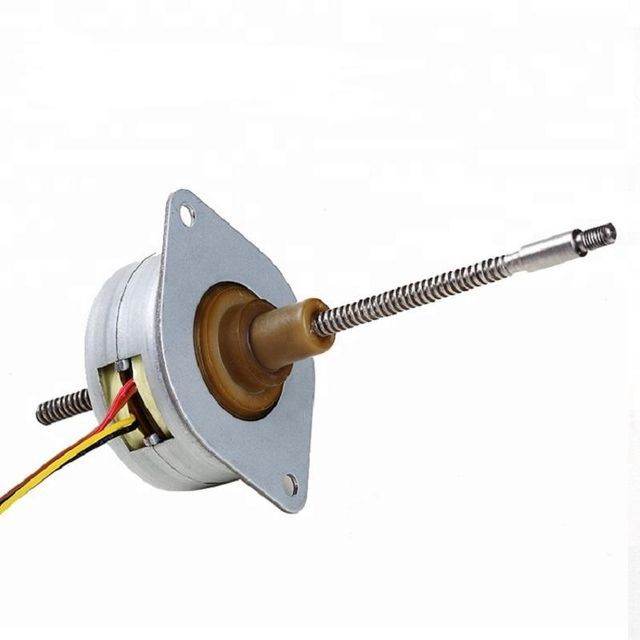

Best quality LDO-35BYZ-B01-12 3D printer linear stepper motor
- 30.00 10 - 99 pieces
- 15.80 >=100 pieces
Registered Supplier
Direct Contact
Inquiry via Message
Product Details
| Origin: | Guangdong, China | brand: | Low drop motor |
| Rated current: | 0.46A | Holding torque: | 0.45-0.5kg.cm |
| speed: | low speed | Current/Phase: | 0.22-0.71A |
| Frame size: | 35mm | model: | LDO-35BYZ-B01-12 |
| usage: | industrial | Packaging Details: | Standard export packaging |
| inductance: | 8.6±20%mh/phase | stage: | Four |
| clue: | 6 lines | Rated voltage: | 5V DC |
| Supply capacity: | 50000 pieces per month | type: | Permanent magnets |
| Warranty: | 3 months - 1 year | Function: | control |
| port: | Shenzhen | Protective function: | closed |
| payment terms: | L/C, Western Union, T/T, Paypal |
LDO-35BYZ-B01-12
Our range of 35mm linear PM stepper motors feature permanent magnet stepper motors and freestanding designs. This design allows for a compact form factor and low cost. Customize the pitch of the lead screw to adjust between travel speed and precision. Typical applications include microscope machines, medical instruments, light adjustment systems, inspection machines, etc. Choose a baseline version or request your own custom configuration.
feature:
- Untethered design - the motor moves along the lead screw
- Compact permanent magnet stepping structure
- low cost high performance
- Various screw sizes available
- CE and RoHs certification
- Customized on request
Advantages of LDOs:
- No MOQ limit
- short lead time
- Quick and timely response
- Good pre-sale/after-sale service

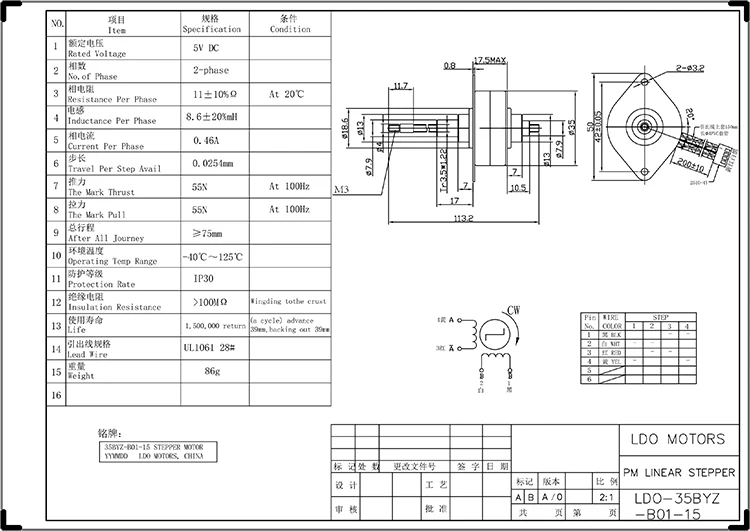

Specification:
|
model |
Step angle |
Phase |
Voltage (five) |
current (A) |
resist (Ω) |
holding moment (g.cm) |
Traction torque (g.cm) |
Braking torque (g.cm) |
number of leads |
|
LDO-35BYZ-B01-12 |
7.5 |
4 |
12 |
0.22 |
60 |
520 |
50(200Hz) |
125 |
6 |

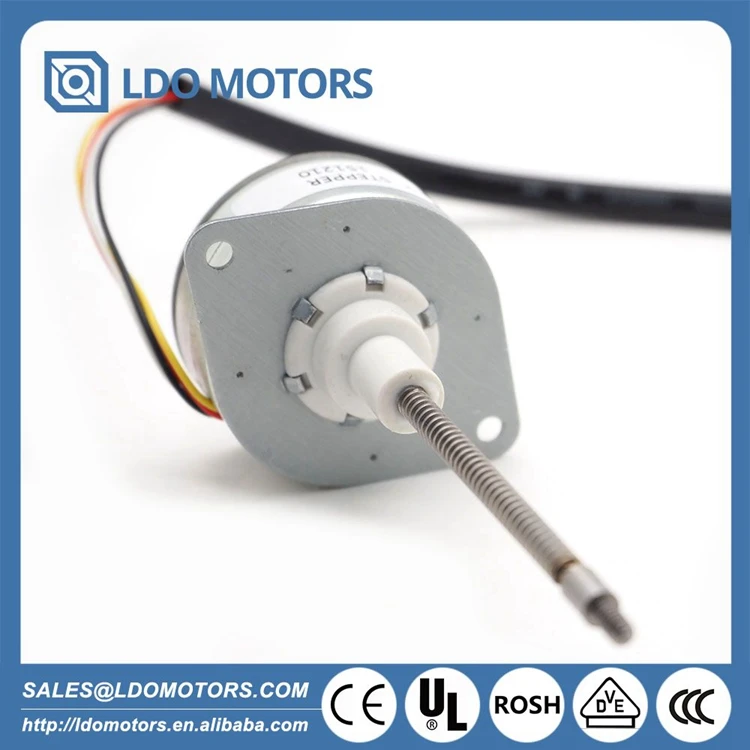

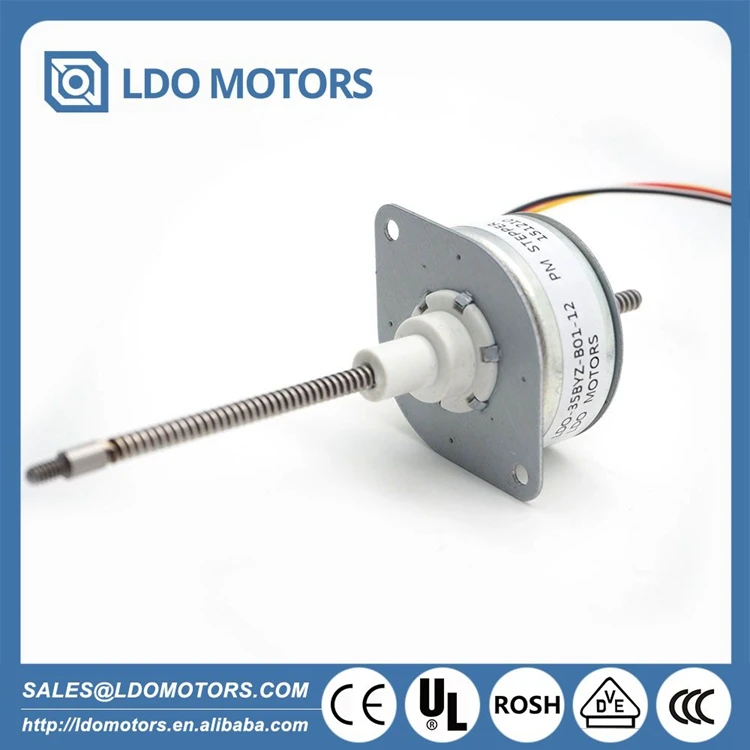

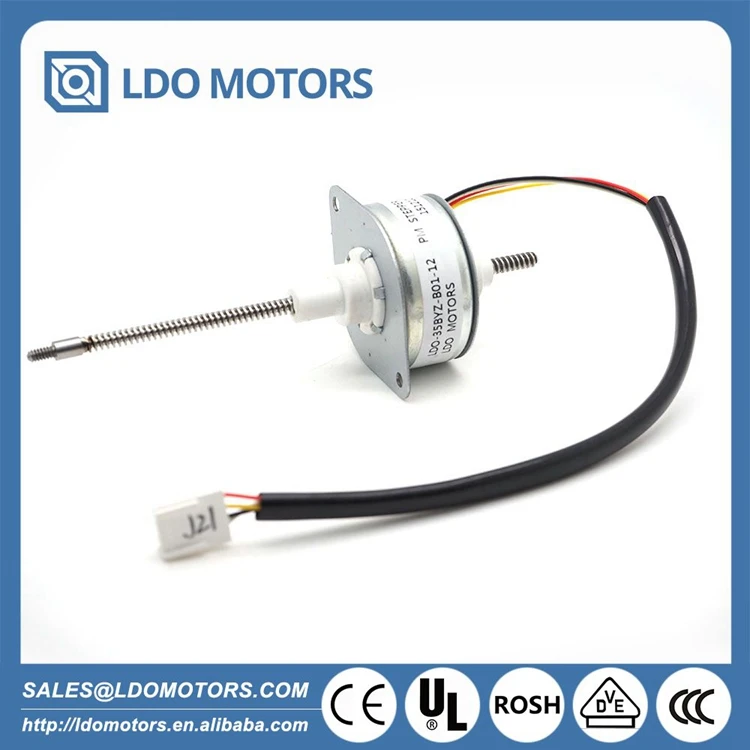

detailed image
