LDO 1.8 Degree High Torque Nema 17 Hybrid Stepper Motor
- 9.90 1 - 99 pieces
- 8.90 100 - 499 pieces
- 7.90 500 - 999 pieces
- 6.90 >=1000 pieces
Registered Supplier
Direct Contact
Inquiry via Message
Product Details
| Current/Phase: | 1.68A | Quantity of free samples: | 1 |
| place of origin; place of origin: | Guangdong, China | usage: | industrial |
| Function: | control | product name: | Hybrid Stepper Motor |

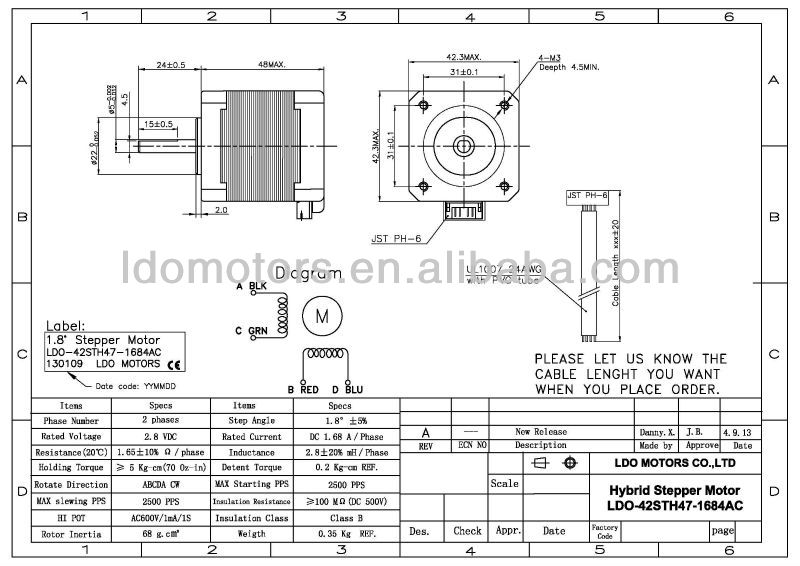

| model: | LDO-42STH48-1684AC | Frame size: | 42*42mm |
| type: | hybrid | speed: | low speed |
| Warranty: | 3 months - 1 year | Packaging Details: | Standard export packing 40 pieces per carton, 15kg per carton Carton size: 36.5*29*15cm |
| brand: | Low dropout motors | Supply capacity: | 50,000 pieces per month |
| clue: | 4 | stage: | 2 |
| Key words: | NEMA 17 Hybrid Stepper Motor | shape: | square |
| port: | Shenzhen/Hong Kong | payment terms: | L/C,Western Union,D/P,D/A,T/T,MoneyGram,Paypal |
| application: | 3D printing |

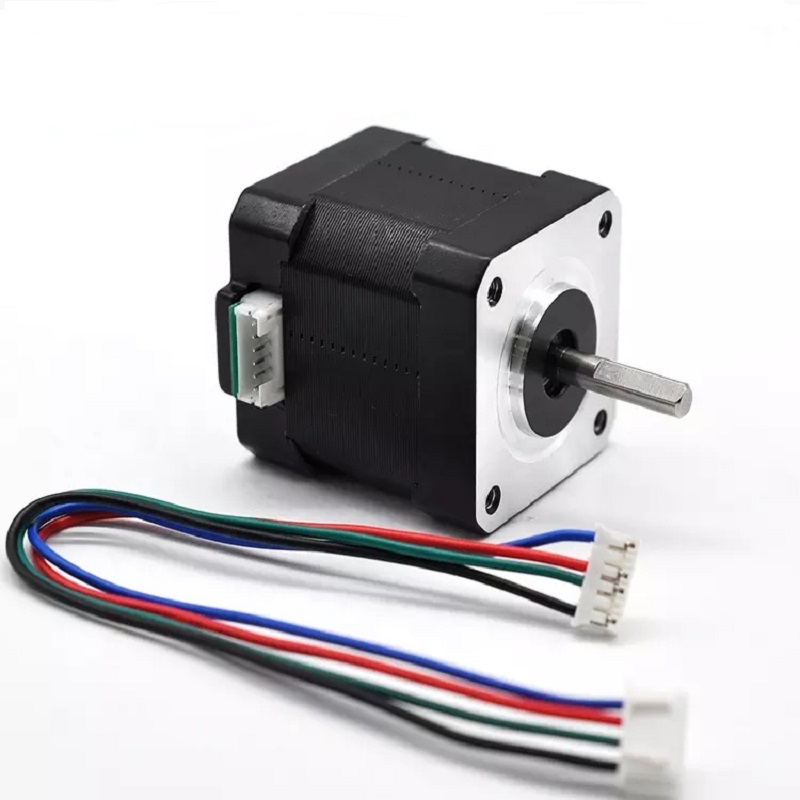

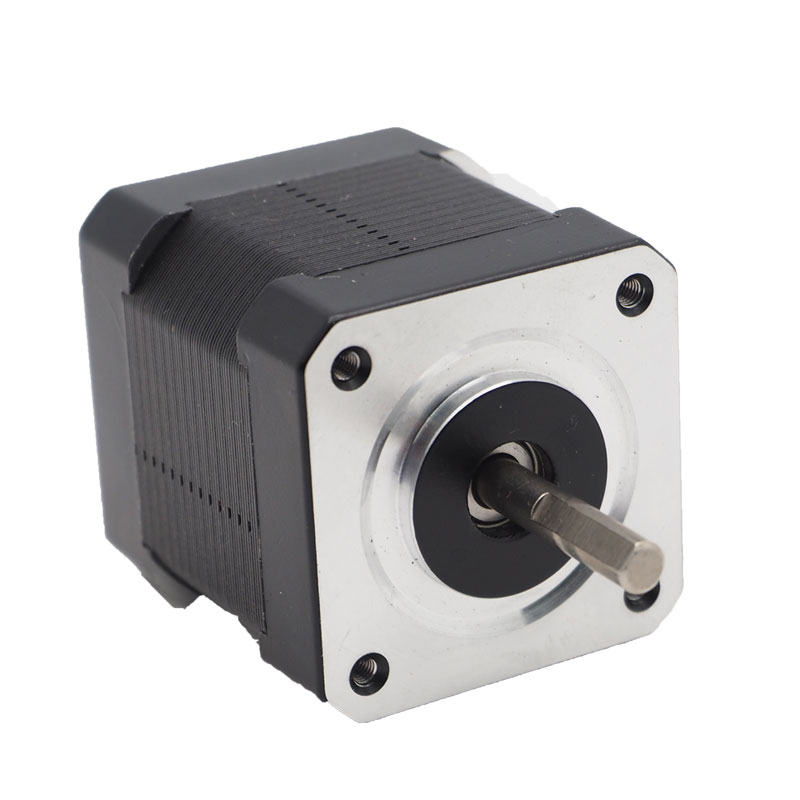

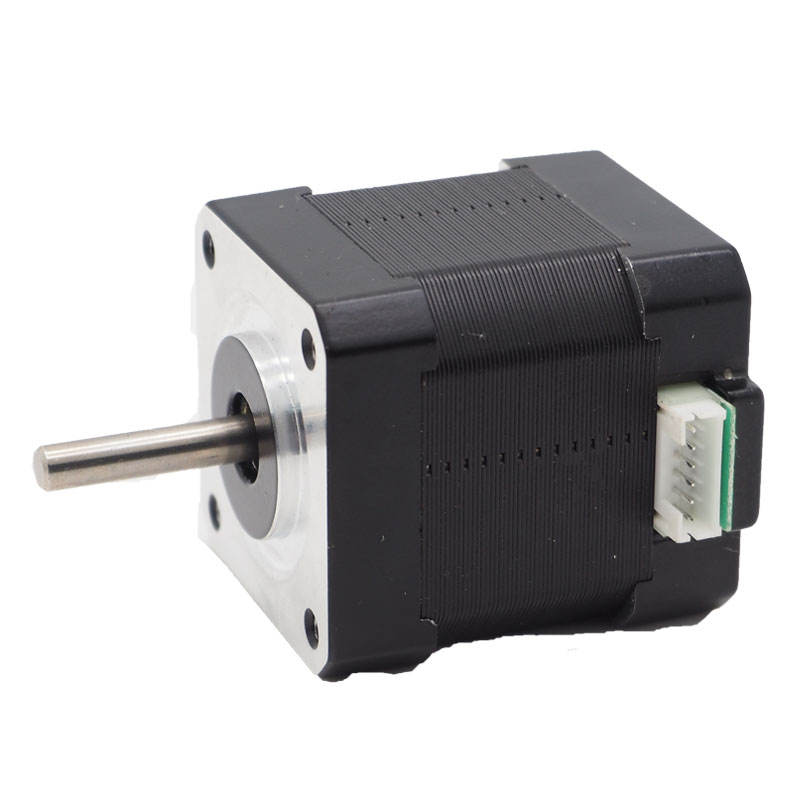

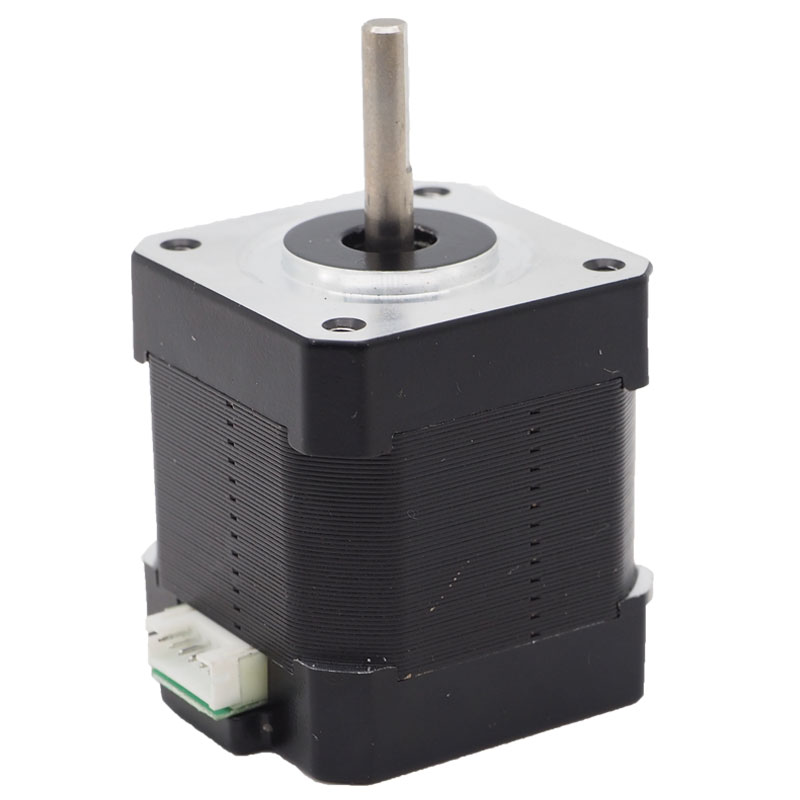

LDO 1.8 Degree High Torque Nema 17 Hybrid Stepper Motor
Product Description
The 42mm Hybrid Stepper Motor series is a versatile motor series for a wide range of applications. Use with a microstepping driver to reduce vibration and achieve higher step resolution. Choose a baseline version or request your own custom configuration.
feature:
- Bipolar or unipolar versions available

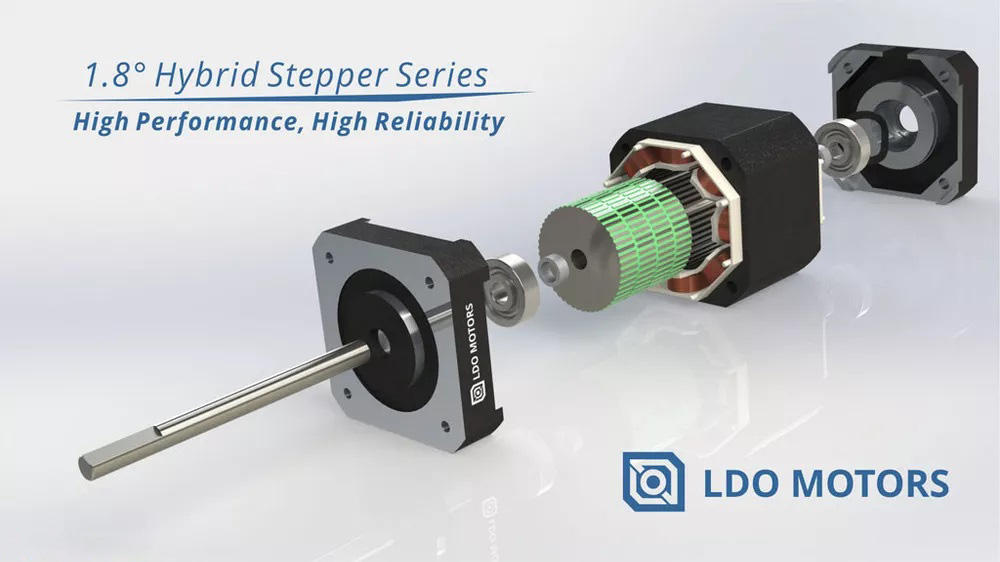

- Hybrid stepping structure
- Available in single or dual axis versions
- CE and RoHS certified
- Customized upon request
