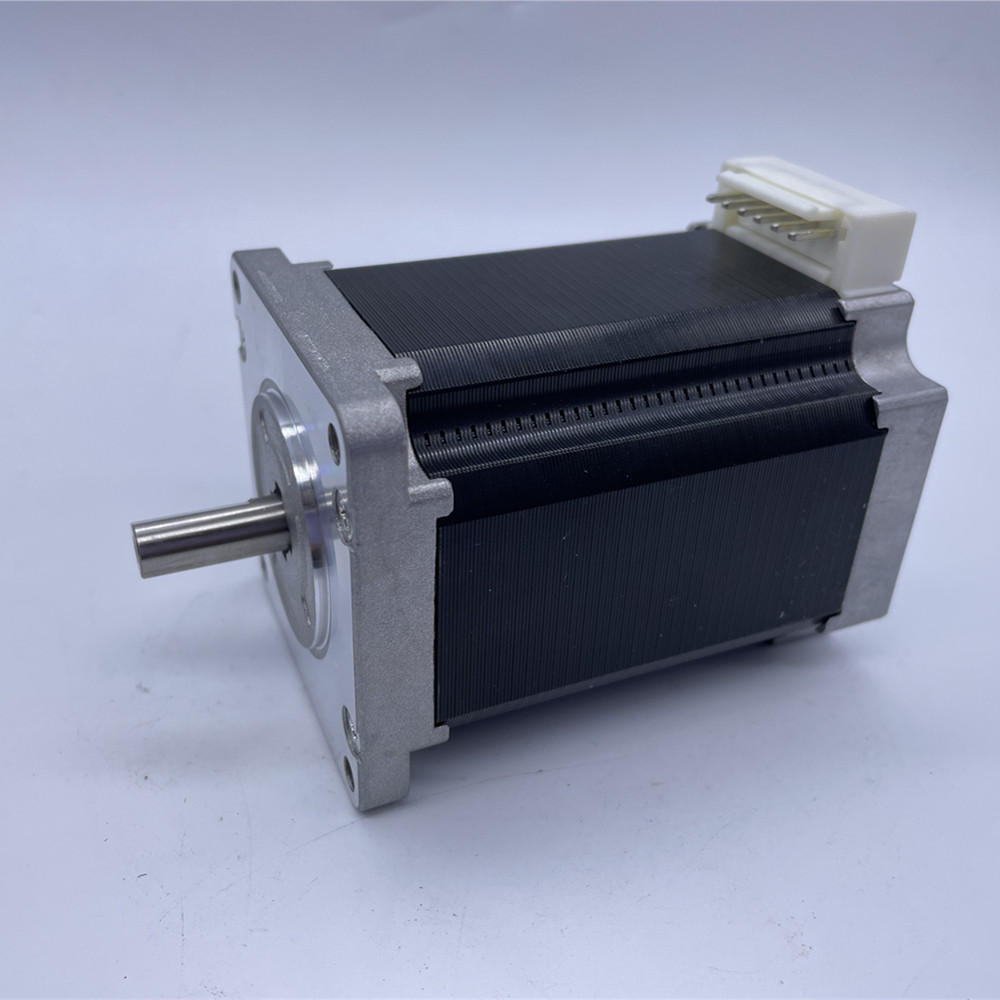

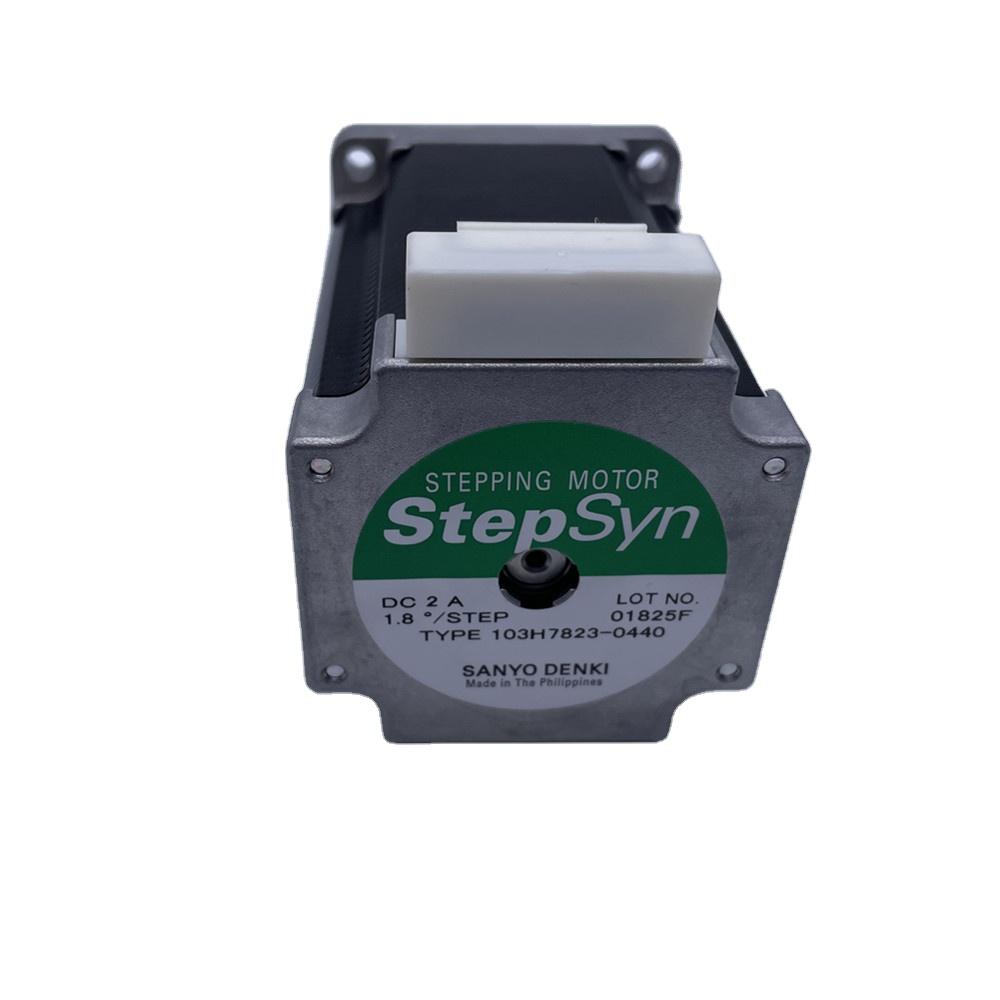

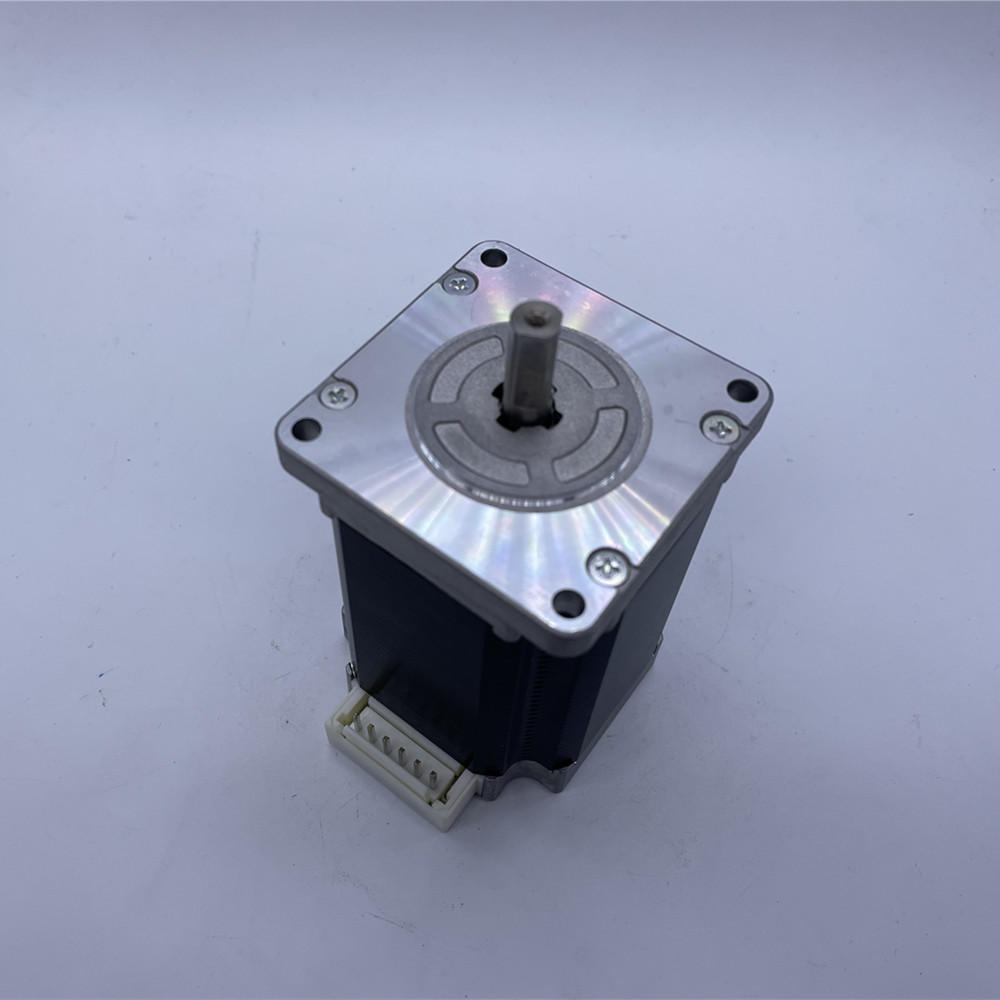

103H7823-0740/0440 SANYO stepper motor
- 118.00 piece
Registered Supplier
Direct Contact
Inquiry via Message
Product Details
| type: | Permanent magnets | Packaging details: | Standard sturdy export cartons as per your needs |
| Resistance: | 1.2/2.6Ω | brand: | Sanyo |
| Warranty: | 1 year | stage: | 2 |
| weight: | 1.34kg | Certification: | CE |
| Shaft type: | single axis | Rated current: | 3/2A |
| Single piece packaging size: | 30X28X12cm | model: | 103H7823-0740/0440 |
| Place of origin: | China Shanghai | Rotor inertia: | 0.84*10-4kg.m2 |
| Gross weight of single piece: | 2.000kg | Sales unit: | Single product |
| Current/Phase: | 3/2 |
Product Description

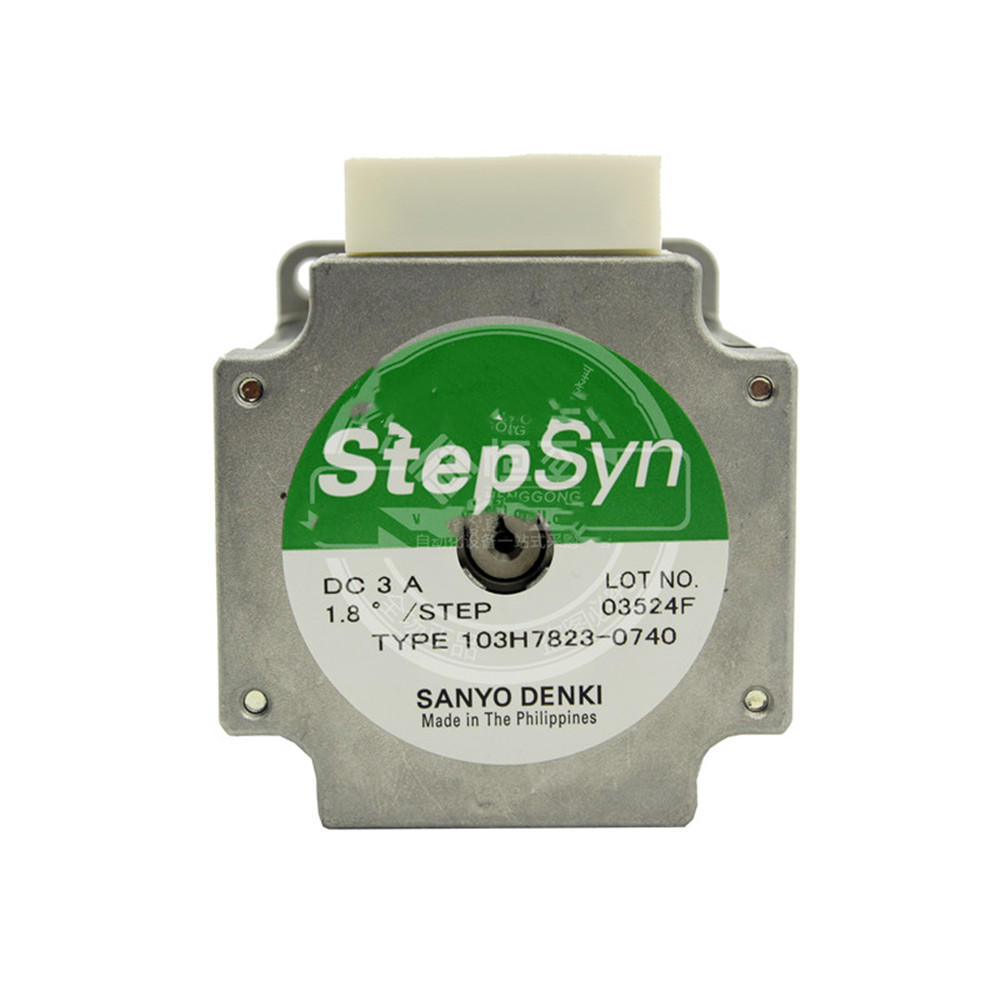

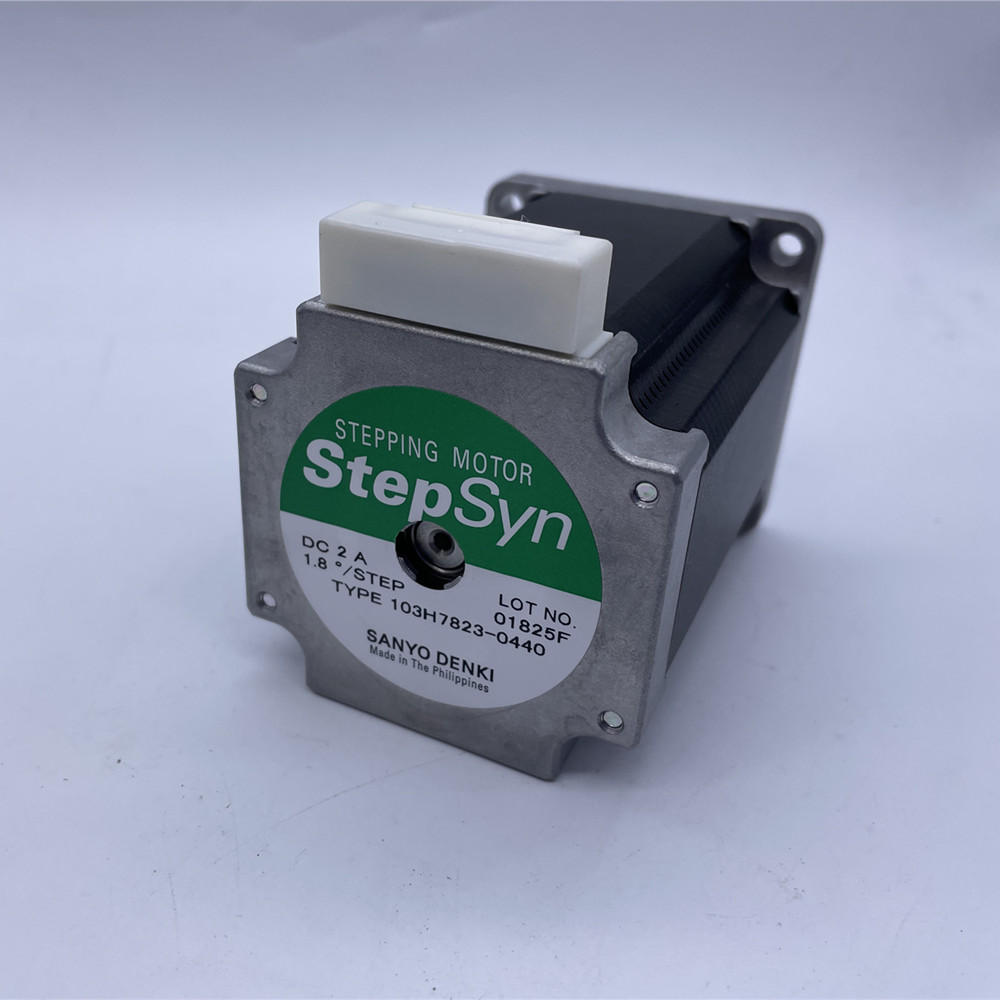

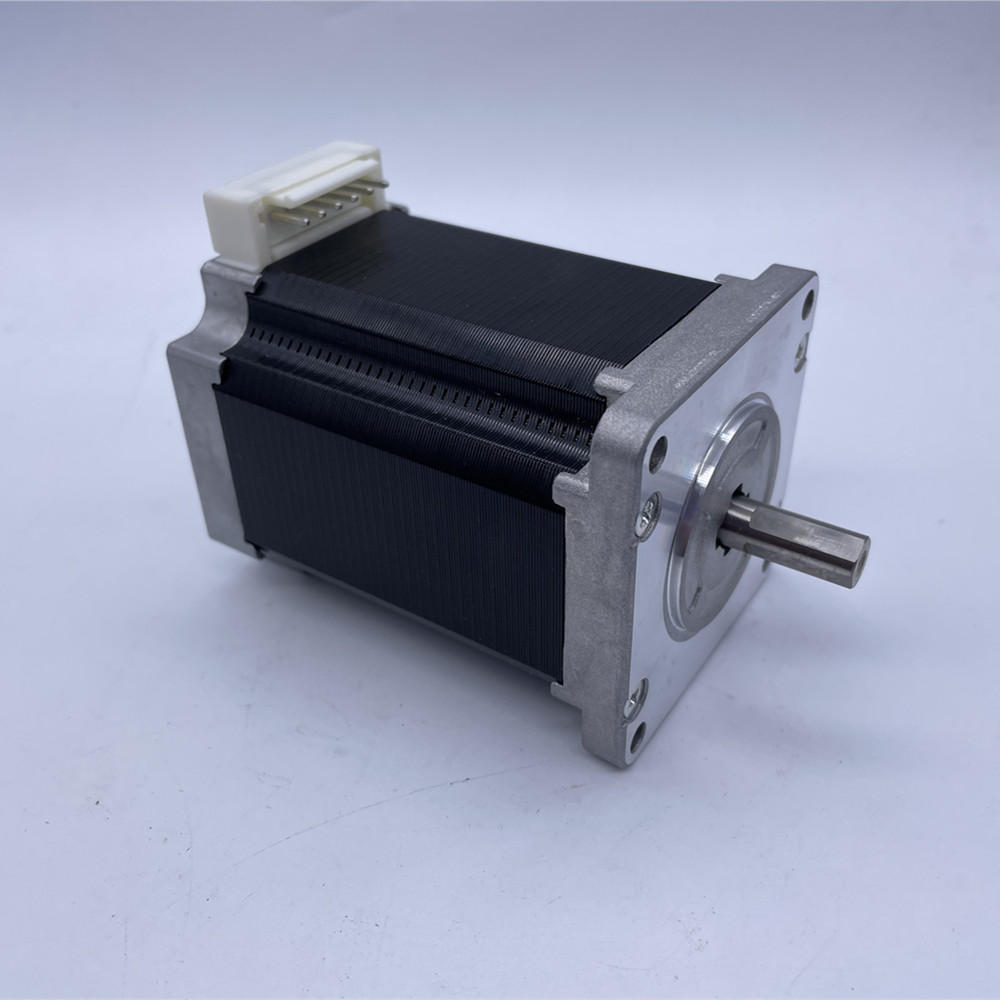

103H7823-0740/0440 Sanyo stepper motor

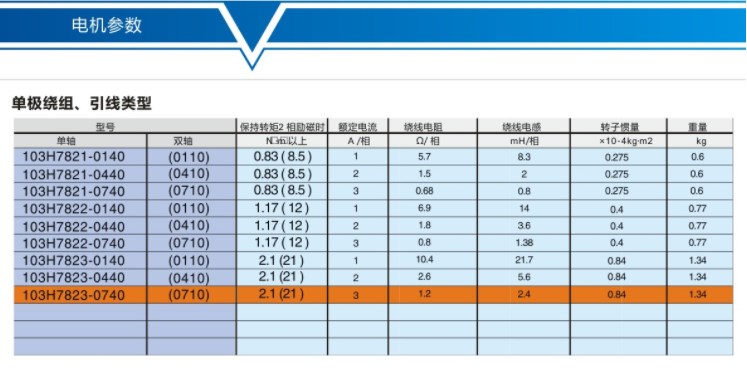

Specification
thing | value |
Warranty | 1 year |
birthplace | China |
Shanghai | |
brand | Sanyo |
model | 103H7823-0740/0440 |
stage | 2 |
type | Permanent magnets |
Current/Phase | 3/2 |
Certification | CE |
Rated current | 3/2A |
Shaft type | single axis |
Rotor inertia | 0.84*10-4kg.m2 |
weight | 1.34kg |
resist | 1.2/2.6Ω |

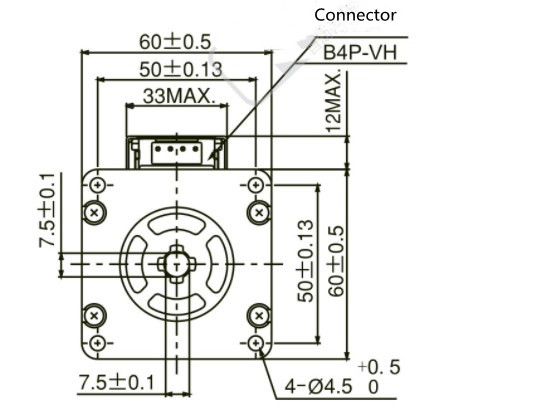

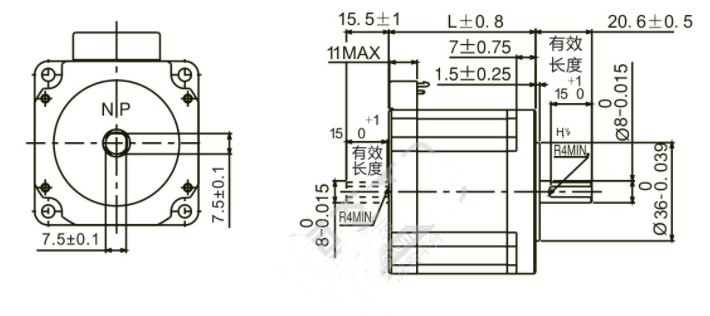

aspect

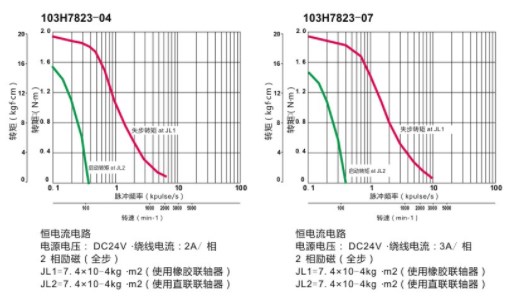

Pulse frequency-torque characteristics

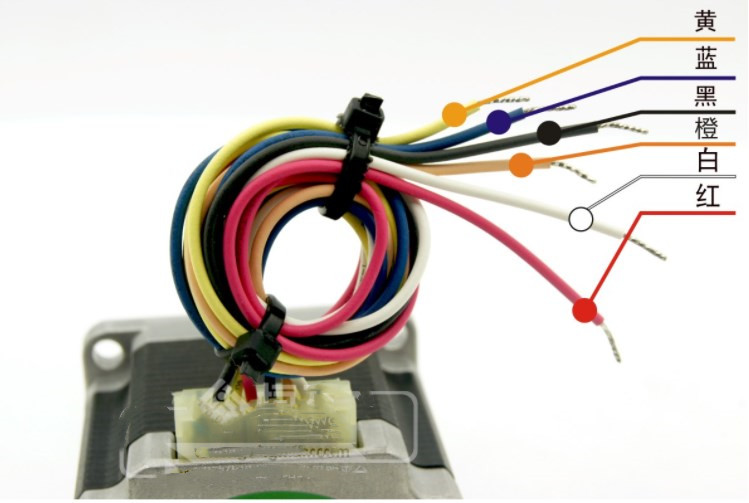

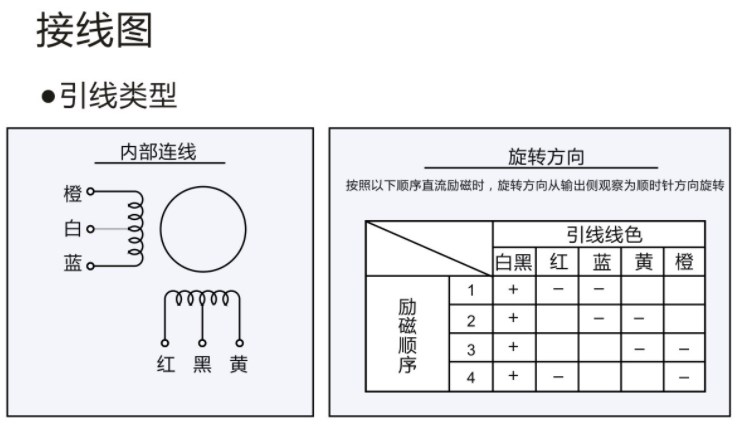

6-Lead Wiring Diagram
