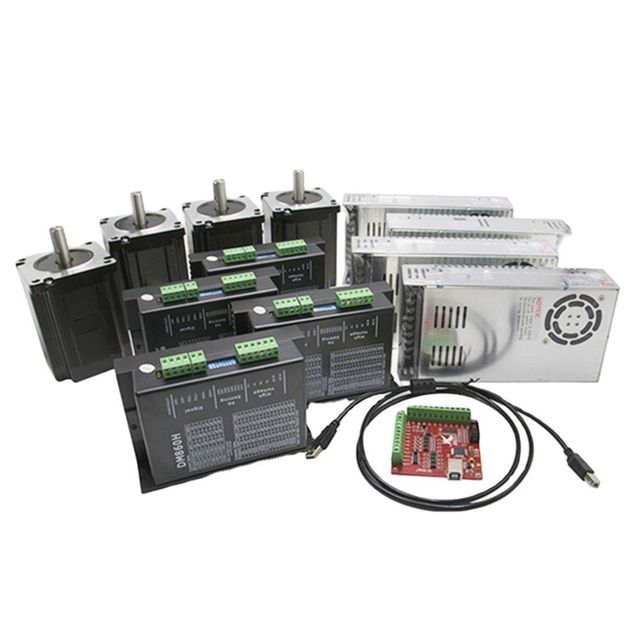

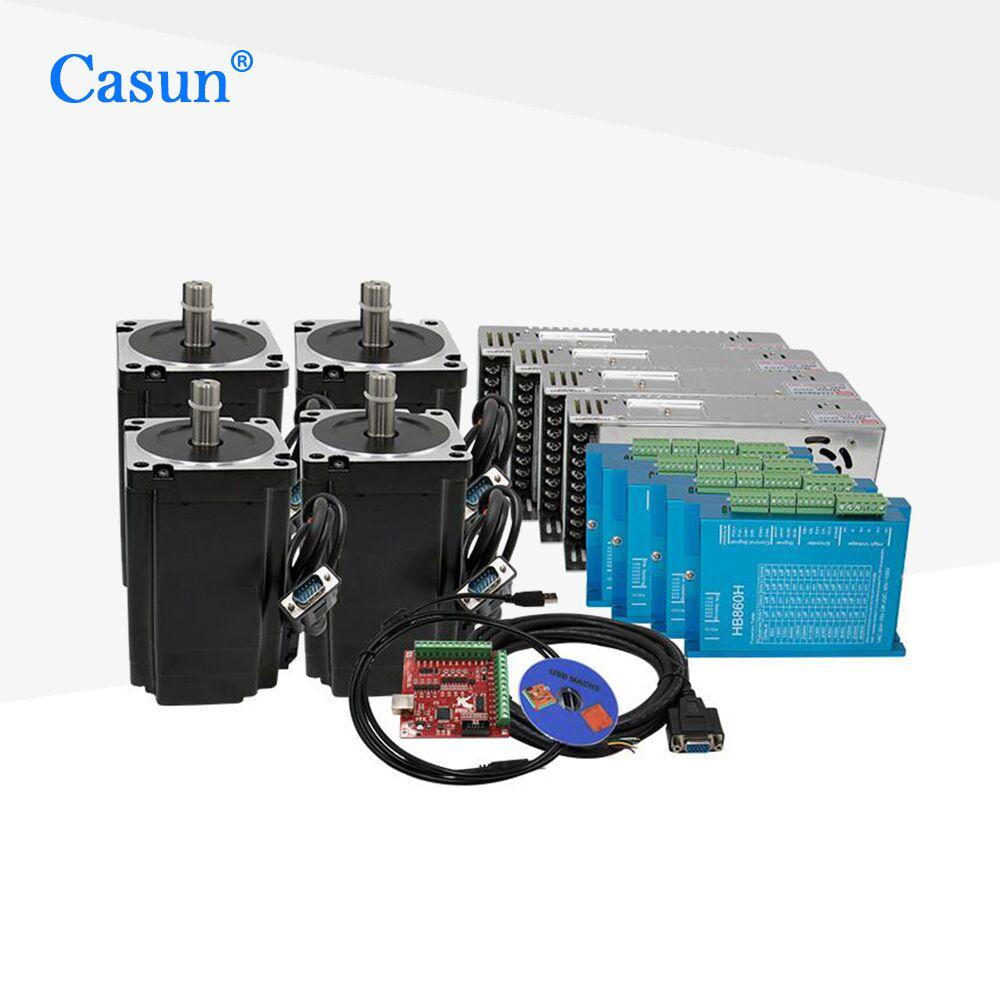

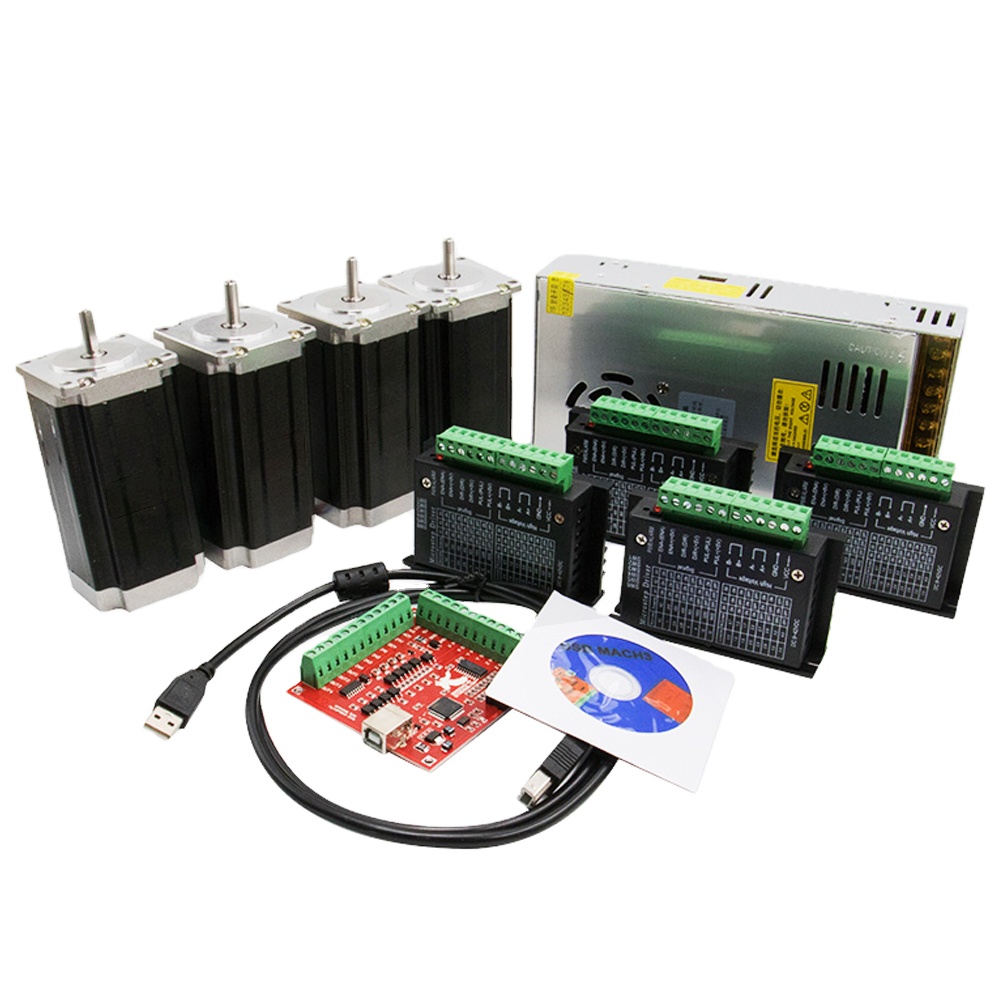

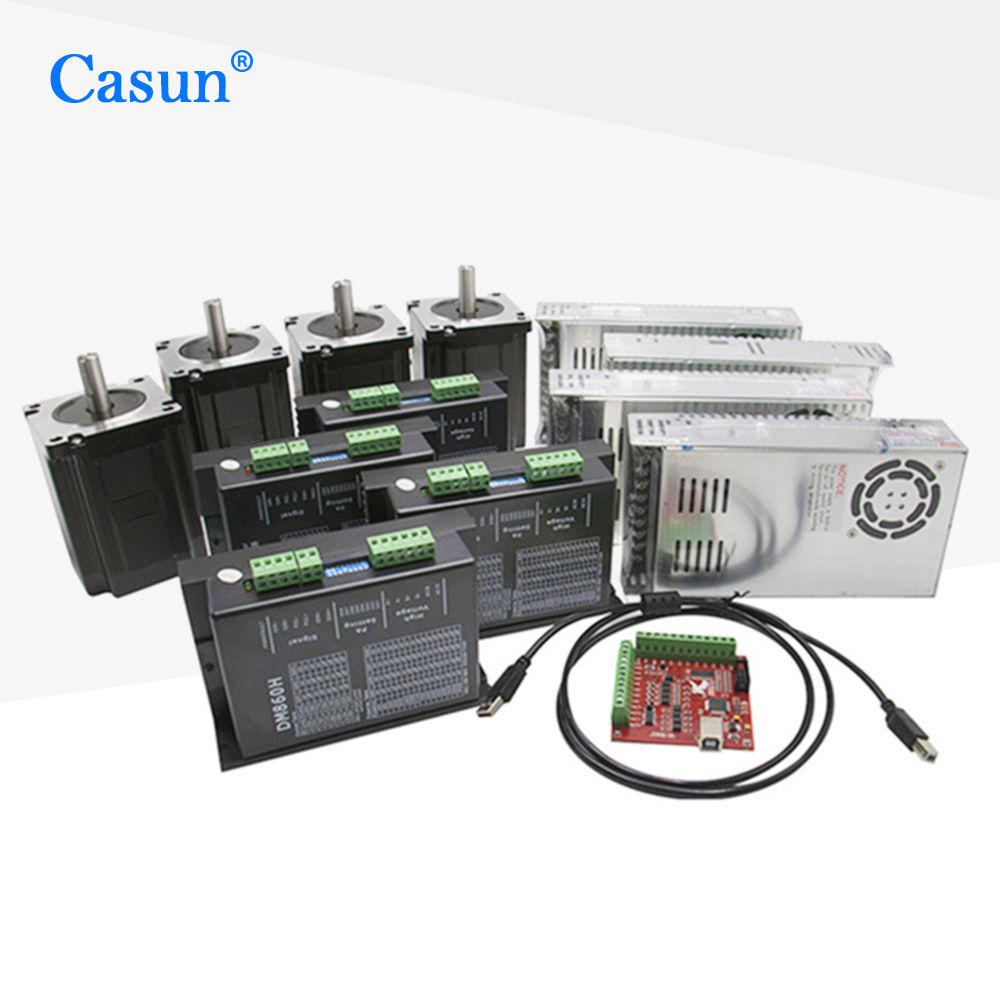

Nema 34 stepper motor kit includes 12 Nm high torque stepper motor + driver + power supply + motion control card
-
Supplier: Guangzhou Fude Electronic Technology Co., Ltd. -
Region: Guangdong, China -
Contact: Ms angel Zhang -
Price: $98.94 /piece -
Min. Order: 1 piece
Product details
| Package preview: | Operating Voltage: | 9 VDC | |
| Motor weight: | 5.0 kg | Current/Phase: | 5.0A |
| payment terms: | Delivery of documents, delivery of documents, telegraphic transfer | stage: | 2 |
| Warranty: | 3 months - 1 year | model: | 86SHD4505-37B |
| Phase resistance: | 1.1 ohms ±10% (at 20°C) | Packaging Details: | 1. Packed in carton with foam inside 2. Can be customized according to your requirements |
| Step angle: | 1.8 degrees | Rotor inertia: | 3600 grams per square centimeter |
| Rated current: | 5.0 amps | Origin: | Guangdong, China |
| Braking torque: | 0.32nm | Phase inductance: | 7.5 meters high ± 20% |
| Phase: | 2 | type: | hybrid |
| brand: | Casson | Holding torque: | 12 Nm |
Recommended Products
Product parameters
product name | NEMA34 High Torque Hybrid Stepper Motors | ||||||

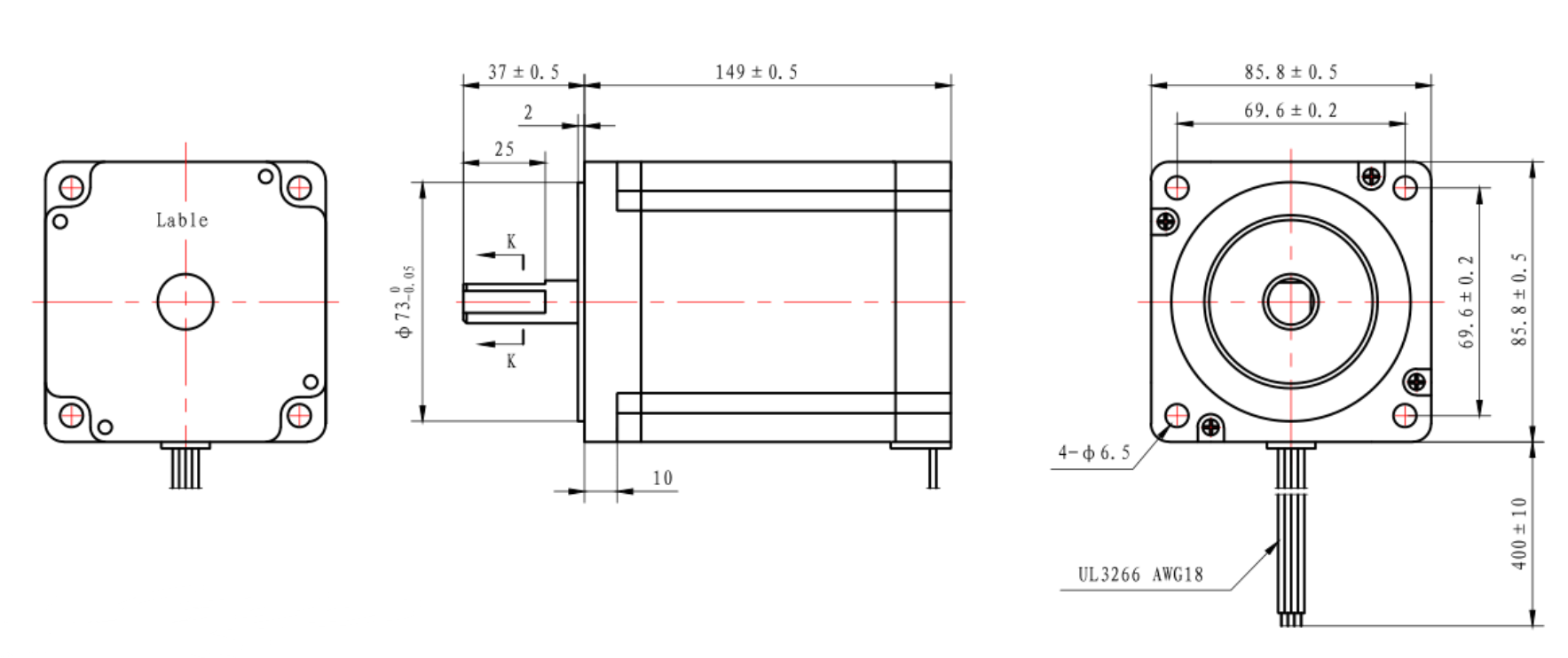

size | 86X86X149 mm | ||||||
axis | D axis | ||||||
brand | Casson | ||||||
Model | 86SHD4505-37B | ||||||
General Specifications | Electrical Specifications | ||||||
Step angle | 1.8 degrees | Operating Voltage | 48 Vdc | ||||
Phase | 2 | rated current | 5.0 amps | ||||
Insulation resistance | 100MΩ minimum. (500V DC) | Resistance per phase | 1.1Ω±10% (at 20°C) | ||||
insulation level | Class B | Inductance per phase | 7.5 meters high ± 20% | ||||
Rotor inertia | 3600 grams per square centimeter | holding torque | 12 Nm | ||||
Lots of | 5 kg | braking torque | 0.32nm | ||||
Product Description

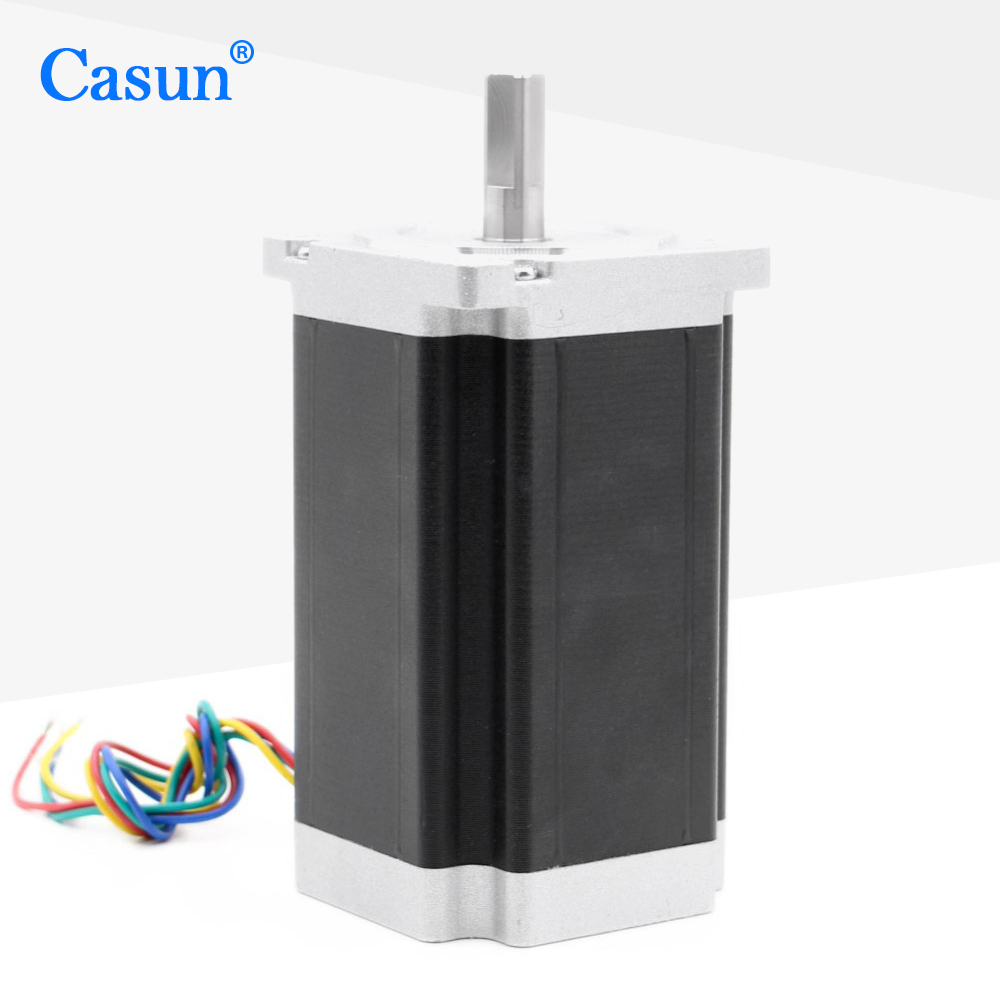

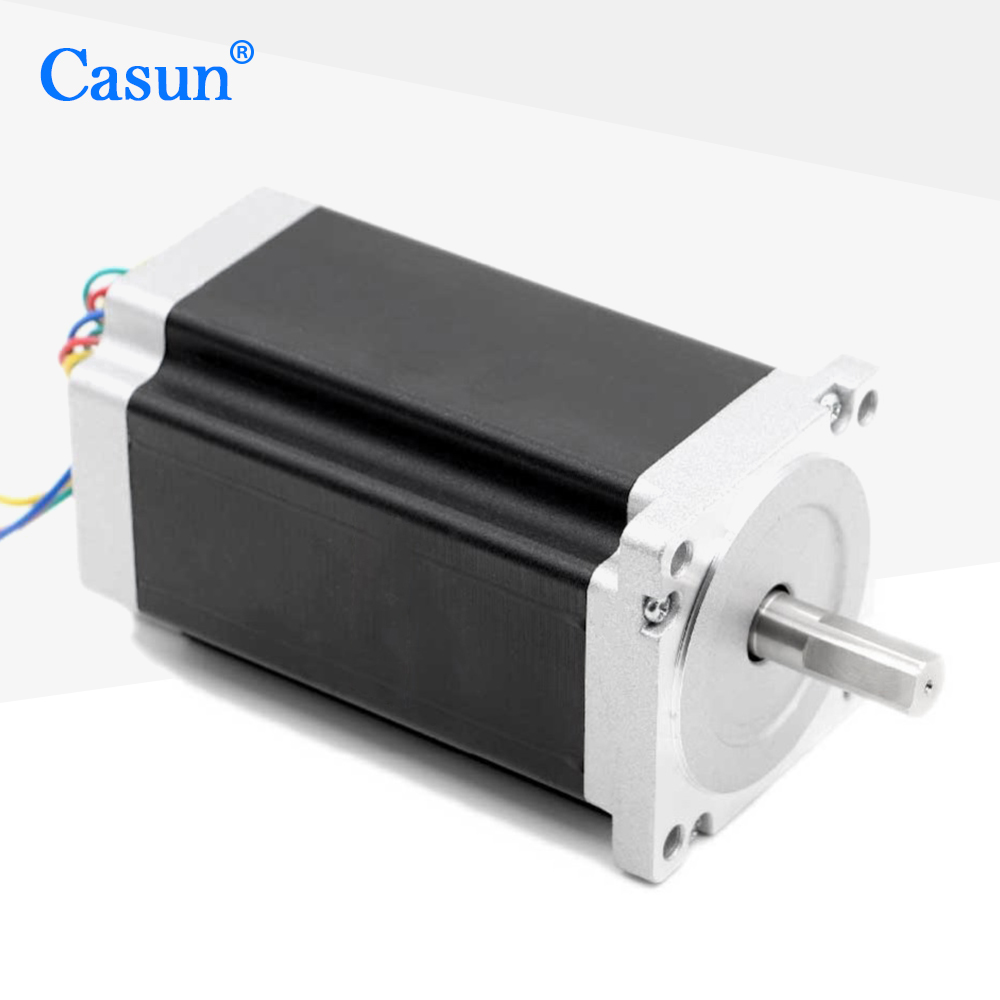

Nema 34 stepper motor 12N.m high torque 1.8 degree 2 phase 150mm length
(1 stepper motor)

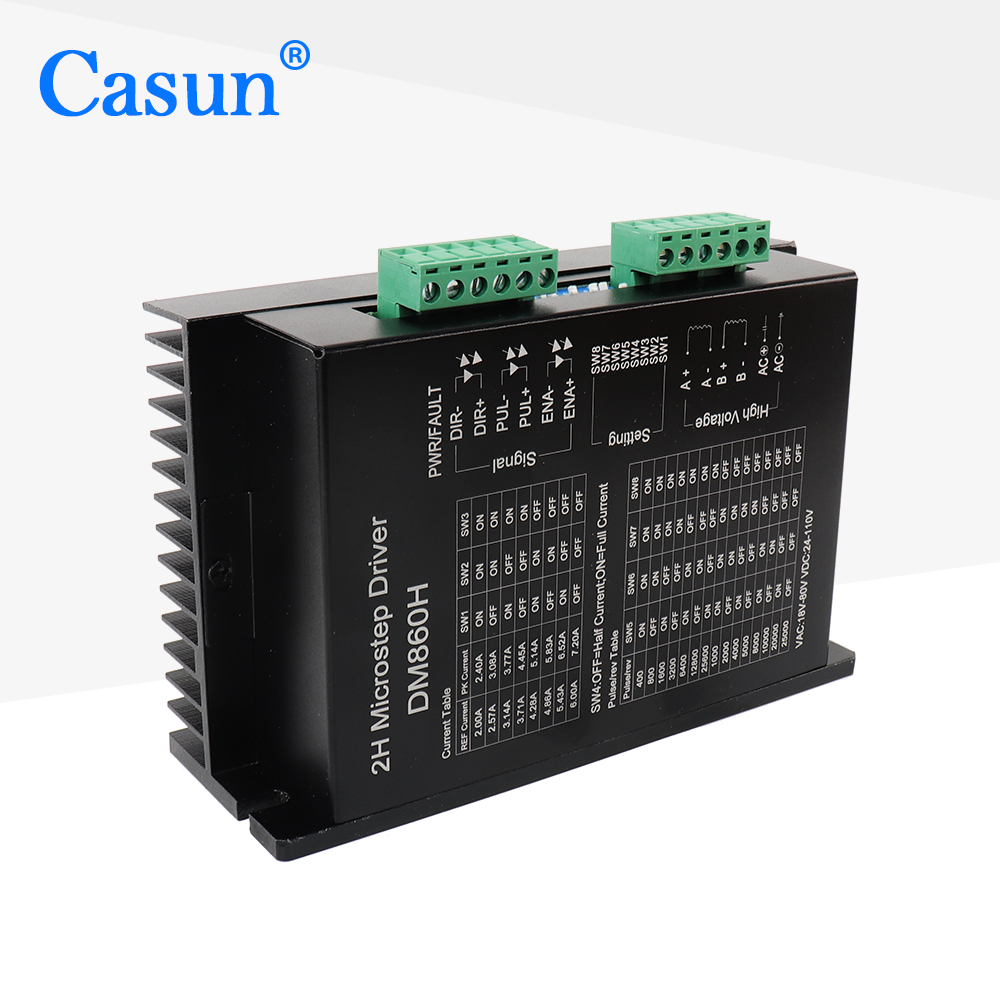

DM860H
Output current: 2.4-7.2A
Voltage: 18-50VAC/24-80VDC
Compatible motor: NEMA 34 series two-phase stepper motor
(1 driver)

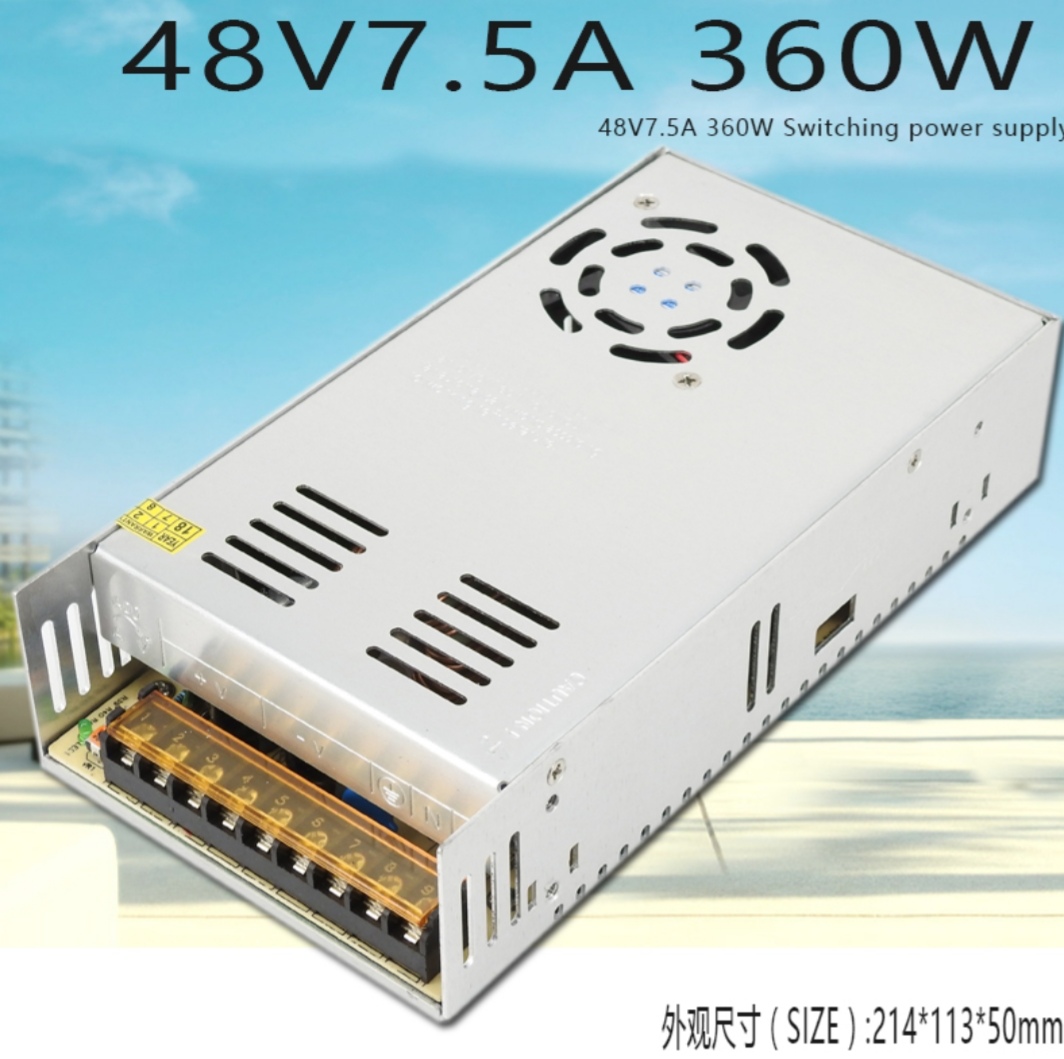

Power supply 360W (48V, 7.5A)
1 power supply

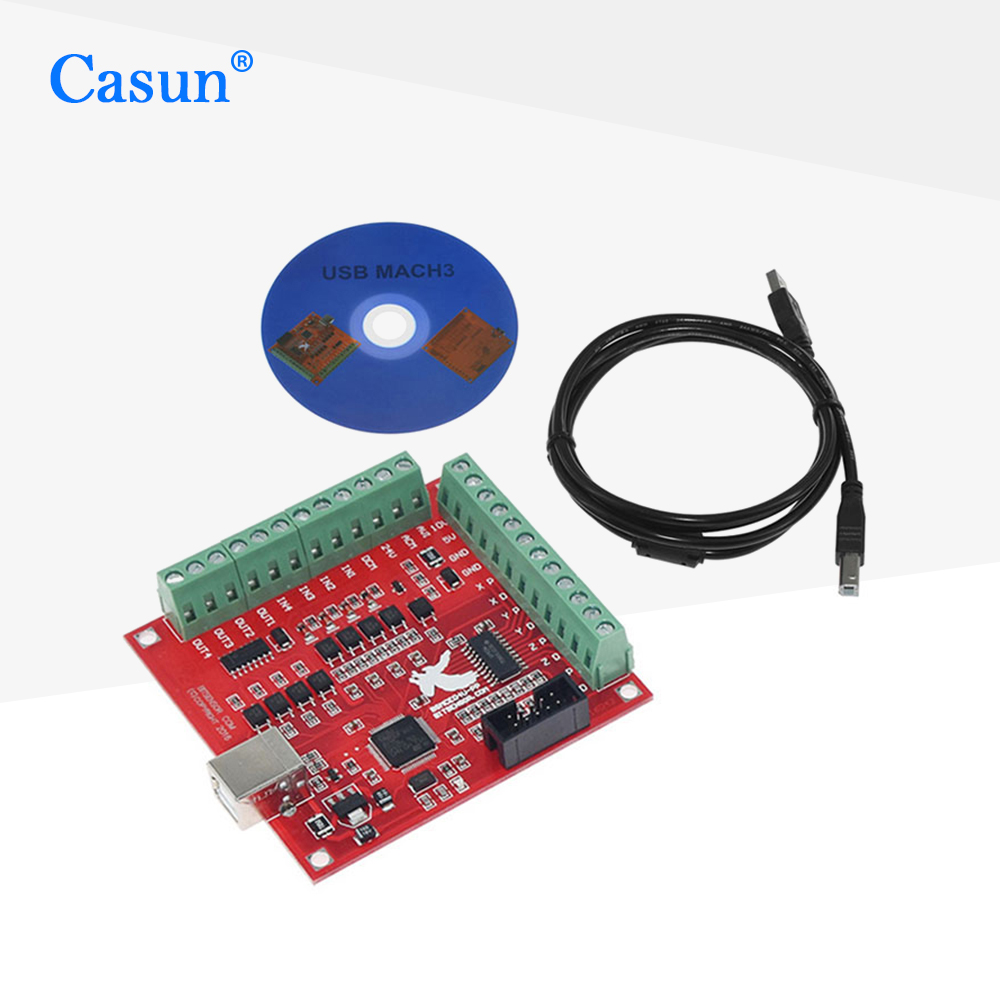

MACH3 motion control card 4 axis
(1 Mach 3 motion control card)
