made in China 4 NM 2500 RPM 220v 1kw AC servo motor with driver
-
Supplier: Shenzhen Guanhong Automation Co., Ltd. -
Region: Guangdong, China -
Contact: Ms Susie Xu -
Price: $90.00 /piece -
Min. Order: 1 piece
Product details
| Rated rotation speed: | 2500r/Min; | Rated current: | 4.0A; |
| Diameter of axle: | 22mm; | Place of Origin: | Guangdong China; |
| Supply Ability: | 800 Set/Sets per Day; | Dimension(L*W*H): | 163*130*130mm; |
| Encoder Resolution: | 2500PPR; | weight: | 7.7kg; |
| Matched Driver: | 030M2; | Continuous Torque: | 4.0N.M; |
| Rated voltage: | 220V; | Brand Name: | SZGH; |
| Packaging Detail: | standard exporting packing; | Payment Terms: | L/C,D/A,D/P,T/T,Western Union,MoneyGram; |
| Motor length: | 106mm; | Port: | ShenZhen.China; |
1kw servo motor high torque low price
Product Description

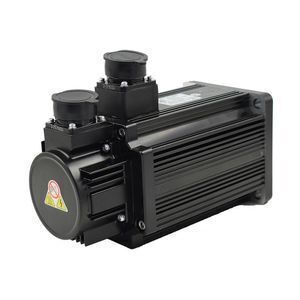

SZGH-13100CC is 1000W ,4NM and 2500RPM servo motor, it is low cost , and very general-purpose type. Imported feedback components, original imported low-noise motor .
Specifications
| Rated Power (W): 1000 W |
| Continuous Torque:4.0Nm |
| Peak Torque: 12 Nm |
| Rated Rotation speed (r/min): 2500 RPM |
| Encoder Resolution (PPR): 2500 |
| Rated Voltage (V): 220 |
| Rated Current (A): 4.0 |
| Rotor Inertia (kg.m2x10-4): 8.5 |
| Motor length:106mm |
| Weight:7.7kg |
| Work temperature: 0°C~ 40°C |
| Relative Humidity: < 90% RH |
| Altitude : < 1000 m |
Non corrosive ,non flammable gas and dust and oil-mist
Matched Driver: SZGH-030M2 SERVO DRIVER
Feature
Mechanical Dimensions (mm)
Product show
Packaging & Shipping
1.Industrial packing: plastic bag +foam boxes+ carton +wooden pallets
2.Commercial packing: plastic bag+ foam boxes + carton
3.As the clients’ requirement
Delivery Detail: Normally ready goods and stock within 2-5days
