SZGH 6-axis spraying industrial robotic arm collaborative robotic arm spraying robotic arm

Supplier: Shenzhen Guanhong Automation Co., Ltd.
Region: Guangdong, China
Contact: Ms Susie Xu
Price: $1000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Showroom location:	Turkey, Romania	Marketing Type:	New Products 2020
application:	spray paint	Core components:	Bearings, Gearboxes, Motors, Gears, Robot Controllers
feature:	high efficiency	After-sales service provided:	Engineers can repair machinery overseas
Packaging Preview:		structure:	articulated
Voltage:	220V	strength:	360w
Repeatability:	±0.05mm	Weight (kg):	150kg
After Warranty Service:	Video technical support	Video external inspection:	if
Function:	spray paint	Ambient temperature:	-20℃~80℃
Health status:	new	port:	Shenzhen
Warranty:	1 year	Installation type:	floor, stand, ceiling
Number of axes:	6 axes	Supply capacity:	100 sets per day
brand:	Shenzhen Center	Mechanical test report:	if
Model:	SZGH-P1500-B-6	payment terms:	L/C,Western Union,D/P,D/A,T/T
Core Components Warranty:	1 year	Packaging Details:	With carton and wooden box as the standard packaging of SZGH
Production capacity:	High	place of origin; place of origin:	Guangdong, China
Applicable industries:	Building materials store, machinery repair shop, industry

Product Description

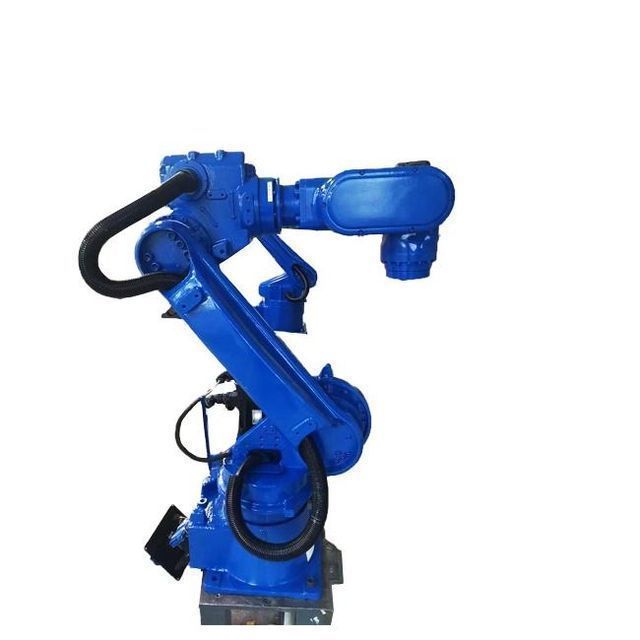

6-axis linkage industrial robotic arm collaborative spraying robotic arm

SZGH-P1500-B-6 is a painting robotis our electronicsEconomical robotic arm, affordable price, widely used, safe and efficient, it is a product worth owning

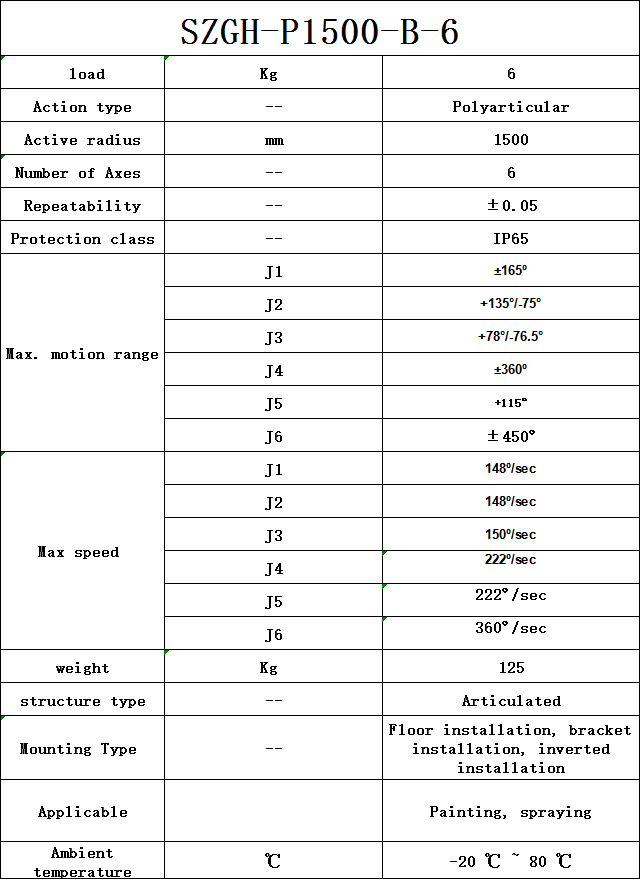

Payload	6kg
arrival	1500mm
axis	6
application	Breeding and spraying
special service	1. We can customize standard colors according to your needs! 2. We can customize your company logo!
after warren	Video technical support, online support

Applicable case

SZGH-P1500-B-6 is the earliest painting robot
initiated by the company. The payload is 6 kg and the working range is 1500 mm. It is generally integrated with various non-standard turntables or suspension equipment to form a workstation

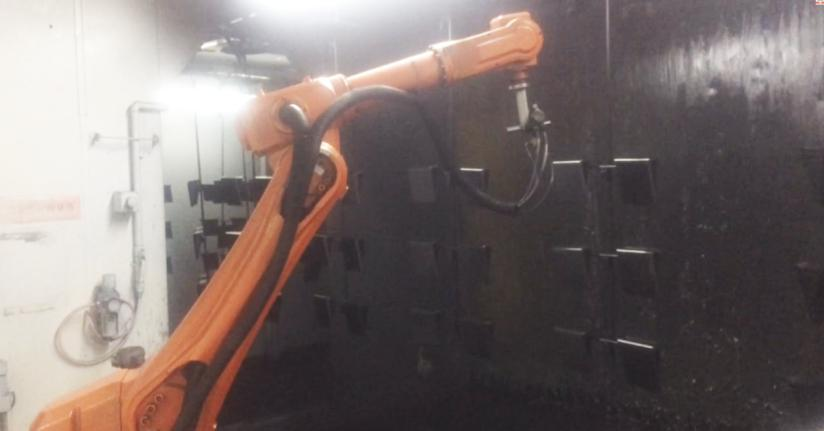

The picture shows the hanging line tracking coating solution provided for a customer. Not only the labor cost is greatly reduced, but also the output is increased.

Spin coating of injection molded parts

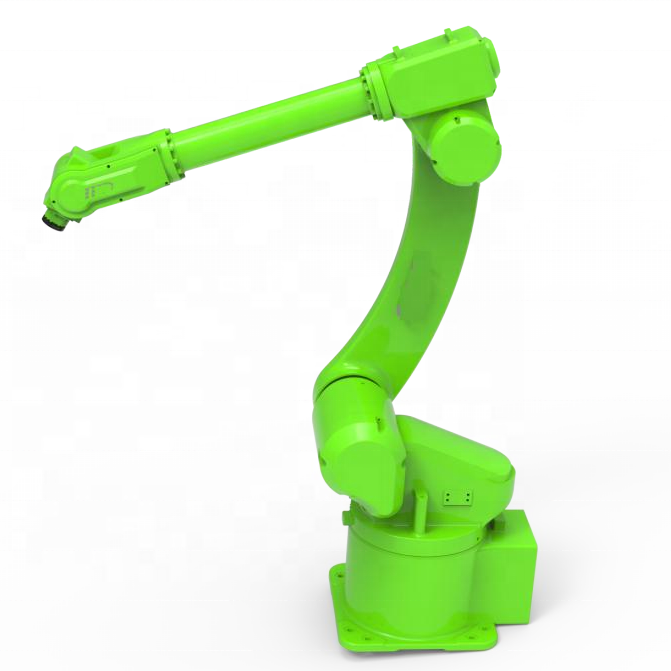

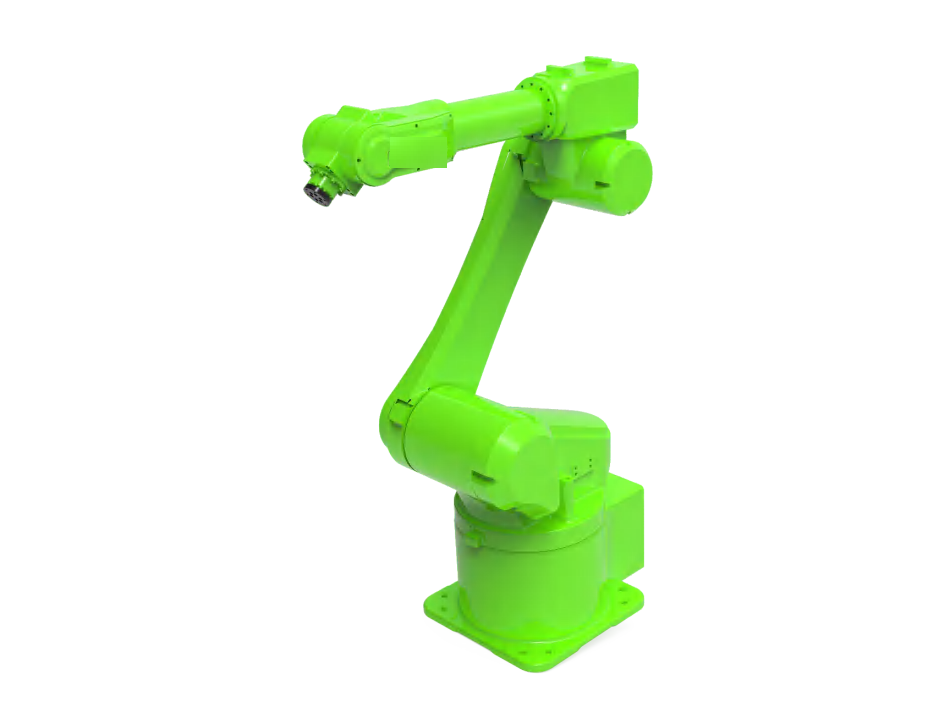

SZGH-P1950-B-6 is a painting robot produced by our company
. Has the advantages of dustproof and waterproof
In the range of motion, it is often used to have
Harsh coating environment helps to improve
Employment and working environment in the business
significant g

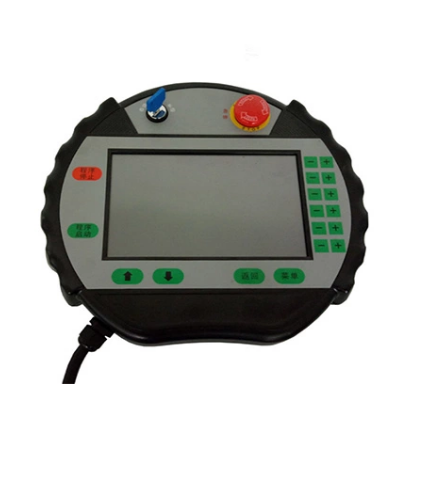

Robot Control System

●The structure optimization algorithm is suitable for the body control of various structures.
●The function is modularized, suitable for a variety of applications. ●8-axis control, realize the control of external axis (travel axis, positioner).
●Suitable for multiple increments; absolute servo.
●Open structure, international technology synchronization and promotion
function.
●Software PLC function is convenient for logic control.
● The process function makes programming easy. ● Improved computer bus
Connections ensure reliability and availability.
●Safety module to ensure the safe production of robots.
●Industry standard, stable and reliable.

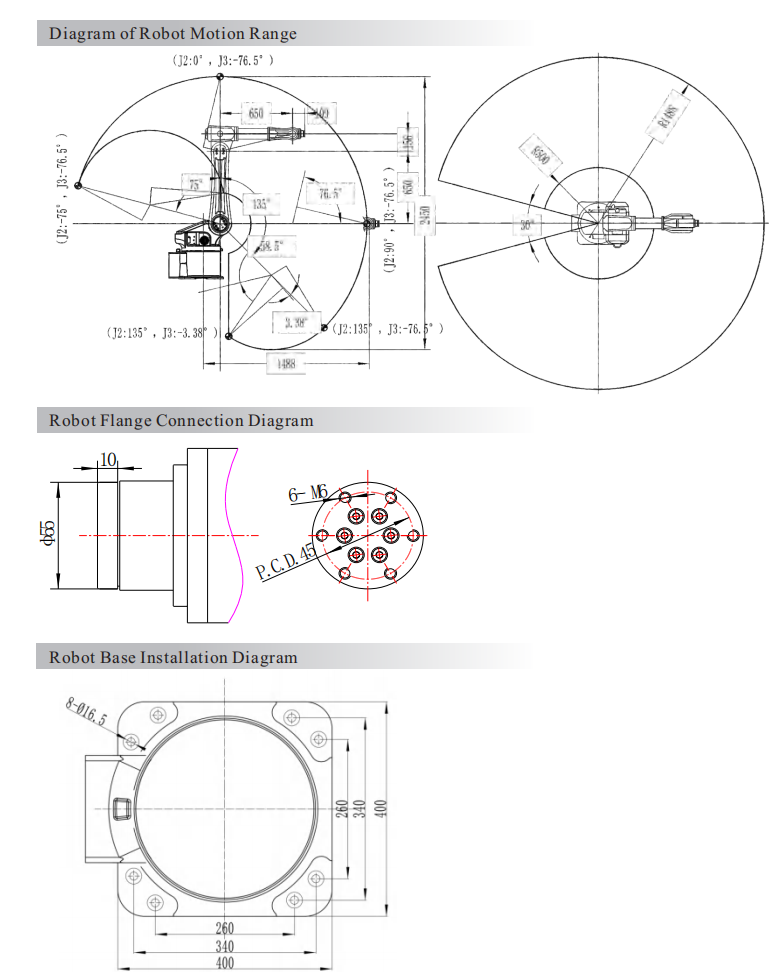

Size Information

workspace
