Six-axis collaborative robotic arm manipulator for automatic welding

Supplier: Hangzhou Tuoyuansheng Trading Co., Ltd.
Region: Zhejiang, China
Contact: Mr chen
Price: $5000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Mechanical test report:	if	Core component warranty:	1 year
Typical TCP speeds:	1 m/s	Dimensions (LWH):	34226090mm
Supply capacity:	99 sets per month	Packaging Details:	Standard export packaging
application:	welding	Weight (kg):	3 kg
feature:	new	Core components:	engine
axis:	6 axis	Health status:	new
Origin:	Jiangsu, China	Production capacity:	custom made
port:	Tianjin, Qingdao, Shanghai	Certificate:	1 year
Marketing Type:	normal product	product name:	Six-axis collaborative robotic arm manipulator for automated welding
brand:	FR	payment terms:	L/C, Western Union, D/P, D/A, T/T, MoneyGram
Showroom location:	not any	Program editor:	10.1-inch teach pendant or mobile APP
Key words:	robotic arm	Working radius:	620mm, 920mm, 1400mm optional
Payload:	3Kg, 5Kg, 10Kg optional	Repeatability:	±0.02mm
strength:	1 kW	Video shipment inspection:	if

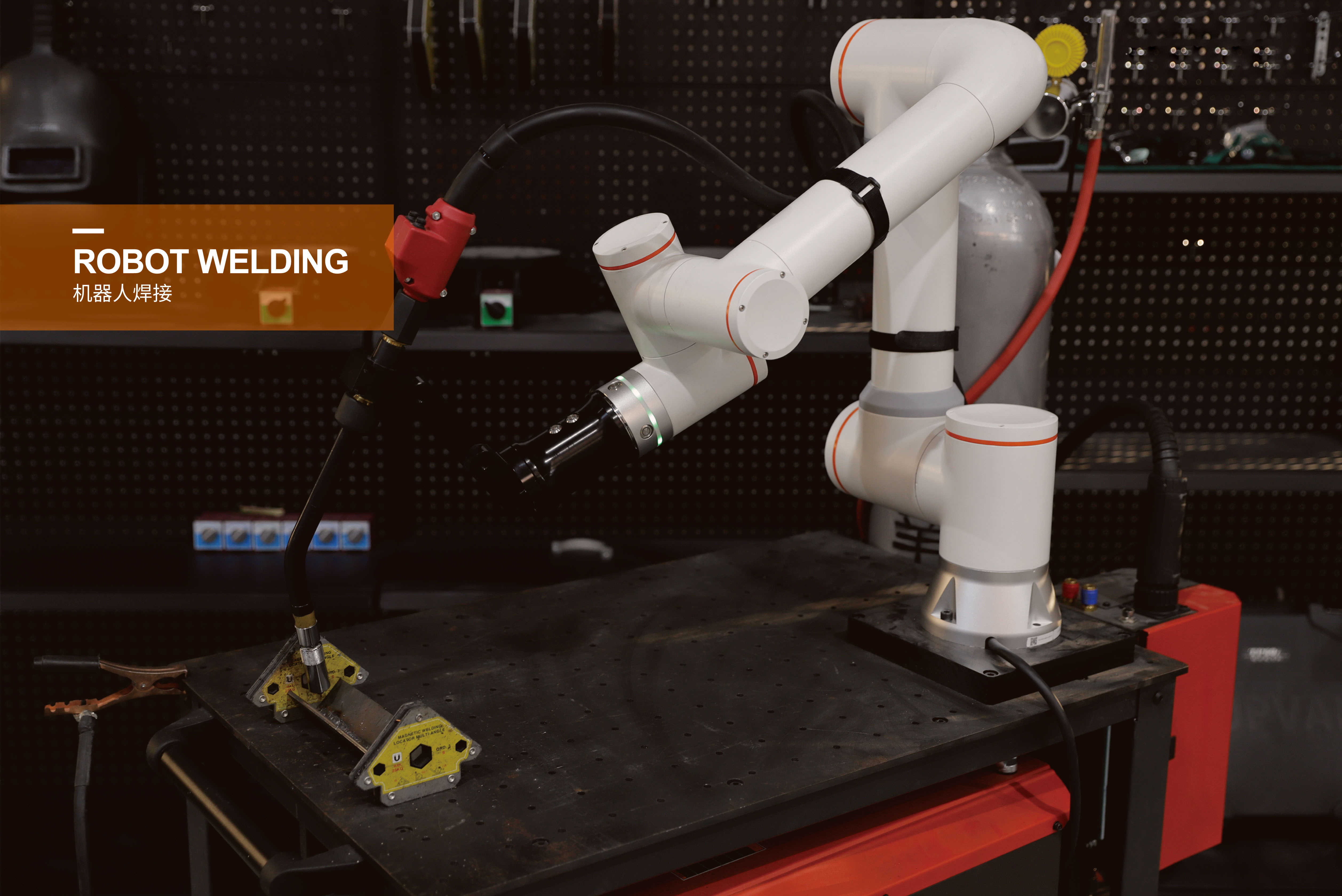

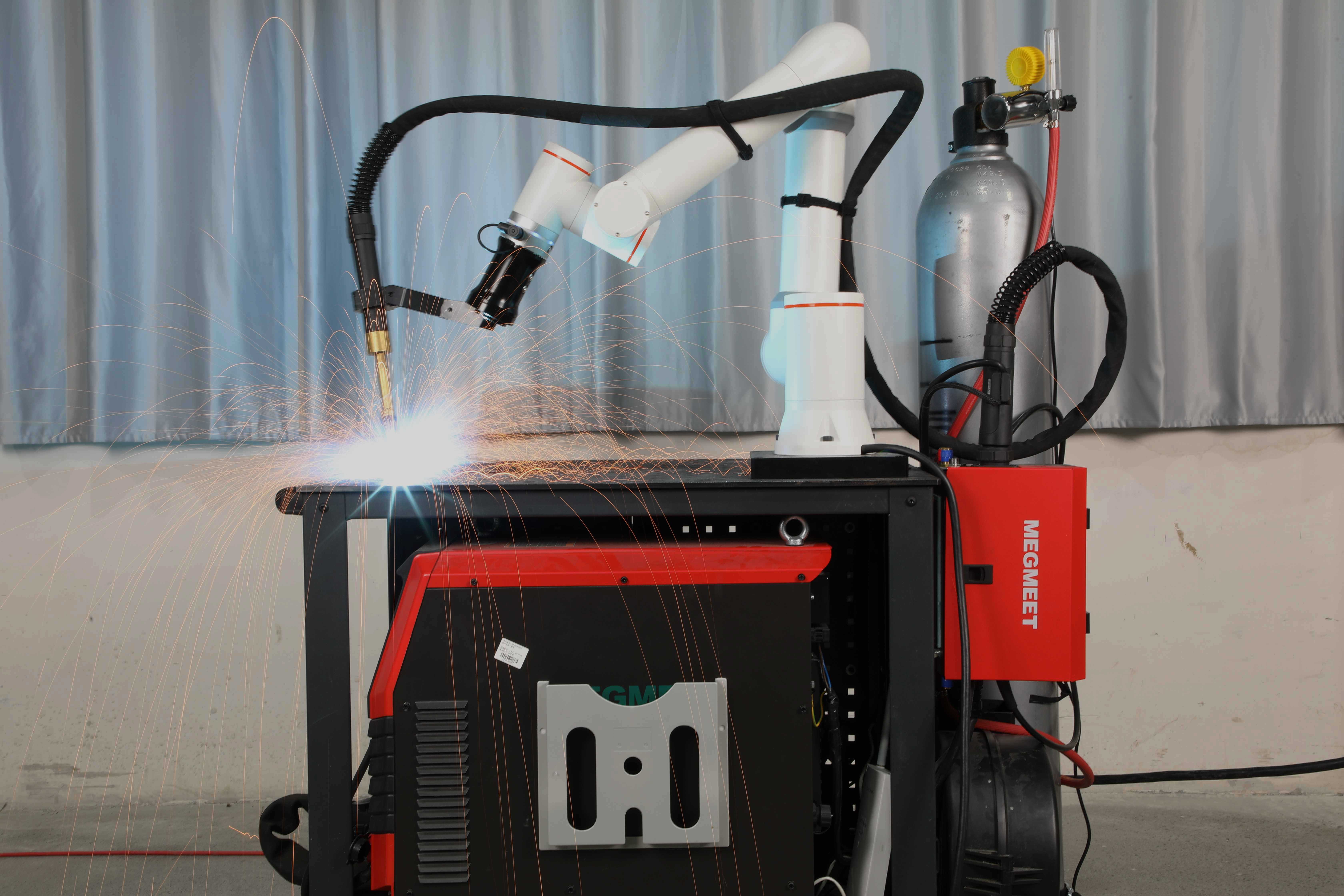

usage:	Welding, polishing, processing, etc.	Applicable industries:	Apparel Stores, Building Materials Stores, Manufacturing Plants, Food and Beverage Plants, Farms, Restaurants, Retail Stores, Grocery Stores, Construction Works, Energy and Mining, Food and Beverage Stores, Others
Warranty:	1 year	Voltage:	220V

Product Description

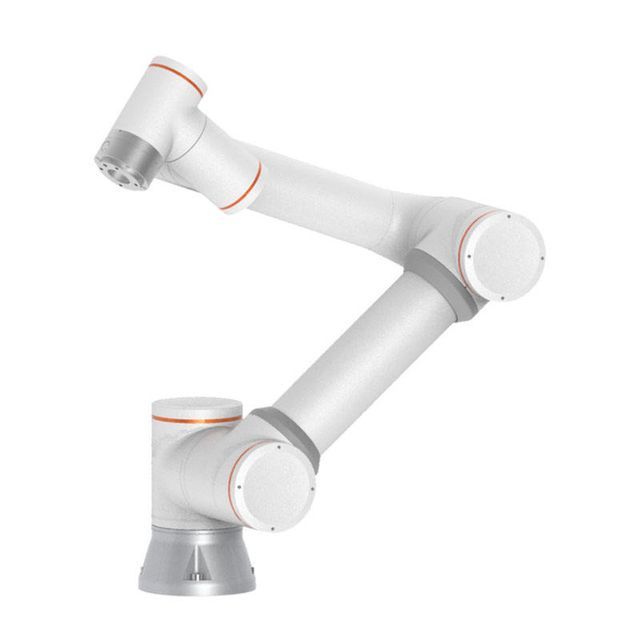

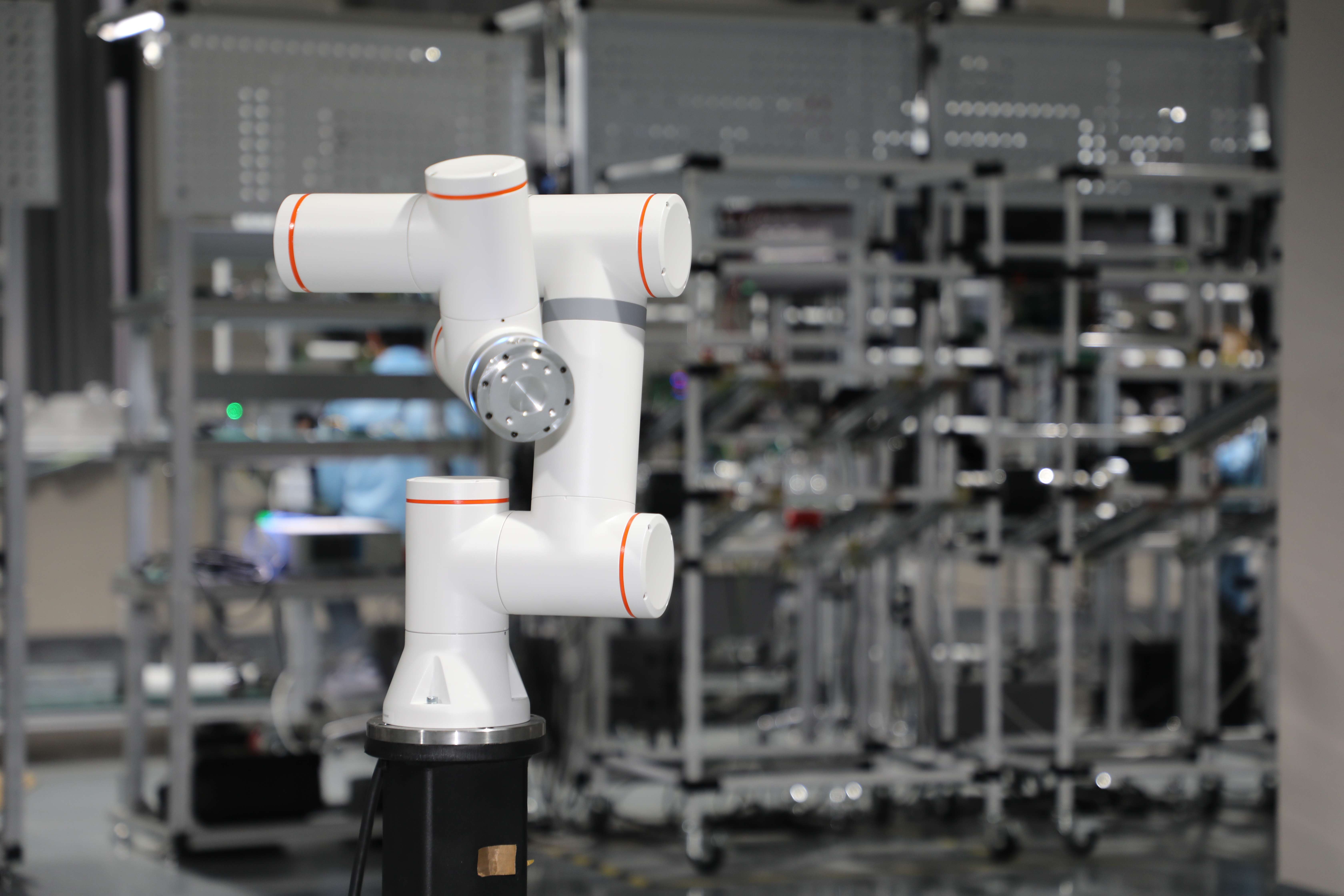

Six-axis collaborative robotic arm manipulator for automated welding

Six-axis collaborative robotic arm manipulator for automated weldingFree up your time and space from complex and inefficient repetition, allowing you to embrace a broader perspective. Its appearance not only improves the efficiency of human-machine collaboration, but also speeds up the automation process for more companies, frees up floor space for manufacturers, and reduces the cost of implementing robots.

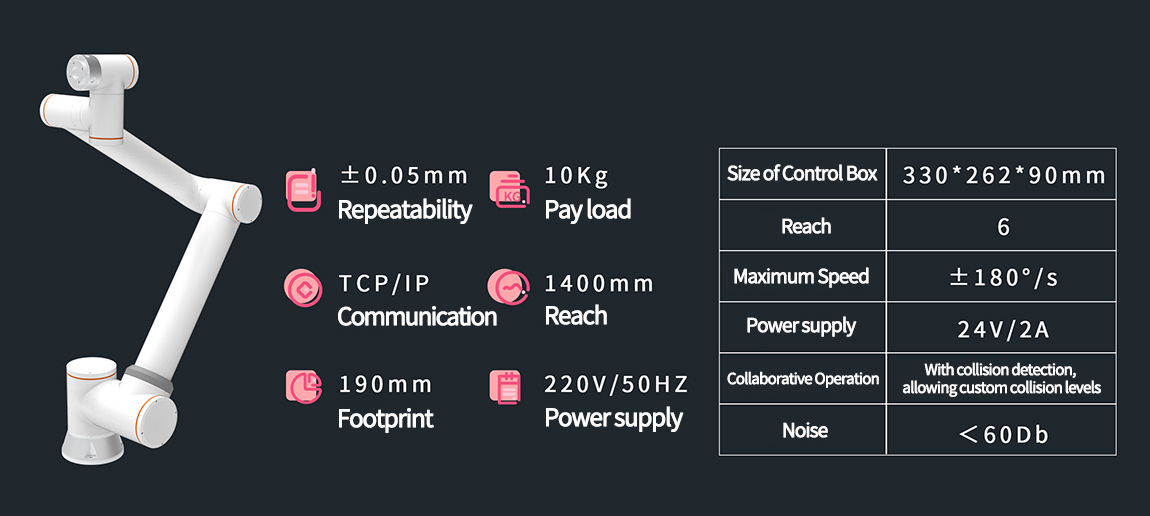

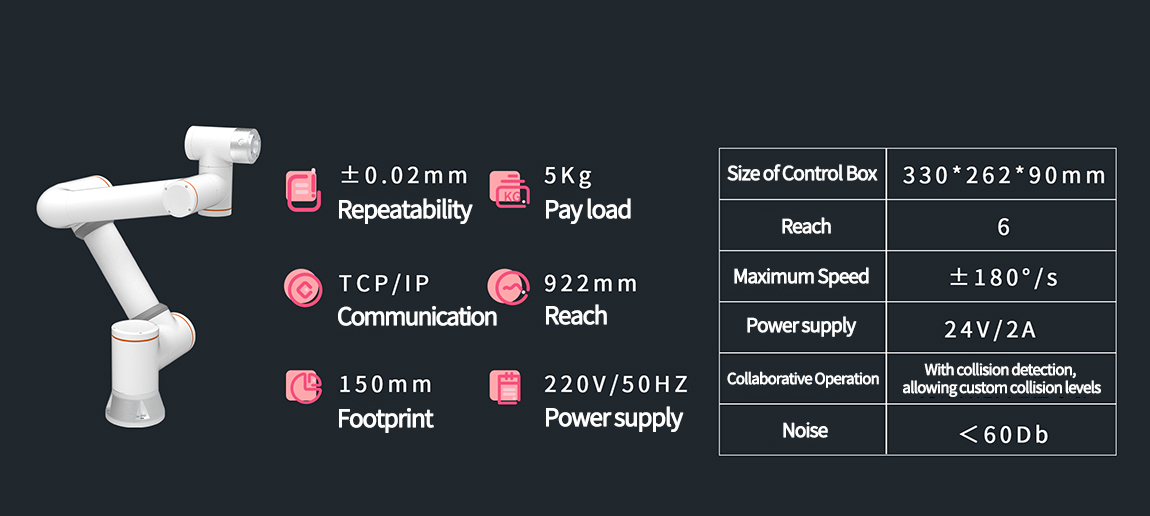

Specification

Specification

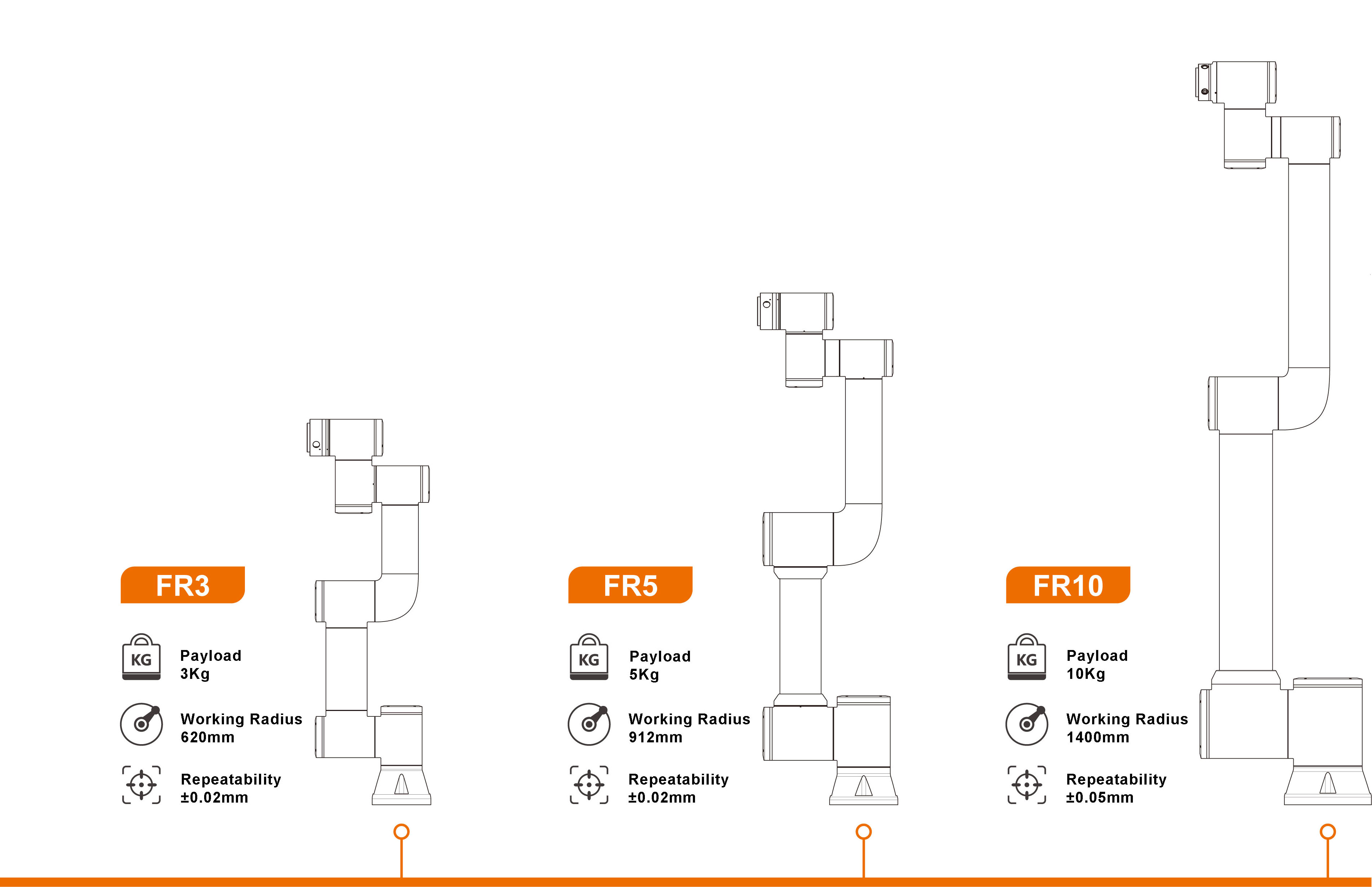

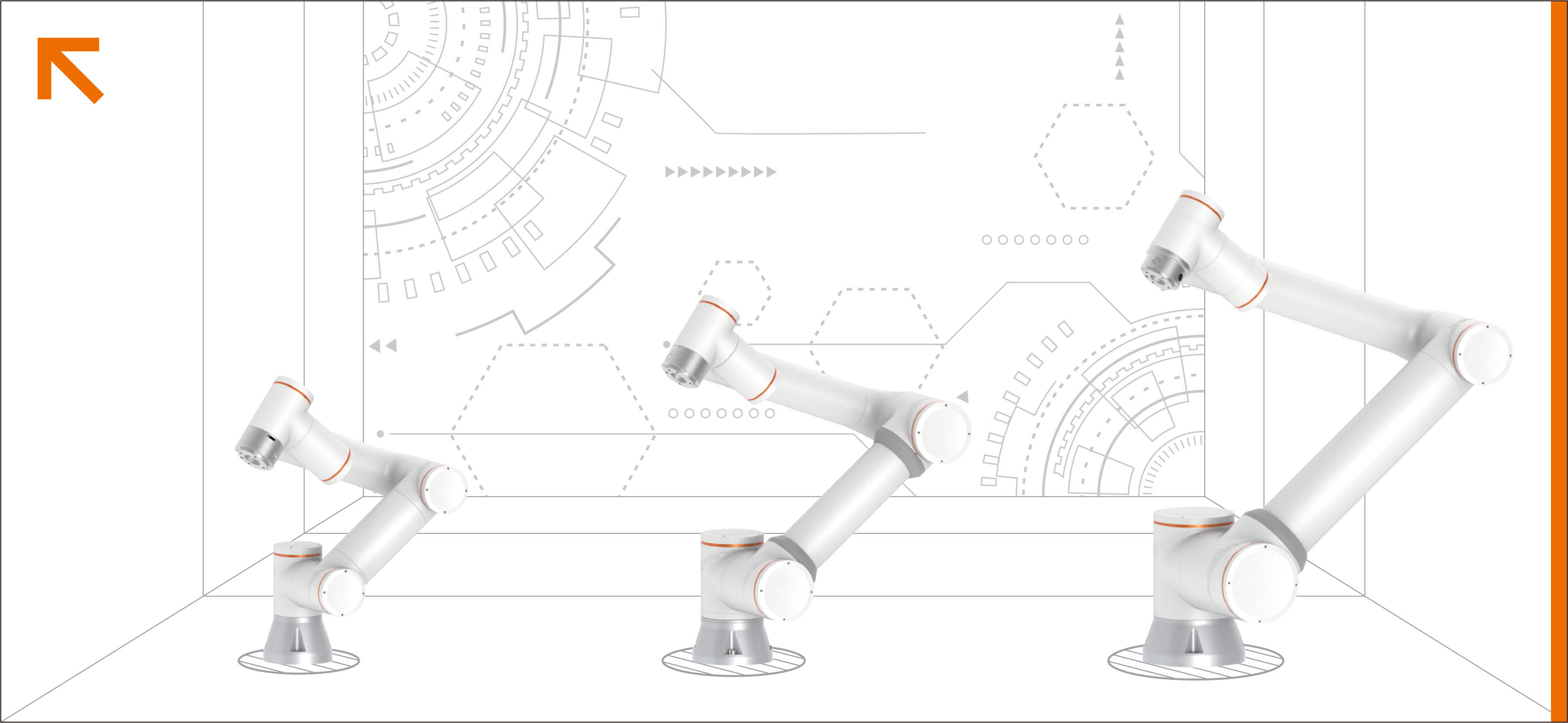

thing		FR3	FR5	FR10
Payload	Payload	3 kg	5 kg	10 kg
working radius	working radius	620mm	920mm	1400mm
degrees of freedom	degrees of freedom	6	6	6
Program editor (HMI)		10.1-inch teach pendant or mobile APP

move

thing

FR3

FR5

FR10

repeatability

±0.02mm

axis movement

working angle

maximum. speed

working angle

maximum. speed

working angle

maximum. speed

1 axis

±175°

±180°/sec

±175°

±180°/sec

±175°

±180°/sec

2 axis

﹢85°/ -265°

±180°/sec

﹢85°/ -265°

±180°/sec

﹢85°/ -265°

±180°/sec

3 axis

±150°

±180°/sec

±160°

±180°/sec

±160°

±180°/sec

4 axis

﹢85°/ -265°

±180°/sec

﹢85°/ -265°

±180°/sec

﹢85°/ -265°

±180°/sec

5 axis

±175°

±180°/sec

±175°

±180°/sec

±175°

±180°/sec

6 axis

±175°

±180°/sec

±175°

±180°/sec

±175°

±180°/sec

Typical TCP speed

1 m/s

feature
thing	FR3	FR5	FR10
Intellectual Property Classification	IP66
noise	<65dB
Installation direction	any direction
Tool side (I/O)	Digital Input (DI) 2 Digital Output (DO) 2
Tool side (I/O)		Analog Input (AI) 1 Analog Output (AO) 1
power supply	24V/2A

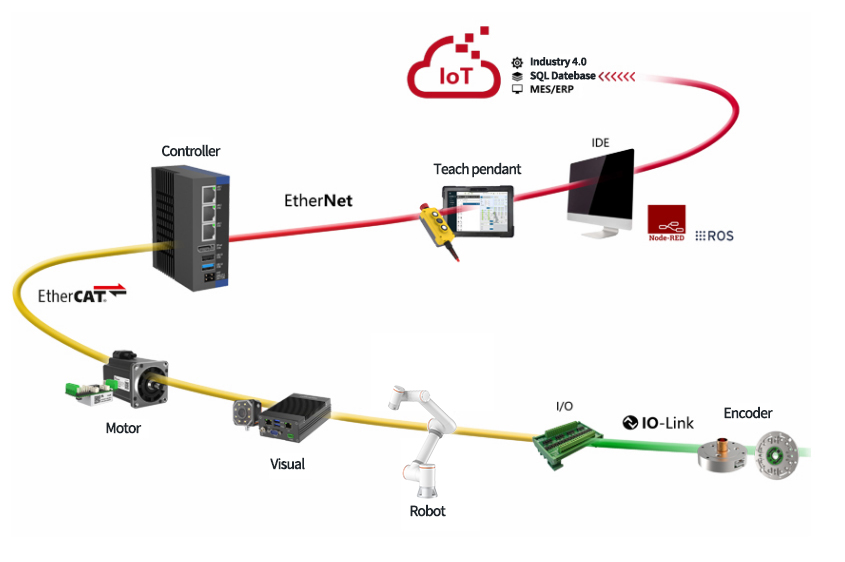

Interface and Open	TCP/IP, RS485
Communication Interface	C, C++, Lua, Python, ROS

physical properties
	FR3	FR5	FR10
base diameter	130mm	150mm	190mm
net weight	≈15Kg	≈22Kg	≈40Kg
Operating temperature	0~45℃
Working humidity	＜90%RH
body material	aluminum, steel
