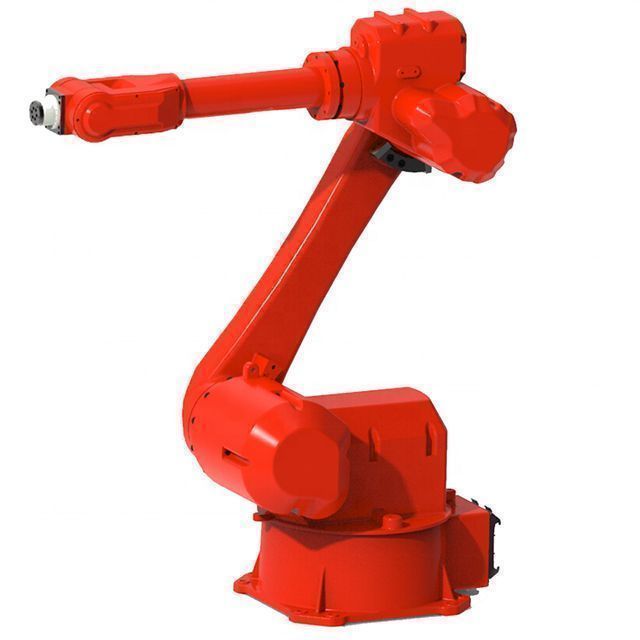

Spraying Robot Arm 6 Axis Robot Arm 1950 mm Spraying Arm

Click here to contact

Product details

port:	Shenzhen	place of origin; place of origin:	Guangdong, China
Marketing Type:	normal product	payment terms:	Wire transfer, MoneyGram
color:	custom color	Spraying method:	Robot automatic painting line
Health status:	new	Packaging Preview:
Applicable industries:	Hotels, Clothing Stores, Building Materials Stores, Machinery Repair Stores, Food and Beverage Plants, Farms, Home Use, Retail, Food Stores, Construction Works, Energy and Mining, Food and Beverage Stores, Advertising Agencies	Core components:	motor, gear
Coating Type:	liquid or powder	brand:	Robot Anno
Weight (kg):	225kg	Packaging Details:	Packed in export-specific plywood box, depending on machine size and transportation distance including: robot body1 controller box1 teach pendant1 (if you need a spraying unit, such as spray gun, pressure tank, please contact me) cable1 (A spray gun unit can be added as required)
Core Components Warranty:	1 year	Shaft Type:	6 degrees of freedom
Supply capacity:	500 sets per month	Showroom location:	not any
motor:	servo motor	Video external inspection:	if
positioning accuracy:	0.05mm	Working radius:	1950mm
Mechanical test report:	if	Material:	aluminum
Voltage:	AC220V

Product Description

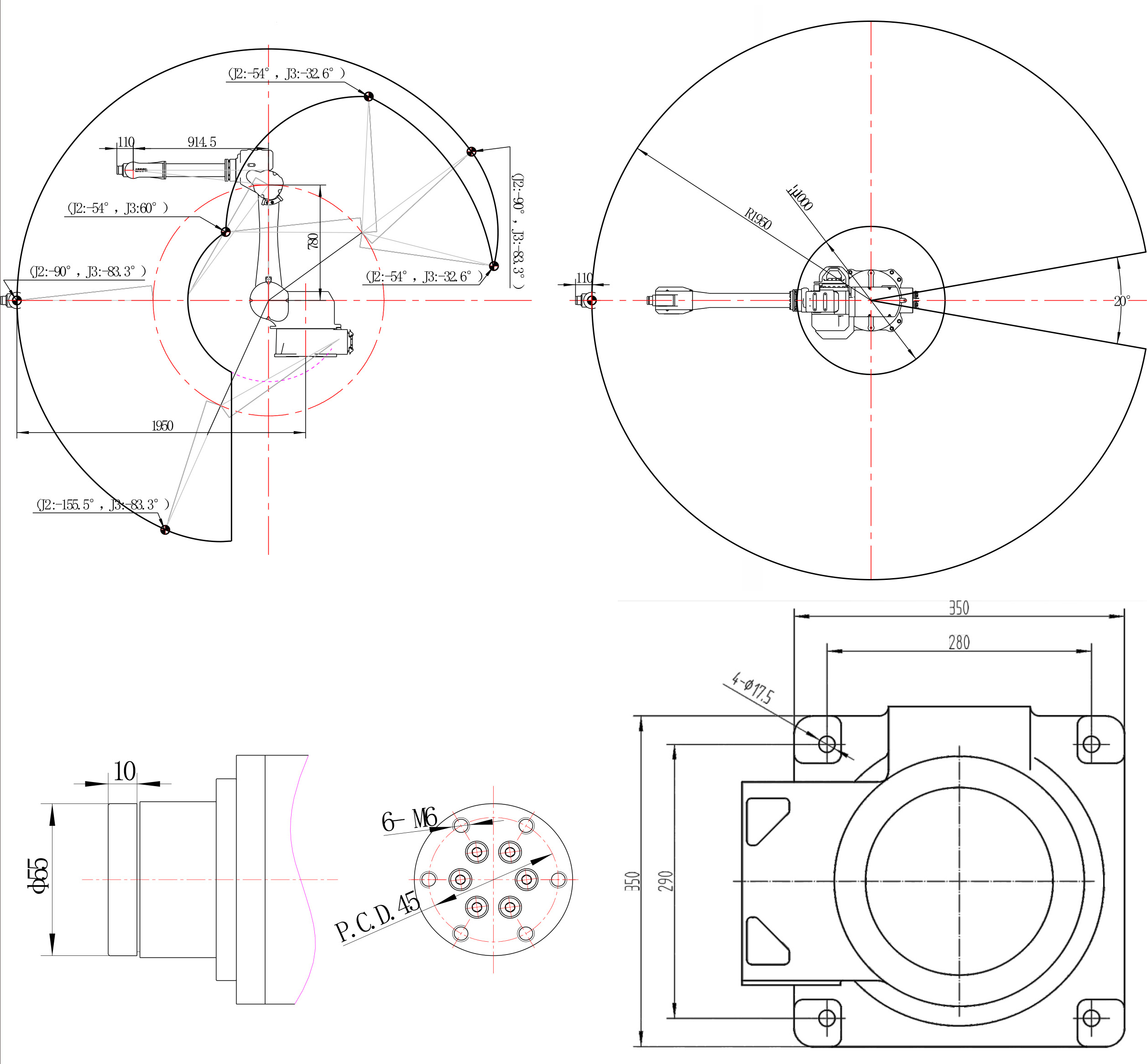

technical parameter

Payload			6 kg
arrival			1950 mm
structure			articulated
number of axes			6
Repeatability			±0.05mm
maximum. range of motion	axis 1	±165°
	axis 2	+135°/-75°
	axis 3	+78°/-76.5°
	axis 4	±360°
	axis 5	±115°
	axis 6	±450°
maximum. speed	axis 1	148°/sec
	axis 2	148°/sec
	axis 3	150°/sec
	axis 4	222°/sec
	axis 5	222°/sec
	axis 6	360°/sec
weight			≈125kg
installation type			Floor, stand, ceiling
Applicable industries			Handling, loading and unloading, palletizing, painting
ambient temperature			-20℃~80℃
