Top brand Inch Real Color LCD 6 -8 axis cnc robot controller support PLC+CNC+Teach for welding

Supplier: Shenzhen Guanhong Automation Co., Ltd.
Region: Guangdong, China
Contact: Ms Susie Xu
Price: $600.00 /set
Min. Order: 1 set

Click here to contact

Product details

Applicable Industries:	Manufacturing Plant,Retail,Construction works ,cnc robot controller;	Port:	48input 32output;
Supply Ability:	100 Set/Sets per Day;	After-sales Service Provided:	Video technical support,Field maintenance and repair service,Online support;
User Store Room:	256Mb (Expand to 2G);	CPU:	ARM(32bits)+DSP+FPGA;
Dimension(LWH):	220150200,22015040;	Weight:	10;
Packaging Detail:	Carton;	Showroom Location:	Turkey;
Port:	SHENZHEN;	Displayer:	Inch Real Color LCD;
Payment Terms:	L/C,D/A,D/P,T/T,Western Union;	Application:	cnc robot machine;
Axis:	6-8 AXIS;	Program:	Teach function, G code;
Place of Origin:	Guangdong China;	Condition:	New,NEW;
Function:	PLC+CNC+Teach;	Local Service Location:	Turkey;
Brand Name:	SZGH;	Speed:	300m/min;
After Warranty Service:	Video technical support,Online support,Spare parts,Field maintenance and repair service;	Warranty:	1 YEAR;
Certification:	CE;

SZGH factory sale 6-8 axis MODBUS robot cnc controller for casting

SZGH-A8, Intelligent Industrial Grade CNC Robot Controller,which adopt international open and flexible software and hardware platform.

SZGH-A8, is configured with special multi-axis motion control card,DA card & security interfaces ,which are developed by SZGH.

SZGH-A8, is entirely new appearance & structure, concise &easy,High strength engineering plastics & Once injection molding ; configured with E-Stop button & Safe-Start switch. With Color LCD touch screen & MPG, which can finish manual operation, Teach-In, Remote & Play easily.

Product Features:

Optimize the structure algorithm to adapt to the robot body control of various structural forms;

Modular function setting are adapted for a variety of application areas;

8-axis control for auxiliary axis (traveling axis, positioner) control;

Can be configured with multi-turns absolute value servo system;

Bus embedded host structure, convenient for function expansion;

48*32 way I/O input and output, PLC online editing function;

Support all kinds of robotic process functions, simplify programming, and is easy to operate;

Fully modular structure, more practical and more reliable.

System functions

Control axis number: robot standard 6-axis+2-axis

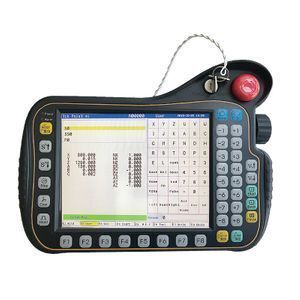

Teaching box: 8-inch TFT-LCD, touch screen, mode switch, emergency stop button

Servo motor: bus absolute encoder motor

Interface (1) 48*32 can expand I / O

(2) 2-way 0-10V analog output

(3) 1-channel encoder orthogonal input

(4) 6-way brake motor output

(5) Robot dedicated terminal block

Operating mode: teaching, reproduction, remote

Programming mode: keyboard input, teaching reproduction, process programming

Motion function: point to point, straight line, arc

System instructions: motion, logic, operation, process, compatible CNC system instructions

Coordinate system: joint coordinates, user coordinates, tool coordinates, world coordinates

PLC function: ladder editing, 8000 steps

Alarm function: emergency stop alarm, servo alarm, safety maintenance, arcing abnormality, coordinate system abnormality, etc.

System algorithm:

(1) vertical multi-joint serial robot

(2) Vertical multi-joint parallelogram robot

(3) Vertical multi-joint L-shaped wrist robot

(4) Polar coordinate robot

(5) Horizontal Joint Robot (SCARA)

(6) Delta robot

(7) Special purpose robot

Application areas: handling, welding, inkjet, palletizing, cutting, polishing, forging, casting, etc.

Packaging & Shipping

1.Industrial packing: plastic bag +foam boxes+ carton +wooden pallets

2.Commercial packing: plastic bag+ foam boxes + carton

3.As the clients’ requirement

Delivery Detail: Normally ready goods and stock within 2-5days
