1kw high torque 3D printer servo motor
- 136.00 piece
Registered Supplier
Direct Contact
Inquiry via Message
Product Details
| Supply capacity: | 1000 sets per day | Packaging Preview: | |
| Warranty: | 1 year | Shaft diameter: | 22mm |

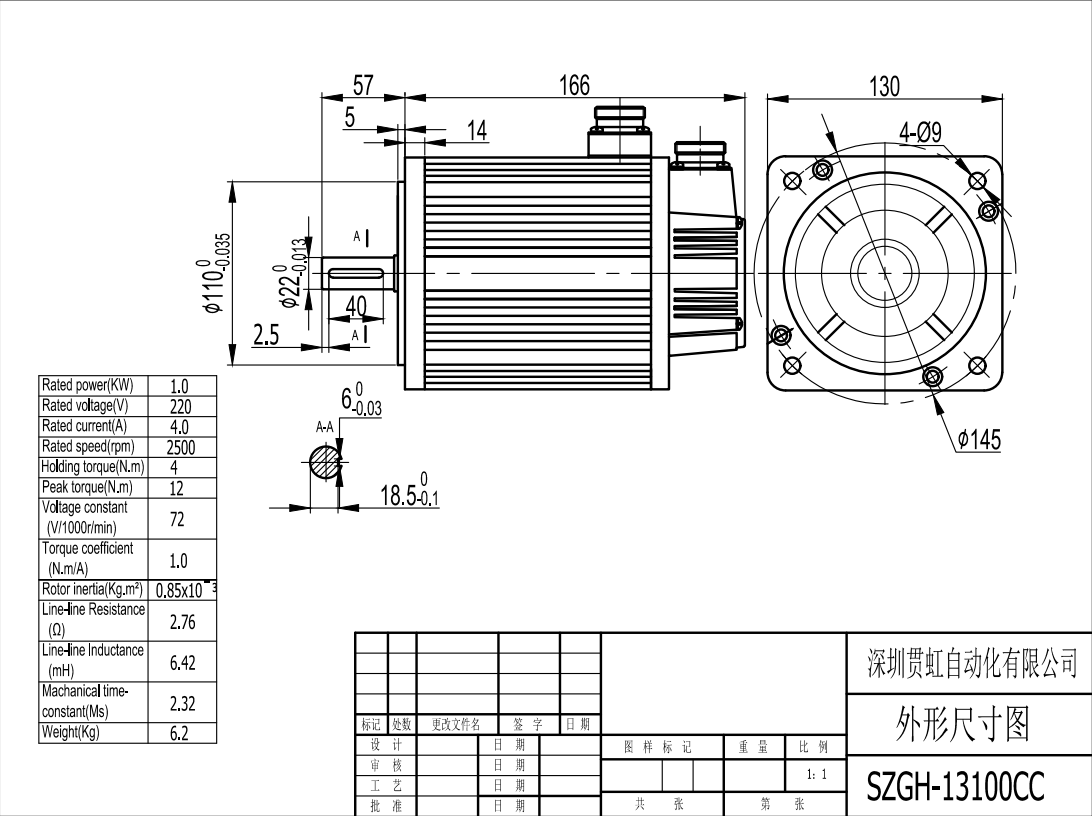

| model: | SZGH-13100CC | Dimensions (L*W*H): | 163*130*130mm |
| Rated speed: | 2500 rpm | Rated voltage: | 220V |
| payment terms: | L/C,Western Union,D/P,D/A,T/T,MoneyGram | Certification: | Chief Executive |
| matching driver: | 030 square meters | Packaging Details: | Standard export packaging |
| brand: | Shenzhen Center | place of origin; place of origin: | Guangdong, China |
| Continuous torque: | 4.0NM | Motor length: | 106mm |
| Encoder Resolution: | 2500PPR | port: | Shenzhen, China |
| weight: | 7.7kg | Rated current: | 4.0A |
Product Description

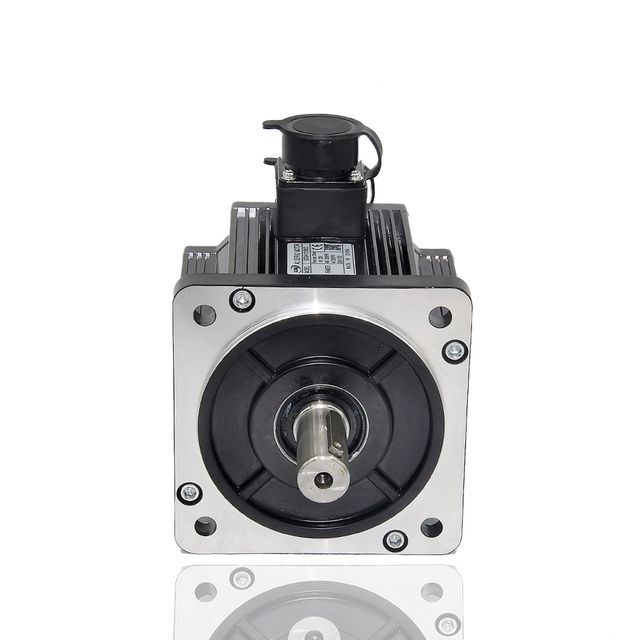

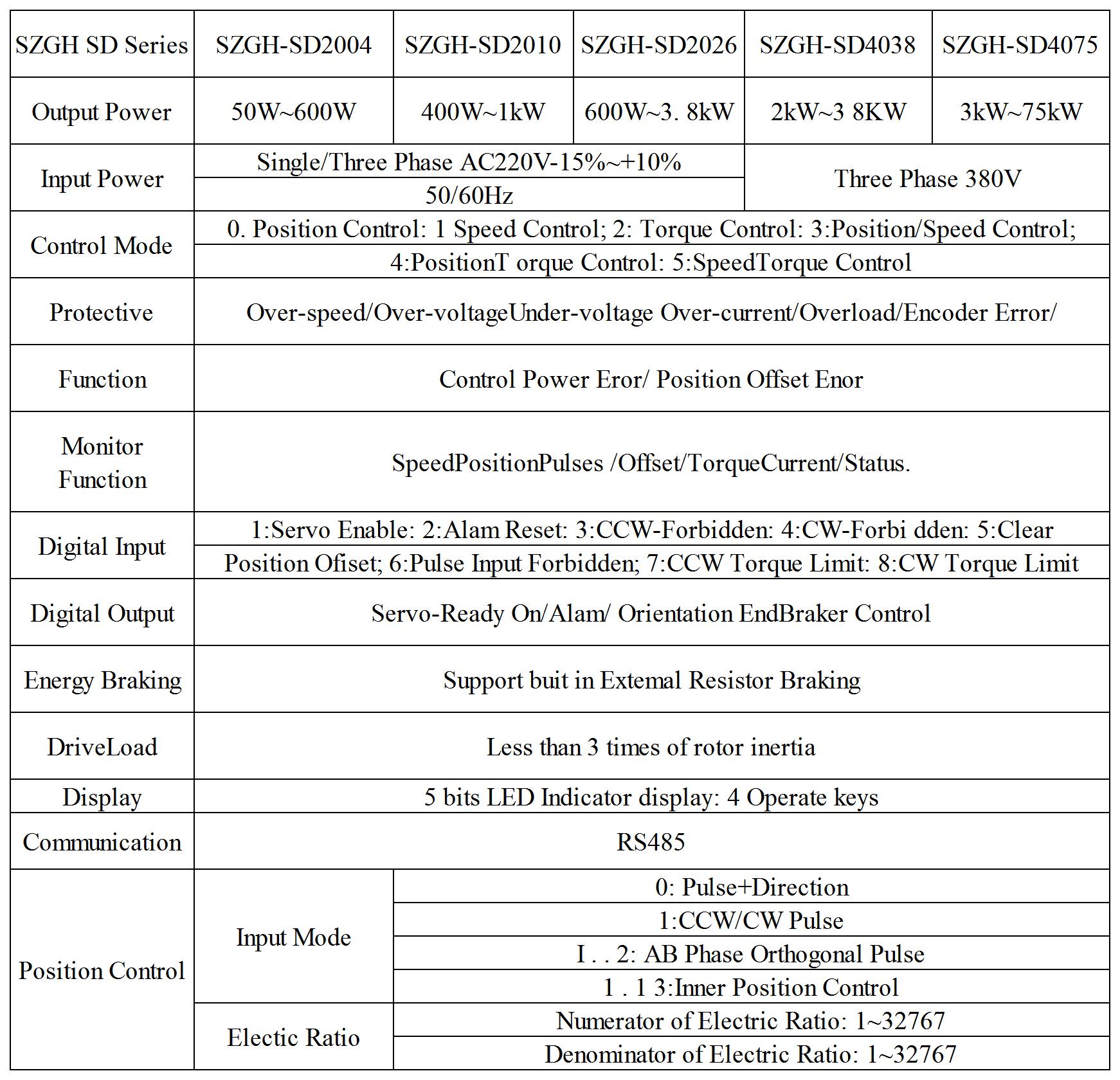

SZGH-13100C is 1KW, 4NM, 2500RPM servo motor, equipped with Tamagawa encoder, low cost, universal type. Imported feedback components, imported low-noise motors. There are two types of servo drives corresponding to 1KW servo motors: SZGH-SD2026 and SZGH-301. There is also a double servo driver SZGH-302, which can control two 1KW servo motors at the same time.

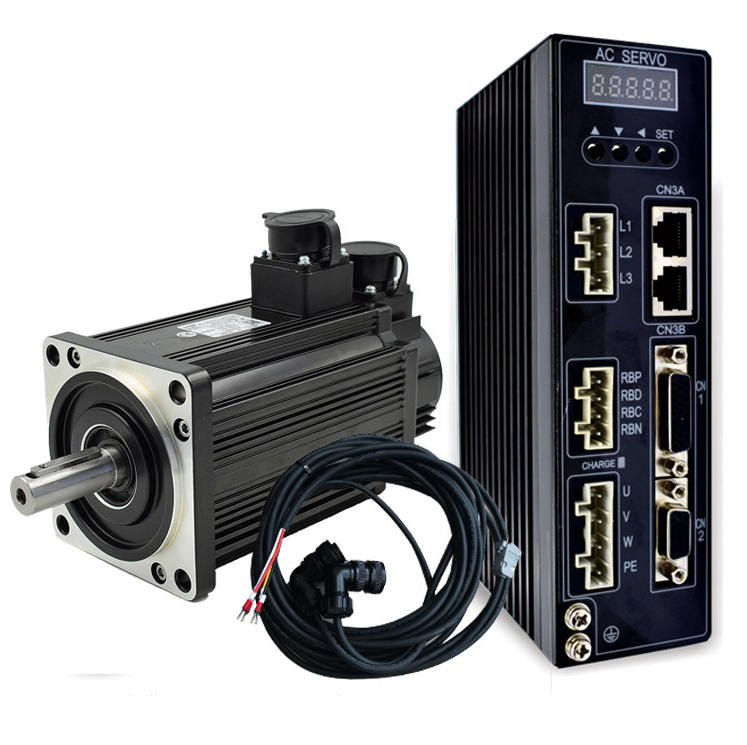

packing list | ||
SZGH-13100CC | 1 | |
SZGH-SD2026 | 1 | |
Motor cable | 5 meters | |
Encoder cable | 5 meters | |
manual | 1 | |
NOTE: Let me know first if you want longer cables and absolute and brake motors! | ||

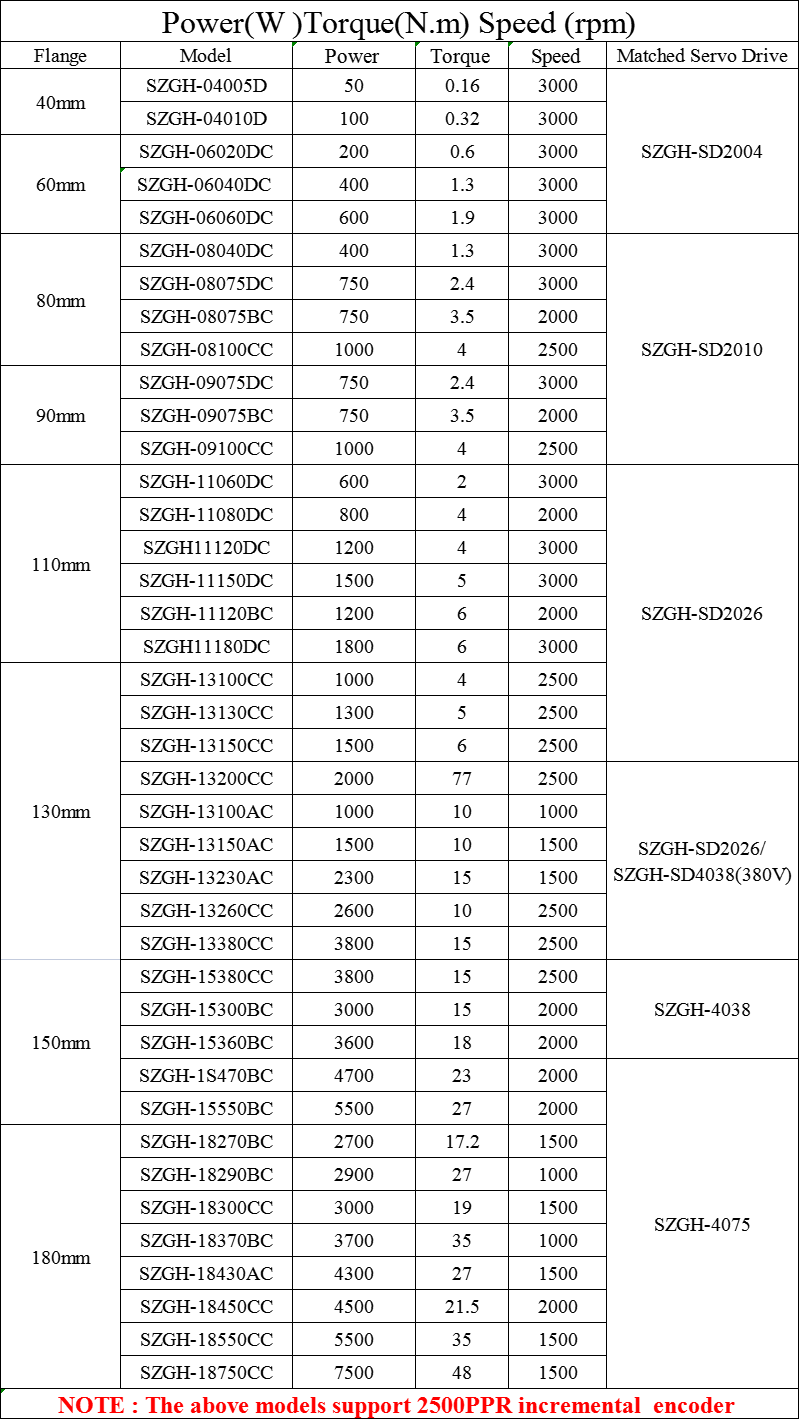

Product Specifications

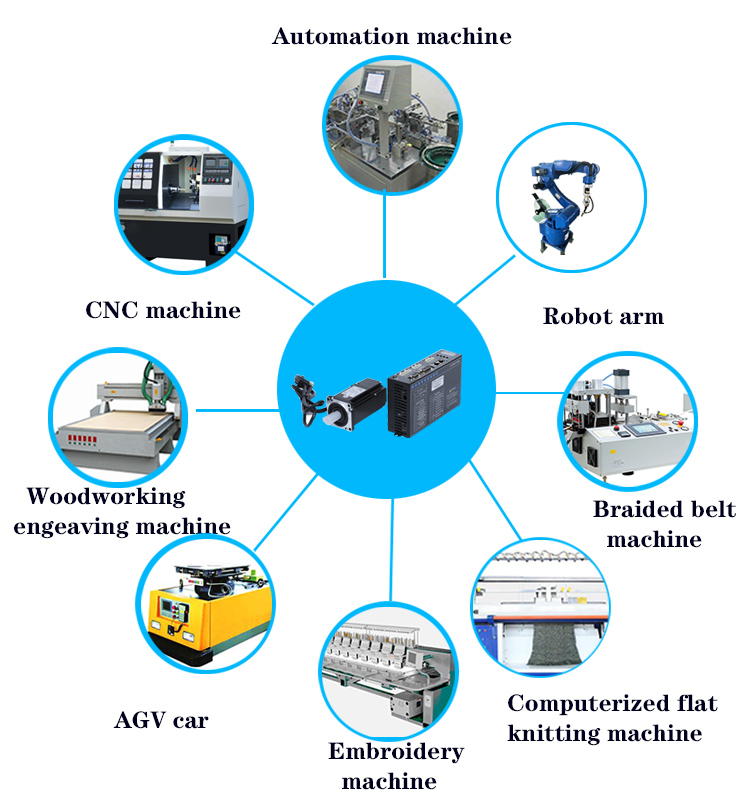

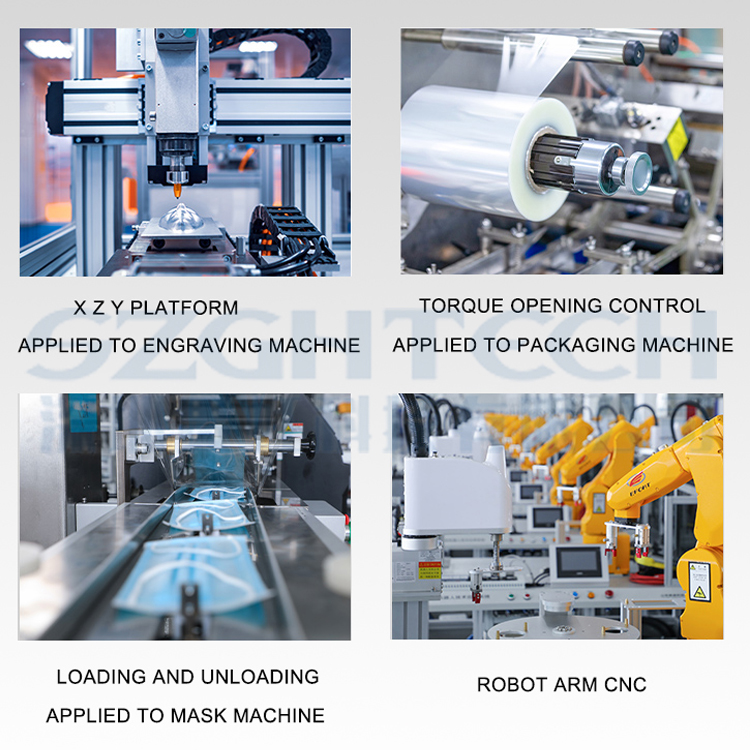

application
