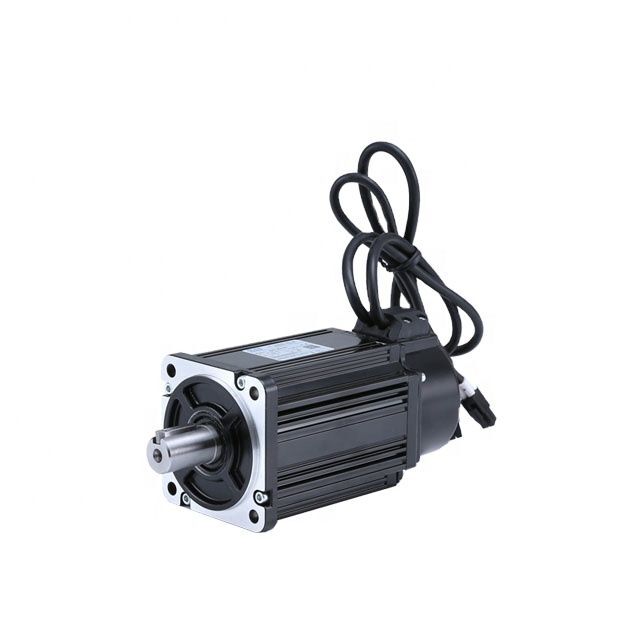

750w 80ST-M02430 AC motor with brake
- 775.00 1 - 1 pieces
- 195.00 2 - 14 pieces
- 160.00 15 - 5499 pieces
- 2.00 >=5500 pieces
| brand: | MiG | model: | 80ST-M02430 |
| Certification: | Chief Executive | Supply capacity: | 50,000 pieces per month |
| place of origin; place of origin: | Zhejiang, China | Warranty: | 3 months - 1 year |
| payment terms: | L/C,Western Union,D/P,T/T,MoneyGram | Packaging Details: | Packed in plywood boxes or cartons |
| port: | China | Packaging Preview: |
80ST-M02430 motor with brake is very compact in structure and beautiful in appearance. The motor has the advantages of high efficiency, energy saving, large starting torque and convenient maintenance.
Mainly used in mechanical equipment, such as CNC machine tools, laser processing machines, computerized embroidery machines, textile machinery, printing machinery, packaging machinery, marking machines, engraving machines, winding machines, three-coordinate measuring machines, XYZ three-dimensional tables, industrial Robots, medical equipment, woodworking machinery, ceramic machinery and other industries.
|
motor model |
80ST-M02430 |
|
|
Rated power (kw) |
0.75 |
|
|
Rated voltage (V) |
220 |
|
|
Rated current (A) |
3 |
|
|
Rated speed (rpm) |
3000 |
|
|
Rated torque (Nm) |
2.4 |
|
|
Peak torque (Nm) |
7.1 |
|
|
Voltage constant (V/krpm) |
48 |
|
|
Torque coefficient (Nm/A) |
0.8 |
|
|
Rotor inertia(Kg.m) |
2.4*10-4 |
|
|
Resistance Line-Line (Ω) |
2.88 |
|
|
Inductance Line-Line (mH) |
6.4 |
|
|
Electrical time constant (ms) |
2.22 |
|
|
Weight (kg) |
2.86 |
|
|
Encoder Line (PPR) |
2500 |
|
|
pole pair |
4 |
|
|
Insulation level |
Class B (130 degrees) |
|
|
Protection class |
IP65 |
|
|
Operating environment conditions |
temperature |
0~ + 40 degrees |
|
humidity |
No condensation below 90%RH |
|
|
surroundings |
Keep away from reactive gases, flammable gases, oil droplets, ashes. |
|
Please contact us for more detailed technical information.
We can design according to customer's requirements.
