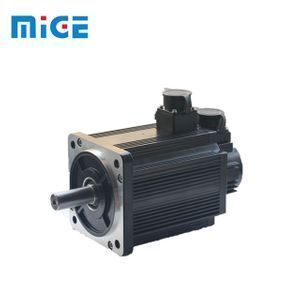

PM Servo Motor 130ST-M10010
- 195.00 piece
| Brand Name: | MiGe; | Port: | China; |
| Payment Terms: | L/C,D/P,T/T,Western Union,MoneyGram; | Shape: | Square; |
| Place of Origin: | Zhejiang China (Mainland); | Usage: | Universal; |
| Phase: | Three Phase; | Supply Ability: | 50000 Piece/Pieces per Month; |
| Power: | AC; | Speed: | Variable Speed; |
| Packaging Detail: | Packed in plywood case or Carton; | Protect Feature: | Waterproof; |
| Function: | Control; | Structure: | Synchronous Motor; |
PM Servo Motor 130ST-M10010:
Features:
1. Continuously power supply and without instantaneous power shock.
2. Reliable performance and long life of use.
3. High precision with wide field of correction.
4. Small volume, portable, convenient to be used.
PM Servo Motor Technical Data
Motor model | 130ST-M10010 | |
Rated power(kw) | 1 | |
Rated current(A) | 4.5 | |
rated speed(rpm) | 1000 | |
Rated torque(N.m) | 10 | |
Peak torque(N.m) | 20 | |
Voltage constant (V/1000r/min) | 140 | |
Moment coefficient(N.m/A) | 2.2 | |
rotor inertia(Kg.) | 1.94*103 | |
Resistance line-line (Ω) | 2.7 | |
Inductance line-line(mH) | 8.8 | |
Electrical time constant(ms) | 3.26 | |
Encoder line(PPR) | 2500 | |
Weight(KG) | 11.5 | |
Insulation class | Class B (130) | |
Grade of Protection | IP65 | |
The operating of Evironmental conditions | Temperature | -20 ~ + 50 |
Humidity | Below 90%RH No dewing | |
Environment | Far away active gas,combustible gas, oil drop,ash. | |
Please contact with us for more detailed technical information.
We can design according to your' requirement.
