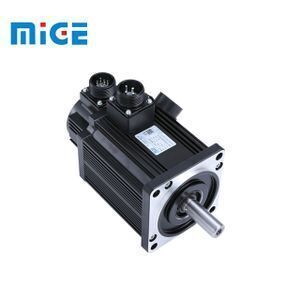

1.5kw Permanent Magnet servo motor for Industrial

Click here to contact

Product details

Speed:	Variable Speed;	Single package size:	30X26X20 cm;
Selling Units:	Single item;	Function:	Control;
Packaging Detail:	Packed in carton or plywood case;	Power:	AC;
Place of Origin:	Zhejiang China;	Usage:	Universal;
Protect Feature:	Waterproof;	Package Preview:	;
Brand Name:	MIGe;	Shape:	Square;
Phase:	Three Phase;	Single gross weight:	8.7 KG;
Structure:	Synchronous Motor;

Industrial servo motor Features:

1. Continuously power supply and without instantaneous power shock.

2. Reliable performance and long life of use.

3. High precision with wide field of correction.

4. Small volume, portable, convenient to be used

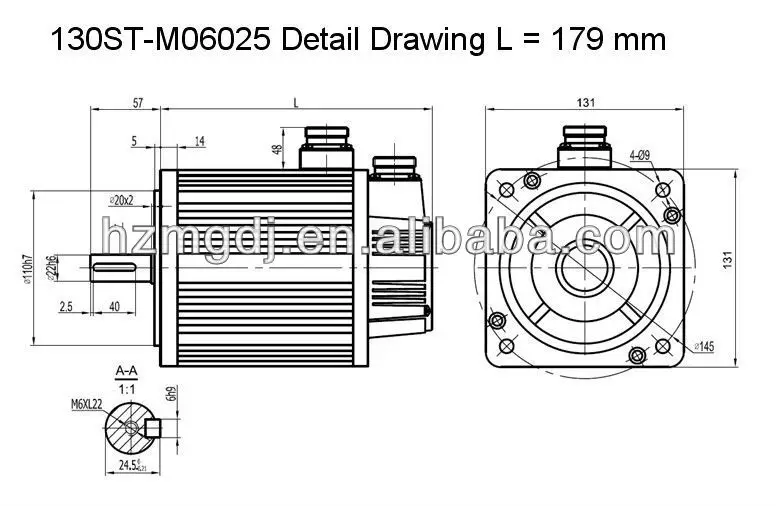

Motor model	130ST-M06025
Rated power(kw)	1.5
Rated current(A)	6
rated speed(rpm)	2500
Rated torque(N.m)	6
Peak torque(N.m)	18
Voltage constant (V/1000r/min)	65
Moment coefficient(N.m/A)	1
rotor inertia(Kg.)	1.26*103
Resistance line-line (Ω)	1.21
Inductance line-line(mH)	3.87
Electrical time constant(ms)	3.26
Encoder line(PPR)	2500
Pole-pairs	4
Weight(KG)	8.9
Insulation class	Class B (130)
Grade of Protection	IP65
The operating of Evironmental conditions	Temperature	0 ~ + 40
	Humidity	Below 90%RH No dewing
	Environment	Far away active gas,combustible gas, oil drop,ash.
