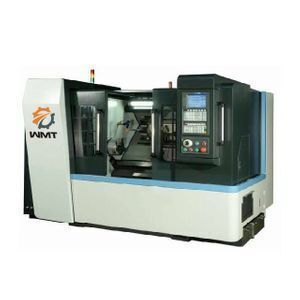

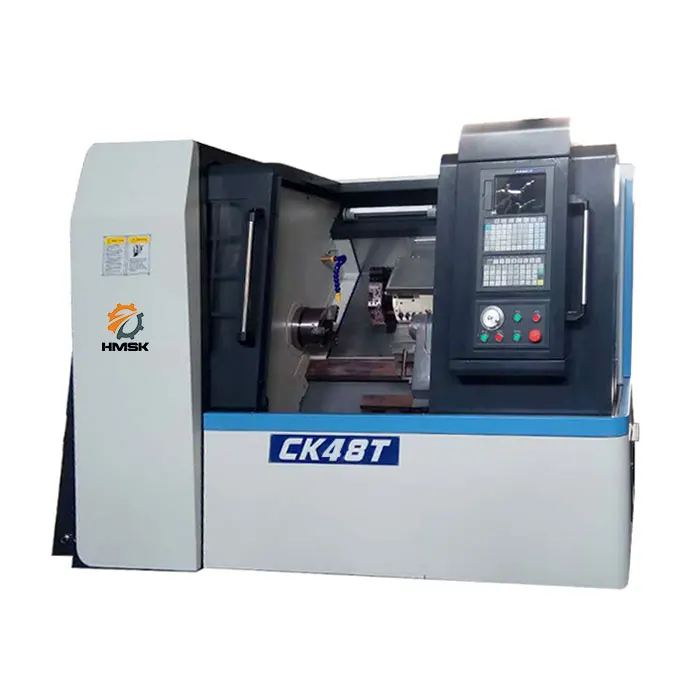

CK48T 45 degree slant bed CNC lathe for thread cutting

Click here to contact

Product details

Voltage:	380V/400V;	Tool size:	25x25mm;
Toolpost Brand:	Hydex;	Key Selling Points:	High-accuracy;
Max. Spindle Speed (r.p.m):	5000;	Weight:	3800KGS;
Package Preview:	https://sc01.alicdn.com/kf/HTB1A36udED.BuNjt_h7q6yNDVXaV.jpg_640x640.jpg;	Main power:	7.5/11kw;
After-sales Service Provided:	Online support,Video technical support;	Hydraulic chuck:	8";
Max. Swing Diameter (mm):	480;	workpiece length:	420mm;
Package Type:	Plywood case as exported standard;	Brand Name:	WMT;
Dimension(LWH):	2125X1345X1600MM;	Type:	SLANT BED;
Spindle nose:	A2-6;	Warranty:	1 Year;
Power (kW):	7.5/11;	Single gross weight:	4,200 KG;
CNC Control System:	FANUC;	Applicable Industries:	Building Material Shops,Machinery Repair Shops,Manufacturing Plant;
Machine Type:	CNC slant bed lathe;	Certification:	CE;
Max. Turned Length (mm):	420;	Positioning Accuracy (mm):	0.005;
Condition:	New;	Place of Origin:	Anhui China;
Spindle bore:	62mm;	CNC or Not:	CNC;
Year:	new;	Automatic Grade:	Automatic;
Servo turret:	Available;	Max. Swing Diameter:	480MM;
Single package size:	2220X1405X1640 cm;	Model Number:	CK48T;
Max. Length of Workpiece (mm):	420;	Selling Units:	Single item;
Weight (KG):	3800;	Repeatability (X/Y/Z) (mm):	0.003;

Product Description

Features:

Integrated slant bed structure.easy liquid leaking, high rigidity and good operation.
High speed at 5000r/min. First-class precision spindle bearing.
High precision ball screw Rexroth, fast feeding for high working efficiency.
All-closed stainless steel protection, strong liquid protection without any water leak.
8-12 position hydraulic turret, easy machining for complex parts.

Specification	CK48T
Max.swing over bed	480mm
Max.swing over cross slide	350mm
Max.maching diameter(disk/rod)	320mm/80mm
Max.length of work piece	420mm
spindle bearing diameter	100mm
Spindle bore diameter	62mm
Spindle bore taper	80mm
Spindle nose	A2-6
Spindle speed range	60-3800r/min
Power of the main motor	7.5-11kw
Min.input unit	0.0005/0.001mm
Rapid speed	20/20m/min
Hydraulic chuck	8"
Hydraulic station	8
Max .tool shank	25x25mm
Max.dia for boring size	32mm
Quill diameter	80mm
Quill travel	80mm
Packing size	2220x1405x1640mm
N.W/G.W	3400/3800kgs

Standard Equipment

CNC control system: Fanuc or Siemens or Mitsubishi as you select

Spindle bearing: Japan NSK or Germany FAG P4 class.

Hydraulic chuck: Japan HOWA Hollow

Hydraulic cylinder: Japan HOWA Hollow

Linear guideway: Japan THK or Germany Rexroth.

Leadscrew: Taiwan Yintai precision ball screw

Leadscrew bearing: Japan NSK or Germany ESKY

Turret: Taiwan Liuxing 8 positions

Hydraulic station: Made in Taiwan famous brand

Alarm lamp

Auto-lubricating system

Cooling system

Optional Accessories:

Hydraulic turret: 12-Position

Auto chip conveyor

Auto bar feeding
