Free Sample 2P 4P `6A 25A 32A 160A 250A IP20 1000V DC Solar Isolation Isolator Switch Top Quality
- 16.00 piece
Registered Supplier
Direct Contact
Inquiry via Message
Product Details
| Port: | Ningbo/Shanghai; | Max. Current: | 250A; |
| Pole: | 4P; | Rated current: | 32A; |
| Place of Origin: | China; | Quality: | Top; |
| Max. Voltage: | 1500V; | Brand Name: | Kayal; |
| Packaging Detail: | standard carton or customized; | Product name: | KYT; |
| Type: | Disconnect Switch; | Supply Ability: | 200000 Piece/Pieces per Month; |
| Payment Terms: | L/C,D/A,D/P,T/T,Western Union,MoneyGram; | Rated voltage: | 1200V; |
| Mechanical Life: | 20000 times; | Standard: | IEC60947*3; |
| Warranty: | 2 years; | Electric Life: | 10000 times; |
| Model Number: | KYT; |
Please attention!

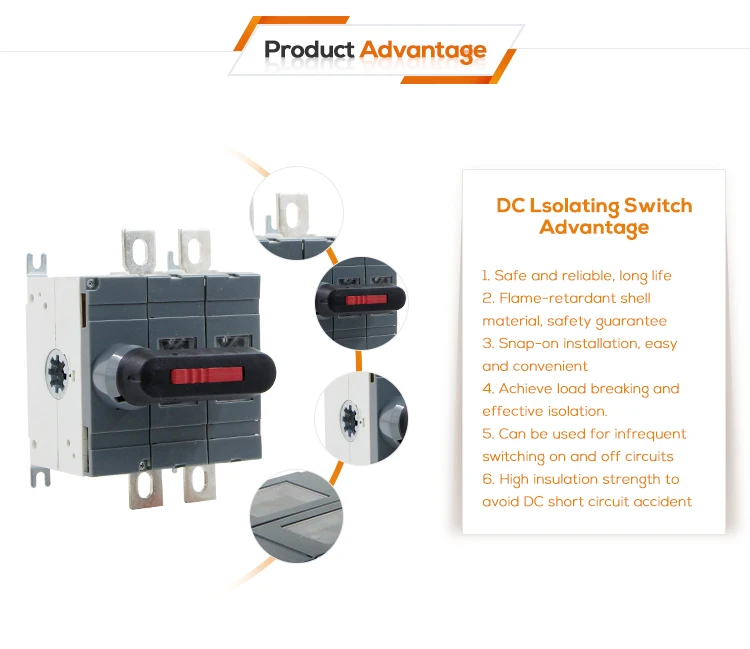

DC Isolator Switches
Application
KYT series DC Isolator Switches are applied to 1-20KW Inverter, Controller, DC Combiner Box, used for Residential or Commercial
PV solar power system (on-grid/of-grid). Arcing time less than 3ms, that make PV solar system effectively
disconnected.
KYT.2-32 DC Isolator Switches
• DIN Rail Mounting
• KYT.2-32 Rated Voltage 1200V DC
• OFF LOCKABLE
• Flame-Retardant
• Arcing Time < 3ms
• IEC60947*3
• 4Potes(Single/Double Strings Available)
• DC-21B:16A.25A.32A up to 1200V DC
| Parameter | |
| Etectrical Characteristics | |
| Function | Isolator, Control |
| Comply with | IEC60947-3 |
| Pole | 4P |
| Max Rated Current | 32A |
| Rated Working Voltage Ue | 1200V DC |
| Rated Current In | 16A/25A/32A |
| Rated Insulated Voltage Ui | 1200V DC |
| Rated Impulsed Voltage Uimp | 8KV |
| Service Life/Cycle Operation | 10 years |
| Mechanical | 20000 |
| Electrical | 2000 |
| Installation Environment | Diversified |
| Size of Terminal Screw | M4 |
| Tightening Torque | 2.5 |
| Maximum Cable Cross Sections | 4-16 |
| Ingress Protection | IP40 |
| Storage Temperature | -5℃ ~ 80℃ |
