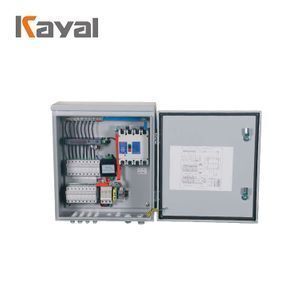

Factory Supply Attractive Price GOLDEN SUN DC Combiner Box, 8 String Waterproof Solar PV Combiner Box

Supplier: Wenzhou Kangyu Electrical Co., Ltd.
Region: Zhejiang, China
Contact: Mr Vincent Chen
Price: $49.00 / >=12 pieces
Min. Order: 12 pieces

Click here to contact

Product details

Character:	With monitoer, thunder-proof, warterproof;	Type:	4 6 8 10 12 14 16 21 24Ways;
Protection Level:	IP65;	BOX Material:	IRON STEEL;
Model Number:	KYV-CD16;	Brand Name:	KAYAL/OEM;
Certificate:	GOLDEN SUN;	Place of Origin:	Zhejiang China;
Port:	Shanghai;Ningbo;Shenzhen;	Quality:	GOOD;
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram,CASH;	Packaging Detail:	Packaging Detail: export standard package or according to customer's requirement.;
OEM:	Yes;	Product name:	solar panel combiner box;
Supply Ability:	200000 Piece/Pieces per Month 3 workdays for sample delivery;	rated working current:	UP TO 250A;
Voltage:	DC 1000V;

Please Attention!

1:Description:

Combiner Box provides a means of combining multiple source circuits from a PV array into a single DC output. Each source circuit is fused separately using a touch-safe fuse holder. The combiner box allows for fail-safe operation of the system in the unlikely event that a problem with a source circuit leads to abnormally high current. In addition, the combiner box provides a convenient means of accessing the DC portion of a PV system for routine maintenance and troubleshooting.

The PV array lightning protection box has the following characteristics:

(1) meet the requirements of outdoor installation, protection class IP65, with anti-UV, anti-acid, anti-alkali, moisture, mildew, rodent control and other functions;

(2) access 16-way PV array, each with 15A, 1000Vdc fuse (replaceable other grades);

(3) Equipped with special high-voltage lightning protection device, lightning protection function with cathode and anode ;

(4) Positive, negative string into the fuse;

(5) Use quadruple PV dedicated circuit breaker with positive and negative in series

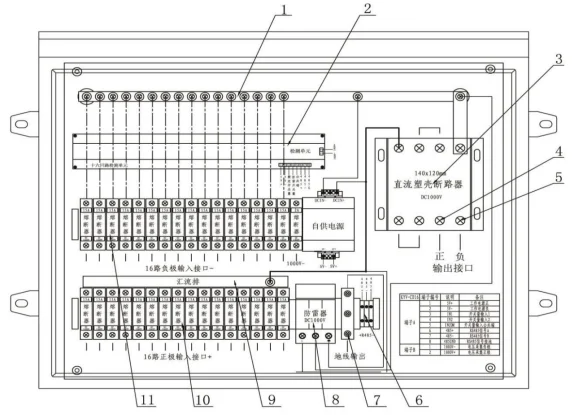

basic structure

Part number	description
1	Negative convergence copper busbar
2	16-way detection unit
3	DC MCB
4	Dc positive Convergence output
5	Dc negative Convergence output
6	RS485 communication terminal (output point)
7	Ground output point
8	Lightning protection device
9	Positive convergence copper
10	DC positive fuse holder and fuse (each input in series with a fuse) up to 16 way
11	DC negative fuse holder and fuse (each input in series with a fuse) up to 16 road
