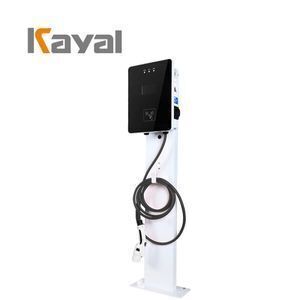

7KW car charging station for electric vehicles

Product details
Single package size:29.2X12.6X41.7 cm;Operating temperature:-25°C~+50℃;
The output voltage:AC220V±20%;Cable length:5m;
Selling Units:Single item;Model Number:KYCP-AC-7KW;
Package Type:export standard package or according to customer's requirement...;Working humidity:5%~95% non-condensing cream;
Noise control:≤60dB;Electrical index:≥11;
Input frequency:50±10Hz;Maximum output current:32A;
Single gross weight:20 KG;Measurement accuracy:Level 0.5;
Brand Name:KAYAL;Place of Origin:Zhejiang China;
Input voltage:AC220V±20%;
Please Attention!

 Scope of application
The AC charging pile provides AC 50Hz, rated voltage 220V AC power supply, and is supplied to an electric vehicle with a vehicle charger.Mainly applicable to the following places
Large, medium and small electric vehicle charging stations;
Various public places with electric car parking spaces, such as urban residential quarters, shopping plazas, and electric power business places;
High-speed service area, station terminal and other transportation hub areas.
working environment
The ambient air temperature during operation is -25 ° C ~ 50 ° C, 24 h daily average temperature ≤ 35 ° C;
Monthly average relative humidity ≤ 90% (25 ° C), no condensation on the surface;
Atmospheric pressure 80kPa ~ 110kPa;
Installation vertical inclination ≤ 5%;
The harsh level of vibration and impact of the place is ≤I level, and the external magnetic field induction intensity in any direction is ≤1.5mT;
The use site must not have explosive atmospheres. The surrounding media does not contain harmful metals and conductive gases that damage the insulation and conduct electricity.Medium, not allowed to be filled with water vapor and more serious mold;
The place of use should avoid direct sunlight. When installing outdoors, it is recommended to install a shading facility for the charging pile;
When the user has special requirements, it can be resolved through consultation with our company.
Features

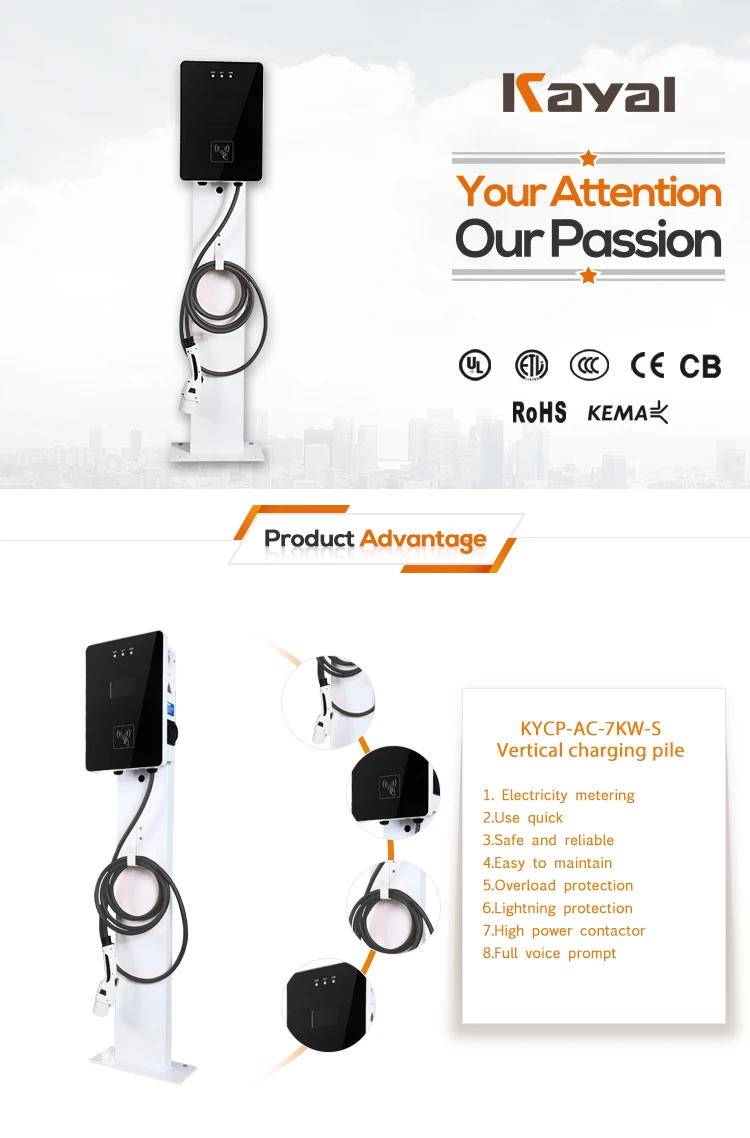

Available in both vertical and wall mount versions;
AC220V AC input;
The main control board adopts a single-chip microcomputer with an embedded operating system. The charging mode is divided into four
types: automatic full, fixed time, fixed amount, and fixed power. The RS-485 networking communication interface can be reserved and provided.With GPRS networking mode.
The color touch screen display is 4.3 inch 480x272 resolution, and the charging mode can be set by touch button operation;
The single-phase electronic energy meter is used for electrical metering, and communicates with the main control board through theRS-485 interface;
Using a non-contact smart card reader, reading information about the IC card, communicating with the main control board through the RS-485 interface, and mastering
The board background program performs charger identity identification, user information recording, charging cost calculation, etc.; the line switch adopts a switch with leakage protection function, and installs an emergency stop button;
The shape is made of sheet metal and part of ABS plastic structure.
The main technical parameters

7KW single gun AC charging pile
Detailed specificationUser Interface4.3 inch bright color display touch screen
Charging equipmentInstallation methodWall-mountedColumn type
Way of routingDown and down
Dimensions292*126*417(mm)292*176*4131(mm)
Input voltageAC220V±20%
Input frequency50±10Hz
The output voltageAC220V±20%
Maximum output current32A
Cable length5m
Measurement accuracyLevel 0.5
Electrical index≥11
Electrical indexCurrent limit protection value/
Voltage regulation accuracy/
Steady flow accuracy/
Ripple coefficient/
effectiveness/
Power factor/
Harmonic content THD/
feature designHMI4.3 inch LCD display touch screen, LED indicator
Charging modeAuto full / fixed power / fixed amount / fixed time
payment methodAPP payment / credit card payment / scan code payme
 Ethernet/2/3/4G
Safety designSafety standardGB\T 20234,GB/T 18487,GB/T 27930,NB\T 33008,NB\T 33002
security functionOvervoltage protection,
undervoltage protection,
overload protection,
 short circuit protection,
 grounding protection,
over temperature protection,
low temperature protection,
 lightning protection,
emergency stop protection,
 leakage protection
Environmental indicatorsOperating temperature—25°C~+50℃
Working humidity5%~95% non-condensing cream
Working elevation<2000m
Protection levelLevel IP55
cooling methodForced air cooling
Noise control≤60dB
MTBF100,000 hours

This series of AC charging piles is an outdoor charging pile that meets the IP54 protection rating.
Please ensure the ambient temperature is between -25 ° C and +50 ° C
This series of AC charging piles can be wall mounted and column mounted according to requirements.
