New energy portable solar panel electric car charger 30 kw dc ccs solar ev charging station for electric car

Supplier: Guangzhou Max Power New Energy Technology Co., Ltd.
Region: Guangdong, China
Contact: Ms Grace Guo
Price: $3820.00 / 1 - 1 sets
$3700.00 / 2 - 9 sets
$3580.00 / >=10 sets
Min. Order: 1 set

Click here to contact

Product details

Payment Terms:	L/C,Western Union,T/T,MoneyGram;	Model Number:	Solar Charger;
Supply Ability:	3000 Sets per Month;	Output voltage:	200-750Vdc;
Connectors:	CHAdeMO CCS GB/T;	Brand Name:	MAXPOWER;
Port:	Guangzhou;	Input voltage:	380Vac±10%;
Product name:	Solar Charger;	Output Current:	100A;
Usage:	Charging EV Car;	Place of Origin:	Guangdong, China;
Standard:	GB,EN 61851;EN61000;JEVS;UL2202,2231,2231-2 ect;	Output Power:	30KW;
Packaging Detail:	Packing box;	Warranty:	12 Months;
Packing:	Box;

Guangzhou Max Power New Energy Technology Co., Ltd. is a high-tech company which has been invested by the fund supported by Jiangxi provincial government. It focuses on the R&D for the core parts such as on/off board charger & DCDC for new energy vehicle(EV, PHEV etc.). The core team members have rich working experience in Valeo with background of overseas education. The products we developed (OFBC,OBC & DCDC) have excellent performance and dominant position in the market.

Product Description

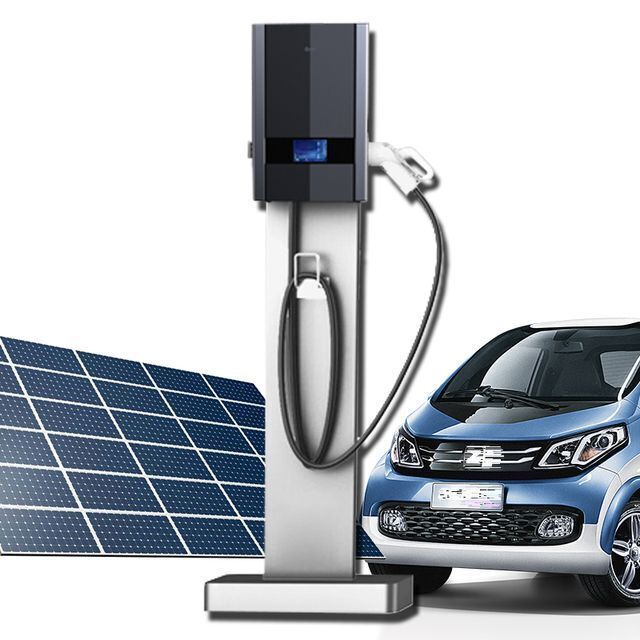

30KW WALLBOX CHARGER:

♦ The 30kw charger produced by our company, with input voltage of 380V, voice navigation, easy to use, rated output power of 30KW, waterproof and dustproof function, multiple safety protection.
♦ By monitoring module, power module, lightning protection unit, intelligent and friendly interface, etc.
♦ High performance charging module, super wide charging range, high efficiency.
♦ Small size, light weight, convenient and efficient service.
♦ Can also be customized production according to vehicle BMS parameters.
♦ High efficiency:≥95%

OVERVIEW:

This charger is great for mounting in your garage, business, racing, or RV park. It is very useful to have as a backup
charger for use on the race track, in a tow truck, in an SUV, trailer or anywhere you need power. This affordable 7-40 KW DCFC is perfect to install for charging electric vehicle at maximum speed as well as many EV cars. take on road trips through rural areas with RV or industrial areas being the main power sources for EV travelers. This unit will greatly speed up you or your customers charging.

FEATURES:

♦ Features Small size and light weight.
♦ 4.3-inch touchscreen display.
♦ Scan or swipe the card to charge.
♦ Support remote charging monitoring and control of mobile phones.
♦ IP54 protection level.
♦ Fashion and high-end modeling.

Note:All product outward appearance, the color take the material object as, the picture only supply the reference

Production Parameters
Model			30KW
AC Input	Input Rating	380Vac±10%
		AC Input Connection	3P + N +PE, Wye connection
		Max. Input Current	50A
		Frequency	50 /60 Hz
		Power Factor	>0.99@full load
		Efficiency	95%
DC Output	Output Voltage Range	200-750Vdc
		Max. Output Power	30KW
		Max. Output Current	100A
User Interface	TFT-LCD Touch Panel	Yes(swiping card without TFT-LCD Touch Panel)
		Push Buttons	Yes
		Interface	Yes
Packing	Dimension	W:548 × 378× 250mm U:1500×520× 250mm
Packing		Weight	Wall:45KG Upright:50KG
Environmental	Operating Temperature	-40~85℃，25℃（TYPE）
		Humidity	5%-90% RH, non-condens,ng
		Altitude	2000m
		IP Level	IP54
Mechanical	Cable Length	5M (CHAdeMO) , 5M (CCS), 5M(GB/T) Customized acceptable
Mechanical		Regulation	EN61851-1
Regulation	Certification	CE , ROHS
Regulation		Charging protocol	CHAdeMO 2.0 / DIN 70121/ISD1S118/IEC618Sl-23,IEC618Sl-24

Our Advantages

Company Profie

FAQ

Q1.Are you a factory or trading company?
A: We are a professional manufacturer of new and sustainable energy applications for over 18 years.
Q2.What is the warranty?
A: 12 months. In this period, we will supply technical support and replace the new parts by free,customers are in charge of
delivery.
Q3. What is your terms of packing?
A: Generally, we pack our goods in brown cartons. If you have legally registered patent, we can pack the goods in your branded boxes after getting your authorization letters.
Q4. What is your terms of payment?
A: T/T 50% as deposit, and 50% before delivery. We'll show you the photos of the products and packages before you pay the balance.
Q5. What is your terms of trade?
A: EXW, FOB, CFR, CIF, DAP,DDU,DDP
Q6. How about your delivery time?
A: Generally, it will take 3 to 7 working days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
Q7. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q8. What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.
Q9. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery.
Q10.What’s the difference between Movable Charger and Wallbox Charger?
A: In addition to the obvious appearance difference, the main protection level is different: wallbox charger protection level is IP54, available outdoors;And the Movable Charger protection level is IP43, rainy days and other weather can not be used outdoors.
