OEM ODM service new energy 38A 15kw DC AC fast electric solar wall box ev car charger

Supplier: Guangzhou Max Power New Energy Technology Co., Ltd.
Region: Guangdong, China
Contact: Ms Grace Guo
Price: $3800.00 / 1 - 1 sets
$3700.00 / 2 - 9 sets
$3600.00 / >=10 sets
Min. Order: 1 set

Click here to contact

Product details

Output current:	38A, DC	Warranty:	12 months

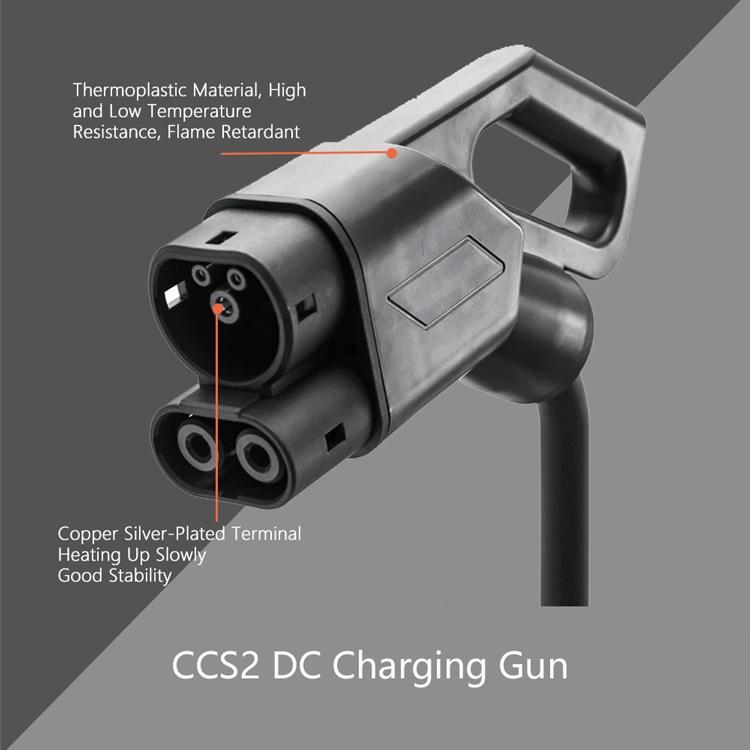

Connector:	Chadmore CCS	Origin:	Guangdong, China
model:	solar power charger	standard:	GB, EN 61851; EN61000; JEVS; UL2202, 2231, 2231-2, etc.
Output Power:	15KW, 22kW - 43kW	Packaging Details:	1pc/carton
Interface standard:	CCS, GB/T, model	product name:	Portable Fast Charger
Input voltage:	200 - 220 volts	payment terms:	L/C, Western Union, T/T, MoneyGram
brand:	Maximum power	Supply capacity:	1000 sets per month
Input voltage:	220Vac	port:	Guangzhou

Product Description

Guangzhou Meibao New Energy Technology Co., Ltd. is a high-tech enterprise invested by Jiangxi Provincial Government Support Fund. Focus on the research and development of core components such as on-board chargers and DCDCs for new energy vehicles (EV, PHEV, etc.). The core team members have rich working experience in Valeo and have overseas study background. The products we developed (OFBC, OBC & DCDC) have excellent performance and market dominance.

Product Description

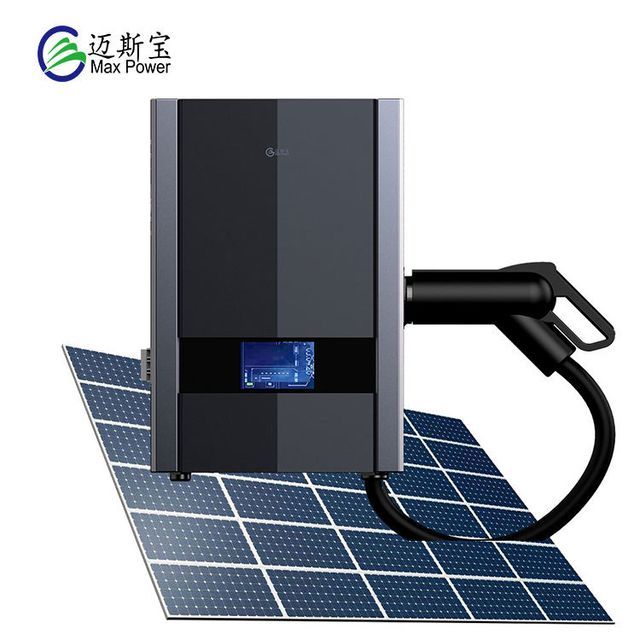

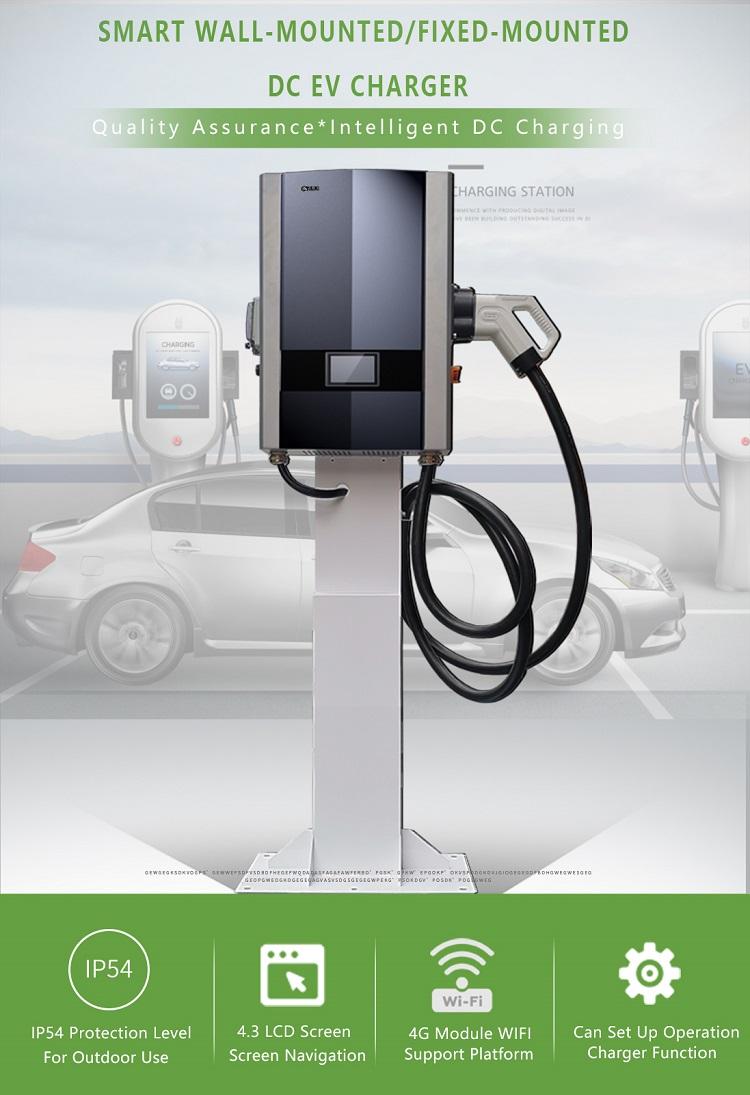

15KW WALLBOX charger:

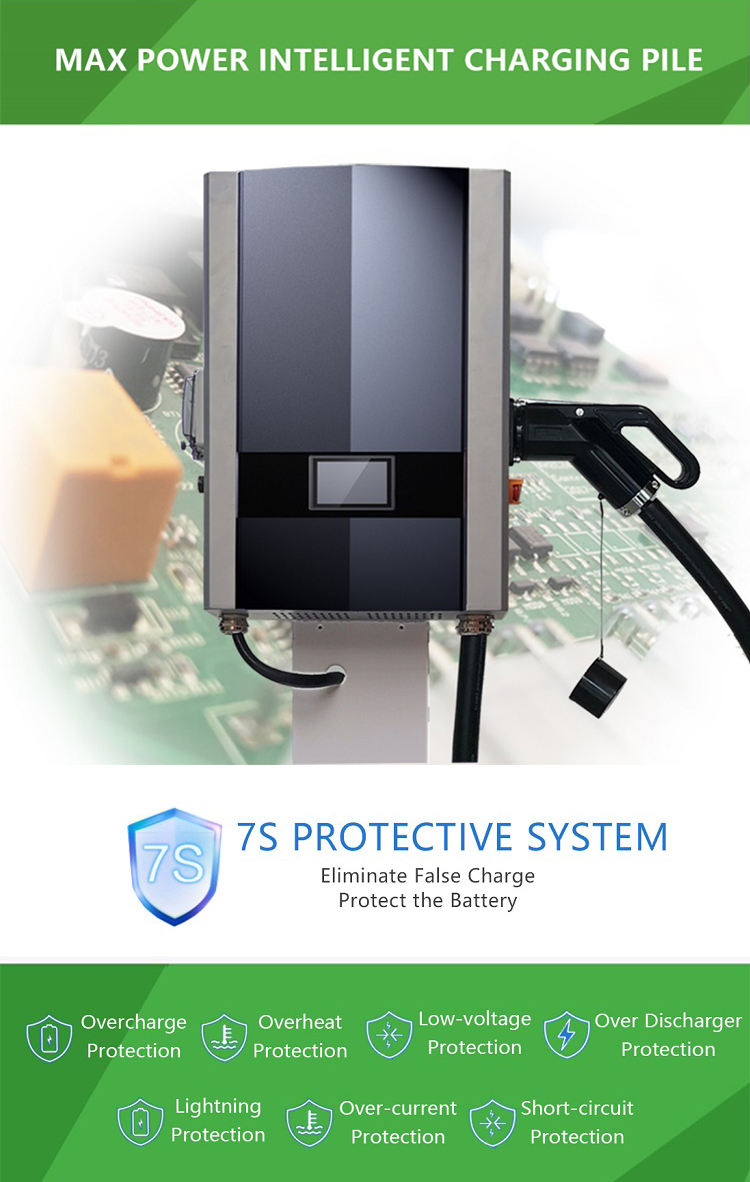

♦ 15kw chargerOur company produces,Input voltage 380V, voice navigation, easy to use, rated output power 15KW, waterproof and dustproof function, multiple safety protection.
♦ Through monitoring module, power module, lightning protection unit, intelligent and friendly interface, etc.
♦ High-performance charging module, ultra-wide charging range, high efficiency.
♦ Small size, light weight, convenient and fast service.
♦ It can also be customized according to the BMS parameters of the whole vehicle.
♦ High efficiency: ≥95%

Overview:

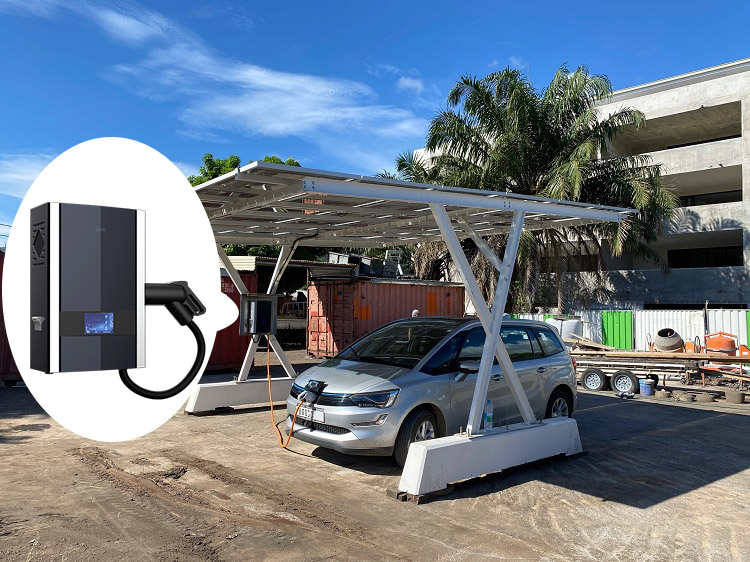

This charger is perfect for installing in your garage, commercial, motorsport or RV park. very useful as a backup
The perfect charger for the track, trailer, SUV, trailer or anywhere you need power. This affordable 7-40 KW DCFC is ideal for installations charging electric vehicles as well as many EV vehicles at maximum speed. Road trips in rural areas, RVs or industrial estates are the main source of power for EV travelers. This unit will greatly speed up charging for you or your customers.

feature:

♦ Features Small size and light weight.

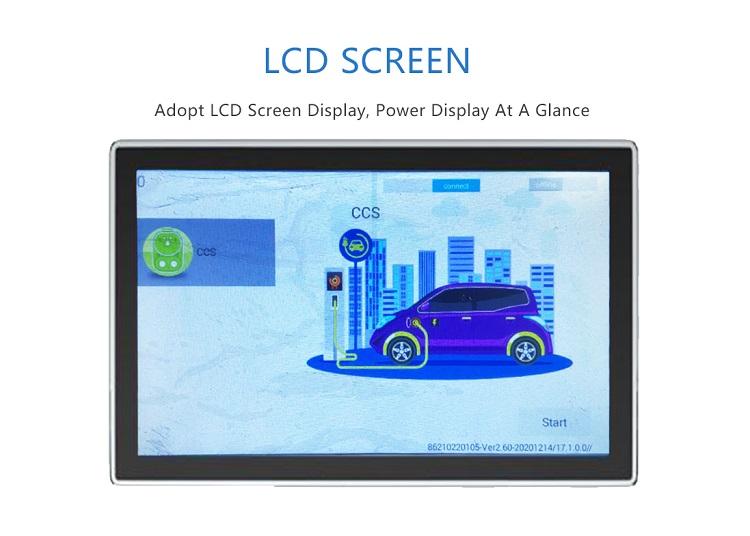

♦ 4.3-inch touch screen display.
♦ Scan or swipe card to charge.
♦ Support mobile phone remote charging monitoring.

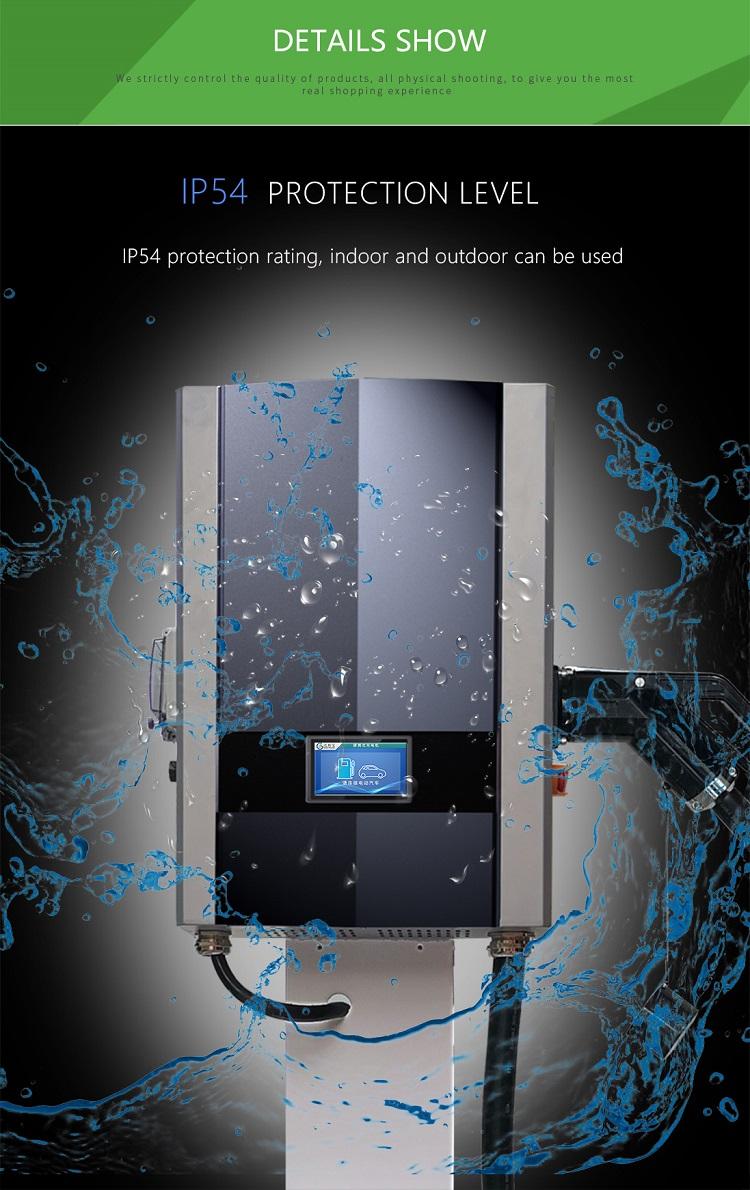

♦ IP54 protection level.
♦ Fashionable and high-end shape.

Note: The appearance and color of all products are subject to the actual product, and the pictures are for reference only

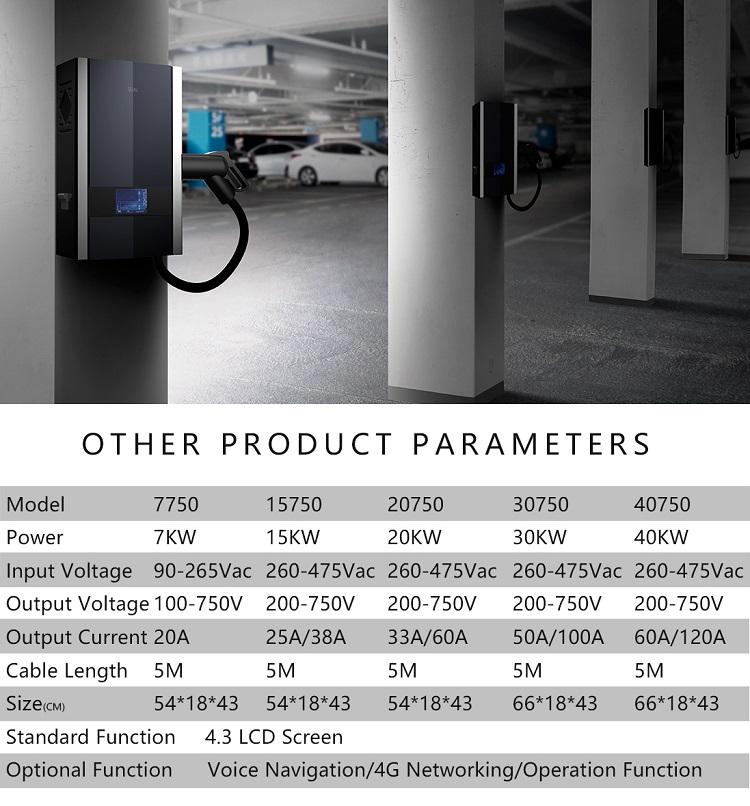

Production parameters
Model			15KW
AC input	Enter rated value	380Vac±10%
		AC input connection	3P + N + PE, star connection
		maximum. Input Current	30A
		frequency	50 /60 Hz
		power factor	>0.99@full load
		efficiency	95%
DC output	output voltage range	200-750Vdc
		maximum. Output Power	15KW
		maximum. Output current	38A
User Interface	TFT-LCD touch panel	Yes (no TFT-LCD touch screen swipe card)
		Press the button	Yes
		interface	Yes

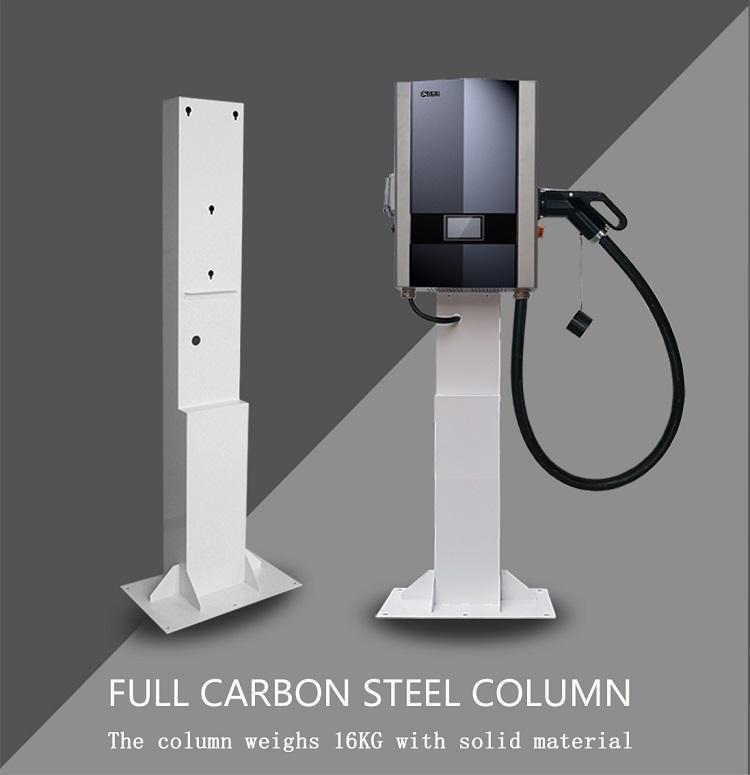

Package	aspect	W: 548×378×160mm U: 1500×520×250mm
Package		weight	Wall: 30KG Upright: 35KG
environmental	Operating temperature	-40~85°C, 25°C (model)
		humidity	5%-90% RH, non-condensing, ng
		high	2000 meters
		IP rating	IP54
Mechanical	cable length	5M (CHAdeMO) , 5M (CCS), 5M(GB/T) can be customized
Mechanical		Regulation	EN61851-1
Regulation	certified	EU certification
Regulation		charging protocol	CHAdeMO 2.0 / DIN 70121/ISD1S118/IEC618Sl-23,IEC618Sl-24
