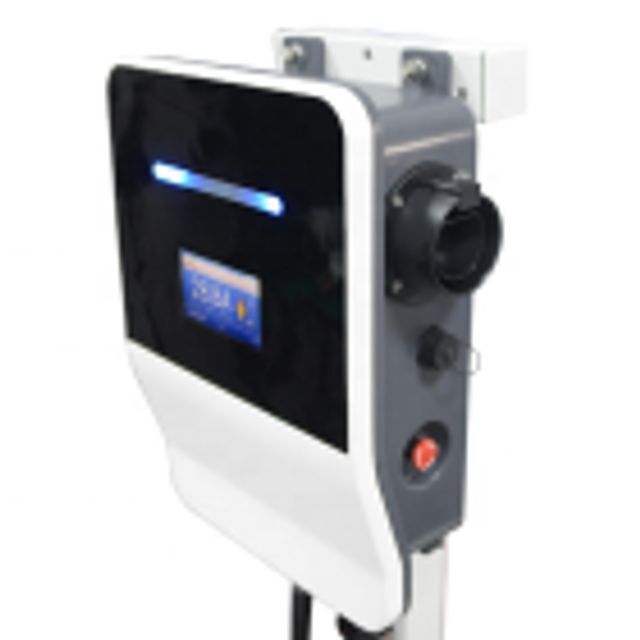

Electric Cars CE Commercial Smart OCPP EV Charging Station 7KW 11KW 22KW Wallbox EV Charger Type2

Supplier: Chongqing Senku Machinery Imp And Exp Co., Ltd
Region: Chongqing, China
Contact: Mr Bake Wei
Price: $200.00 /piece
Min. Order: 1 piece

Click here to contact

Product details

Place of Origin:	Chongqing China;	Key Words:	ev charger type2;
Supply Ability:	100000 Piece/Pieces per Month for ev charger type2;	Port:	Shanghai , Ningbo;
Charging Outlet:	One charging gun or one socket type 2;	Safety Standard:	EN 61851;
Output Current:	32A;	Payment Terms:	L/C,T/T;
Brand Name:	SENKU;	Model Number:	ev charger type2;
Output Power:	7kW;	Input Frequency:	0% AC input frequency;
Packaging Detail:	standard oversea packing for ev charger type2;	Voltage:	1-phase 240V±10%;
Application:	hospital, car parking lots, airport , street;	RCD:	Type A:30 mA + DC:6 mA;
Installation Method:	Wall-mount / ground mounted;

Product Description

Electric Cars EV Charging Station 3.5KW 7KW 11KW 22KW ev charger type2

Specification

Input Voltage	1-phase 230V±10%	3-phase 400V±10%
Input Frequency	50Hz	50Hz
Output Power	7.3KW	11KW	22KW
Output Current	32A	16A	32A
Charging Outlet	1* Type2 Charging Plug+4M cable Or 1Type1 Charging Plug+4M cable Or 1 Type2 Charging Socket
HMI	LED Indicator Light+4.3 inch LCD Touch screen
Emergency Stop Button	YES
RFID Card Function	YES
Energy Meter	MID Certificated Energy Meter
RCD Protection	30ma AC + 6ma DC (Type B)
Charger and Platform Communicate Protocol	OCPP 1.6
Internet Method	4G , Ethernet, Wifi
Protection Grade	IP65
Safety certification	CE, IEC 61851-1/ EN 61851-1, IEC /EN 61851-21-2; TR25:2016
Operating Temperature	-25 ° C ~ +50 ° C
Storage Temperature	-40 ° C ~ +70 ° C
Working Humidity / Altitude	5%~95% without condensation; <2000m
Protections	Over/under voltage, overload, short circuit, current leakage, grounding, over temp , lightning surge protection...

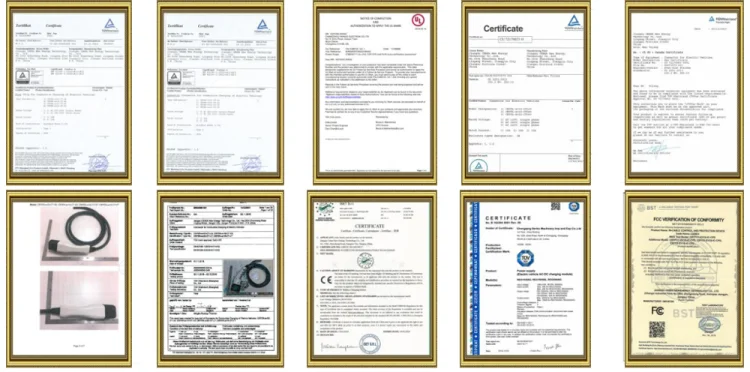

CE CERTIFICATION & TR25 CERTIFICATION

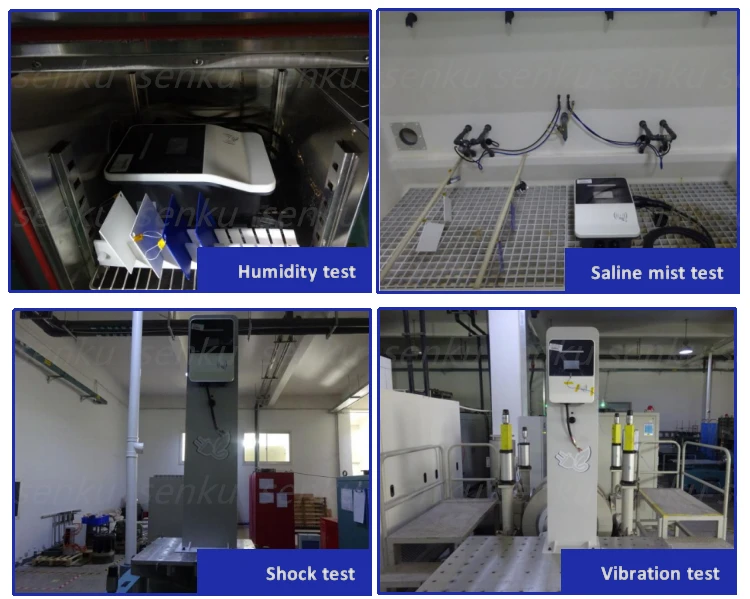

Strictly Design and Produce Follow IEC 61851 / TR 25 Standards, and passed Various Harsh Condition Test

More details please contact us!

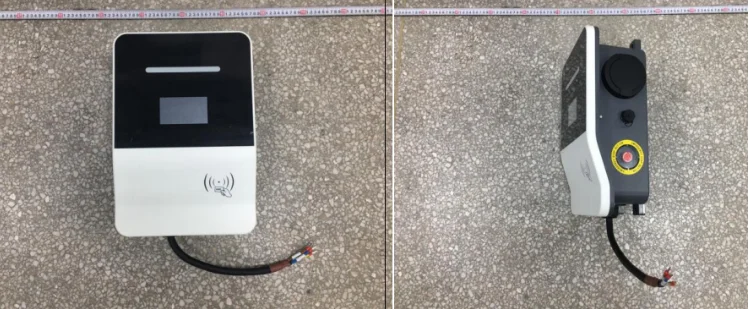

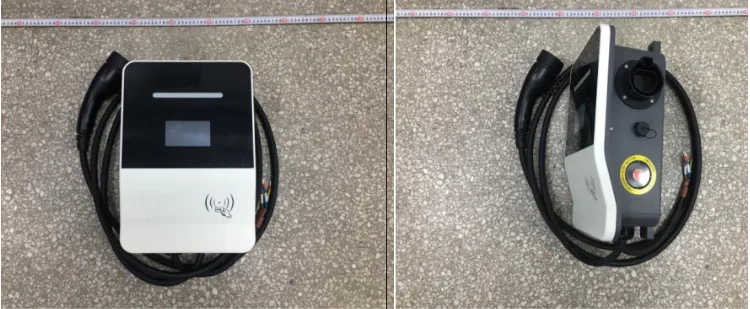

REAL CHARGER PICTURES

Simple and beautiful appearance design

Overview-Case C Connection

Case C connection:

The EV charger with a fixed charging cable and plug;

Type2 chargers can charge all the type 2 EVs;

Type1 charger can charge all the Type 1 EVs;

GBT charger can charge all the GBT (China standard) EVs;

Overview-Case B Connection

Case B Connection:
Charger with a Type 2 socket only, don't have fixed cable on body; The user usually charge with own cables;
A Type 2 to Type 2 ev charging cable can charge all the Type 2 EVs;
A Type 2 to Type 1 ev charging cable can charge all the Type 1 EVs;
A Type 2 to GBT ev charging cable can charge all the GBT (China standard) EVs;

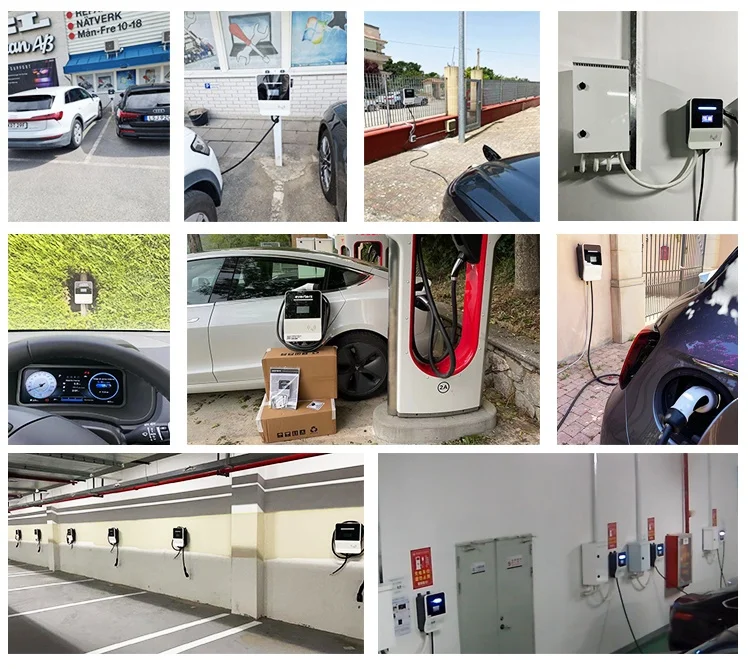

CUSTOMER CASE

Packing & Delivery

To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.

Note:

1-Please contact us to get more details. OEM Manufacturing welcome...
2-Any requirement please contact us to talk about the details.
3-We will reply you for your inquiry in 24 hours.
4-If you have any questions about the problem, please contact us, we will offer the solve way for you.
