32A 7KW Certificated Electric Car Charger

Click here to contact

Product details

OCPP:	OCPP 1.6;	Color:	White;
Supply Ability:	500 Piece/Pieces per Month for Charger;	Quality:	100% test;
Port:	SHANGHAI;	Model Number:	Car Charger;
IP Level:	IP55;	Certificate:	CE ,TUV;
Rated current:	32A;	Brand Name:	SENKU;
Standard:	IEC62196-2, IEC61851-1;	Payment Terms:	L/C,T/T;
Operation Temp.:	-30℃ ~ + 50℃;	Place of Origin:	Chongqing China (Mainland);
Operating voltage:	220VAC;	Packaging Detail:	Neutral package or Customized for Charger;
Key Words:	Cars Charger;

32A 7KW Certificated Electric Car Charger

This 7KW Level2 EV charger adds up to 25 miles per hour, It can charge most EVs in under 4 hours.

√ Support for RFID card charging;

√ Support all the electric vehicles in USA and EU market.

√ -Large LED Touch Screen operation, make charging process more convince.

√ Real-time display of power, cost, duration, current and other information;

√ The output current can be Automatic adjust according to the Car‘s requirements.

√Conforms to the latest IEC 61851 and IEC 62196 standards.

√ IP Protection Level: IP55 ( Storage); IP54 (Charging).

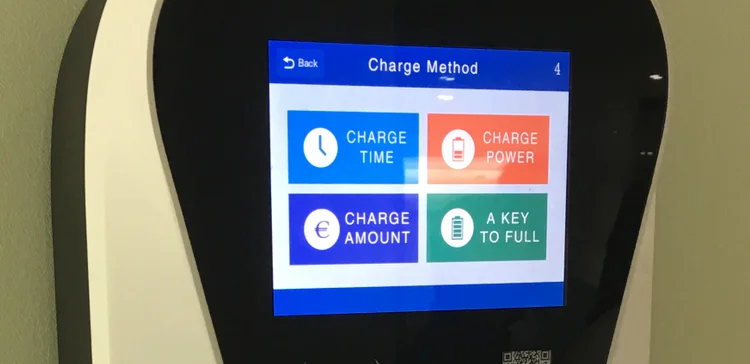

A variety of charging options: by time, by amount, by electricity, automatically filled (See the picture)

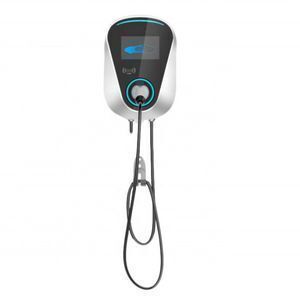

For this series, we have three different type charger, the picture show is for the 8inch LCD Screen.

Charger data please check the sheet:

Electric Performance.	8inch LCD Touch Screen	5inch LCD Touch Screen	OLED Basic Type
Rated Voltage	220VAC;50/60Hz	220VAC;50/60Hz	220VAC;50/60Hz
Rated Power	MAX 32A; 7.2KW	MAX 32A; 7.2KW	MAX 32A; 7.2KW
OCPP	OCPP 1.6(OPTION)	OCPP 1.6(OPTION)	OCPP 1.6(OPTION)
Communication interface	GPRS / WIFI (OPTION)	GPRS / WIFI (OPTION)	WIFI (OPTION)
Start method	IC Card / Plug and Play /APP
Dimension	314454135mm	314454135mm	237343115mm
Weight	8KG	8KG	6KG
EMI	CISPR22/EN 55022 CLASS B
EMS	EN 61000-4-5 ±2KV/±4KV perf. Criteria B
Standards	EN 61851 / SAEJ1772
Working Condition	Alttitude:<2000m; Temperature: -30℃ ~ + 50℃; Humidity: 5%~95% without condensation
Protection	Leakage detection/Over-Voltage /Over-Current/Under-Voltage/Over-Temperature/Double Lightning protection/Emergency stop button/Power failure data records protection
