Dc Charging Connector CCS Combo 2 Socket with 2m Cable

Supplier: Chongqing Senku Machinery Imp And Exp Co., Ltd
Region: Chongqing, China
Contact: Mr Bake Wei
Price: $50.00 /piece
Min. Order: 1 piece

Click here to contact

Product details

Supply Ability:	5000 Piece/Pieces per Month for Dc Charging Connector;	DC Max charging power:	127.5KW;
Packaging Detail:	standard oversea packing for Dc Charging Connector;	Brand Name:	SENKU;
AC Max charging power:	41.5KW;	Withstand Voltage:	3200V;
Model Number:	Dc Charging Connector;	Safety Standard:	IP 55( working condition);
Impact of external force:	can offord 1m drop test and 2T vehicle run over pressure;	DC input:	150A 1000V DC MAX;
Place of Origin:	Chongqing China (Mainland);	Port:	Shanghai , Ningbo;
AC input:	32A / 63A / 415VAC MAX option;	Payment Terms:	L/C,T/T;
Type:	Dc Charging Connector;	Contact Resistance:	0.5m Ω Max;
Type:	Inlet;	Mechianical life:	no-load plug in / plug out > 10000 times;

Product Description

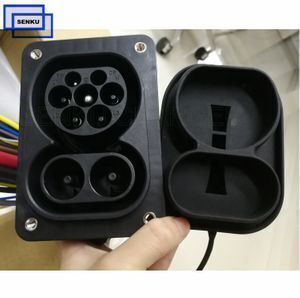

Dc Charging Connector CCS Combo 2 Socket with 2m Cable

Electric Performance.

DC input: 150A/200A(option) ; 1000V DC MAX
AC input: 32A /63A (option) ;415VAC MAX (Default model is 63A)
DC Max charging power: 127.5KW
AC Max charging power: 22KW / 41.5KW
Insulation resistance: >2000MΩ (DC1000V)
Terminal temperature rise.: <50K
Withstand Voltage: 3200V
Contact Resistance: 0.5m Ω Max

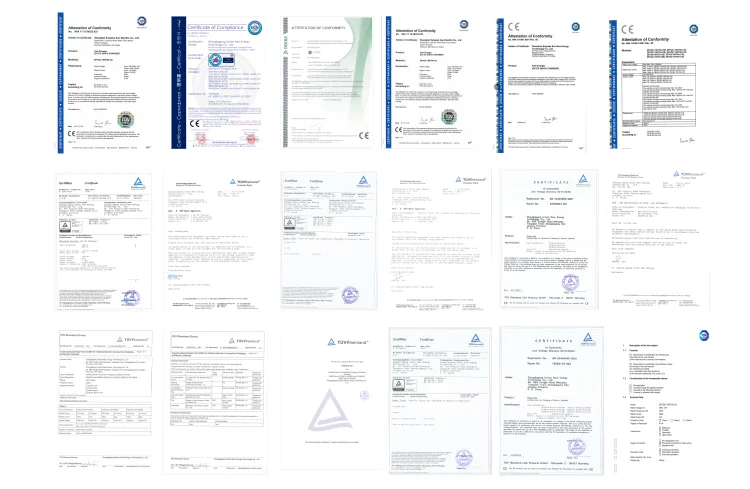

Certificate: With CE, TUV Certificate...

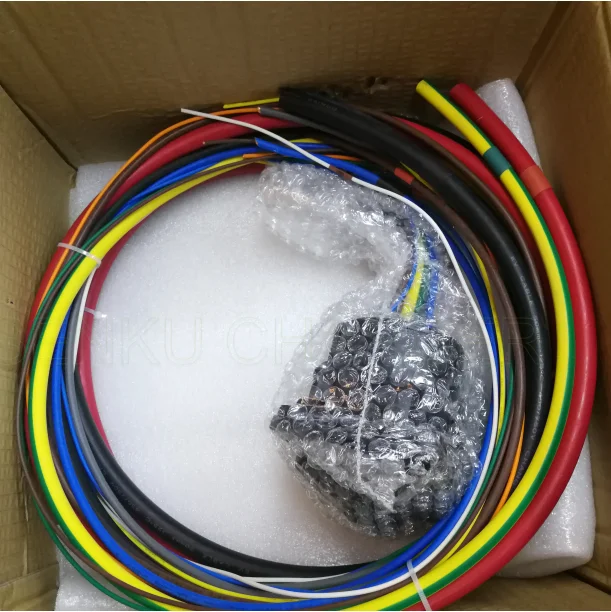

Note: This Soket with 2m length charging cable, if you need the different charging cable length or you not need the charing cable, please feel free to contact us.

Mechanical Properties

Mechianical life: no-load plug in / plug out > 10000 times
Coupled insertion force: >45N<80N
Case Material: Thermoplastic, Flame retardant grade UL94-0
Contact bush: Cooper alloy+ thermoplastic on the top

FAQ

Q: Do your have CCS2 Charging plug which install on DC Charger?

Yes, we have 150A and 200A CCS Charging plug, Details please contact us here . Or you can check the link to check the details.(Bottom of this page)

Q: How about the CCS2 Vehicle side Chargig Socket Quality?

Yes, Our product all passed the TUV CE Certificate, so you don't need to worry the quality. Details please contact us here .
