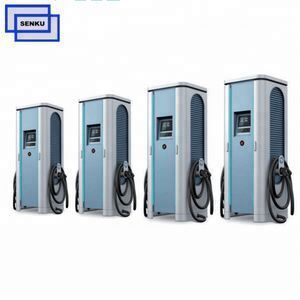

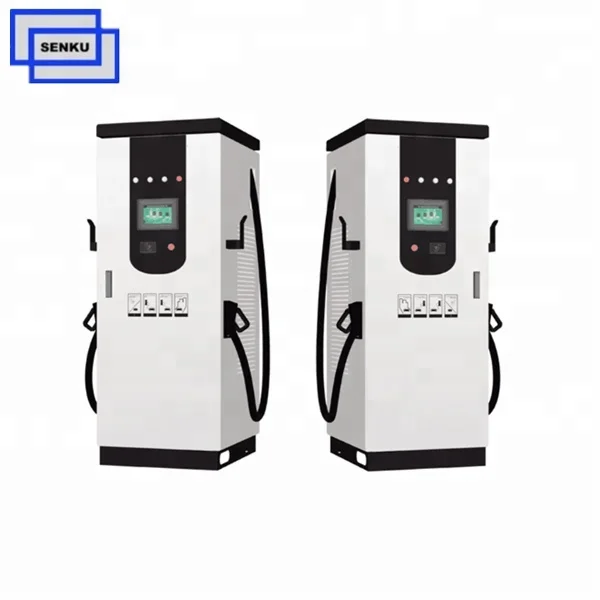

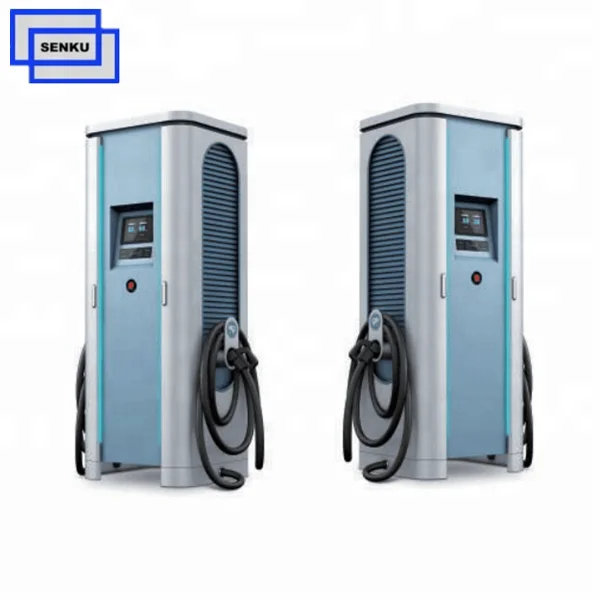

Level 3 45kw DC Fast EV charger with CCS & CHAdeMo standards

Click here to contact

Product details

Rated output voltage(V):	150-550V / 150-750V for option;	Brand Name:	SENKU;
Output Current(A:	0~100A;	Voltage Type:	3-phase+N+PE;
Packaging Detail:	standard oversea packing for Fast charger;	Current Total Harmonic Distortion Rate:	≥0.99;
Payment Terms:	L/C,T/T;	Rated Voltage:	260 - 530VAC ; 50Hz±5%;
Application:	Comercial Fast charger;	Place of Origin:	Chongqing China (Mainland);
Current THD value:	≤5%;	Charging interface:	2;
Port:	Shanghai , Shenzhen;	Type:	Fast charger;
Model Number:	45kw CCS & CHAdeMo;	Supply Ability:	10000 Piece/Pieces per Month for Fast charger;
Ingress Protection:	IP65;

1. Basic Info:

Electric Performance
Charging Interface	CCS combo-1/2	CHAdeMO
Power factor (full load)	≥0.99
Input Performance.
Input Voltage	260-530VAC;3 Phase;3P + N + PE;50Hz / 60Hz
Output Performance.
Rated output voltage(V)	150 ~ 500VDC
Rated output Power	45KW
Output current (A)	0 -100A
Efficiency	>=95% at nominal output power
Function and Interface
Payment Method	RFID card, Mobile Payment
Charging Interface	CCS combo-1/2, CHAdeMO for Option (Can be combined)
HMI	Emergency stop button, LED indicator, card swiping, 7 inch touch screen
Standard
System Communication	CAN & PLC
Back-end Connection	Ethernet, WiFi, 3g, 4g
OCPP	OCPP 1.6
Protection	IP 65
Safety standard	EN 61851-1: 2011,EN 61851-22: 2002,IEC 61851-23: 2014-03,IEC 61000-6-2,IEC 61000-6-3
Safety Complies	Complies with CE (CE marking)
Working environment
Temperature	Operating Temperature: -20 ° C ~ +60 ° C / Storage Temperature:-40 ° C ~ +70 ° C
Working Humidity	5% ~ 95% without condensation
Altitude	≤2000m Full load output
Cooling	Forced-air cooling
MTBF	100,000 hours
Security design	Over/under voltage protection, overload protection, short circuit protection, current leakage protection, grounding protection, over temp protection, lightning surge protection
