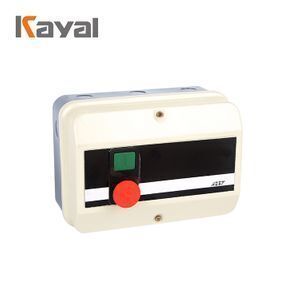

High performance Free Sample Control Motor telemecanique magnetic motor starter dol magnetic starter

Supplier: Wenzhou Kangyu Electrical Co., Ltd.
Region: Zhejiang, China
Contact: Mr Vincent Chen
Price: $20.00 /piece
Min. Order: 1 piece

Click here to contact

Product details

Product Name:	ade star-delta starter;	Phase:	3;
Brand Name:	KAYAL;	Place of Origin:	Zhejiang China (Mainland);
Number of Pole:	3;	Rated Frequency:	50/60Hz;
Duty Cycle:	Continuous;	OEM:	YES;
Certificate:	CE CCC UL;	Model Number:	ADS7;
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram;	Port:	NINGBO SHANGHAI;
Materials:	Copper/PE;	COLOR:	White;
Quality:	GOOD;	Supply Ability:	1000000 Piece/Pieces per Month;
Electricity Type:	AC;	Main Circuit Rating Voltage:	240V;
Brand:	KAYAL;	Main Circuit Rating Current:	25A;
Packaging Detail:	Export standard package or according to customer's requirement;	PORT:	NINGBO/SHANGHAI;

Please Attention!

SPECIFICATION

----------------------------------------------------------------------------------------------------------------------------------------------------------------------------

ADS7 contactor starters ade star-delta starter
Type	Rated current AC-3 415(A)	3-phase motor capacity AC-3 415V
Direct-on-line,surface mounting Direct-on-line,flush mounting Direct-on-line,surfacr mounting, reversingdirect-on= line,surface mounting,with isolator	0.74-1.11A	0.37KW	0.50HP
	1.11-1.66A	0.55KW	0.75HP
	1.66-2.50A	1.10KW	1.50HP
	2.50-3.70A	1.50KW	2.00HP
	3.70-5.60A	2.50KW	3.40HP
	5.60-8.40A	4.00KW	5.50HP
	8.40-11.9A	5.50KW	7.50HP
	11.4-16.0A	7.50KW	10.0HP
	16.0-23.0A	11.0KW	15.0HP
	22.0-33.0A	15.0KW	20.0HP
Type	Rated current AC-3 415(A)	3-phase motor capacity AC-3 415V
Direct-on-line,surface mounting Direct-on-line,flush mounting Direct-on-line,surfacr mounting, reversing direct-on= line,surface mounting,with isolator	4.30-6.40A	3.00KW	4HP
	6.40-9.70A	5.00KW	6.8HP
	9.70-14.5A	7.50KW	10.0HP
	14.5-20.6A	10.0KW	13.5HP
	19.7-27.7A	15.5KW	20.0HP
	26.0-38.0A	22.00KW	30.0HP
	38.0-57.0A	30.00KW	40.0HP
