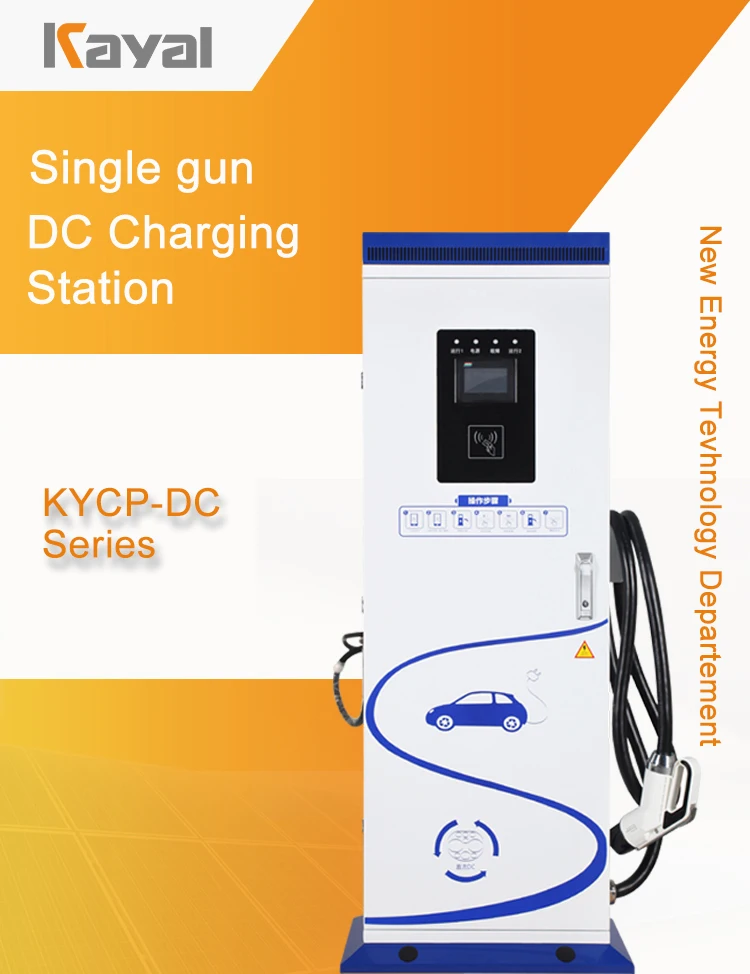

Cars Charging Station for Electric Vehicles 40KW

Supplier: Wenzhou Kangyu Electrical Co., Ltd.
Region: Zhejiang, China
Contact: Mr Vincent Chen
Price: $4564.00 /set
Min. Order: 1 set

Click here to contact

Product details

Model Number:	KYCP-DC-40KW-S;	Supply Ability:	2000.0 Set/Sets per Month;
rated power:	40KW;	Place of Origin:	Zhejiang China;
Voltage regulation accuracy:	≤±0.5%;	Ucurrent limit protection value:	≥110%;
Brand Name:	KAYAL;	Input frequency:	45~65Hz;
Installation method:	Floor-standing;	Packaging Detail:	export standard package or according to customer's requirement...;
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram;	Port:	NINGBO,SHANGHAI;
Cable length:	4/5m;	Equipment size:	64529012649(mm);
Way of routing:	Down and down;	Steady flow accuracy:	≤±1%;
Input voltage:	AC380V±20%;

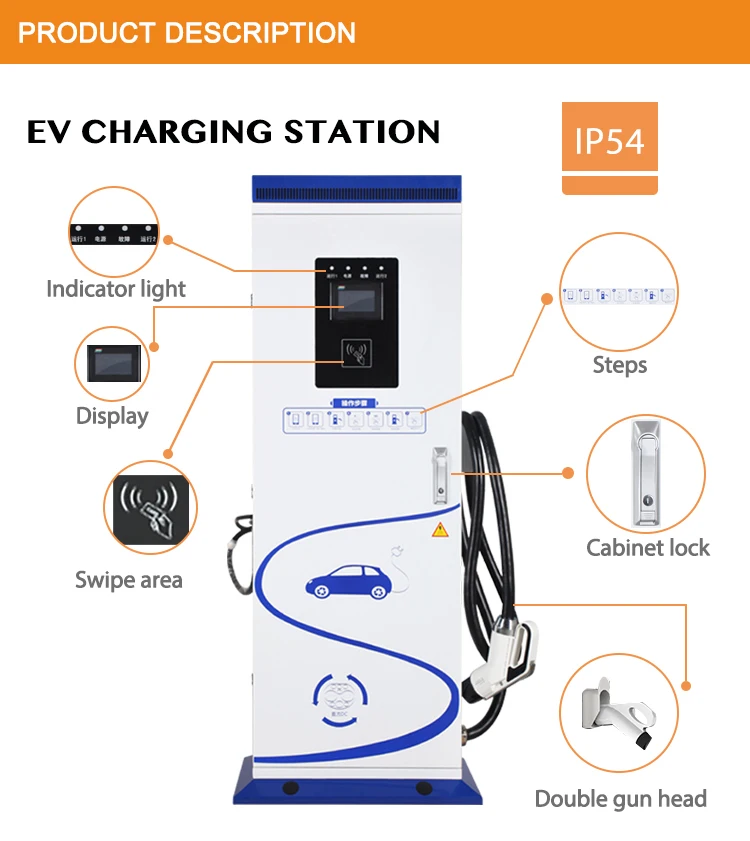

Product Description

Product number		KYCP-DC-40KW
Detailed specificatio	rated power	40KW
Charging equipment	User Interface	4.3 inch LCD color display touch screen
	Installation method	Floor-standing
	Way of routing	Down and down
	Equipment size	64529012649(mm)
	Input voltage	AC380V±20%
	Input frequency	45~65Hz
	The output voltage	200V-500V	200V-750V	200V-750V (constant power)
	Single gun output current range	60A	0-70A	90A
	Cable length	4/5m
	Measurement accuracy	Level 0.5
Electrical index	Ucurrent limit protection value	≥110%
	Voltage regulation accuracy	≤±0.5%
	Steady flow accuracy	≤±1%
	Ripple coefficient	≤±0.5%
	effectiveness	≥94.5%
	Power factor	≥0.99
	Harmonic content THD	≤5%
feature design	HMI	4.3 inch LCD color display touch screen
	Charging mode	Auto full / fixed power / fixed amount / fixed time
	payment method	APP payment / credit card payment / scan code payment
	Communication Interface	Ethernet 2/3/4G (optional)
Safety design	Executive standard	GB\T 20234,GB/T 18487, GB/T 27930,NB\T 33008
	security function	Charge gun temperature detection, overvoltage protection, undervoltage protection, overload protection, short circuit protection, grounding protection, over temperature protection, low temperature protection, insulation monitoring protection, polarity reverse connection protection, lightning protection, emergency stop protection, leakage protection
Environmental indicators	Operating temperature	—25℃~+50℃
	Working humidity	5%~95% non-condensing cream
	Working elevation	<3000m
	Protection level	IP54
	cooling method	Forced air cooling
	Noise control	≤60dB
	MTBF	100,000 hours
