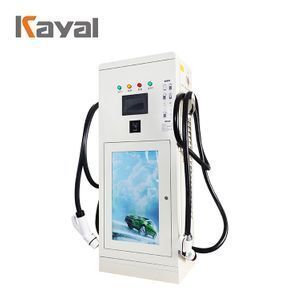

KAYAL IP54 Three Phase AC 380V Column Type EV Charger Pile 40KW Single Gun Charging Station charger for electric car

Product details
Payment Terms:L/C,D/A,D/P,T/T,Western Union,MoneyGram;Measurement accuracy:Level 0.5;
Routing mode device size:635*423*1600(mm);User Interface:7 inch LCD color display touch screen;
Brand Name:KAYAL;Place of Origin:Zhejiang China;
The output voltage:200-750VDC;Port:NINGBO/SHANGHAI;
Supply Ability:1000 Set/Sets per Month;Packaging Detail:export standard package or according to customer's requirement...;
installation:Floor-standing/Down and down;Model Number:KYCP-DC-45KW-S;
Current limit protection value:≥110%;Input frequency:45~65Hz;
Input voltage:AC380V±20%;Voltage regulation accuracy:≤±0.5%;
Cable length:5m;
Please Attention!

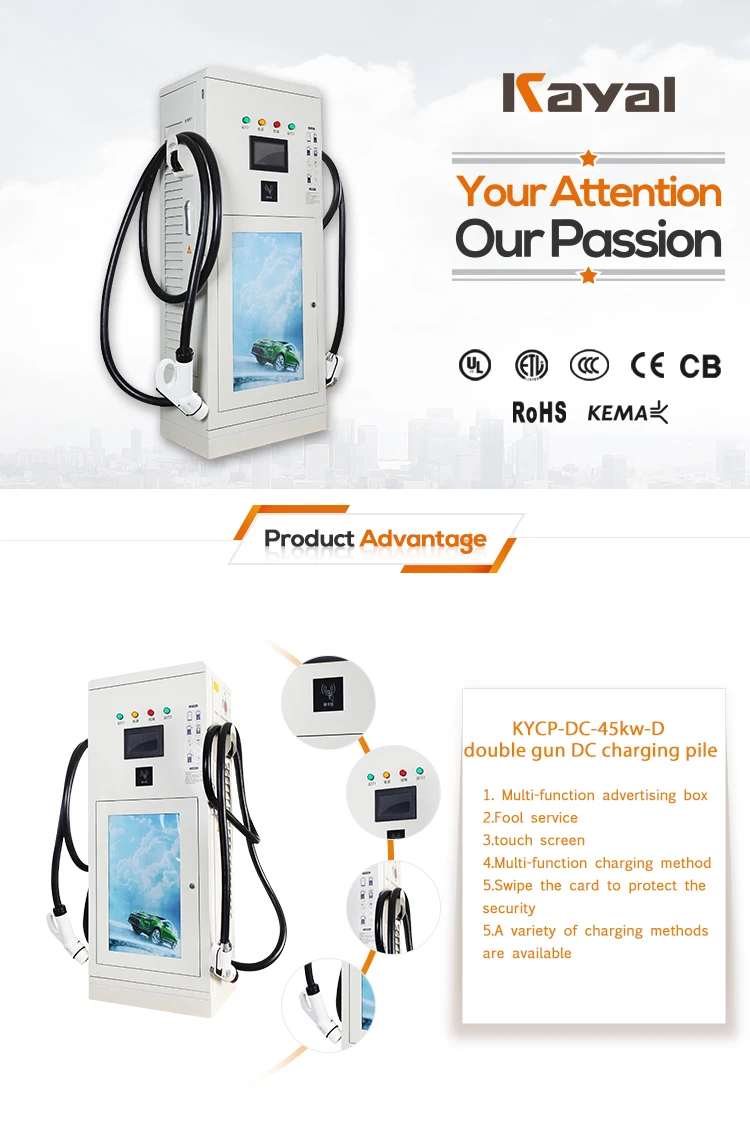

 Overview
Adopting a nuclear power-grade high-power power module platform, the safety and reliability are higher;
The new high-efficiency three-phase PFC circuit topology is adopted, the power factor is greater than 0.99, and the harmonic distortion rate is ≤5%.
The high-frequency switching power supply module adopts full-bridge phase-shift soft-switching technology, and the execution efficiency is high.
The advanced digital current sharing technology effectively improves the current sharing accuracy and anti-interference; the first module sleep
technology and the wheeling technology ensure the high-efficiency operation of the system;
Intelligent charging process control and perfect charging process monitoring and protection, fool-like operation;
A variety of charging methods such as timed charging, quantitative charging, fixed amount charging and automatic charging are available;
Real-time display of information such as the amount of charge, charging time, current electricity price, charging price, and operating status;
The RS-485 networking communication interface can be reserved, and the optional GPRS networking mode can be provided;
Module hot swap technology makes maintenance more convenient;
Working environment temperature -20+50 °C
Scope of application
Integrated DC charging pile is suitable for urban public charging stations (bus, taxi, official car, sanitation car, logistics car, etc.) city public charging
station (private car, commuter car, bus) cityVarious parking lots in residential areas, shopping plazas, power business places, etc.; intercity highway
charging stations, etc.

Product number KYCP-DC-45KWKYCP-DC-60KWKYCP-DC-80KW
Detailed specificationrated power45KW60KW80KW
Charging equipmentUser Interface7 inch LCD color display touch screen
installationFloor-standing/Down and down
Routing mode device size635*423*1600(mm)
Input voltageAC380V±20%
Input frequency45~65Hz
The output voltage200-750VDC
Single gun output current range200V-500V200V-500V200V-500V
The output voltage0-90A0-120A0-160A
Single gun output current range200V-750V200V-750V200V-750V
The output voltage0-60A0-80A0-107A
Charging equipmentSingle gun output current range0-112A0-150A/
Cable length5m
Electrical  indexMeasurement accuracyLevel 0.5
Current limit protection value≥110%
Voltage regulation accuracy≤±0.5%
Steady flow accuracy≤±1%
Ripple coefficient≤±0.5%
effectiveness≥94.5%
Power factor≥0.99 (50% load or more)
Harmonic content THD≤5% (50% load or more)
feature designHMI7 inch LCD color display touch screen, LED indicator
Charging modeAuto full / fixed power / fixed amount / fixed time
payment methodCredit card payment / APP payment / scan code payment
Communication InterfaceEthernet 2/3/4G (optional)
Safety designExecutive standardGB\T 20234, GB/T 18487, GB/T 27930, NB\T 33008
security function

Charge gun temperature detection,

overvoltage protection,

undervoltage protection,

overload protection,

short circuit protection, grounding protection,

over temperature protection,
low temperature protection, insulation monitoring protection,

polarity reverse connection protection,

lightning protection,

emergency stop protection,

leakage protection

Environmental indicatorsOperating temperature-25°C~+50°C
Working humidity5%~95% non-condensing cream
Working elevation<3000m
Protection levelIP54
cooling methodForced air cooling
Noise control≤60dB
MTBF100,000 hours
