Le1-d electromagnetic starter, electromagnetic starter

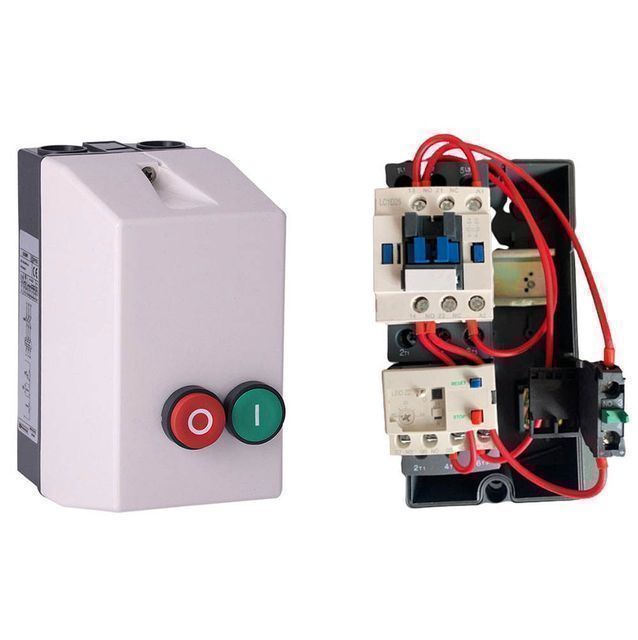

LE1D Enclosed DOL starter with overload relay

control + overload protection

- ON/OFF motor starter: unidirectional rotation control of a three-phase motor via green and red buttons

- Motor overload protection: manual reset with red button or remote.

scope:

- 8 direct starters for 3P motors from 4 to 30 kW (9 to 65 A AC-3)

- Choice of up to 12 AC coil voltages (depending on starter rating) for control power circuits.

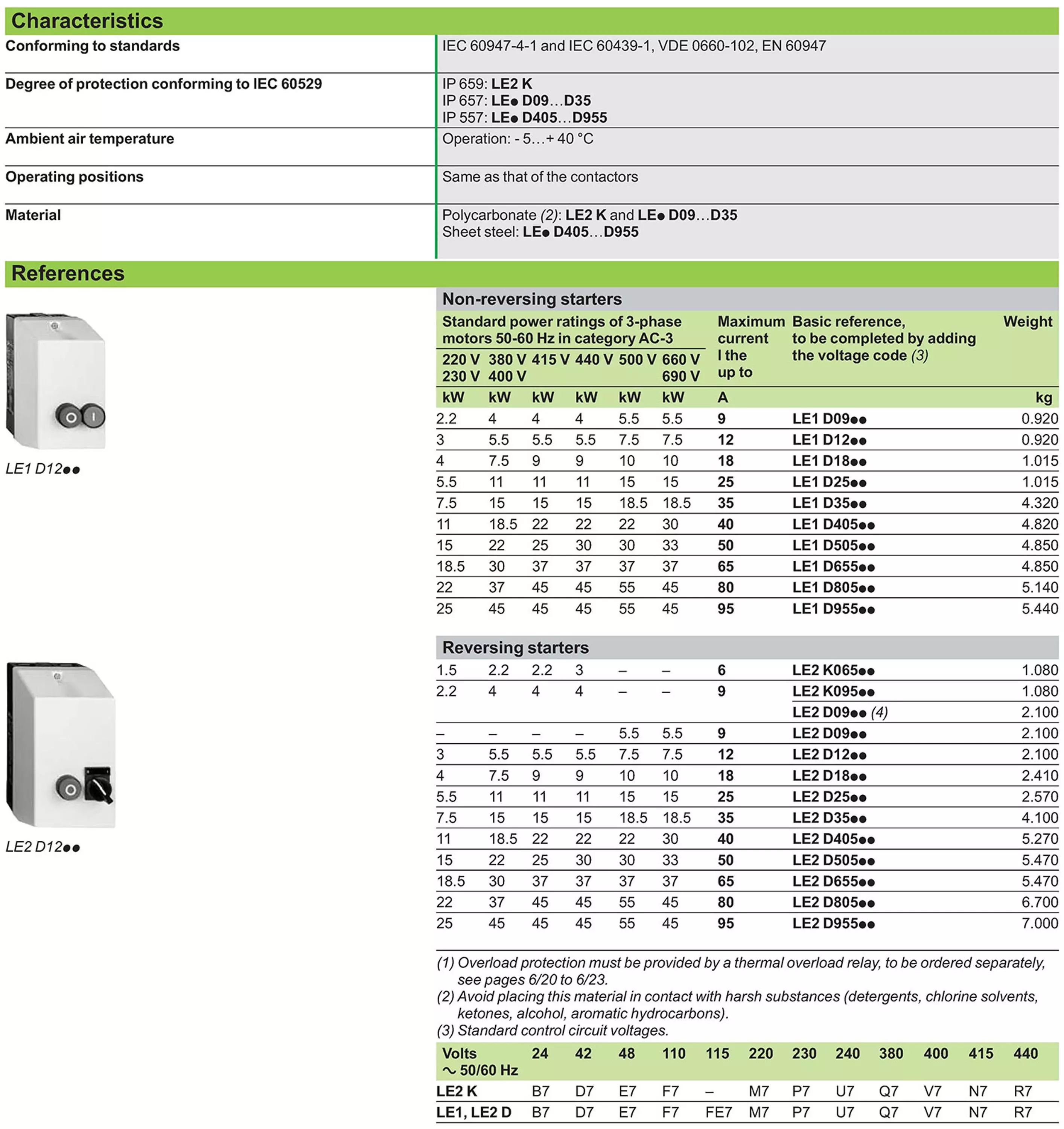

Housing Features:

- Complies with IEC 60947-4-1 standard

- Degree of protection according to IEC 60529:

IP65,

IK07 for LED09…D35,

IK09 for LE1D40A…D65A

- Ambient air temperature during operation -5 to +40°C

- Operating position: same as contactor

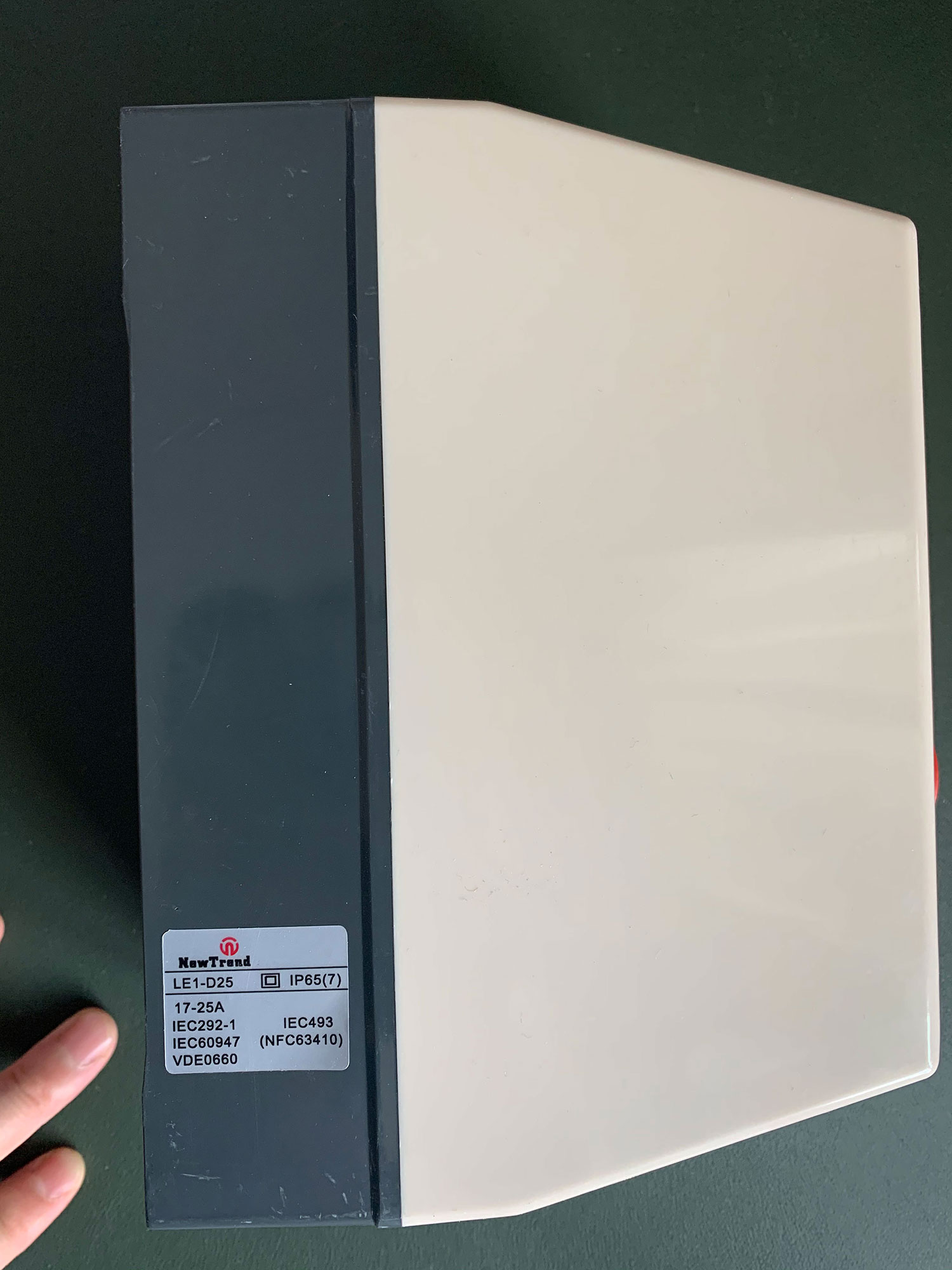

- Material: LE1D09…D35 Polycarbonate

- LEpD40A…D65A steel plates.

include:

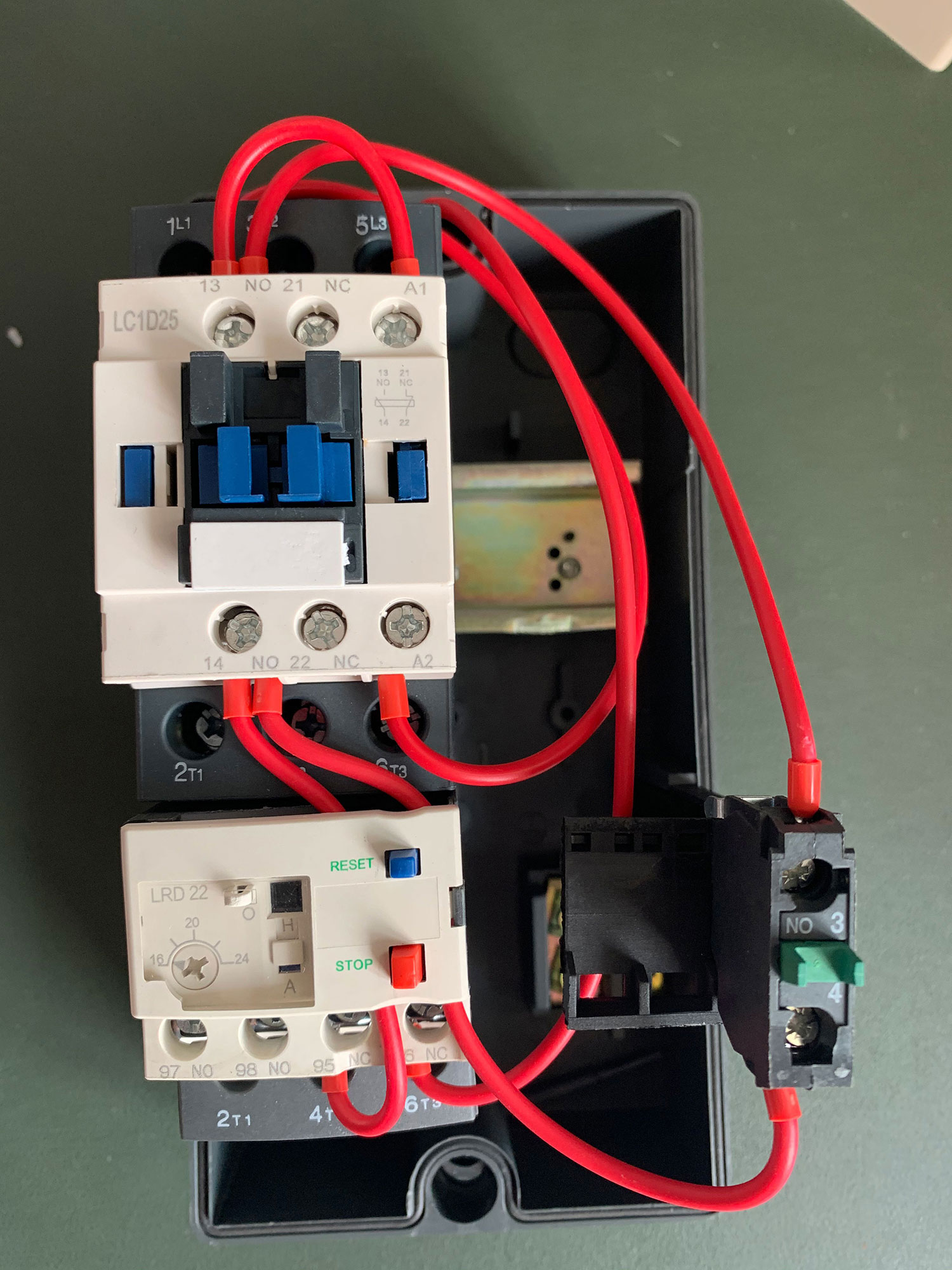

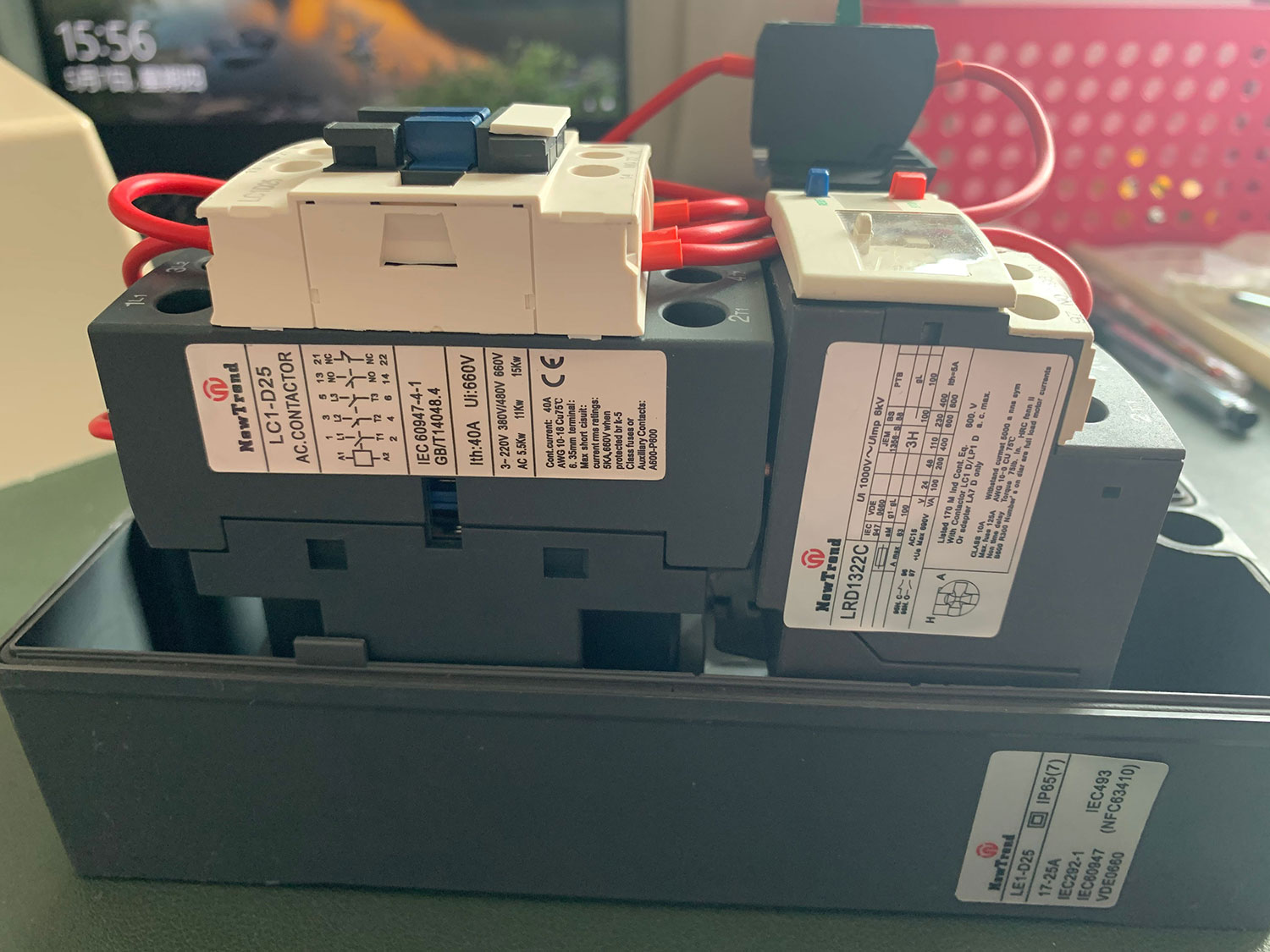

Prewired LC1D Contactors

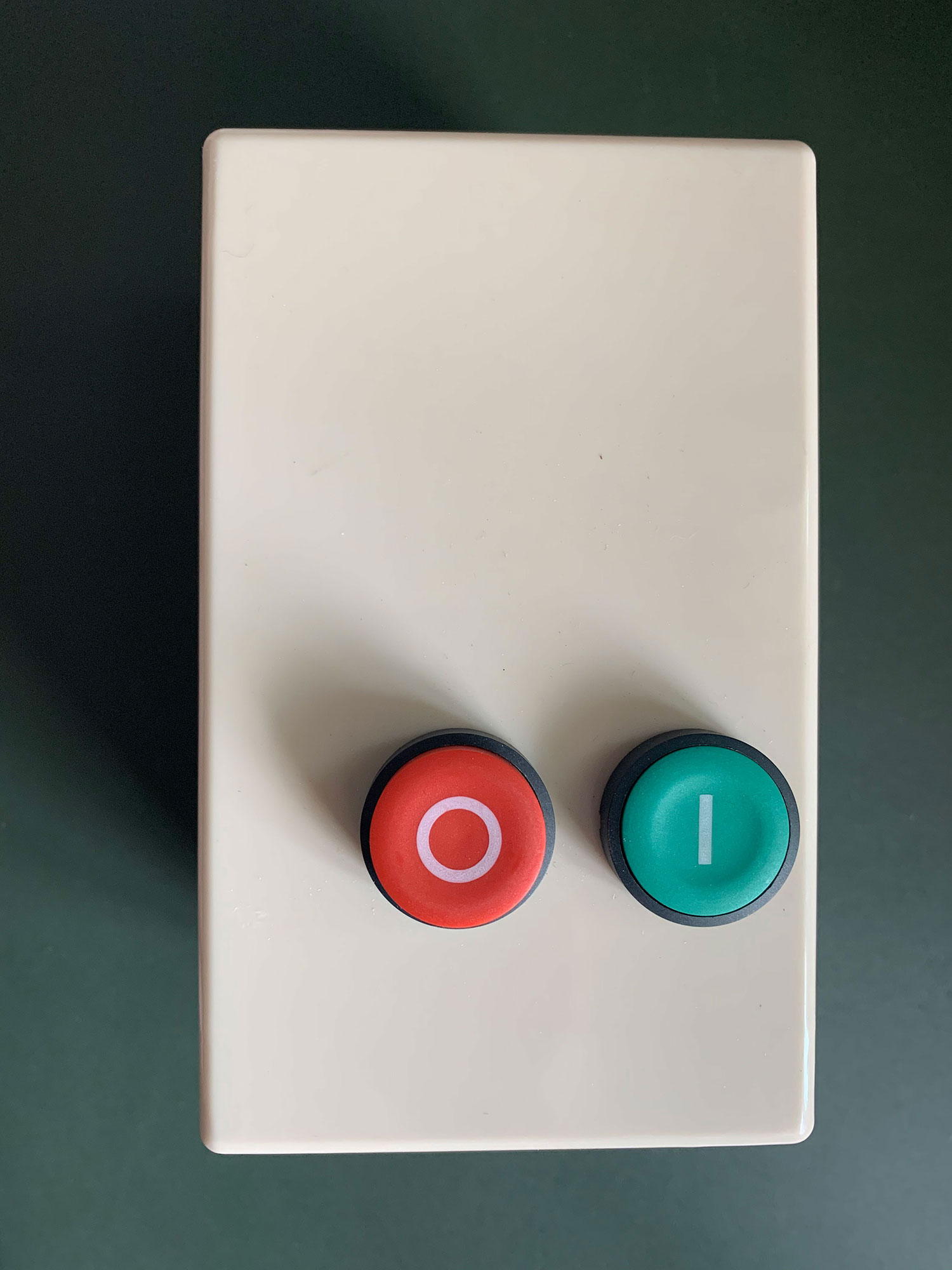

2 buttons.

LRD overload relays of the required rating must be ordered separately and wired at the bottom of the contactor.
