Q-line Circuit Breaker Load Center THQL SPN Distribution Board China equivalent PowerMark Gold Load Center with main breaker
- 2.00 >=50 pieces
| Main breakers: | 40A, 70A, 125A, 200A; | Place of Origin: | China; |
| Supply Ability: | 10000 Piece/Pieces per Month; | Fittable breakers: | Q-Line Circuit Breakers; |
| number of spaces: | 2, 4, 6, 8, 12, 16, 20; | Port: | Shanghai; |
| Payment Terms: | T/T; | Phase: | Single Phase; |
| Packaging Detail: | Standard export cartons; | Brand Name: | Newtrend or OEM; |
Q-line Circuit Breaker Load Center THQL SPN Distribution Board China equivalent PowerMark Gold Load Center with main breaker
Application:
Q-Line circuit breaker load centers have been designed for safe, reliable distribution and control of electrical power as service entrance equipment in residential, commercial and light industrial premises of GE Q-Line circuit breakers.
Features:
♦ Flush or surface or combination, Single phase, 40-225A, 4-42 circuits.
♦ Suitable for GE Q-line circuit breakers, including also GE 1/2" THQP circuit breakers.
♦ Suitable for AC 50/60Hz, rated voltage to 110/240V, rated current 40A/70A/125A/200A/225A.
♦ Main lug line converts easily to main breaker (Convertible)
♦ Made out of high quality steel sheet and matt-finish polyester powder coated paint.
♦ Indoor and outdoor rated enclosures
♦ Straight-through main wiring

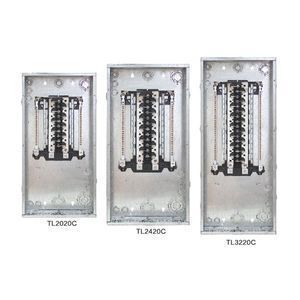

| Reference Pictures | Main Ampere Rating |
Part Number |
Max Spaces for 1'' Breakers |
Max Spaces for 1/2" Breakers |
Enclosure Type |
Type | Optional Door | ||
| 1P | 2P | 1P | 2P | ||||||
 |
40A | TL240SCU | 2 | 1 | 4 | 1 | Surface | Main Lug | - |
| 70A | TL270SCU | 2 | 1 | 4 | 1 | Surface | Main Lug | - | |
 |
125A | TL412C | 4 | 2 | 8 | 3 | Combination | Main Lug | - |
 |
TL612FCU | 6 | 3 | 12 | 4 | Flush | Main Lug | - | |
| TL812FCU | 8 | 4 | 16 | 8 | Flush | Main Lug | - | ||
| TL612SCU | 6 | 3 | 12 | 4 | Surface | Main Lug | - | ||
| TL812SCU | 8 | 4 | 16 | 8 | Surface | Main Lug | - | ||
 |
TLM612FCU | 6 | 3 | 12 | 4 | Flush | Convertible | - | |
| TLM812FCU | 8 | 4 | 16 | 8 | Flush | Convertible | - | ||
| TLM612SCU | 6 | 3 | 12 | 4 | Surface | Convertible | - | ||
| TLM812SCU | 8 | 4 | 16 | 8 | Surface | Convertible | - | ||
 |
TL612FCUD | 6 | 3 | 12 | 4 | Flush | Main Lug | with Optional Door | |
| TL812FCUD | 8 | 4 | 16 | 8 | Flush | Main Lug | with Optional Door | ||
| TL612SCUD | 6 | 3 | 12 | 4 | Surface | Main Lug | with Optional Door | ||
| TL812SCUD | 8 | 4 | 16 | 8 | Surface | Main Lug | with Optional Door | ||
 |
TLM612FCUD | 6 | 3 | 12 | 4 | Flush | Convertible | with Optional Door | |
| TLM812FCUD | 8 | 4 | 16 | 8 | Flush | Convertible | with Optional Door | ||
| TLM612SCUD | 6 | 3 | 12 | 4 | Surface | Convertible | with Optional Door | ||
| TLM812SCUD | 8 | 4 | 16 | 8 | Surface | Convertible | with Optional Door | ||
 |
TLM1212CCU | 12 | 6 | 24 | 10 | Combination | Convertible | - | |
 |
200A | TLM1620CCU | 16 | 8 | 32 | 14 | Combination | Convertible | - |
| TLM2020CCU | 20 | 10 | 40 | 18 | Combination | Convertible | - | ||
