Household 3kw water pump control panel

Supplier: Yueqing Haiyin Electric Co., Ltd.
Region: Zhejiang, China
Contact: Ms Tracy Chuh
Price: $45.00 / 1 - 19 pieces
$36.00 / 20 - 499 pieces
$32.90 / >=500 pieces
Min. Order: 1 piece

Click here to contact

Product details

payment terms:	L/C, Western Union, T/T, MoneyGram, PayPal	Rated voltage:	220-240V
control method:	Time setting/water level/pressure/drainage	port:	Ningbo
remote control:	Elective	application:	Water delivery/drainage
Number of pumps:	1	Supply capacity:	10000 pieces per month
Packaging Details:	color box	Protection voltage range:	176-264VAC
Protect:	Pump stop/dry/phase loss protection	exhibit:	LCD Monitor
rated power:	0.37-3kw	model:	20y-3kw
brand:	wxya	Origin:	Zhejiang, China
Package preview:

Product Description

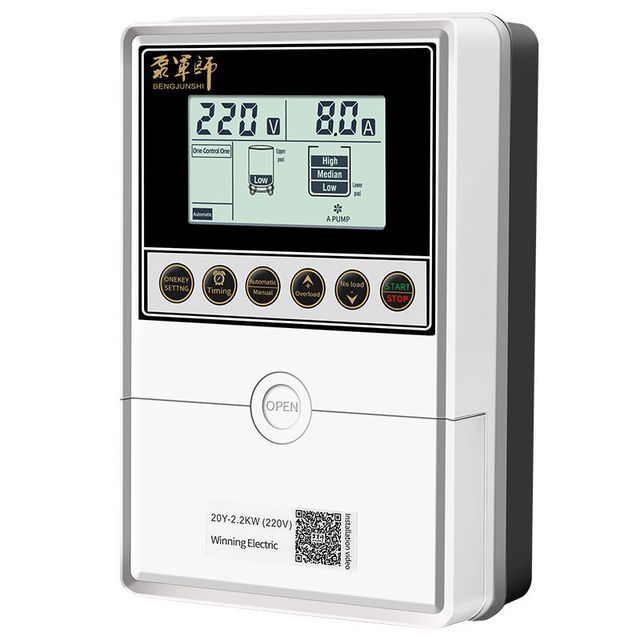

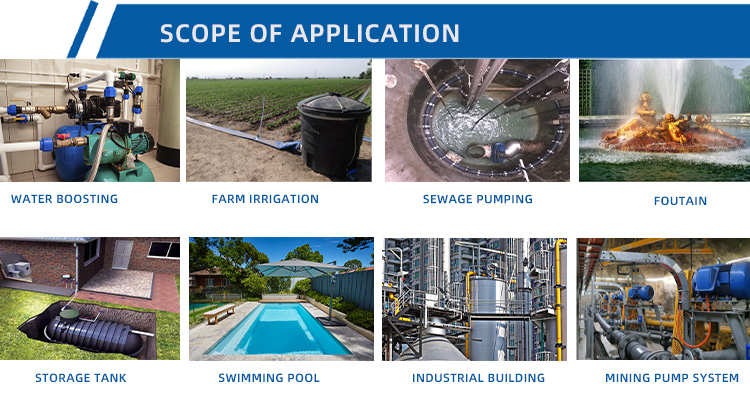

The 20Y automatic water pump controller is specially designed for household water pumps. The pump controller will stop the pump when the water level in the tank is high, and it will start working when the water level in the tank is low. Suitable for surface pumps, sewage pumps, booster pumps, submersible pumps, etc.

Pump Controller Specifications

type	20 years old
Model	20Y-2.2KW	20Y-3KW
rated power	0.37-2.2KW	0.37-3KW
Rated input voltage	220V or 110VAC±10%, 50Hz or 60Hz
Control the number of pumps	single pump

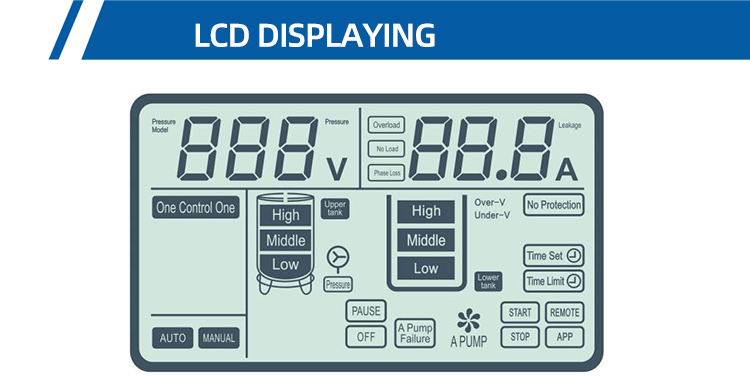

exhibit	LCD Monitor
Signal transmission method	Liquid Level Float Switch Liquid Level Probe Pressure Switch Electric contact pressure gauge
water level indicator	High Medium Low
Maximum control distance	≤2000m without strong electric field, strong electromagnetic field
Overvoltage/undervoltage range	176V-264V (adjustable)

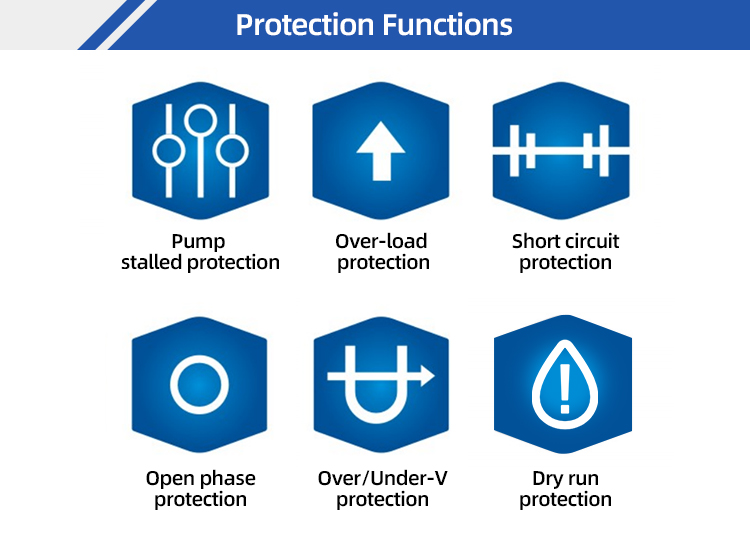

Safeguard	Water pump stall protection Idle protection overload protection undervoltage protection overvoltage protection Phase loss protection Short circuit protection
The main function	time setting Fault detection Rust inspection Automatic restart after power restoration

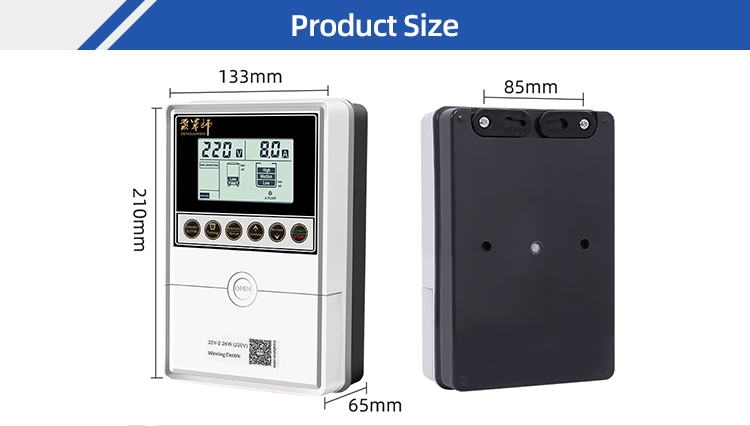

Product Size	21013965mm
Operating temperature Working humidity degree of protection installation location	-25ºC-- +55ºC 20%--90%RH, no dripping concrete IP22 wall mount

Household 3kw water pump control panel
