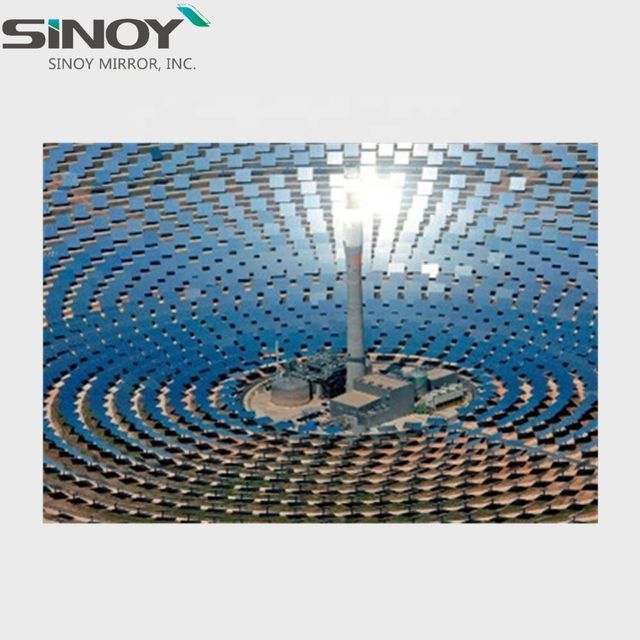

Advanced 3.2mm Solar Glass Mirror Super Reflector for CSP Solar System

Supplier: Sinoy Mirror, Inc.
Region: Shangdong, China
Contact: Mr HIRAM BAI
Price: $12.00 / 300 - 1999 square meters
$10.98 / 2000 - 4999 square meters
$9.12 / >=5000 square meters
Min. Order: 300 square meters

Click here to contact

Product details

application:	The Sun can generate system	Certificate:	ISO9001:2008
Working hours (hours):	20 years	Material:	Ultra Clear Float Glass
Packaging Details:	Three packing methods for SINOY MIRROR large lens--standard wooden box	feature:	safe
Load power (W):	5000w 10kw 15KW	Iron content:	reduce
Output voltage (V):	110/120/220/230V	Supply capacity:	20000 pieces per month
Package preview:		painting:	pure white, shell color
brand:	Sinoy	model:	Solar 1000
payment terms:	L/C, T/T	Warranty:	3 months - 1 year
size:	customer request	Origin:	China
port:	Qingdao Port

Product Description
Sunglasses are reflective surfaces used to collect reflected solar energy in solar-powered systems
It includes a glass substrate, a reflective layer that reflects solar energy, and an interference layer. purpose
The purpose of solar mirrors is to achieve a substantially concentrated reflectance for solar systems.

feature:
1) Made of premium low-iron ultra-clear glass
2) Thickness: 1.1mm, 3mm, 3.2mm or 4mm.
3) Silver clad copper, three layers of protective back paint
4) Waterproof 5) Scratch resistant
5) Anti-UV
6) Can withstand complex climate environment
7) Can be used for at least 20 years
Thickness: 1.1mm / 3.0mm /3.2mm/4.0mm

model.	Solar 1000
delivery time	3-4 weeks after receiving the deposit
payment method	L/C or T/T deposit, balance before shipment, etc.
transportation	from Qingdao, China
Inspection standards	No scratches on the surface, no fingerprints, no traces of depletion, No stain, no mildew, chipped edges, missing corners, etc. Glass mirror, the mirror surface is clean, without stains or stains. Visible light reflectance > 93%

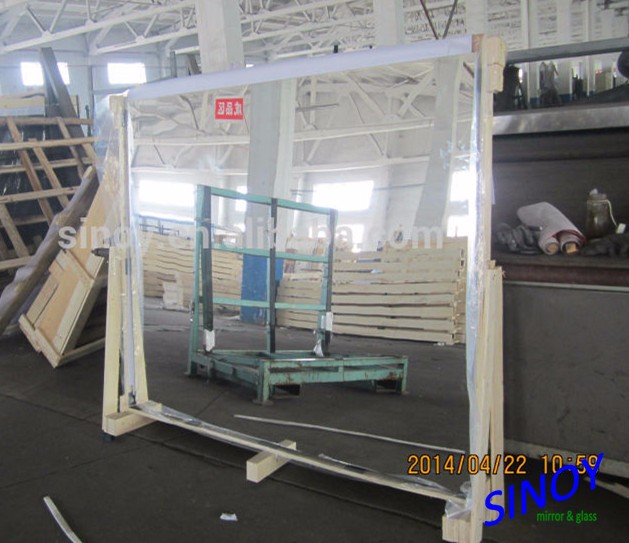

packaging requirements	1) Standard wooden box; 2) Sealed packaging; 1) or 2) Transported in a container truck. We at Sinoy , INC. wooden case packaging experts step up. Rest assured, it's protected from breakage that can happen on the road for long hauls.

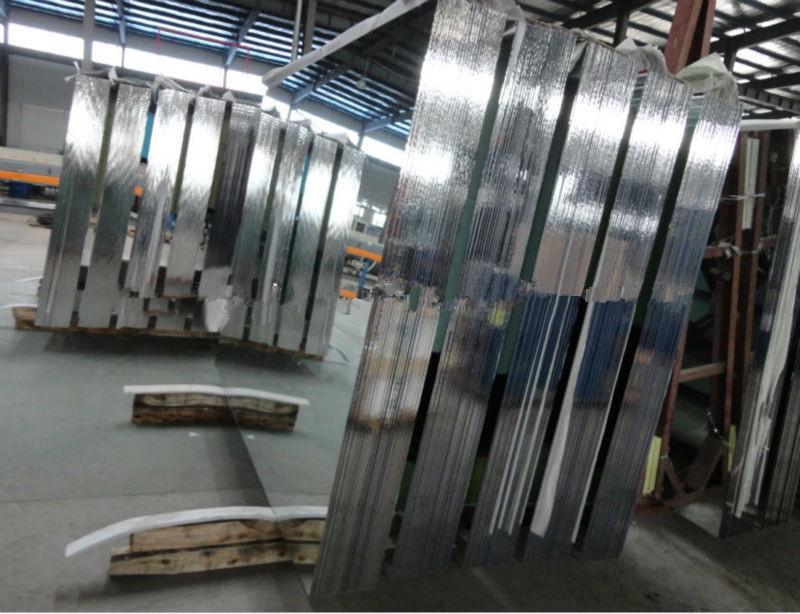

Process Notes Packaged	Use scratch-resistant material between mirror panels and It is strictly forbidden to slide one mirror on another mirror.
transport and storage	Put it in a dry and ventilated place, not flat or sideways, to prevent contact with acid and alkali and other corrosive substances.
Material standard	SMFG2004-03 standard, top mirror grade glass
Certificate	CE, ISO9001:2008, SGS, etc.
spray code	According to specific requirements
mark	According to specific requirements
Other Accessories	Dryer, etc., can use the fixed pad
After-sales service	1) Ordinary samples are free.
		2) The design fee for special processing samples will be deducted when placing an order.
		3) The quality does not meet the validity period: within 30 days after receiving the goods.

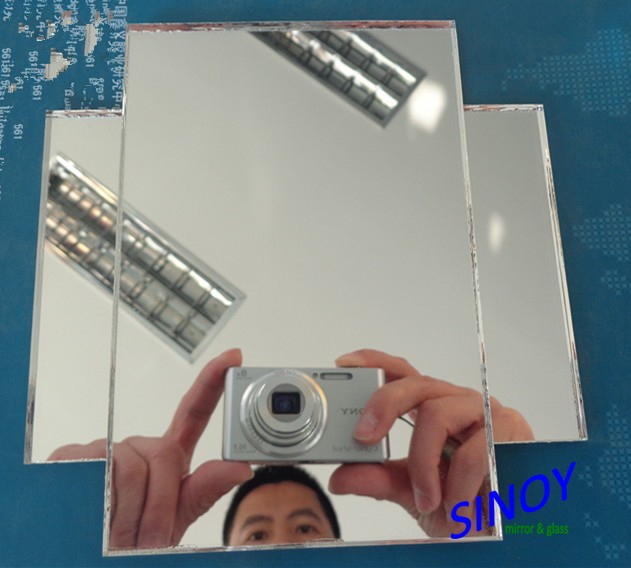

Mirror size and shape
* The flat mirror is ultra-clear and ultra-thin.
* Dimensions: 3210 (±1) x 1350 (±1) x 3 (±0.1) mm.
* Width, length and diagonal tolerance is 1mm.
100% silver plated white glass.
* Coating is defined by supplier.
* White outer coating.
* The coating should protect the mirror silver plating on the edge of the mirror.
* Coating is compatible with neutral silicone.
* Mirrors should be UV resistant.
* Diagonal length tolerance (squareness):
(32102 +13502 )= 3482.33 ( ± 1 ) mm
*Thickness tolerance: 0.1 mm. Maximum difference within 100 mm <= 0.08 mm
* Thickness: 3 (± 0.1) mm
* Energy reflectivity > 91%. Energy reflectivity shall be measured according to Parry
Lunar Air Mass 2 Curve.
* Coating adhesion by cutting and grating according to UNE-EN 2409: Class 0.
* Traceability shall be clearly marked in the coating of exterior mirrors using permanent paint.
*Mirrors are supported and fixed by metal elements and silicone (supplied by Aberer).
* Fixing elements shall be made of stainless steel metal.
* Metal fixing elements are pasted by using neutral silicone as "Silkraf Mirror"
Silicone or similar.
* Clean the mirror with penetrating water every month
wipe.
*Mirrors should be cold bent. The maximum radius of curvature is not less than
150 meters.
* The supplier should guarantee his mirror to work in solar power plant for 5 years.
* Mirrors should be designed to operate for 20 years in field conditions
situation.

Outdoor environmental conditions

* About. Altitude (factory) altitude: 70 m
*Atmospheric environment: powdery
* Average annual temperature: 20 ºC
* Mean absolute maximum temperature: 34.9 ºC
* Mean absolute minimum temperature: 3.7 ºC
* Maximum design temperature: 50 ºC
* Minimum design temperature: -10º C
* Relative air humidity: 45 %
* Average design wet bulb temperature: 19.43 ºC
* Maximum wind speed: 140 km/h
* Earthquake acceleration: <0.08g
* Risk of hail and frost on site.
*High UV radiation on site.
* There is a risk of birds falling from both sides of the mirror.
* On-site use of herbicides.
