China Factory CNC Vertical Cylinder Honing Machine SVH-18

Supplier: Xi'an Premier Machine Tools Co., Ltd.
Region: Shaanxi, China
Contact: Mr Eric Hong
Price: $10000.00 /set
Min. Order: 1 set

Click here to contact

Product details

After-sales Service Provided:	Online support,Video technical support;	Voltage:	220V/380V;
Max. hole to be honed:	180mm;	Weight (KG):	1000;
Place of Origin:	Shaanxi China;	Payment Terms:	L/C,T/T,We choose different payment methods accordingly;
Key Selling Points:	Automatic;	CNC or Not:	CNC;
Port:	Shanghai;	Brand Name:	Premier Machines;
Applicable Industries:	Machinery Repair Shops,Manufacturing Plant;	Dimension(LWH):	228018502198mm;
Supply Ability:	5 Set/Sets per Month;	Packaging Detail:	Plywood Case;
Certification:	ISO9001;	Power (kW):	2.2;
Warranty:	1 Year;	Condition:	New;

MASS_APP4_803_BEGIN

MASS_APP4_803_END

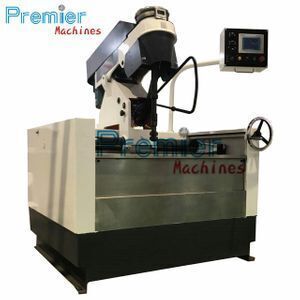

CNC Vertical Cylinder Honing Machine

Model:SVH-18

Product Description

Premier SVH-180 is designed with power, precision, durability and advanced technology to deliver state of the art performance…perfect for honing big, heavy and odd shaped workpieces.

The machine is equipped with two powerful motors, one for spindle 2.2kw and one for stroker 0.75kw, so that it gives machine to run new series diamond honing system.

Our new built to make your vertical honing faster, easier, more precise, more productive and more profitable.

Feature

1/ Independent 0.75kw stroker and 2.2kw spindle motor provide more horsepower than any competitive machine, you can now use our diamond honing system for faster production and rounder bores.

2/ Variable speed control, significantly reduces number of mechanical parts for long and trouble free service.

3/ Mechanical power stroking system – provide superior control and ensures consistent crosshatch angles

and surface finish, cylinder after cylinder.

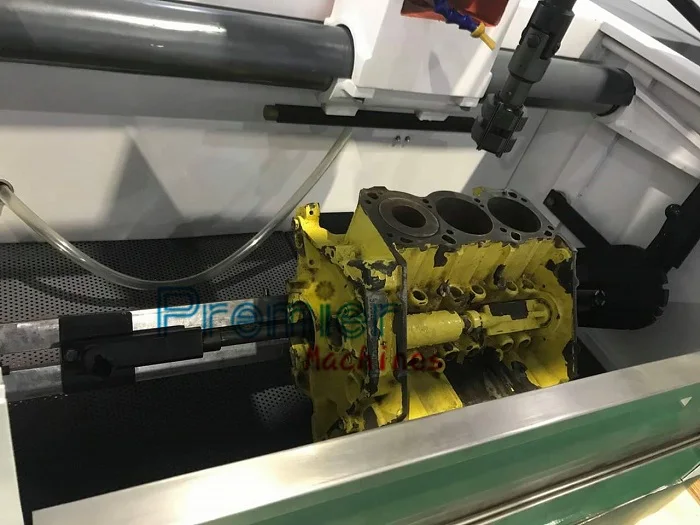

4/ Standard multi-position rollover fixture accommodates most automotive engine blocks.

5/ Attractive, long life, low maintenance stainless steel front doors – ensure operator safety,

Provide for easy cleaning and improve the look of any shop.

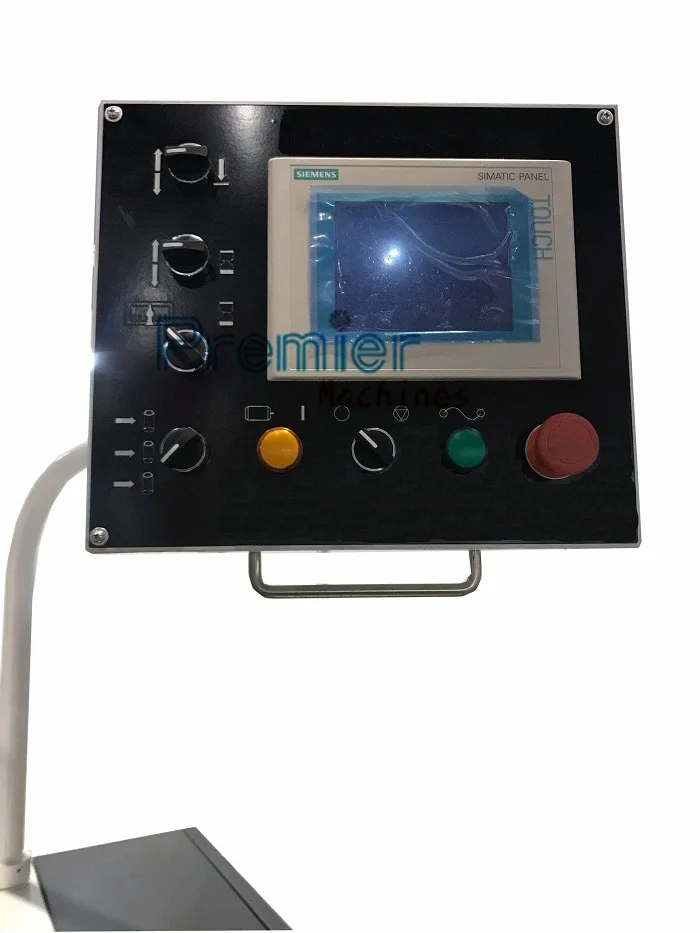

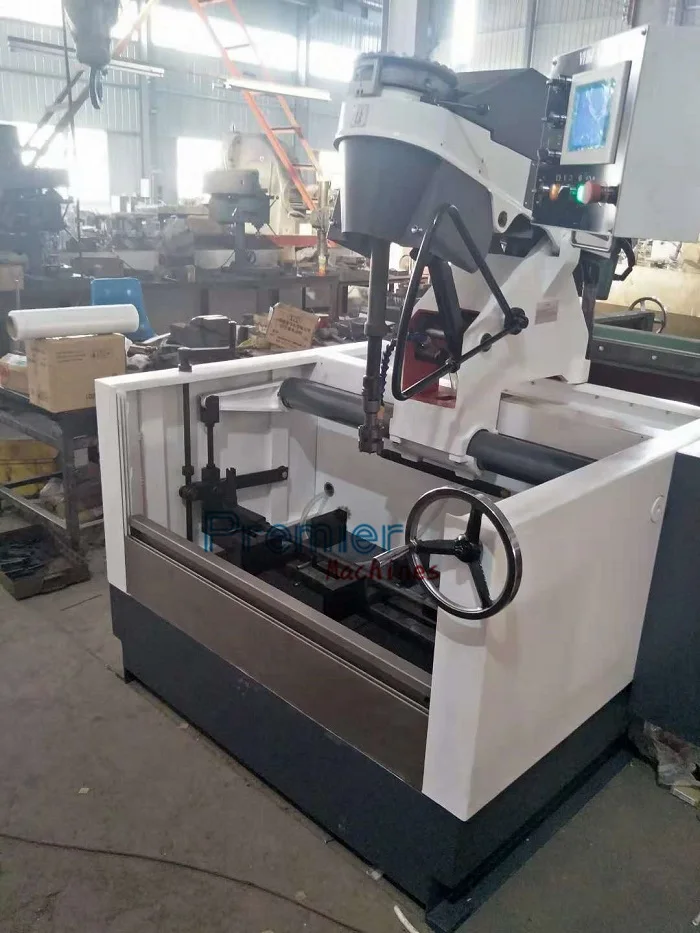

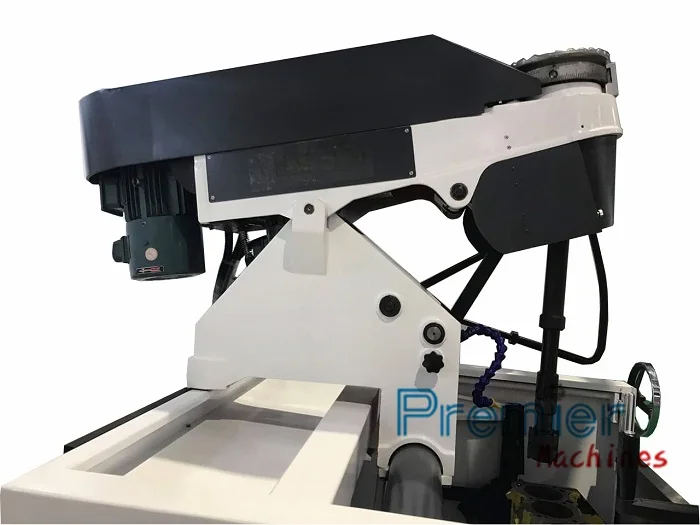

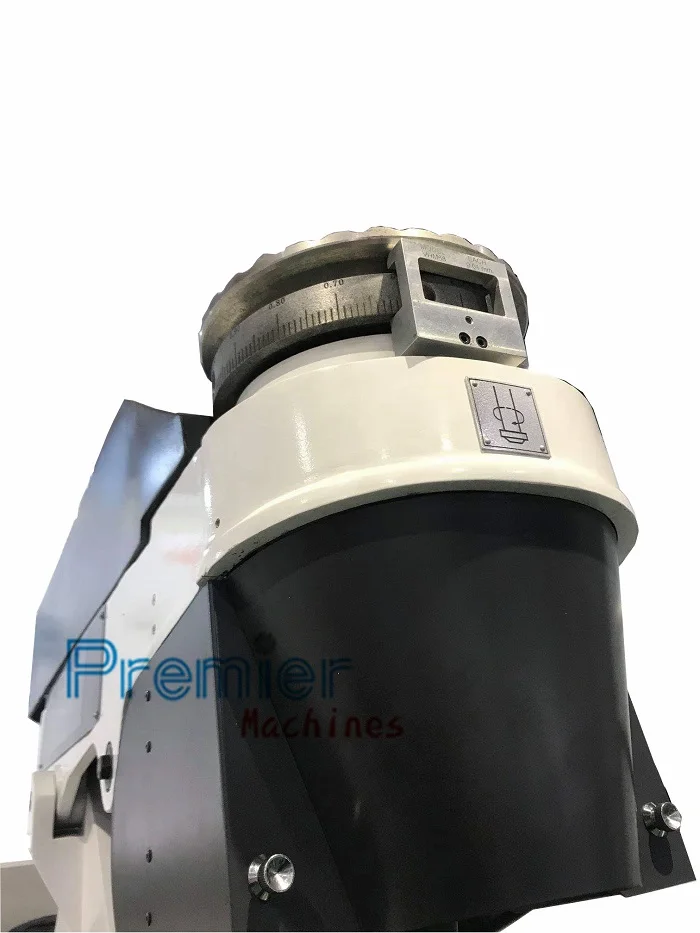

Detailed Images
