PT160 Portable Line Boring Machine boring machine portable
- 1100.00 set
| Core Components: | Motor; | Warranty: | 1 YEAR; |
| CNC or Not: | Normal; | After-sales Service Provided: | Online support,Video technical support; |
| Applicable Industries: | Manufacturing Plant,Machinery Repair Shops; | Travel (W-axis) (mm): | 0 mm; |
| Port: | Shanghai; | Table Travel (Y) (mm): | 0 mm; |
| Payment Terms: | L/C,T/T,Western Union,We choose different payment methods accordingly; | Table Travel (X) (mm): | 300 mm; |
| Certification: | ISO; | Video outgoing-inspection: | Provided; |
| Range of Spindle Speed(r.p.m): | 80 r.p.m; | Brand Name: | Premier Machines; |
| Showroom Location: | None; | Local Service Location: | None; |
| Number of Axes: | 2; | Voltage: | 380V; |
| Warranty of core components: | 1 YEAR; | Packaging Detail: | Plywood Case; |
| Place of Origin: | Shaanxi China; | Production Capacity: | 50; |
| Package Preview: | ; | Type: | Horizontal; |
| Machinery Test Report: | Provided; | Key Selling Points: | Competitive Price; |
| Table Travel (Z) (mm): | 0 mm; | Marketing Type: | Hot Product 2019; |
| Condition: | New; | Supply Ability: | 50.0 Set/Sets per Month; |
| After Warranty Service: | Video technical support,Online support; | Weight (T): | 0.12 T; |

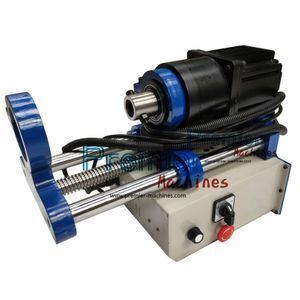

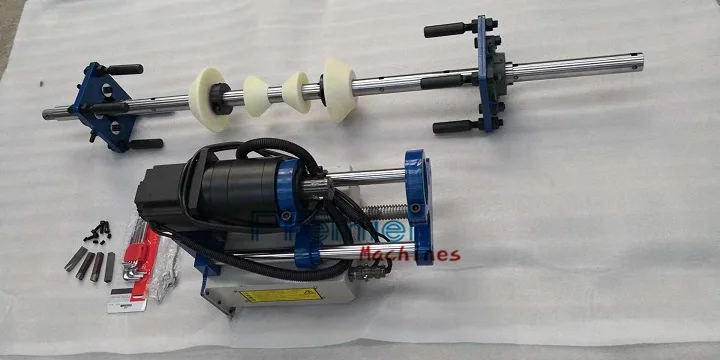

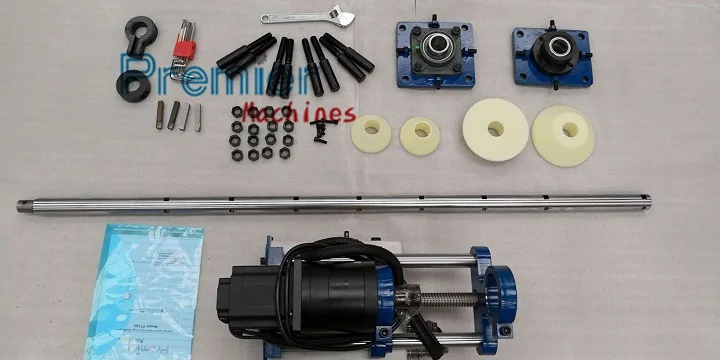

Portable Line Boring Machine
Model:PT160
Portable Hole Boring Machine is mainly used for processing small size pipe bore and concentric interval bore, applying to excavator, crane, truck crane etc.
The Drive mode of hole boring machine is electric motor-driven.
According to the feature of processing equipment, it adopts fixing or welding bolting, and makes the hole boring machine fixing on the holder .The installation is easy and safe.
Portable welding equipment is a optional device at extra cost.
The portable boring matched with portable welding can give a complete solution.
1. The boring bar adopt high-strength structural alloy steel, after more than once stress relieving, surface chrome-plating and polishing processing, it has some advantages such as high strength and not easy to deformation.
2. It can realize that install boring in horizontal or vertical, mill the ends face of boring.
3. Various supporting and fixed device meet the demand of different working condition.
4. It has High working accuracy, the surface roughness up to Ra3.2.
5. Axial direction can be feed automatic, and equipped with more gear variable speed device, to output most appropriate feed for rough or finish machining.
|
Item |
PT160 |
|
Min. boring diameter |
45mm |
|
Max. boring diameter |
160mm |
|
Stroke |
0 – 300mm |
|
Max. cutting depth (single side) |
2mm |
|
Surface roughness |
Ra0.32 |
|
Roundness tolerance |
≤0.02mm |
|
Speed of boring bar |
0 – 80rpm/min |
|
Weight |
60kg |

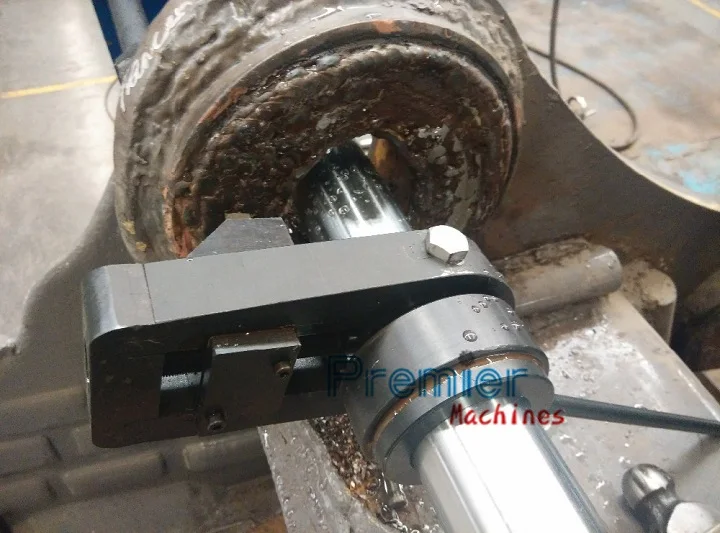

Below Optiona End Faceing Milling Device at Extra Cost
The range of end face milling as request.

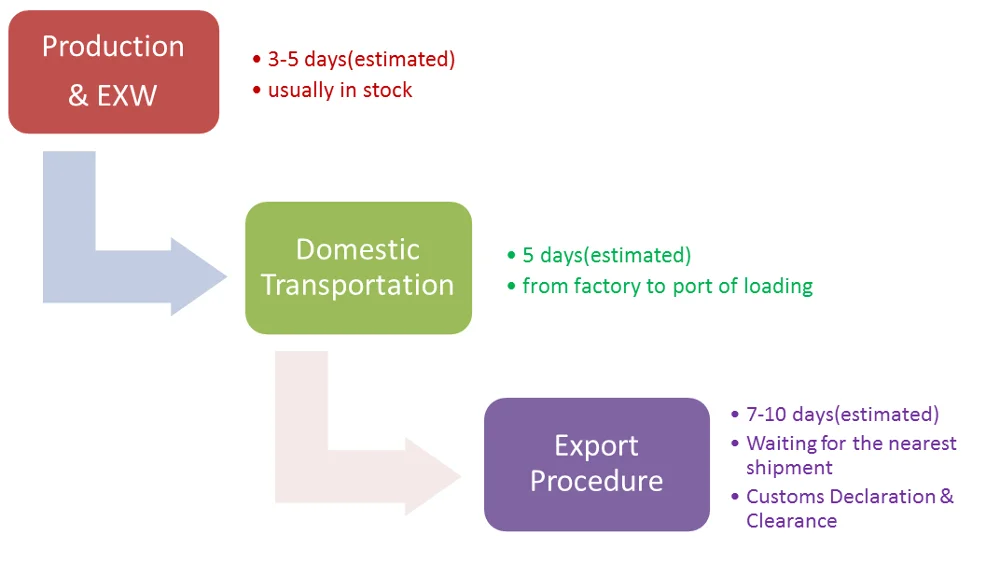

Time Chart of Delivery
