PBW50SG Automatic NC 2 in 1 Portable Line Boring and Welding Machine
- 2500.00 set
| CNC or Not: | Normal; | Warranty: | 1 YEAR; |
| Applicable Industries: | Manufacturing Plant,Construction works ,Energy & Mining; | Payment Terms: | L/C,T/T,Western Union; |
| Package Preview: | ; | Brand Name: | Premier Machines; |
| Packaging Detail: | Plywood case; | Production Capacity: | 50 sets; |
| Supply Ability: | 50 Set/Sets per Month; | Condition: | New; |
| Key Selling Points: | Multifunctional; | Port: | Shanghai; |
| Weight: | 165; | After-sales Service Provided: | Online support,Video technical support; |
| Place of Origin: | Shaanxi China; | Voltage: | 220; |
| Certification: | ISO9001; | Type: | Horizontal; |
| Motor Power (kw): | 2.3; |

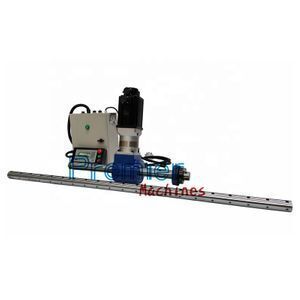

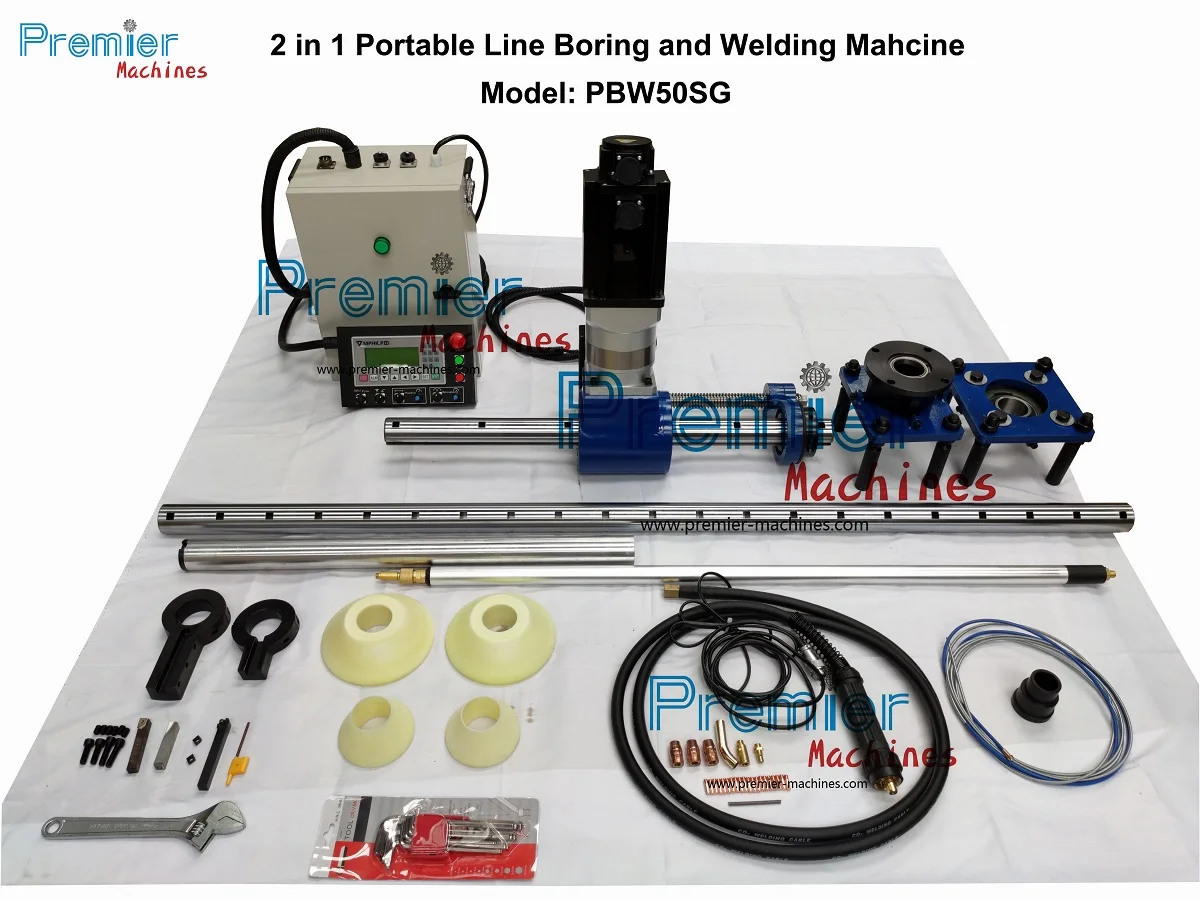

Automatic NC 2 in 1 Portable Line Boring and Welding Machine
Servo Motor Driven + Screen Operation
Automatic NC 2 in 1 portable line boring and welding machine is specially designed for on-site construction.
It is small in size, light in weight, good at both boring and welding.
It is not required for environment and space and easy to carry.
It is widely used in the repair of round holes such as pin holes and bearing holes of large-scale equipment and engineering machinery. It is an indispensable tool for industrial and mining enterprises and on-site maintenance.
1/ Main Driving Unit
This series adopts the servo motor driven with the feature of lower speed and higher torque.
The high precision gear unit of reduction equipped with machine ensures more powerful cutting.
2/ The new type of 2 in 1 borer and welder solves the problem of distortion of boring bar and
vibration during cutting process which are caused by the longer cantilever.
Also ensure there is no vibration during the process of axial moving and cutting process.
3/ Feeding and spindle rotation adopts stepless speed adjustment, the travel of feeding can be set
according to actual requirement. The machine will stop automatically after reaching the limit stop.
4/ The tool post can be fixed at any location within effective travel.
5/ Just one equipment solves both boring and welding processing.
6/ Separate electric cabinet equipped with the controller, convenient for remote operation, convenient and safe.
7/ This machine can be equipped with end face milling attachment as request.
Item | PBW50SG |
Max. dia. of welding | 300mm |
Min. dia. of welding | 55mm |
Max. dia. of boring | 300mm |
Min. dia. of boring | 55mm |
Servo motor power | 2.3Kw |
Rotation speed | 0.1 to 200rpm/min |
Max. cutting depth | 4mm single side (A3 steel) |
Roughness | Ra3.2 |
Roundness | ≤0.02mm |
