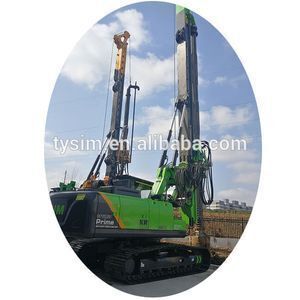

TYSIM KR125 used rotary piling rig driver construction machinery for sale
-
Supplier: Tysim Piling Equipment Co., Ltd(JS) -
Region: Jiangsu, China -
Contact: Ms Camilla Mao -
Price: $206525.00 /set -
Min. Order: 1 set
| Max. cylinder stroke: | 3200mm; | Payment Terms: | L/C,T/T; |
| Port: | Shanghai, Tianjin; | Model Number: | KR125; |
| Packaging Detail: | Method One: Nude packing and overall transport by sea with roll-on-roll-off ship. (L*W*H=9150*2700*3250 mm); Method Two: Flat rack container; | Max. crowd pressure: | 100kN; |
| Make: | TYSIM; | Main winch line pull: | 150kN; |
| Operating height: | 14800mm; | Working speed: | 8~30rpm; |
| Weight: | 37t; | Max. operating pressure: | 34.3MPa; |
| Brand Name: | TYSIM; | Piling Speed(m/min): | according to the geological setting; |
| Condition: | Used; | Max. drilling depth: | 43m; |
| Place of Origin: | Jiangsu China; | Efficiency: | High Efficiency; |
| After-sales Service Provided: | No overseas service provided; | Max. torque: | 125kN.m; |
| Certification: | ISO9001/CE; | Supply Ability: | 1 Set/Sets per Month used rotary piling rig for sale; |
| used rotary piling rig for sale: | used rotary piling rig driver construction machinery for sale; | Delivery Detail: | 7-45 workdays after receive the advance payment; |
| Max. drilling diameter: | 1300mm; |
Technical Specification
| Technical Specification of KR125A Rotary Drilling Rig | |
| Torque | 125 kN.m |
| Max. diameter | 1300 mm |
| Max. drilling depth | 37 m/43 m |
| Speed of rotation | 8~30 rpm |
| Max. crowd pressure | 100 kN |
| Max. crowd pull | 150 kN |
| Main winch line pull | 110 kN |
| Main winch line speed | 78 m/min |
| Auxiliary winch line pull | 60 kN |
| Auxiliary winch line speed | 60 m/min |
| Stroke(crowd system) | 3200 mm |
| Mast inclination(lateral) | ±3° |
| Mast inclination(forward) | 3° |
| Max. operating pressure | 34.3 MPa |
| Pilot pressure | 3.9 MPa |
| Travel speed | 2.8 km/h |
| Traction force | 217 kN |
| Operating height | 14800 mm |
| Operating width | 2900 mm |
| Transport height | 3500 mm |
| Transport width | 2900 mm |
| Transport length | 13860 mm |
| Overall weight | 34 t |
| Engine | ||
| Model | Cummins B5.9-C152 | |
| Cylinder number*diameter*Stroke(mm) | 6*102*120 | |
| Displacement | 5.9 | |
| Rated Power(kW/rpm) | 112/1950 | |
| Max. Torque(N.m/rmp) | 614/1500 | |
| Kelly Bar | ||
| Type | Friction | Friction |
| Section*length | 4*10000 | 5*9500 |
| Depth | 37m | 43m |
Product Details

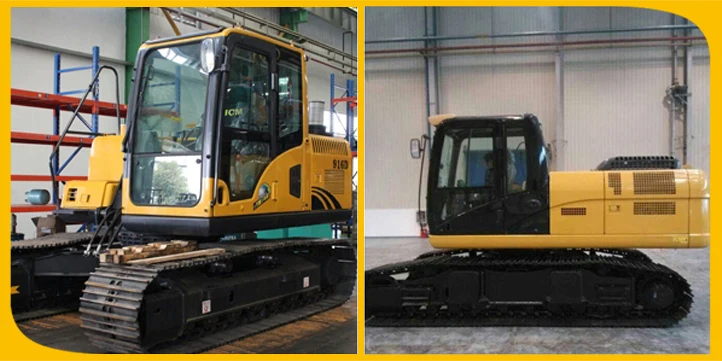

1. Undercarriage-----Reliable & Mature Excavator Supplier for Choice
Type: New & Used
Brand: CAT, JCM, SINOMACH, SANY, XCMG and other

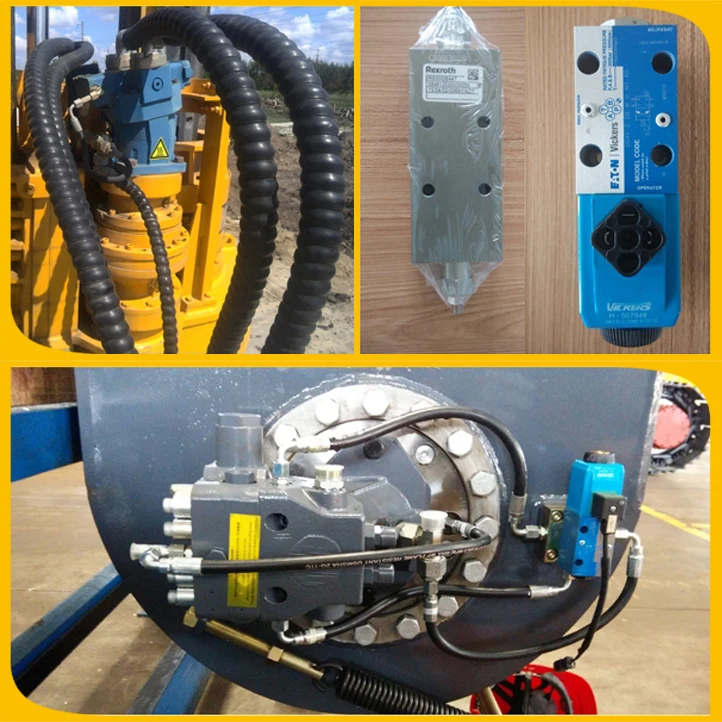

2. Hydraulic Parts-----Famous Brands
Gearbox Reducer: Imported REXROTH
Main Pump & Valve: Imported KAWASAKI (Japan)
Hose: Imported
3. Structure Parts-----Professional Structure Parts Supplier for XCMG
Production Process

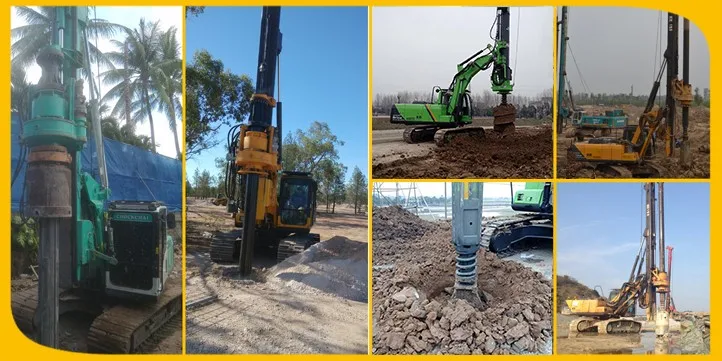

Construction Photos
Company View
Our Certification
Our Exhibition
Why Choose Us?
1. We are the professional & trustworthy manufacturer of piling machinery in China, best quality & best service.
2. Supply professional customized service to meet all your requirements.
3. Our rotary drilling rigs have been sold to more than 7 counstries, such as Russia, Australia, Thailand, Zambia and others.
4. Competitive price.
Q1: What is the Warranty of the Rotary Drilling Rig?
The warranty period for new machine is one year or 2000 working hours, whichever comes first will be applied.
Please contact with us for detailed Warranty Regulation.
