Manufacturer's Ground Screw Pile Driver

Supplier: Qingdao Wangbaoqiang Industry Co., Ltd.
Region: Shandong, China
Contact: Ms Julie Qian
Price: $1000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Dimensions (LWH):	260022002900	model:	96774
Origin:	Shandong Province, China	After-sales service provided:	Engineers available to repair machinery overseas
brand:	work questionnaire	Health status:	new
Packaging Details:	per order	payment terms:	L/C, T/T, Western Union
efficiency:	high efficiency	Supply capacity:	800 sets per month
weight:	2000 kg	Delivery Details:	within 40 days
Certification:	CE and ISO9001	Rated voltage:	220V/110V
port:	China's main ports	Piling speed (m/min):	2m/min

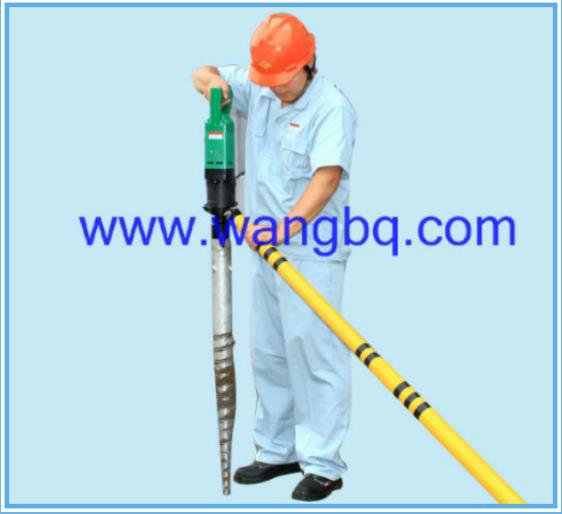

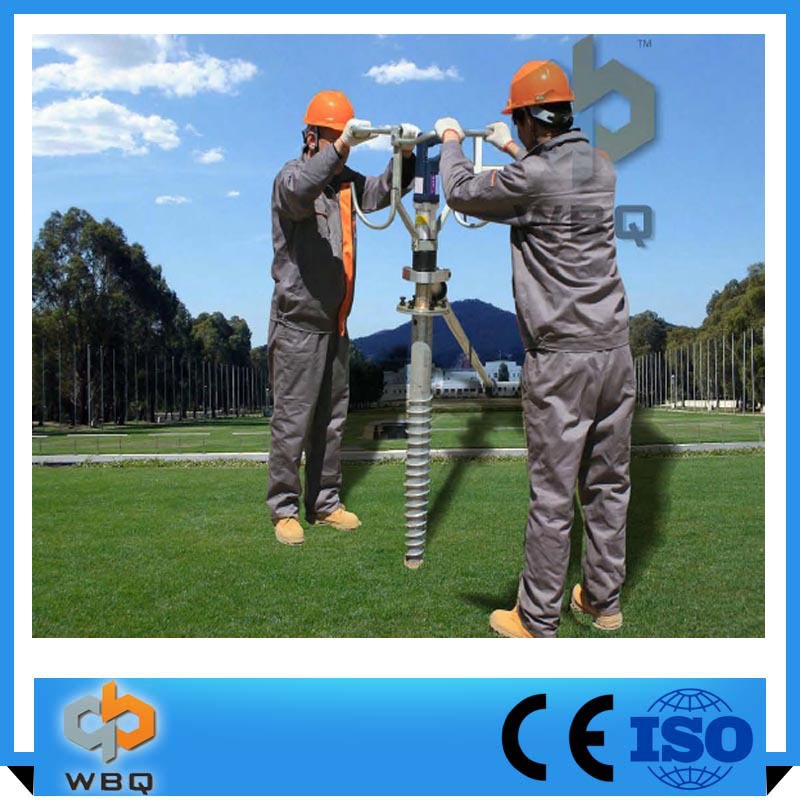

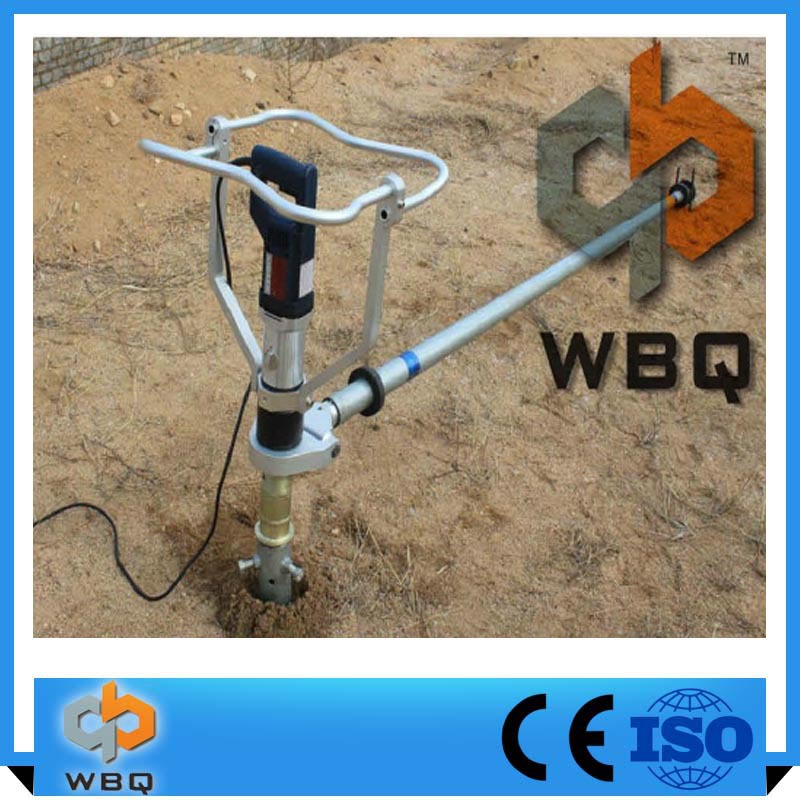

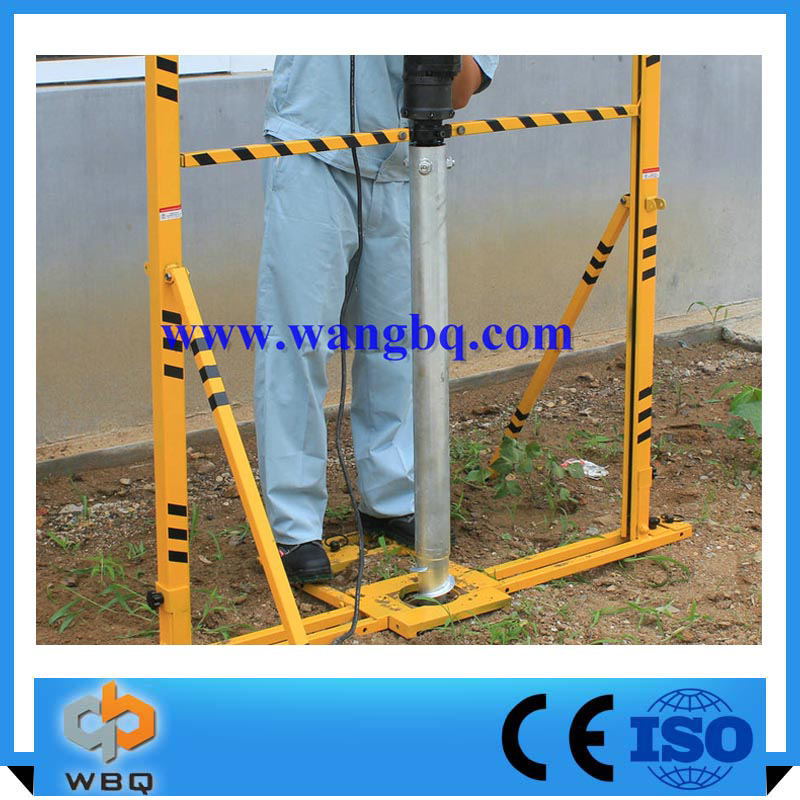

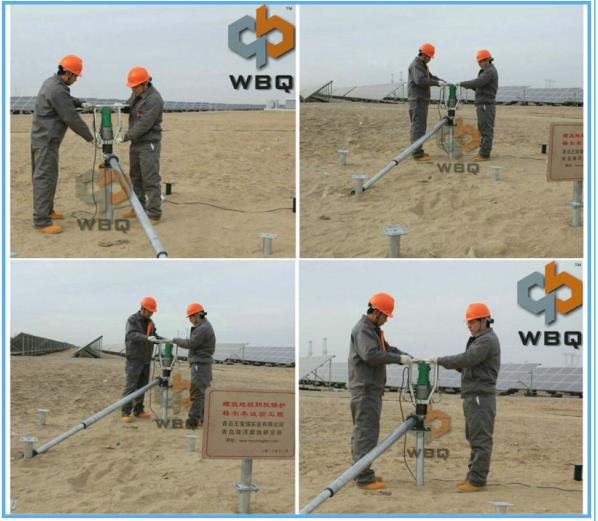

Ground Screw Pile Driver

Product Description

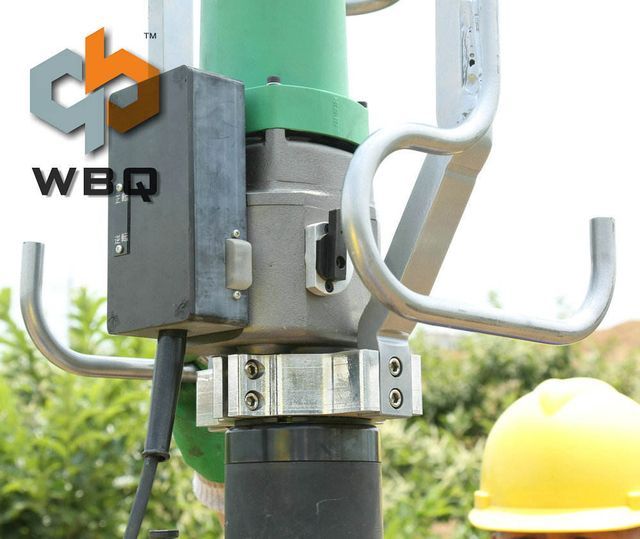

Anchor screw electric driver

This electric ground screwdriver is designed to install or remove ground screws of various sizes and types. The screwdriver is shipped fully assembled. There is a reverser on the host handle. When we push the reverser, the host will rotate in reverse, and then the ground screw will be drilled out. When the ground screw is working normally, the adjustment knob of the control instrument can be adjusted to the maximum, which can ensure the maximum output torque of the host.

feature

1. High-quality anchor screw electric screwdriver
2. Competitive price
3. Easy and fast installation

Model	Maximum torque (Nm)	no speed(min-1)	Voltage (V)	Maximum current (A)	Maximum power consumption (W)	Frequency (Hz)
KS-08E1	800	number 17	110-130	12	1300	50-60
KS-08E2	800	number 17	220-230	6	1300	50-60
KS-15E1	1500	12	110-130	12	1300	50-60
KS-15E2	1500	12	220-230	6	1300	50-60
KS-25E1	2500	10	110-130	12	1300	50-60
KS-25E2	2500	10	220-230	6	1300	50-60
KS-45E1	4500	6	110-130	12	1300	50-60
KS-45E2	4500	6	220-230	6	1300	50-60
KS-50E1	5000	10	110-130	No. 19	2000	50-60
KS-50E2	5000	10	220-230	9.5	2000	50-60
