Gasoline driver

Click here to contact
Product details
Core component warranty:1 yearCertification:CE, ROHS, EUR5, EPA
efficiency:HighCore components:gearbox
Dimensions (length*width*height):74*44*40CMMaximum torque and speed:2.5NM/5000 rpm
Fuel consumption:≤0.6 liters/hourLocal service locations:not any
Maximum power and speed:900W (1.2 horsepower)/6500 rpmEngine type:44*34mm
Packaging details:CartonPiling speed (m/min):Depends on Shanda
Showroom location:not anyMechanical test report:if
Fuel tank capacity:1.3 litersport:Shanghai
Material:Plastic, steelImpact energy:20~55J
Impact frequency:700-1350BpmPlace of origin:Zhejiang, China
Marketing type:Hot Products of 2019Warranty:1 year
Applicable industries:Manufacturing plants, household, retail, constructionUnique selling point:High digging force
weight:21kgSupply capacity:15,000 pieces per month
brand:pinkVideo outbound inspection:if
Health status:newAfter-sales service provided:Video technical support, online support, free spare parts, on-site installation, commissioning and training, on-site maintenance and repair services
payment terms:L/C, Western Union, D/P, T/Tfuel:mixed oil
Shift:52CC
Product Description

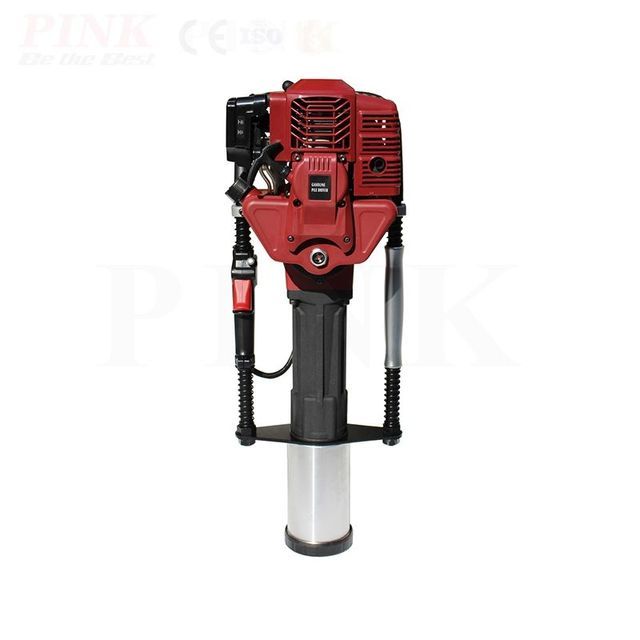

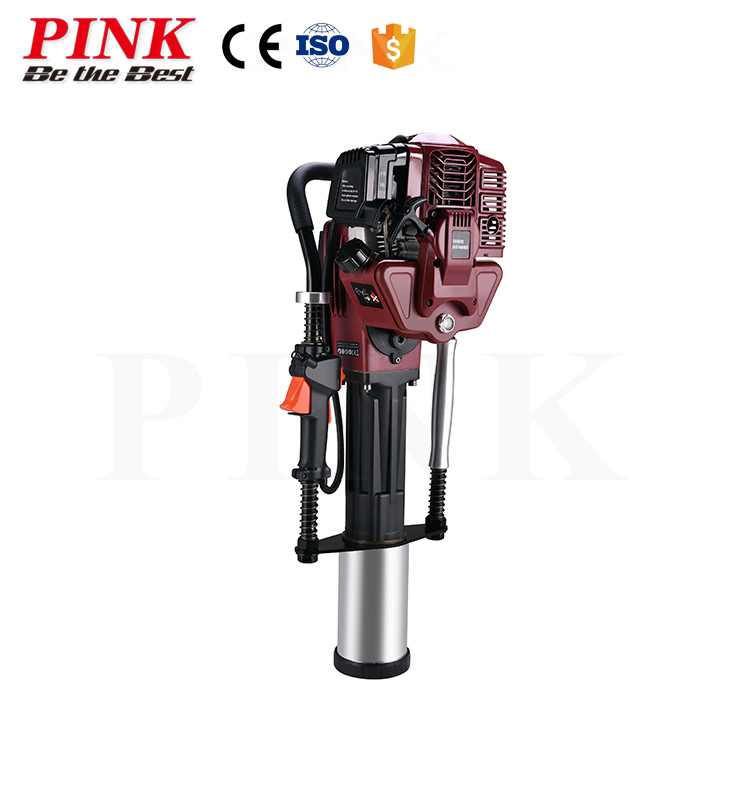

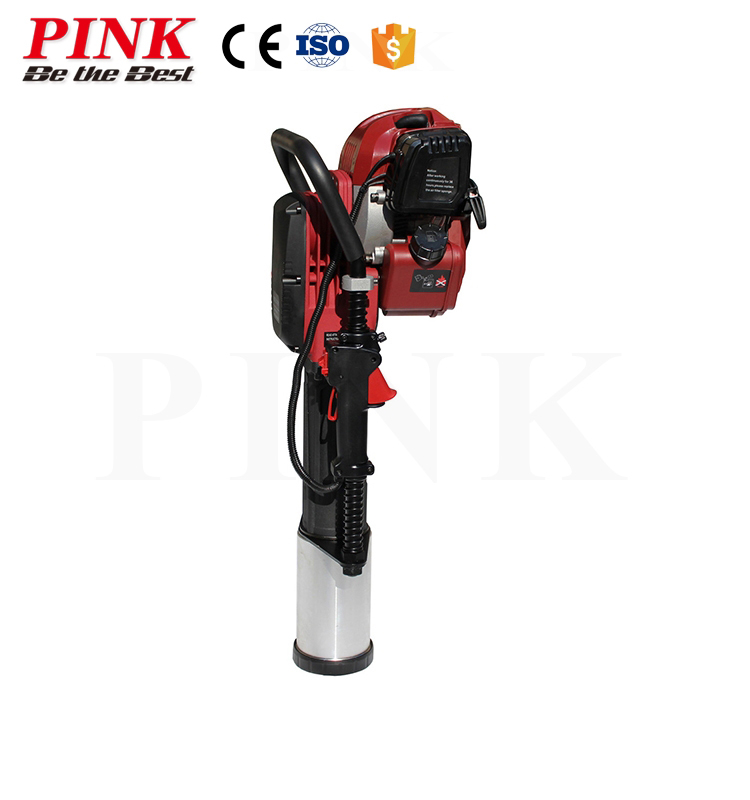

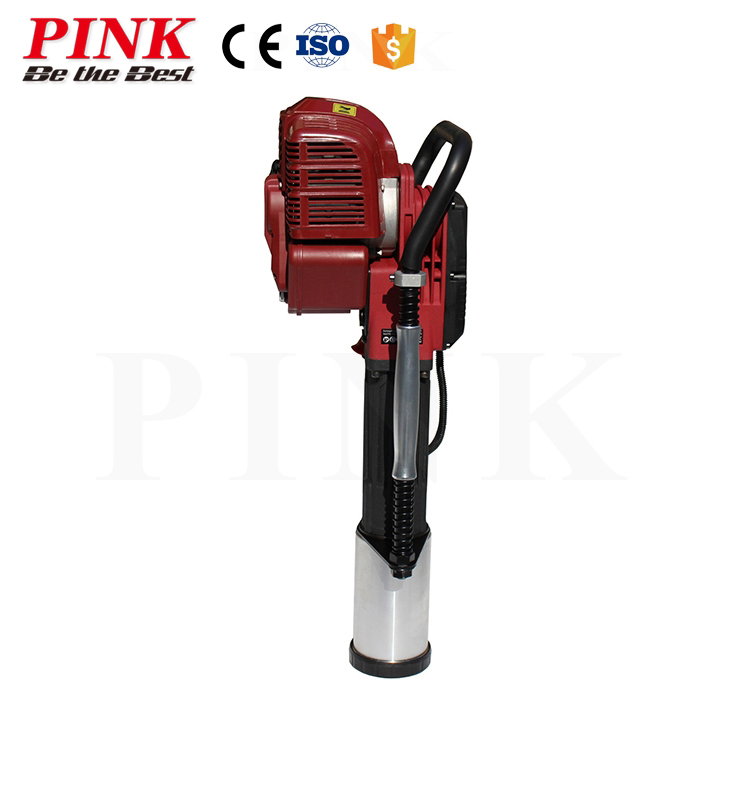

Gasoline pile driver
1. Engine type: 44*34mm, 2 stroke
2. Displacement: 52CC;
3. Fuel tank capacity: 1.3L
4. Fuel: mixed oil (No. 25 gasoline: No. 1 engine oil)
5. Maximum power and speed: 900W (1.2Hp)/6500r/min
6. Maximum torque and speed: 2.5NM/5000r/min
7. Fuel consumption rate: ≤0.6L/H
8. Impact frequency: 700-1350Bpm
9. Impact energy: 20~55J;
10. Certificate: CE, EMC, ROHS, EPA



Gasoline pile driver details:

1. Our gasoline pile driver has a high-power 52cc displacement and can be used for any pile smaller than 100mm, driving posts, stakes or nails into the ground in seconds, and can be used for projects such as fence posts, signs and tree stumps.
2. The impact energy and number of impacts can be adjusted, and it is suitable for a variety of materials suitable for construction, such as road construction, electric power, telecommunications, cables, ditches, etc.
3. Our machines are not limited by pipes, wires, and cables, and can work in various environments no matter how high or far they are.



Model product name Specification Packing size (cm) GW/NW
(Kilogram)		 Piece/box 20´GP(piece)

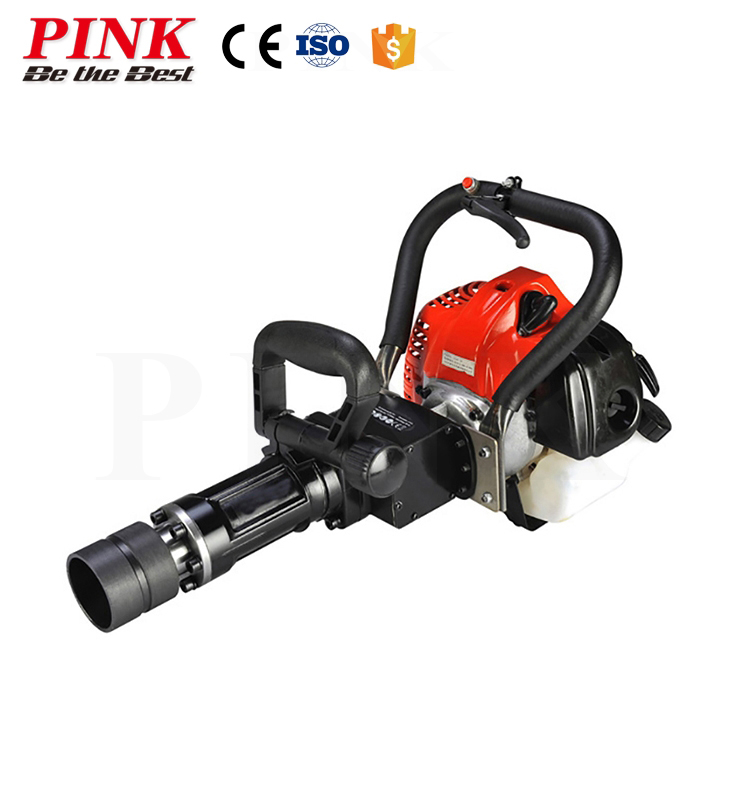

NEGJH-06 Gasoline rock drill/gasoline pile driver Engine type: 36*32mm, single cylinder, air-cooled, two-stroke
Displacement: 32.7CC; Fuel tank capacity: 0.9L
Fuel: Mixed oil (No. 25 gasoline: No. 1 engine oil)
Maximum power and speed: 900W (1.2Hp)/6500r/min
Maximum torque and speed: 1.45NM/5000r/min
Fuel consumption rate: ≤0.5L/H; Impact energy: 25~45J
Impact frequency: 1700-2230Bpm
Carburetor type: Diaphragm 1 E36F-2A.1
Spark plug model: L6T; Starting system: Hand start
Product size: 60.5*28*37.5cm/57*28*37.5cm
Tooth chisel, flat chisel/piling head, tool set, oil bottle
Single function: $100.00; Dual function: 121.00; Cart: $12.00		 64*30.5*38.5 18.5/12.5 1 Chapter 382
NEGPD-01 Gasoline pile driver Engine type: 36*32mm, single cylinder, air-cooled, two-stroke
Displacement: 32.7CC; Fuel tank capacity: 0.9L
Fuel: Mixed oil (No. 25 gasoline: No. 1 engine oil)
Maximum power and speed: 900W (1.2Hp)/9000r/min
Maximum torque and speed: 1.45NM/5000r/min
Fuel consumption rate: ≤0.5L/H
Impact frequency: 1700-2230Min-1
Impact energy: 25~45J; Carburetor model: Mz10.7
Spark plug model: L6T; Starting system: Hand start
Product size: 74*26*34cm
49mm piling head		 60*41*36 18.5/12.5 1 Chapter 382
NEGPD-02 Gasoline pile driver Engine type: 44*34mm, single cylinder, air-cooled, two-stroke
Displacement: 52CC; Fuel: Mixed oil (No. 25 gasoline: No. 1 engine oil)
Fuel tank capacity: 1L
Maximum power and speed: 1900W/6500r/min
Maximum torque and speed: 3.5Nm/5000r/min
Fuel consumption rate: 0.6L/h
Impact frequency: 1300-3000BPM
Impact energy: 30-55J; Carburetor model: MZ15-048
Spark plug type: TORCH BM6A; starting system: hand start
Product size: 76.5*26*39.5cm; Piling head size: 50
Two sockets: 55 and 70		 74*44*30 23.5/17 1
NEGPD-03
(CE)		 Gasoline pile driver Engine type: 44*34mm, single cylinder, air-cooled, two-stroke
Displacement: 52CC; Fuel tank capacity: 1.3L
Fuel: Mixed oil (No. 25 gasoline: No. 1 engine oil)
Maximum power and speed: 900W (1.2Hp)/6500r/min
Maximum torque and speed: 2.5NM/5000r/min
Fuel consumption rate: ≤0.6L/H
Impact frequency: 700-1350Bpm
Impact energy: 20~55J; Carburetor model: Mz10.7
Spark plug model: Bm6A; Starting system: Hand start
Product size: 80.5*30.5*27cm		 72.5*39*32.5 26.5/20.5 1 Chapter 323
