Vise ornament NEBHV-03
-
Supplier: Jiaxing Pink Electronic Technology Co., Ltd. -
Region: Zhejiang, China -
Contact: Mr Jack Zhang -
Price: $6.17 /piece -
Min. Order: 1 piece
| application: | Clamping workpieces, industrial | payment terms: | L/C, D/P, T/T, Western Union |
| place of origin; place of origin: | Zhejiang, China | weight: | 5.5,7.5,10,17.5,24.5kg |
| Jaw Type: | smooth, jagged and smooth | feature: | durable |
| Clamping force: | 600,900,1000,1200,1500,2000,2500kg | Opening length: | 75,100,125,150,200mm |
| Packaging Details: | Carton | port: | Shanghai |
| Jaw width: | 3",4",5",6",8",10" | Base type: | weighted, still |
| Supply capacity: | 15000 pieces per month | Material: | cast iron |
| Certificate: | CE certification | product name: | Bench Vise |
| Model: | NEBHV-03 |

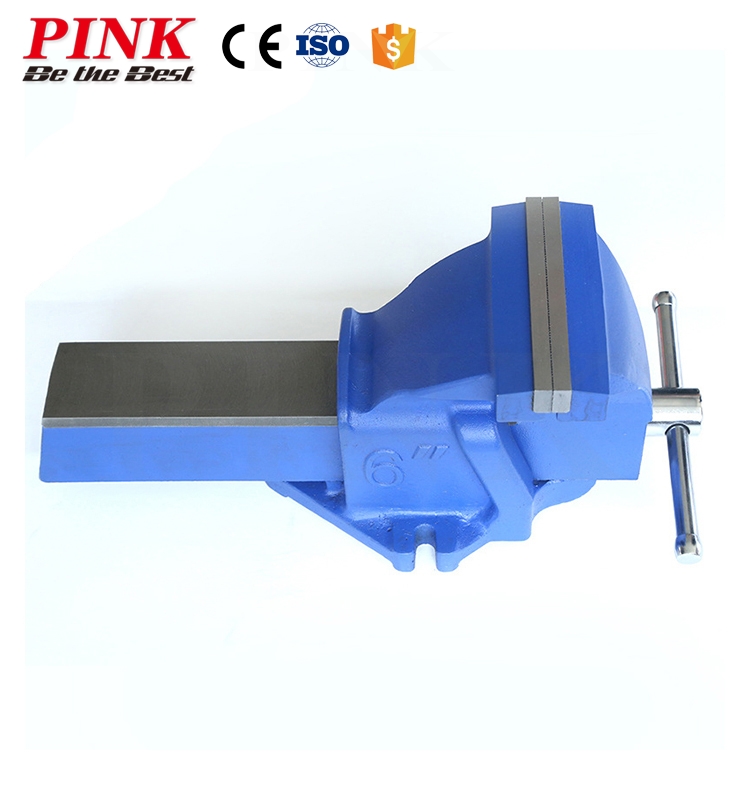

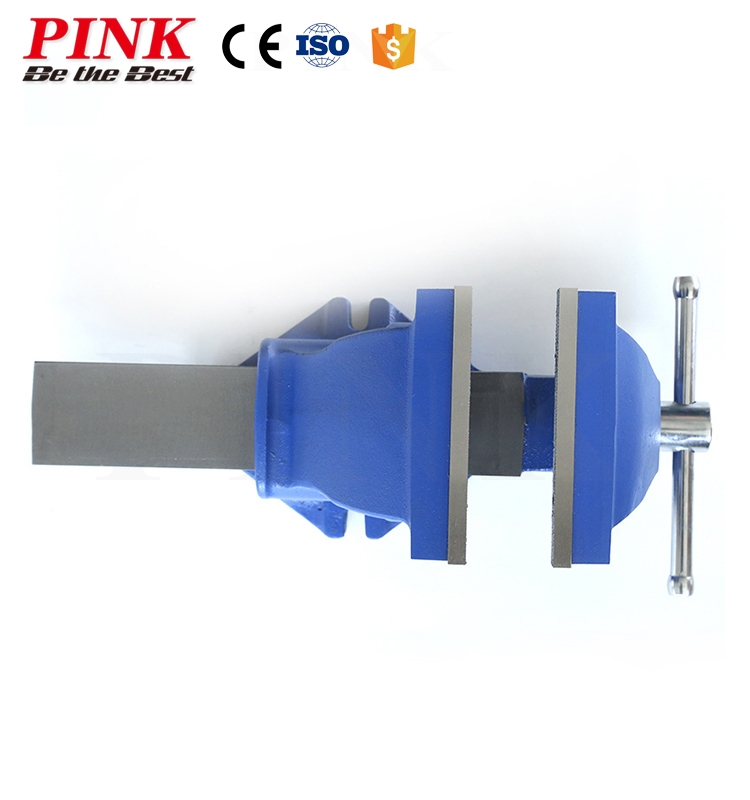

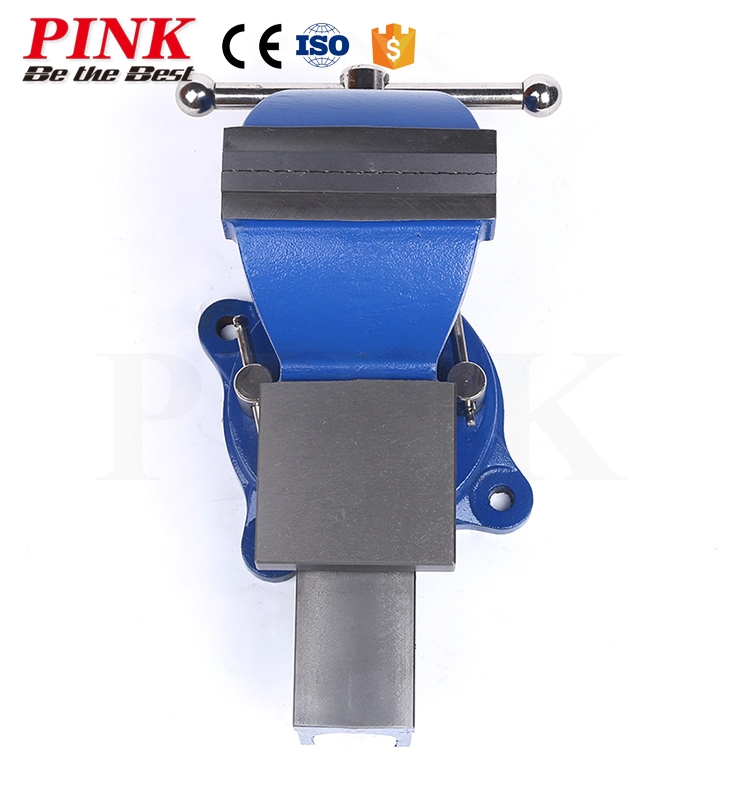

Bench vise product features:
1. Jaw width: 3", 4", 5", 6", 8", 10"
2. Opening length: 75, 100, 125, 150, 200mm
3. Clamping force: 600, 900, 1000, 1200, 1500, 2000, 2500kg
4. Weight: 5.5, 7.5, 10, 17.5, 24.5kg
5. Applicable: workshop, clamping workpiece
6. Certificate: CE
Vise Details and Features:
1. Our bench vise jaw width: 3", 4", 5", 6", 8", 10", open length: 75, 100, 125, 150, 200mm, weight: 5.5, 7.5, 10 , 17.5, 24.5kg; Clamping force: 600, 900, 1000, 1200, 1500, 2000, 2500kg.
2. The vise is a universal fixture used to clamp the workpiece. The device is placed on the workbench to clamp the workpiece, and it is an indispensable tool in the workbench workshop.

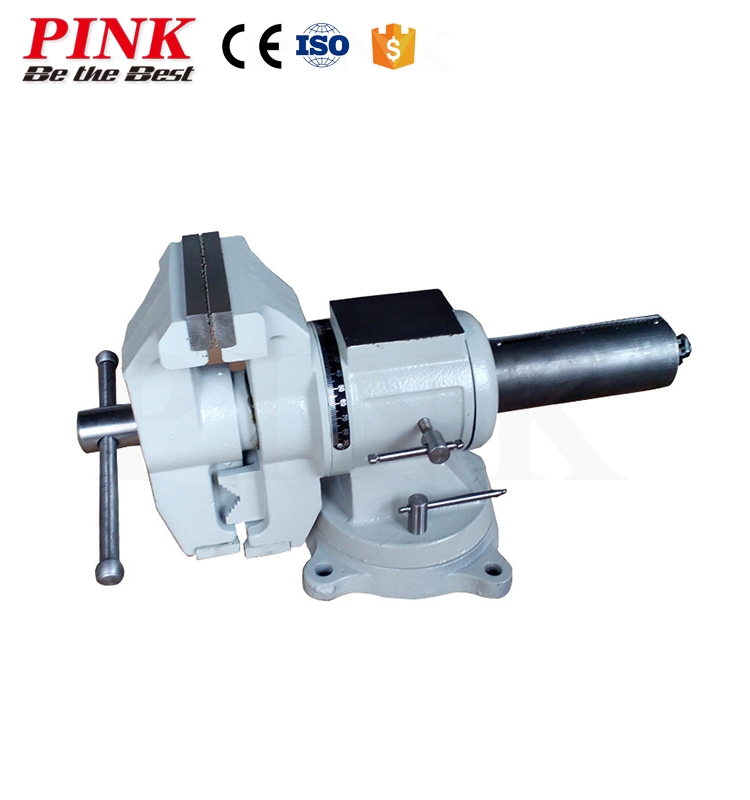

3. The rotary caliper can be rotated to make the workpiece rotate to a suitable working position.
4. The vise is an indispensable tool for the fitter, and it is also the source of the name of the fitter, because most of the work of the fitter is done on the vise, such as sawing, raking, hoeing, assembly and disassembly of parts, etc.
5. Installed on the workbench, the jaw width is used as the calibration specification. Common sizes range from 75mm to 300mm.
6. Made of cast iron, after heat treatment, the surface is smooth and clean, and the service life is long under heavy working conditions.
| Model | product name | jaw width | Net weight (kg) | Opening length(mm) | Clamping force(kg) | Package size(cm) | Gross weight/net weight(kg) | pieces/box | Loading 20GP(piece) |
| NEABV-01 | Bench Vise | 3" (75mm) | 5.25 | 75 | 400 | 30*25*31 | 22/21 | 4 | 4472 |
| NEABV-02 | Bench Vise | 4" (100mm) | 5.5 | 75 | 600 | 30*25*31 | 23/22 | 4 | 4472 |
| NEABV-03 | Bench Vise | 5" (125mm) | 7.5 | 100 | 900 | 38*34*18 | 16/15 | 2 | 2234 |
| NEABV-04 | Bench Vise | 6 inches (150mm) | 11.5 | 125 | 1000 | 41*36*22 | 24/23 | 2 | 1600 |
| NEABV-05 | Bench Vise | 8" (200mm) | 18 | 150 | 1200 | 41*21*22 | 19/18 | 1 | 1372 |
| NEABV-06 | Bench Vise | 10" (250mm) | 27 | 200 | 1500 | 47*28*26 | 28/27 | 1 | 759 |
| NEABV-07 | Bench Vise | 3" (75mm) | 5.5 | 75 | 600 | 30.5*25*31 | 23/22 | 4 | 4396 |
| NEABV-08 | Bench Vise | 4" (100mm) | 7.5 | 100 | 900 | 31*31*18 | 16/15 | 2 | 3006 |
| NEABV-09 | Bench Vise | 5" (125mm) | 10 | 125 | 1000 | 40*38*22.5 | 21/20 | 2 | 1554 |
| NEABV-10 | Bench Vise | 6 inches (150 mm) | 17.5 | 150 | 1200 | 41*21*22 | 18.5/17.5 | 1 | 1372 |
| NEABV-11 | Bench Vise | 8" (200mm) | 24.5 | 200 | 1500 | 50*25*26.5 | 25.5/24.5 | 1 | 800 |
| NEABV-12 | Bench Vise | 3" (75mm) | 6 | 75 | 1000 | 30*28*16 | 13/12 | 2 | 3868 |
| NEABV-13 | Bench Vise | 4" (100mm) | 10.5 | 100 | 1200 | 35*36*20 | 22/21 | 2 | 2062 |
| NEABV-14 | Bench Vise | 5" (125mm) | 16.5 | 125 | 1500 | 41*20*22 | 17.5/16.5 | 1 | 1441 |
| NEABV-15 | Bench Vise | 6 inches (150mm) | 22.5 | 150 | 2000 | 47*22*26 | 23.5/22.5 | 1 | 967 |
| NEABV-16 | Bench Vise | 8" (200mm) | 41 | 175-200 | 2500 | 50*26*30 | 42/41 | 1 | 666 |
-
