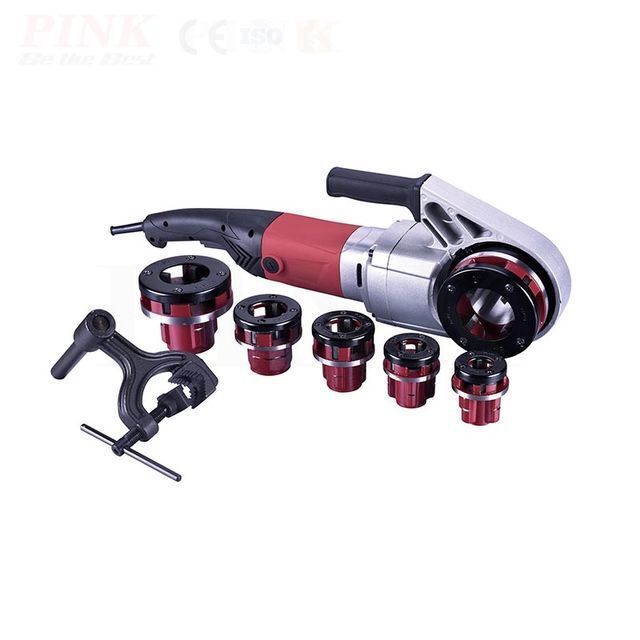

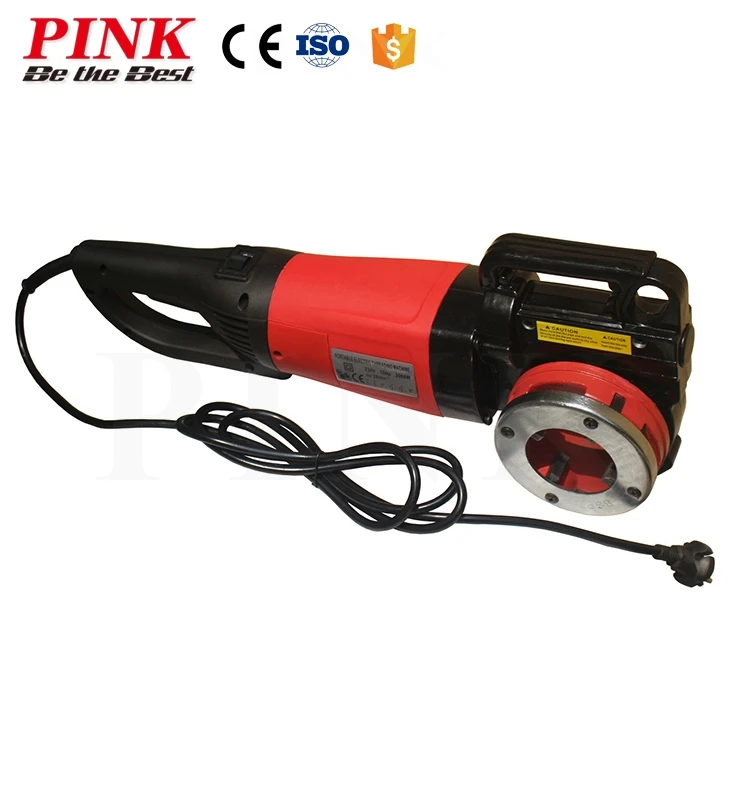

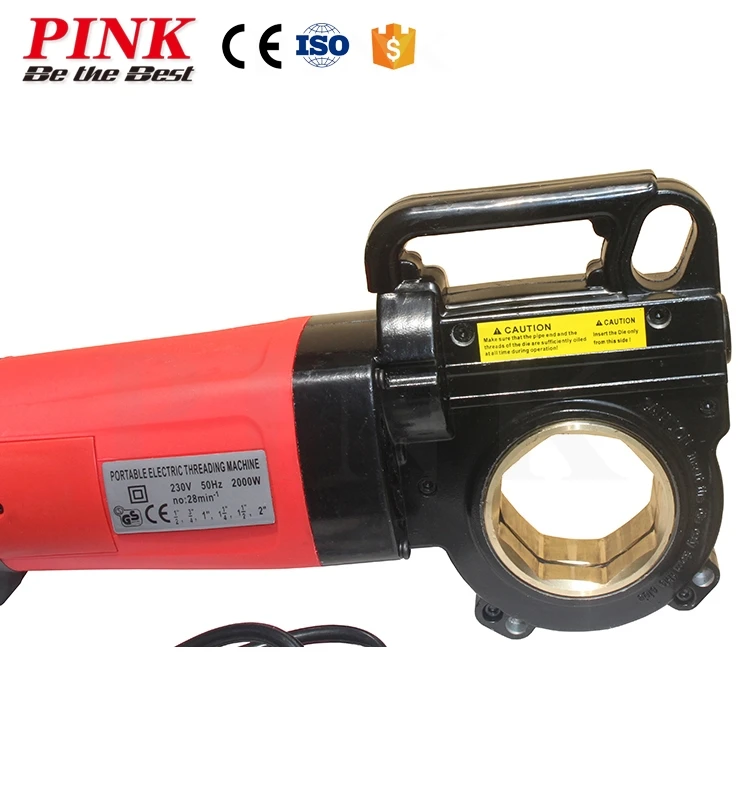

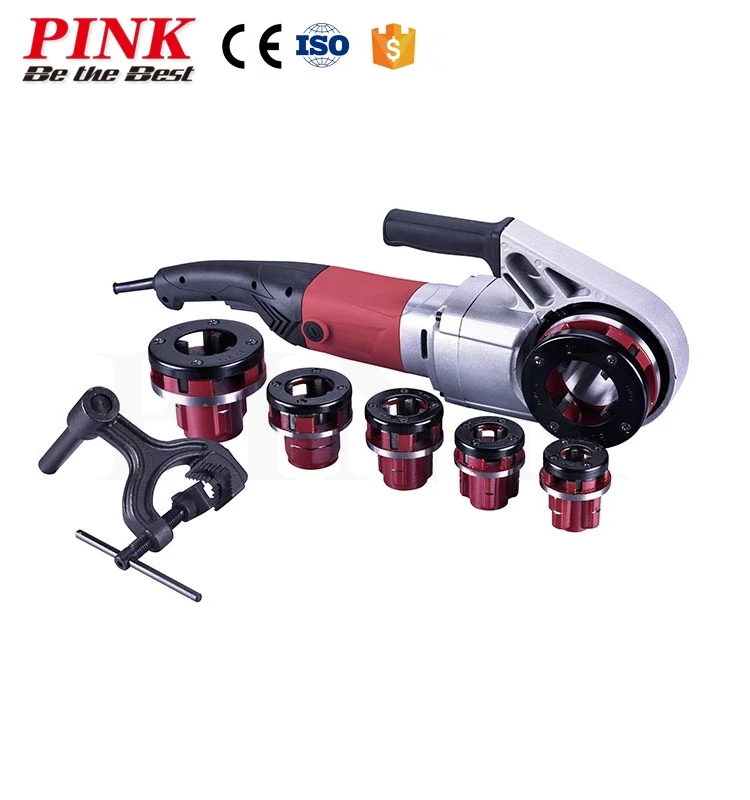

Portable Pipe Threader

Product details
Packaging Detail:Carton Box Packing;Supply Ability:15000 Pieces per Month;
Rated Voltage:220-240/110V;Warranty:3 years;
Port:Shainghai;Application:Stainless Steel Pipe;
Place of Origin:Zhejiang, China;No-Load Speed:28,32,51r/m;
Certification:CE.ISO,CE;Payment Terms:L/C,Western Union,D/P,T/T;
Motor:Induction;Machine type:Drilling Equipment;
Customized support:OEM;Product name:Pipe Threader;
Weight:10,18,20,21kg;Rated Input Power:1280,1400,2000W;
Power Source:Electric;Die head:Quick-open;
Applicable Pipe Thread:1/2",3/4",1",1-1/4"-2";Model Number:NEPET-06;
Brand Name:PINK;Frequency:50/60hz;
Dimensions:54*32*28cm/2pcs;Capacity:3mm-50mm;
Feature:Eco-Friendly;Grade:Industrial;
Product Description



Pipe Threader Detail:

1.Screw Die:1/2",3/4",1",1-1/4",1-1/2",2"
2.Speed:28,32,51r/m
3.Power:1280,1400,2000W
4.Weight:10,18,20,21kg

5.Certificate: GS,CE, EMC,ROHS





Pipe Threader Features and Functions:

1. Compared with the desktop electric Threading Machine, the hand-held electric Threading Machine is light in weight, easy to operate, fast and easy to carry.
2. It adopts high quality die head, long life, clear thread and quick change of die head.
3. Unlimited by the venue, it can be operated flexibly on the construction site or in unconventional occasions.
4. Applicable to industrial and mining enterprises, colleges, home maintenance, small and medium-sized engineering teams, can be used for heating, tap water, heating, gas and other construction operations. This product supports the use of standard tubes.
5. It is convenient to buy a universal die head from the hardware market.

Handheld electric pipe threader operating instructions:
1. Select the corresponding die head, pull the circlip straight, and install it on the main unit from the right.
2. Hold the clamp and clamp the pipe, about the same length as the force arm (L2 is about the same length as L1).
3. Turn the positive and negative switch to the down arrow position to activate the switch and the auxiliary contact.
4. When installing rigid pipes such as stainless steel pipes, galvanized pipes and copper pipes, it is necessary to refuel in time. The plastic pipes do not need to be refueled.
5. Note that the tube holder cannot be in contact with the host during the right shift, otherwise the host will be injured.
6. After the machine has stopped, remove the reverse switch to the up arrow position and exit the tube.



Model Product Name Specification Packing Size(cm) G.W/N.W
(kg)
PCS/CTN 20´GP(pcs)
NEPTR-01 Pipe Threader Screw Die:1/2",3/4",1",1-1/4"
Power:1400W; 230V/50Hz
Paddle switch shuts off automatically
Die cast aluminum housing

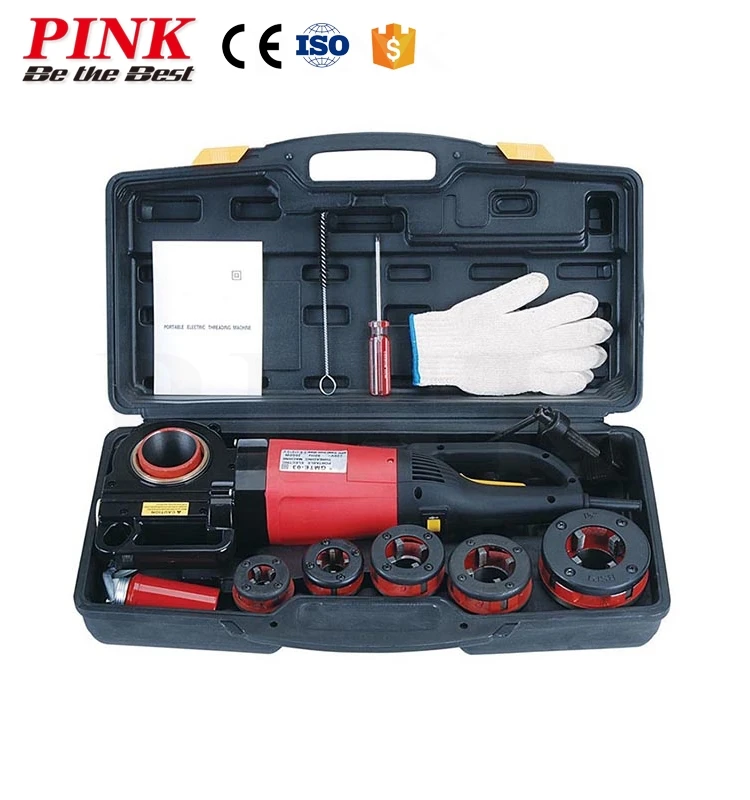

Oil Gun:1Set; Clamping Board:1Set;Glove:1Pair; Key:1pc;Screw Driver:1pc; Operation Instructions:1Voume
Carbon Brush:1Pair; Cleaning Brush:1pc
54*32*28 23/21 2 1074
NEPTR-02 Pipe Threader Screw Die:1/2",3/4",1",1-1/4",1-1/2",2"
Power:2000W; 230V/50Hz
Paddle switch shuts off automatically
Die cast aluminum housing
Board:1Set;Glove:1Pair; Key:1pc;Screw Driver:1pc; Operation Instructions:1Voume
Carbon Brush:1Pair; Cleaning Brush:1pc
64*17*35.5 19/18 1 673
NEPTR-03 Pipe Threader Screw Die:1/2",3/4",1",1-1/4",1-1/2",2"
Power:1180W; 230V/50Hz
Die cast aluminum housing
Comes with six dies
Board:1Set;Glove:1Pair; Key:1pc;Screw Driver:1pc; Operation Instructions:1Voume
Carbon Brush:1Pair; Cleaning Brush:1pc
64*17*35.5 22/20 1 673
NEPTR-04 Pipe Threader Screw Die:1/2",3/4",1",1-1/4",1-1/2",2"
Power:2000W; 230V/50Hz
Paddle switch shuts off automatically
Die cast aluminum housing
Board:1Set;Glove:1Pair; Key:1pc;Screw Driver:1pc; Operation Instructions:1Voume
Carbon Brush:1Pair; Cleaning Brush:1pc
73.5*17*35.5 23/21 1 586







Company Information



Jiaxing Pink Electronic Technology CO., LTD. is an enterprise that specializes in electric tool, we export during the past 10 years.



We emphasize and concentrates on professional services to our clients. We believe that excellent quality of products, timely delivery of goods, and competitive prices are the keys to establish and maintain the long term business relationships with our customers in a mutual beneficial way.



Our company is about 120km far from Shanghai in the east and 90km far from Hangzhou in the west, it enjoys very convenient transportation. Sincerely welcome every customer to visit our factory.



Packaging & Shipping





FAQ





If you are interested in our Pipe Threader, please don't hesitate to contact us.
