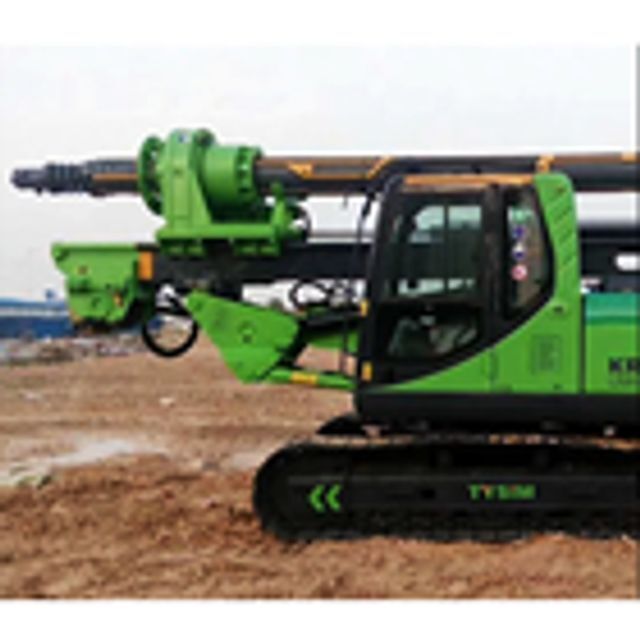

TYSIM Good Brand Construction Works Fully Hydraulic System Used Piling Drilling Rig Machine

Supplier: Tysim Piling Equipment Co., Ltd(JS)
Region: Jiangsu, China
Contact: Ms Camilla Mao
Price: $20000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Packaging Detail:	One is nude packing and overall transport by sea with roll-on-roll-off ship.(LWH=915026003250 mm); The other is host in the flat rack; kelly bar and bucket is also nude, meanwhile four wooden case which is put with mast, power head, follow-up frame and maintenance spare parts.;	Brand Name:	TYSIM;
Payment Terms:	L/C,T/T;	Certification:	CE and ISO9001;
Place of Origin:	Jiangsu, China;	Dimension(LWH):	915026003240mm;
Max. crowd pressure:	80kN;	Port:	Shanghai, Tianjing, Qingdao;
Video outgoing-inspection:	Provided;	Machinery Test Report:	Provided;
UNIQUE SELLING POINT:	Fully hydraulic system;	Showroom Location:	Philippines,Brazil,Saudi Arabia,Indonesia,Pakistan,India,Mexico,Thailand,Morocco,Kenya,Argentina,South Korea,Colombia,Algeria,Sri Lanka,Kazakhstan,Kyrgyzstan,Nigeria,Uzbekistan,Tajikistan,Malaysia,Australia;
Warranty of core components:	6 Months;	Condition:	Used;
Total weight:	22t;	Operating height:	12200mm;
Max. operating pressure:	34.3MPa;	Max. drilling depth:	25m(4 node )/19m(3 node );
Warranty:	Unavailable;	Marketing Type:	New Product 2020;
Max. torque:	60 kN.m;	Supply Ability:	3 Sets per Month;
Core Components:	Engine;	Max. drilling diameter:	1000mm;
Operating width:	2600mm;	Working speed:	8~35rpm;
Weight:	22 kg;	Applicable Industries:	Construction works ;

Products Description

Technical Specification

Technical Specification of KR60A Rotary Drilling Rig
Type	KR60A
Torque	60 KN.m
Max. diameter	1200 mm
Max. drilling depth	20 m
Speed of rotation	8~30 rpm
Max. crowd pressure	60 kN
Max. crowd pull	90 kN
Main winch line pull	65 kN
Main winch line speed	48 m/min
Auxiliary winch line pull	20 kN
Auxiliary winch line speed	48 m/min
Stroke(crowd system)	2000 mm
Mast inclination(lateral)	±3°
Mast inclination(forward)	4°
Max. operating pressure	34.3 MPa
Pilot pressure	3.9 MPa
Travel speed	2.8 km/h
Traction force	98 kN
Operating height	10600 mm
Operating width	2700 mm
Transport height	3250 mm
Transport width	2700 mm
Transport length	9500 mm
Overall weight	20 t

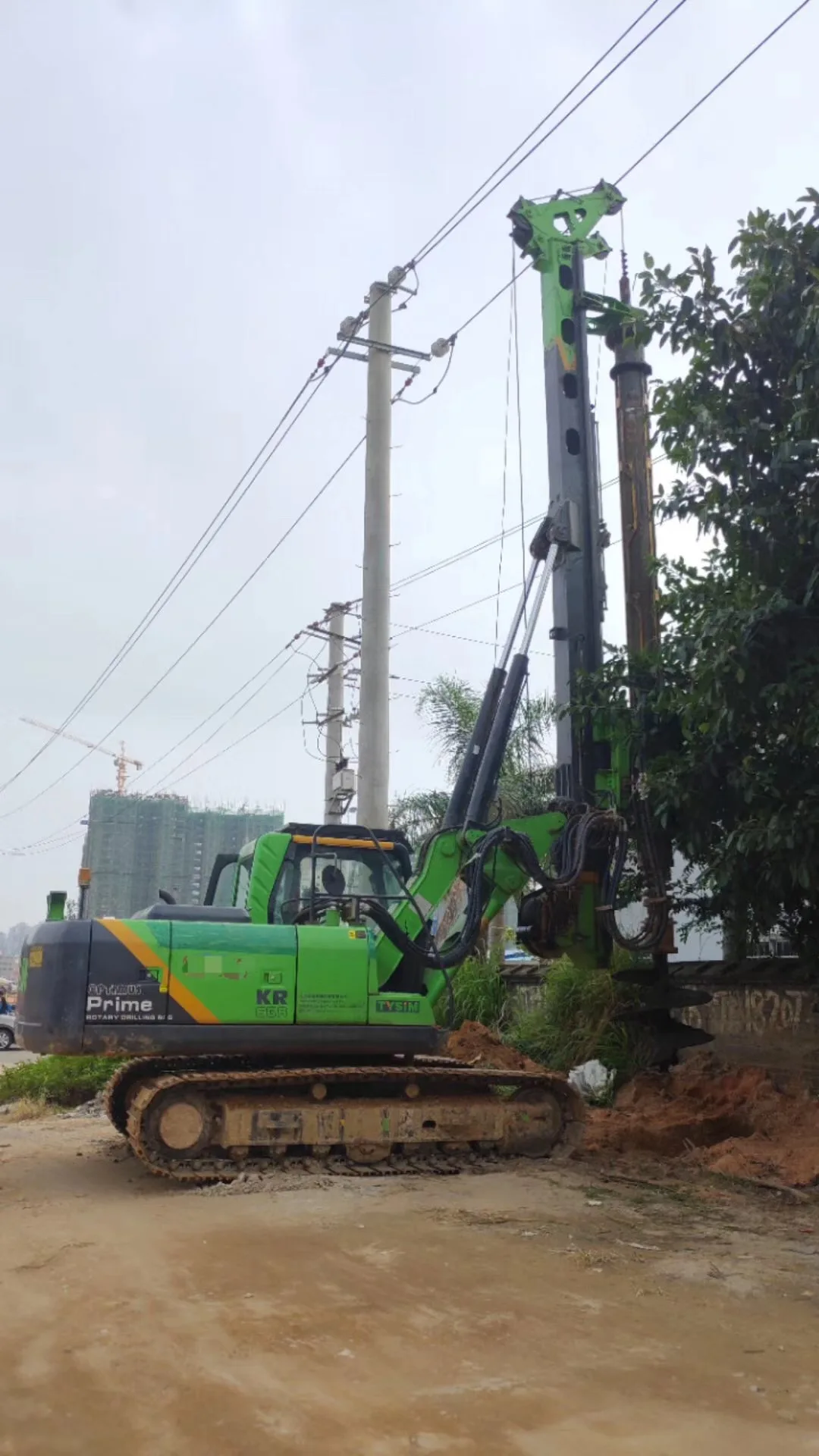

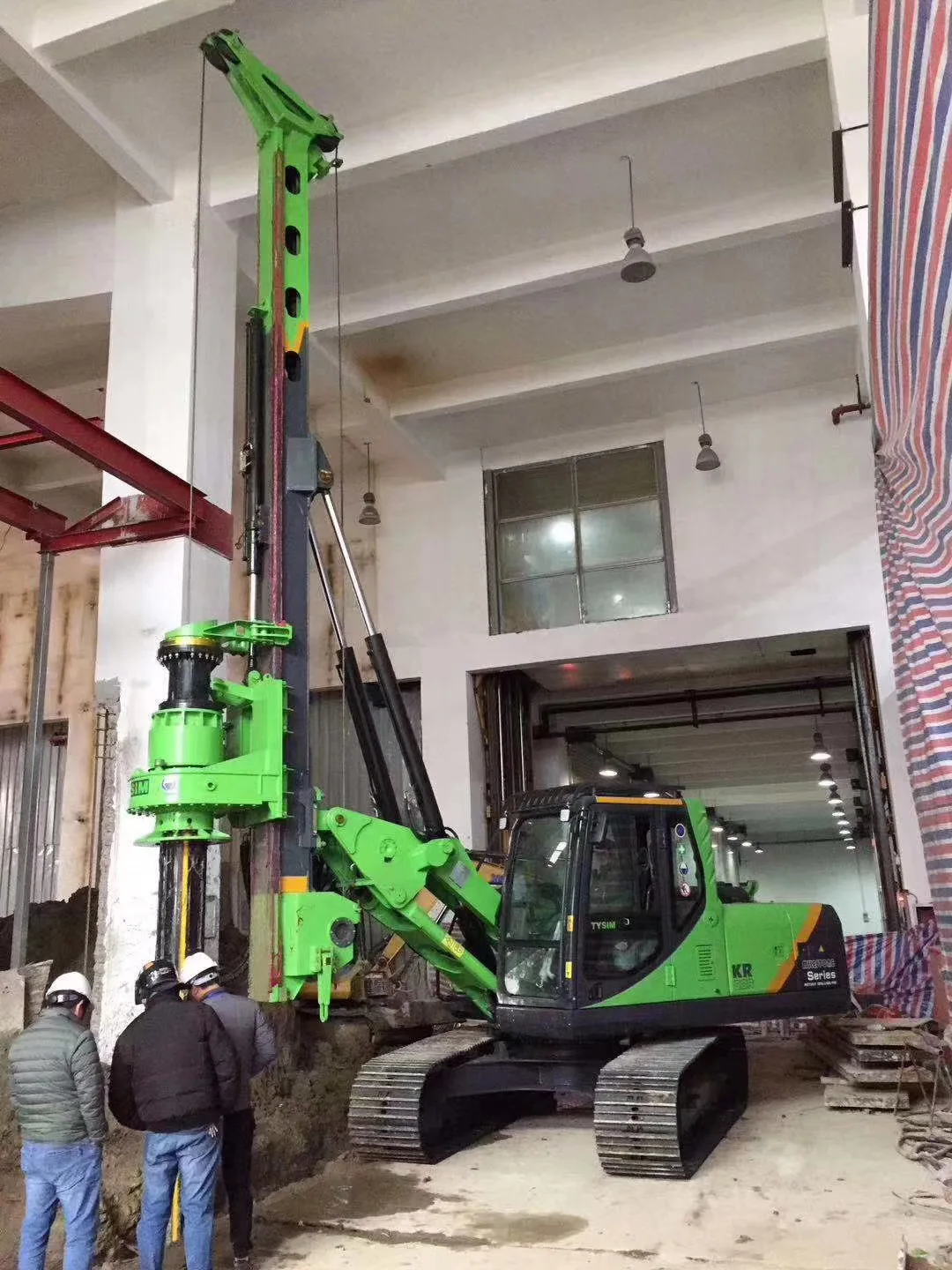

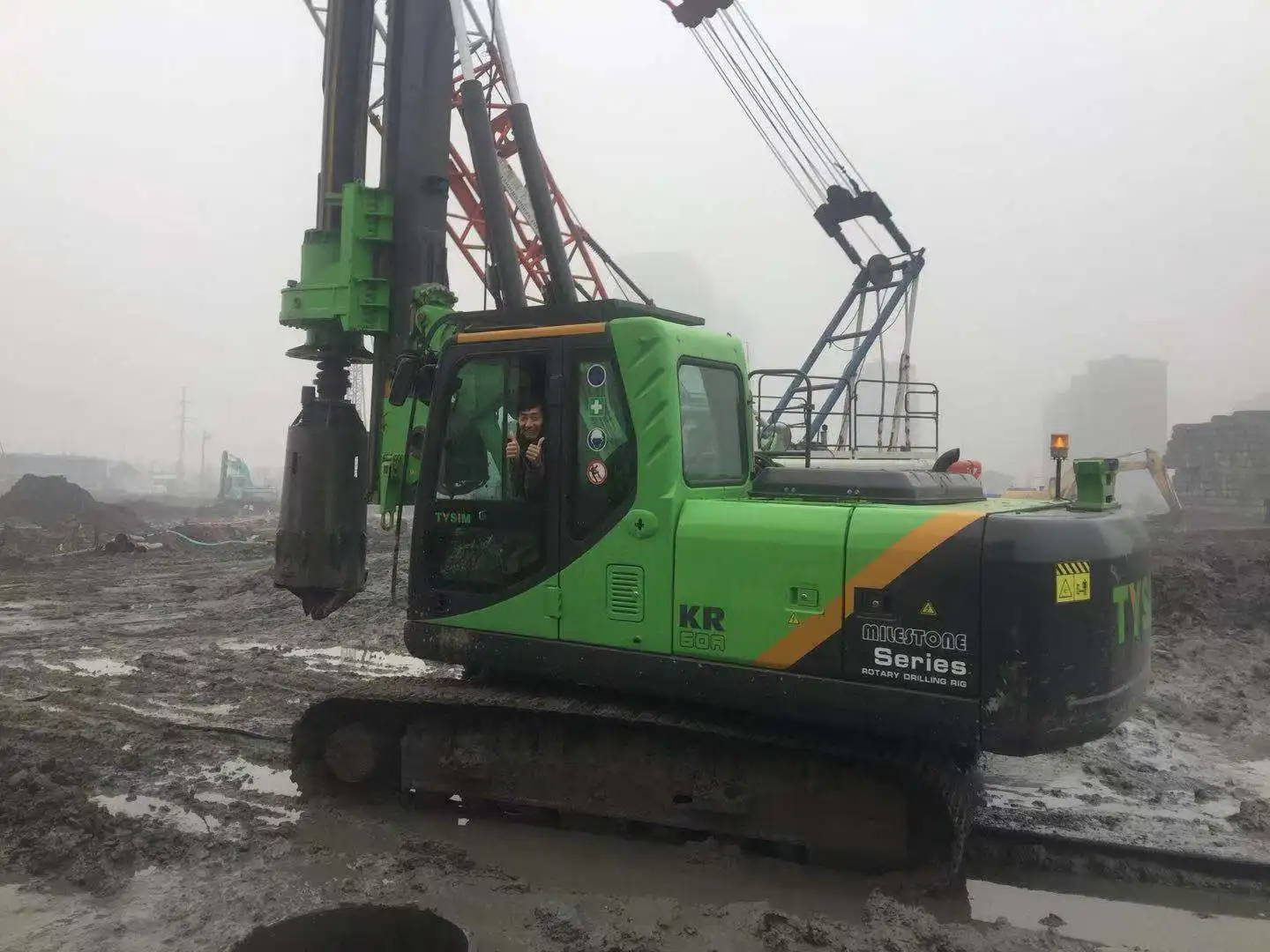

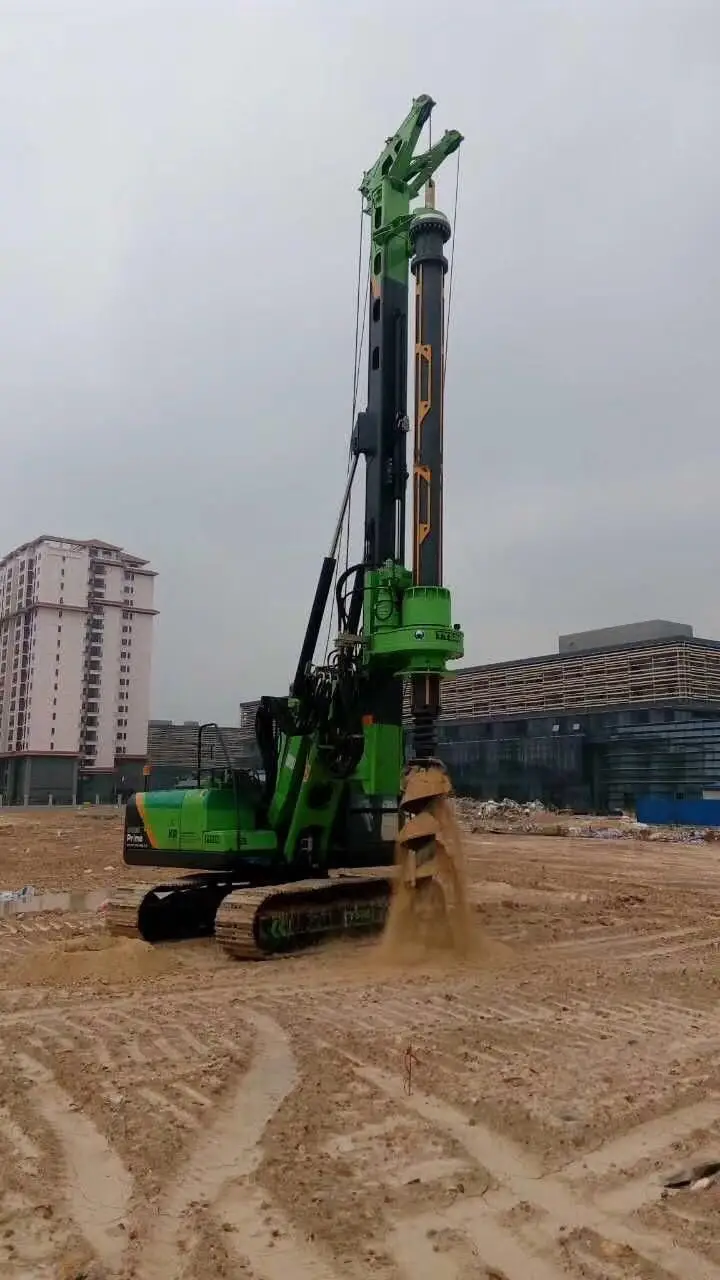

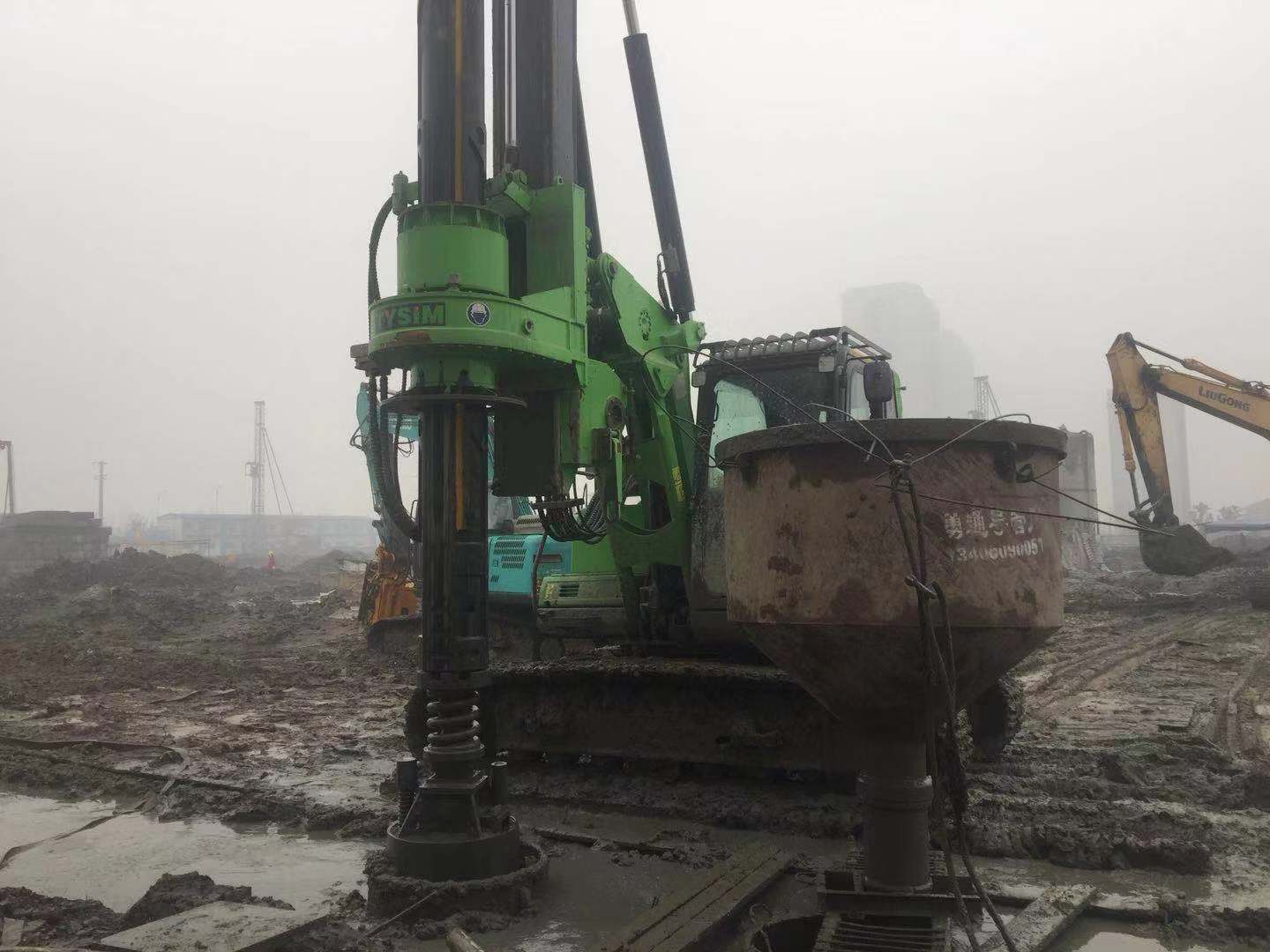

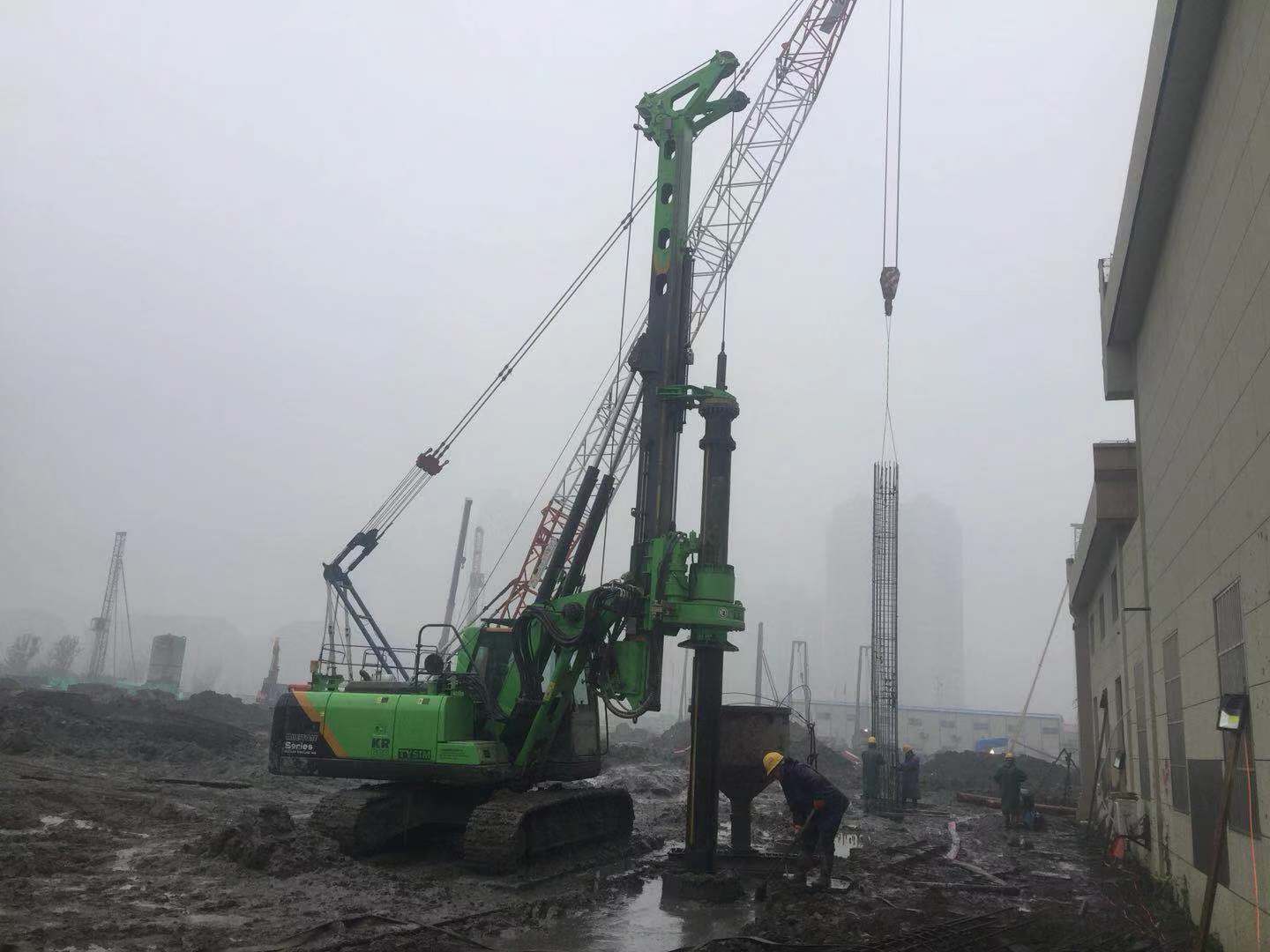

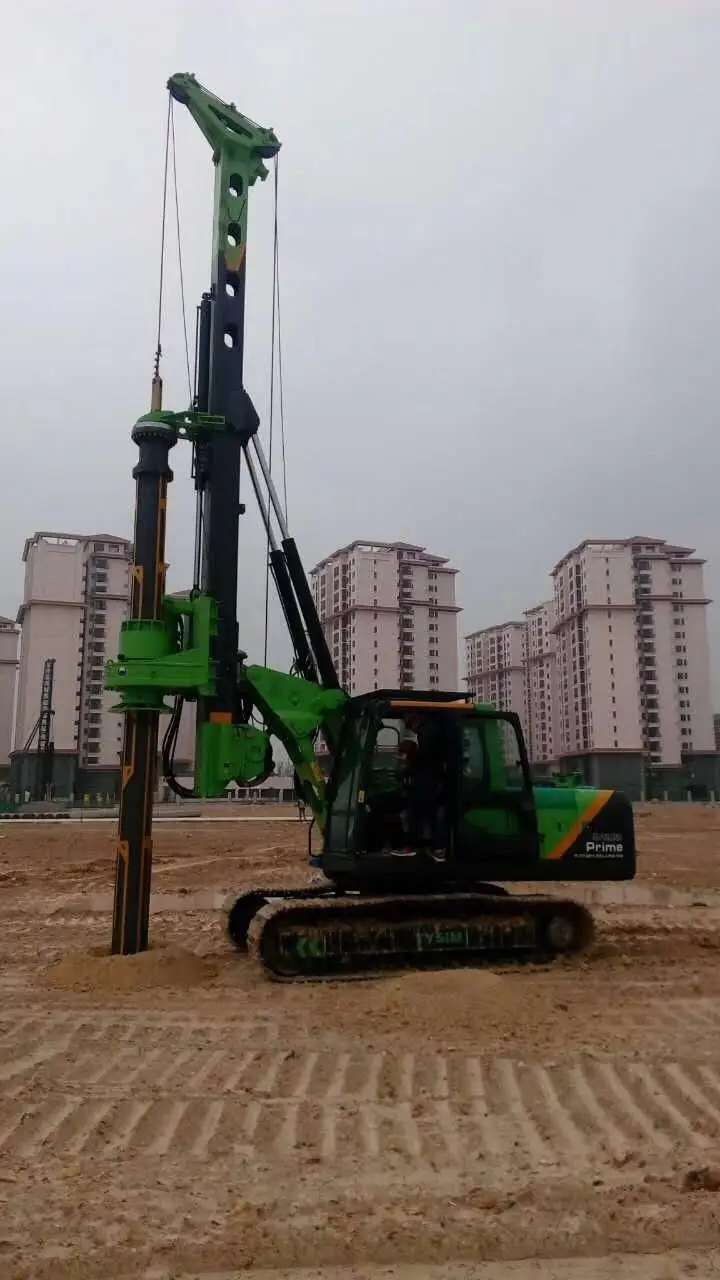

Construction Photos

Our Advantages

Obtained more than 40 patents and exported to more than 40 countries.

A professional R&D team with 10 years of industry experience.
Passed ISO9001 quality management system certification, obtained CE certification.
Engineer overseas service. Ensure the quality of the machine and good after - sales service.
Manufacturer of the most complete series of small rotary drilling rig in China.
The largest export volume of small rotary drilling rig in China.
The most rotary drilling rigs in Australian market.
First brand of small rotary drilling rig in Thailand market.

Customer Visit

Exhibition

FAQ

Q1: What is the Warranty of the Rotary Drilling Rig?

The warranty period for new machine is a year or 2000 working hours, whichever comes first will be applied.

Please contact with us for detailed Warranty Regulation.
Q2: What's your service ?

We can offer professional technical support and good after-sale service to you.

Modification methods will be different according to different models and configurations of your owned excavators.

Before modifying, you need to provide configuration, mechanical and hydraulic joints and others.

Before modifying, you need to confirm technical specification.
