TYSIM professional manufacturer debugging training crawler used full hydraulic drilling rig
- 221538.00 set
Registered Supplier
Direct Contact
Inquiry via Message
Product Details
| maximum. Crowd pressure: | 100kN | Video external inspection: | if |
| Health status: | used | maximum. Torque: | 125kN.m |
| place of origin; place of origin: | Jiangsu, China | Core Components Warranty: | 1 year |
| efficiency: | high efficiency | Pile driving speed (m/min): | According to the geological environment |
| Marketing Type: | New Products 2022 | Applicable industries: | construction project |
| port: | Shanghai, Tianjin | maximum. Operating pressure: | 34.3MPa |
| Speed of work: | 8~30 rpm | Supply capacity: | 5 sets per month |
| Main winch cable: | 150kN | payment terms: | L/C,Western Union,D/P,D/A,T/T,MoneyGram |
| Warranty: | unavailable | Dimensions (L*W*H): | 13860*2900*3500mm |
| Packaging Details: | Method 1: Naked, ro-ro shipping as a whole. (L*W*H=13970*2980*3500mm); Method 2: Flat-rack container | Make: | Sany Heavy Industry |
| Mechanical test report: | if | Unique Selling Points: | Full hydraulic system |
| brand: | Taixin | Showroom location: | Philippines, Brazil, Peru, Indonesia, Pakistan, Mexico, Russia, Kenya, Argentina, South Korea, Colombia, Kazakhstan |
| weight: | 34 kg | maximum. Drilling diameter: | 1300mm |
| maximum. Drilling depth: | 43m | maximum. Cylinder stroke: | 3200mm |
| year: | 2012 | Operating height: | 14800mm |
| Core components: | engine |
Product Description
Technical Specifications
KR125A Rotary Drilling Rig Specifications | ||
type | KR125A | |
torque | 125 kNm | |
maximum. diameter | 1300 mm | |
maximum. Drilling depth | 37 m (locking) / 43 m (friction kelly) | |
spinning speed | 8~30 rpm | |
maximum. crowd pressure | 100 kN | |
maximum. crowd pull | 150kN | |
Main winch cable | 110kN | |
Main winch line speed | 78 m/min | |
Auxiliary winch cable | 60kN | |
Auxiliary winch line speed | 60m/min | |
Stroke (crowd system) | 3200 mm | |
Mast inclination (lateral) | ±3° | |
Mast inclination (forward) | 5° | |
maximum. operational pressure | 34.3 MPa | |
pilot pressure | 3.9 MPa | |
Driving speed | 3 km/h | |
traction | 220 kN | |
working height | 14980 mm | |
working width | 3000mm | |
transport height | 3580 mm | |
Shipping width | 3000 mm | |
Shipping length | 13830mm | |
gross weight | 35 tons | |

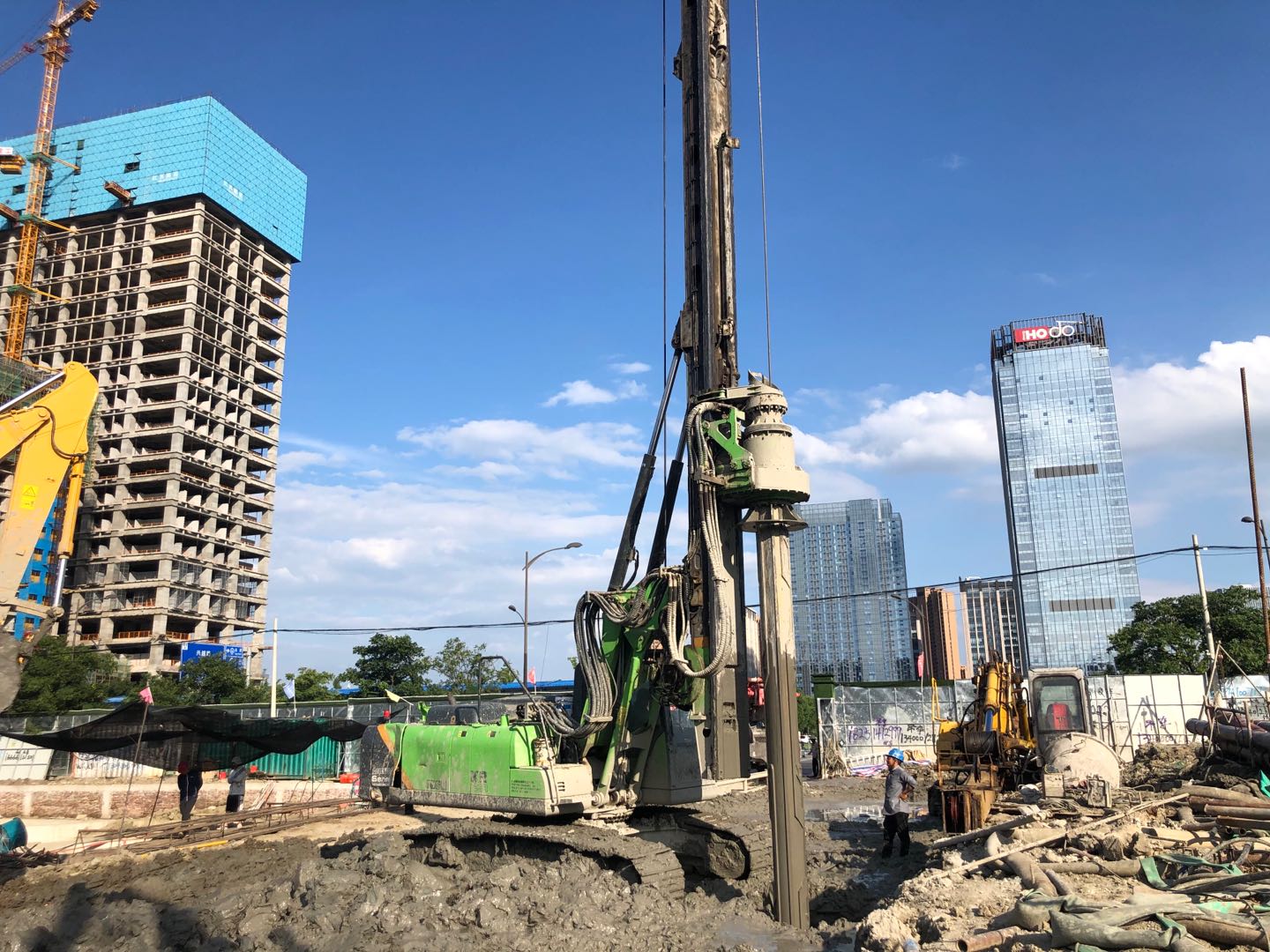

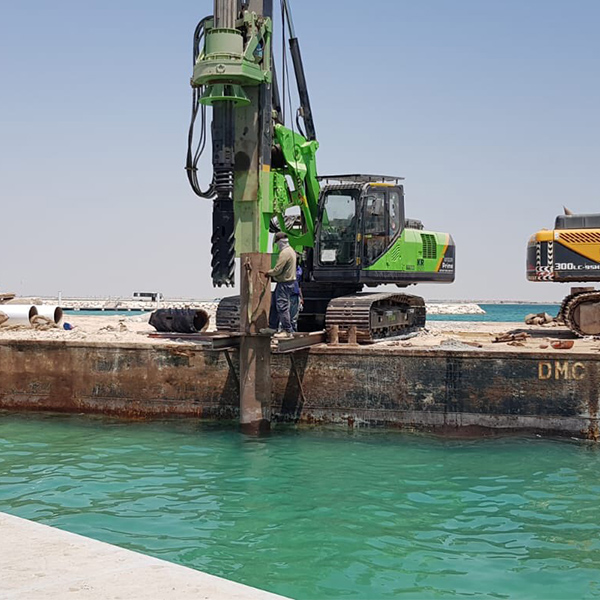

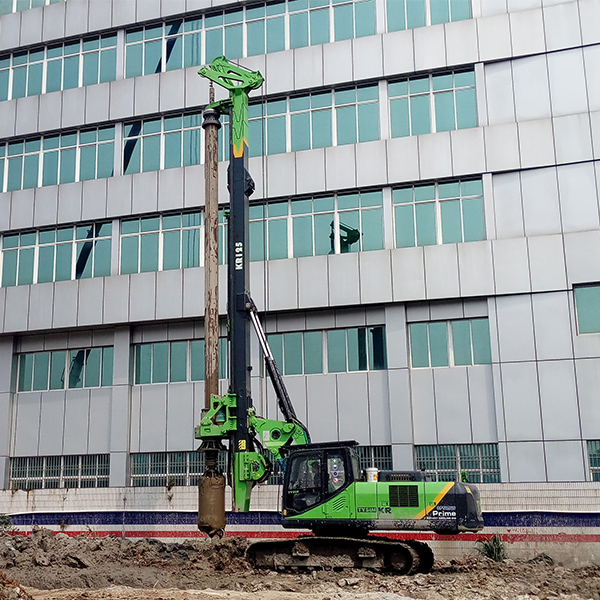

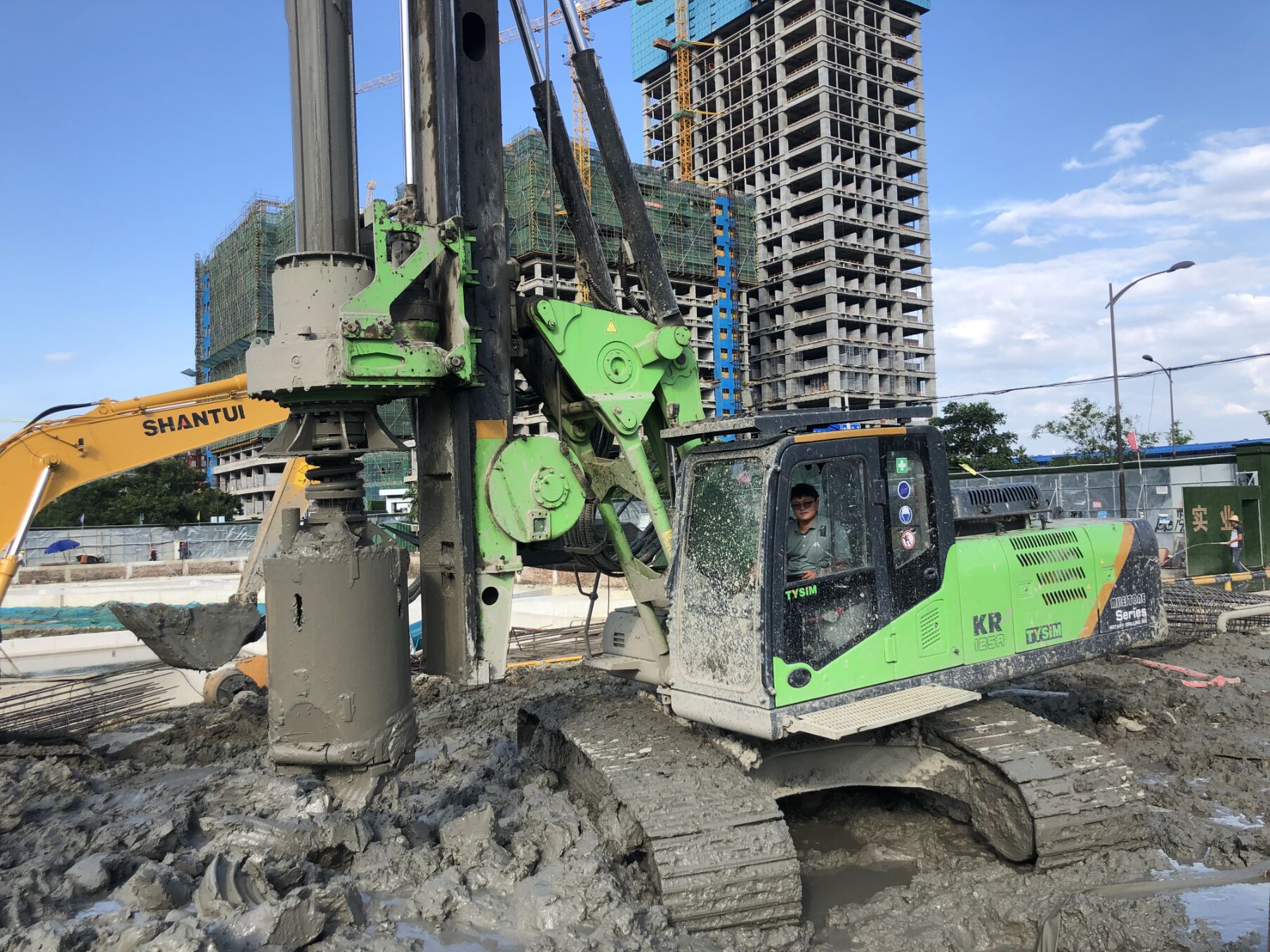

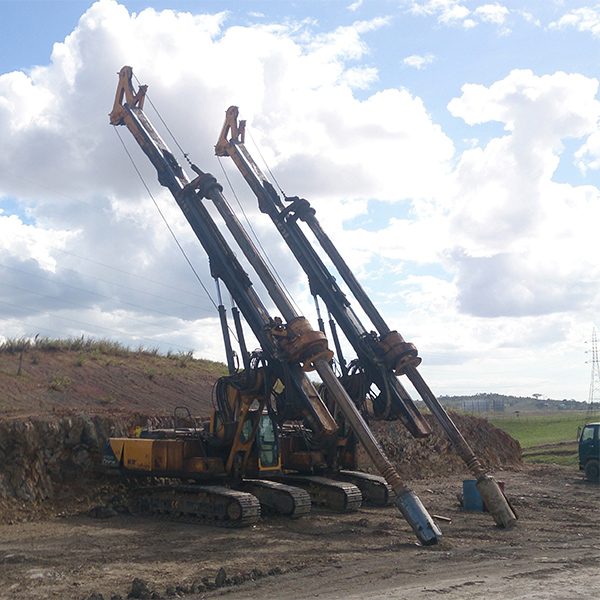

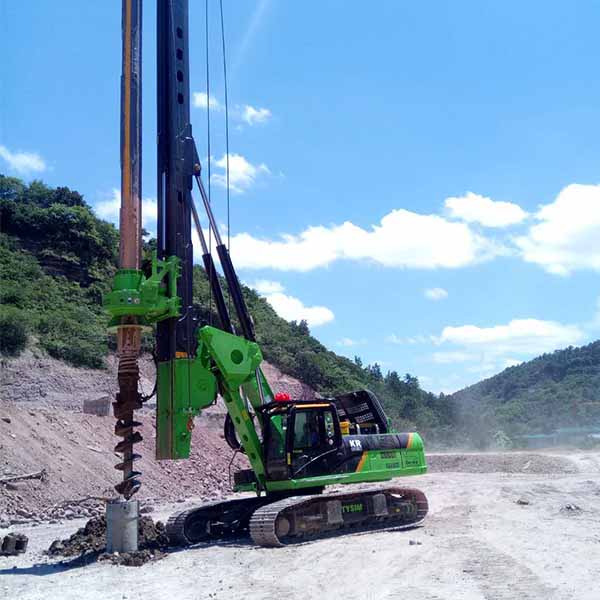

construction photos
