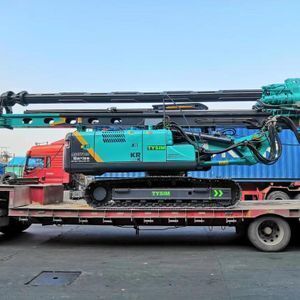

TYSIM KR80 used rotary drill piling construction equipment machine

Click here to contact

Product details

Efficiency:	High Efficiency;	Max. drilling depth:	28m(Friction )/22m(Interlocking );
Weight:	24t;	Max. drilling diameter:	1000mm;
Max. crowd pressure:	90kN;	Payment Terms:	L/C,T/T;
After-sales Service Provided:	Video technical support,Online support,Free spare parts,Field installation, commissioning and training,Field maintenance and repair service;	Warranty:	Unavailable;
Year:	2012;	Piling Speed(m/min):	geological setting;
Packaging Detail:	Method One: Nude packing and overall transport by sea with roll-on-roll-off ship. (LWH=915027003250 mm); Method Two: Flat rack container;	Max. torque:	80kN.m;
Max. cylinder stroke:	2000mm/3500mm;	Make:	TYSIM;
Supply Ability:	1 Set/Sets per Month;	After-sales Service Provided:	No overseas service provided;
used rotary pilling machine:	TYSIM KR80 used rotary drill piling construction equipment machine;	Main winch line pull:	80kN;
Port:	Shanghai, Tianjin;	Max. operating pressure:	34.3MPa;
Condition:	Used;	Place of Origin:	Jiangsu China;
Certification:	ISO9001/CE;	Working speed:	8~30rpm;
Brand Name:	TYSIM;

Product Description

Technical Specification

Technical Specification of KR80A Rotary Drilling Rig
Torque		80 kN.m
Max. diameter		1000 mm
Max. drilling depth		28 m(4 node)/22 m(3 node)
Speed of rotation		8~30 rpm
Max. crowd pressure		90 kN
Max. crowd pull		120 kN
Main winch line pull		80 kN
Main winch line speed		72 m/min
Auxiliary winch line pull		35 kN
Auxiliary winch line speed		40 m/min
Stroke(crowd system)		2000 mm/3500mm
Mast inclination(lateral)		±3°
Mast inclination(forward)		4°
Max. operating pressure		34.3 MPa
Pilot pressure		3.9 MPa
Travel speed		2.8 km/h
Traction force		98 kN
Operating height		12580 mm
Operating width		2700 mm
Transport height		3250 mm
Transport width		2700 mm
Transport length		9150 mm
Overall weight		24 t
Engine
Model		Cummins B3.9-C
Form		Water cooling, 4 Cylinder in-line, Turbocharger
Cylinder numberdiameterStroke(mm)		4102120
Displacement(L)		3.9
Rated Power(kW/rpm)		86/2200
Max. Torque(N.m/rpm)		447/1500
Kelly Bar
Type	Interlocking		Friction
Section*length	3*7800 mm		4*7800 mm
Depth	22 m		28 m
