Used KR125 soilmec crawler construction rotary pile drilling rig equipment

Supplier: Tysim Piling Equipment Co., Ltd(JS)
Region: Jiangsu, China
Contact: Ms Camilla Mao
Price: $221538.00 /set
Min. Order: 1 set

Click here to contact

Product details

Place of Origin:	Jiangsu, China;	Showroom Location:	Philippines,Brazil,Peru,Indonesia,Pakistan,Mexico,Russia,Kenya,Argentina,South Korea,Colombia,Kazakhstan;
Make:	SANY;	Marketing Type:	New Product 2020;
Max. cylinder stroke:	3200mm;	Certification:	CE and ISO9001;
Payment Terms:	L/C,Western Union,D/P,D/A,T/T,MoneyGram;	Piling Speed(m/min):	according to the geological setting;
Main winch line pull:	150kN;	UNIQUE SELLING POINT:	Fully hydraulic system;
Local Service Location:	Indonesia,Malaysia,Morocco,Kenya,Chile,Sri Lanka,Romania;	Working speed:	8~30rpm;
Year:	2012;	Max. torque:	125kN.m;
Operating height:	14800mm;	Max. operating pressure:	34.3MPa;
Machinery Test Report:	Provided;	Weight:	34t;
Efficiency:	High Efficiency;	Dimension(LWH):	1386029003500mm;
Max. drilling diameter:	1300mm;	Warranty of core components:	1 Year;
Core Components:	Engine;	Port:	Shanghai, Tianjin;
Brand Name:	TYSIM;	Max. crowd pressure:	100kN;
Condition:	Used;	Packaging Detail:	Method One: Nude packing and overall transport by sea with roll-on-roll-off ship. (LWH=1397029803500 mm); Method Two: Flat rack container;
Applicable Industries:	Construction works ;	Warranty:	Unavailable;
Max. drilling depth:	43m;	Supply Ability:	5 Sets per Month;
Video outgoing-inspection:	Provided;

Products Description

Technical Specification

Technical Specification of KR125A Rotary Drilling Rig
Type	KR125A
Torque	125 KN.m
Max. diameter	1300 mm
Max. drilling depth	37 m(Lock)/ 43 m(Friction kelly bar)
Speed of rotation	8~30 rpm
Max. crowd pressure	100 kN
Max. crowd pull	150 kN
Main winch line pull	110 kN
Main winch line speed	78 m/min
Auxiliary winch line pull	60 kN
Auxiliary winch line speed	60 m/min
Stroke(crowd system)	3200 mm
Mast inclination(lateral)	±3°
Mast inclination(forward)	5°
Max. operating pressure	34.3 MPa
Pilot pressure	3.9 MPa
Travel speed	3 km/h
Traction force	220 kN
Operating height	14980 mm
Operating width	3000mm
Transport height	3580 mm
Transport width	3000 mm
Transport length	13830mm
Overall weight	35 t

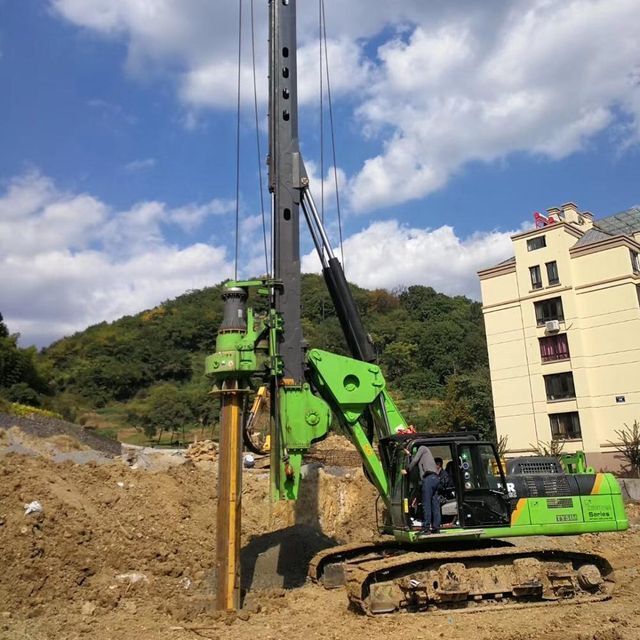

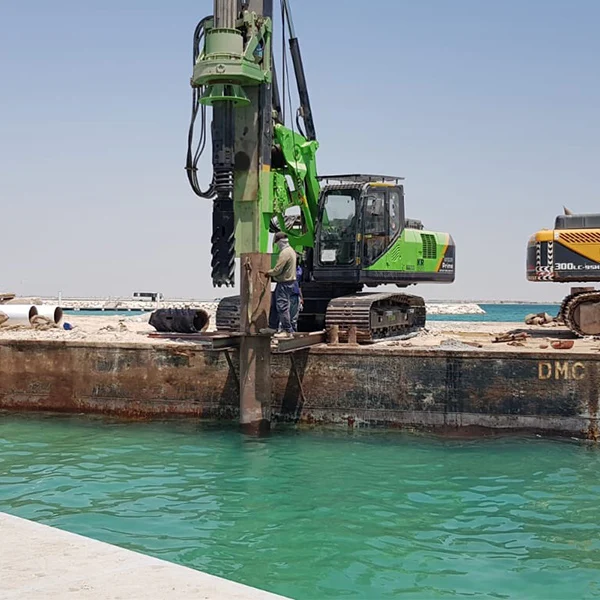

Construction Photos

Packing & Shipping

Our Advantages

Obtained more than 40 patents and exported to more than 40 countries.

A professional R&D team with 10 years of industry experience.
Passed ISO9001 quality management system certification, obtained CE certification.
Engineer overseas service. Ensure the quality of the machine and good after - sales service.
Manufacturer of the most complete series of small rotary drilling rig in China.
The largest export volume of small rotary drilling rig in China.
The most rotary drilling rigs in Australian market.
First brand of small rotary drilling rig in Thailand market.
